Cube Kathmandu Hybrid One 750 2024 Crossbar Electric Bike Grey

Cube Electric Bikes

Cube Kathmandu Hybrid One 750 2023 Crossbar


In stock

Frame Size: M 54cm

Colour: Grey

E-Bike Key Specs


Bosch 750Wh


Bosch Intuvia 100


Bosch CX Gen 4


30-160 miles

View in store

E-Bike Highlights


Cube Kathmandu Hybrid One 750 2024 Rider Review

The Cube Kathmandu model line is always one of our most popular and highly sought after Touring/Hybrid eBikes, proving itself the "must have" and "one for all" solution for riders looking for an eBike that can cope with the daily inner city commute with as much ease as it does on trails, canal paths, fire roads and long distance touring.

A name now synonymous with total two wheeled freedom with a highly regarded and ultra rugged frame, built in pannier rack, mudguards and neatly integrated front and rear lights, the new 2023 Cube Kathmandu Hybrid One returns with Bosch's latest Generation 4 CX motor and a brand new 750Wh battery for those extra long rides, or when the bike will be run in Turbo mode for extended periods.

Our 5 point review...


Lightweight hydroformed alloy frame


Longest Range 750Wh electric bike battery


10 Speed Shimano Deore Gearing


Bosch's most powerful Generation 4 Performance CX 85Nm motor


Full rider control from the new Bosch "Smart System"


Cube Kathmandu Hybrid One 750 2024 Crossbar Bosch Performance CX Motor
Cube Kathmandu Hybrid One 750 2024 Crossbar Bosch 750Wh Battery

Big upgrades for the 2023 model year...

Cube's new 2023 Kathmandu Hybrid One 750 although the entry level model, is offered with the latest Bosch Gen 4 Performance CX motor, but now includes their new 750Wh PowerTube battery and Intuvia 100 controller. You can read all about the new Bosch Smart System in our Blog Post covering it.

With a relaxed, comfortable and very much "upright" geometry and style, the Kathmandu Hybrid One builds confidence in new eBike riders with its predictable but direct handling. The 2023 Cube Kathmandu Hybrid One is available in Crossbar, Trapeze (Uni) and Easy Entry (Step through) frame styles.

Cube Kathmandu Hybrid One 750 2024 Crossbar Pannier Rack
Cube Kathmandu Hybrid One 750 2024 Crossbar Handlebars

Speed and versatility.

The 2023 Cube Kathmandu Hybrid One 750 is one of the most rugged, versatile and powerful hybrid bikes on the market and the introduction of the new Bosch Smart system for 2022 was quickly taken advantage of by Cube on this new model and carries on into 2023.

Whether you want to nip to the shops or tour across Europe, the Kathmandu Hybrid One 750 has everything you need but your luggage, straight from the box.

Cube Kathmandu Hybrid One 750 2024 Crossbar Shimano Deore Gears

Brakes & Gears

Shimano BR-MT200 levers and calipers, paired with 180mm rotors at the front and back of the bike offer exceptional bite and great modulation, making them a great choice for a variety of terrain and riding styles.

Hydraulic brakes are now very much standard on top quality ebikes, taking just a small amount of pressure to generate a stronger stopping force.

The 2023 Cube Kathmandu Hybrid One 750 eBike is equipped with Shimano's Deore M4120 10-speed rear derailleur.

With an 11-42 tooth cassette, and Shimano's Shadow+ technology the 2023 Cube Kathmandu now offers increased climbing ability over previous entry level models, bringing top level componentry to their lower priced bikes. The shifting is highly responsive and very crisp.

Cube Kathmandu Hybrid One 750 2024 Shimano MT200 Hydraulic Brakes

Hydraulic brakes are not just powerful, but almost mainteance free and even brake pad changes can be easily compeleted by a novice with the most basic of tools.

Cube Kathmandu Hybrid One 750 2024 Shimano Rear Derailleur

10 speed gearing systems are very common on Touring/Hybrid style bikes, although the Kathmandu Hybrid One takes is a step further with wider than normal ratios. Unparrelled climbing, without limiting top end speed.

Cube Kathmandu Hybrid One 750 2024 Shimano Trigger Shifters

Shimano Rapid-Fire plus shifters offer positive, crisp gear shifts on all terrain types.

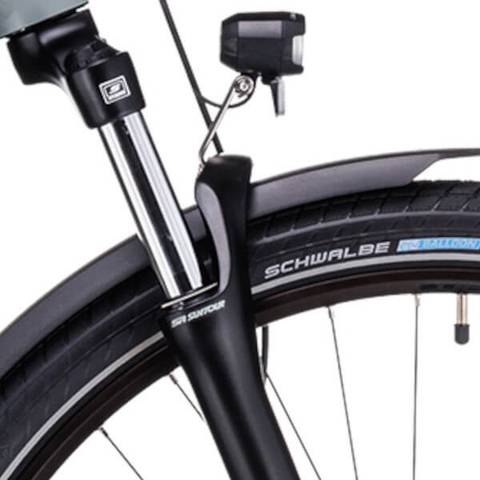

Cube Kathmandu Hybrid One 750 2024 Crossbar Suntour Forks

Wheels & Tyres

Cube have used their own factory EX23 rims on the Kathmandu for 2023 with Shimano hubs and 700c rims. The 23mm wide rims offer the ability to fit a wide choice of tyres.

The 2023 Kathmandu Hybrid One 750 comes with with the very popular and large volume Big Ben tyres from Schwalbe. These fast rolling tyres offer superbly low rolling resistance on paved roads, and the extra width and grip needed for gravel, forest tracks and tow paths and can be found on a huge number of Cube leisure bike range.

Cube Kathmandu Hybrid One 750 2024 Crossbar Suspension Seat Post

The bottom line..

Having had an almost total frame redesign in the last model year, the 2023 Cube Kathmandu Hybrid One takes much of its frame features and design from the previous years top two models, with fully internal routing for all cables and double-welded frame seams for a sleek, smooth finish to the frame often only found on much higher specification eBikes. The new Bosch 750Wh PowerTube battery has been mounted inside the frame to further protect it and enhance the frames aesthetics.

The 2023 Cube Kathmandu Hybrid One 750 features the newest and most powerful Bosch eBike drive system yet and is one of very few bikes on the market in its category to use the latest Generation 4 Performance CX motor - normally reserved for the top end mountain bikes which require significantly more power. With its 750Wh battery, this Cube eBike will once again be popular with those looking for a versatile every day commuter bike, but also those who spend their weekends off the tarmac. Keenly priced with a well thought out spec, this is a "one-bike-does-it-all" winner from Cube.


Cube Kathmandu Hybrid One 750 2024 Bosch Performance CX Gen 4 Motor

Bosch CX & Intuvia 100 eBike System

The new Cube Kathmandu One 750 2023 eBike features the latest Gen 4 Bosch Performance CX crank drive motor, with a brand new twist.

The recently updated 250w CX system now provides 85Nm of torque and peaks at 500w. With 4 assistance modes, it can now provide up to 340% assistance in Turbo mode.

In addition, the new eMTB mode allows the user to set off in one assistance mode and clever sensor driven system will provide exactly the right amount of power right when you need it and less when you don't.

As well as taking advantange of the new Bosch Smart system motor and battery system, its also the very first to feature Bosch's brand new Intuvia 100 display*.

  • Please note, due to supply constraints, there is a small possibility that your new Kathmandu Hybrid One may arrive without its Bosch Intuvia 100 display. The LED Remote is designed as a standalone control system and the bike can still be used either with the LED Remote alone, or, you can pair the bike with your phone and use the new Bosch Smart System eBike Flow mobile app as the display. Once they arrive, we will be shipping the parts out to customers and/or inviting them in to have it fitted free of charge. The fitting of the screen is incredibly simple, and our Technical team will be on hand 6 days a week to assist.
Cube Kathmandu Hybrid One 750 2024 Crossbar Bosch Intuvia 100 Display

The new Bosch Intuvia 100 display is neat and super compact with a bright, intuitive LCD display screen and tailored around providing simple, clear and easy to use rider information. It can also be updated wirelessly via the new eBike Flow app.

Cube Kathmandu Hybrid One 750 2024 Bosch Performance CX Motor

The new Bosch Smart System Generation 4 Performance CX motor is essentially the same as the previous version, only now includes a Bluetooth module as standard, allowing riders to see and do much more, including "over the air" software updates without having to go back to their dealer. It also includes a basic diagnostic feature.

Cube Kathmandu Hybrid One 750 2024 Bosch PowerTube 750Wh battery

The Bosch PowerTube 750Wh battery neatly fits inside the frame. The whopping 750Wh battery is the latest in the Bosch eBike line-up offering the very longest range possible. It can be charged both in the bike or when removed.

Cube Kathmandu Hybrid One 750 2024 What's Included

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Why choose E-Bikeshop?


General Bike Specifications

Frame Cube Aluminium Superlite Frame

Forks SR Suntour NVX30 Coil, 100mm

Brakes Shimano BR-MT200 hydraulic disc brakes, 180mm Rotors

Shifters Shimano Deore SL-M4100-R, Rapidfire-Plus

Rear Mech Shimano Deore RD-M4120-SGS, ShadowPlus, 10-Speed

Cassette Shimano Deore CS-M4100, 11-42T

Chain KMC X10

Wheelset Rodi Blackrock 23 Rims laced on Shimano Centerlock hubs

Tyres Schwalbe Big Ben, Performance, K-Guard, 55-622

Handlebars CUBE Comfort Trail Bar, 700mm

Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable

Headset ACROS AZF-1035 ICR

Seatpost CUBE Suspension Seatpost, 30.9mm

Saddle Natural Fit Sequence Comfort

Weight 27 kg

Electric Bike Specifications

Battery Bosch PowerTube 750Wh, with BMS Management

Display Bosch Intuvia 100 & LED Remote

Motor Bosch Drive Unit Performance CX Generation 4 85Nm 250W

Range 30-160 miles of power assisted range, depending on terrain



Yes we offer a range of finance purchase options. These vary from 0% short term, right through to longer term loans on a % APR.

To see the estimated monthly installments on any bike, simply click the 'Calculate Payments' button towards the top of this page. You can select the deposit amount and loan period to quickly calculate the monthly cost before proceeding to place your order.

Finance is automatically processed online at the checkout when selected, you can learn more on our dedicated E-Bike finance page.

You can see what sizes this model is available in at the top of this page. Sizes are listed in centimeters and also specified S, M, L etc.

Some models have more available sizes than others. Whilst some bikes are only available in a 'one size fits all'.

Next to the size options at the top of this page, click 'Find my size'. Enter your inside leg measurement along with your arm length and height (in cm). Our special size calculator will show you what size you need to order. These are displayed in S, M & L etc to correspond with the size options.

Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.

You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:

In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with estimated date of arrival shown
Sold Out / Out of Stock: The model is completely sold out in this variant and no longer available to order

If this bike is showing as Out of Stock in your size, its worth checking if there's colour options as the same model and size may be available in a different colour. Failing that, we also offer a handy link to 'View similar bikes in this size'.

If you're placing a pre-order using the deposit option (instead of paying in full), it's not possible to add further items to your cart alongside the bike. Please get in touch once your pre-order is placed and we'll be happy to add any extras that you may require.

Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey. If so please select 'Collect in store' at the checkout.

We will then prepare your new eBike and be in touch to book a suitable collection day/time.

One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.

If colour options are available, these will show below the size options at the top of this page. It's best to choose your size first and then click on each colour option to check its availability in that size.

Not all of our electric bikes have colour options available.

At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.

We can talk you through your requirements, riding style and offer expert advice as to which model to select.

We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier. We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.
Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any extras fitted and a handover session on the bike itself by one of our eBike experts.

Delivery for UK 'In Stock' items ordered before 1pm should be expected for delivery the next business day (this excludes weekends and public holidays).

You can learn more on our E-Bike delivery page. International buyers can view international delivery times.

For delivery on 'Pre-Order' items, the estimated arrival date is shown at the point of order. On arrival our team will make contact to settle any outstanding balance. Once settled in full, we'll then proceed to dispatch your new eBike without delay.

Yes, we exclusively offer 14 days free insurance on all of our new electric bike purchases. This is for UK orders only. Simply select to opt-in to the 14 days free insurance in the cart.

This not only covers for theft, but also covers you for public liability, breakdown, accessories, accidental damage and returning home cover. You can learn more on the dedicated electric bike insurance page.



We've just purchased our 4th Cube Kathmandu e-bike from e-bikeshop.co.uk and would recommend them as being friendly, knowledgeable and easy to do business with. I raised a minor issue about the supplied pedals which was dealt with promptly and efficiently.

RICHARD - Read more

Customer Reviews

Based on 3 reviews
Ian Smart
(Cube) One for the road

Excellent service from e-bikeshop, bought one day, arrived the next. Terrific.
I cannot agree with an earlier comment about setting up, the manual is comprehensive but, being in several languages, you have to wade through it to reach the English versions. I have now marked all the English sections which makes life very much easier. I did have a query about range and emailed the store to then, almost immediately, had a call-back in which my fears were allayed.
Although not been ridden much, yet, the bicycle moves smoothly so I look forward to some lengthy rides.

paul gollop
Good quality e cycle.

So far I have no issues with the bike,it seems well made and very robust.I have only ridden it for a few days and not covered a lot of miles but I have put it through its paces on some steep hills in devon and it performed very well.
The only criticism I have is with the cabling runs at the handlebar end.They seem very messy and untidy but that is only cosmetics but it does detract from an otherwise good looking bike.Apart from that it would have got 5 * rating

Nick Bennett
Great bike but awful user manual

Love the bike - like a moped on 'auto' but bettery usesupreally fast, eco setting is excellent if you just need a helping hand up hills.
The documentation that comes with it is deplorable - incredibly badly laid out and, strangely from Germany, really difficult to use.
Initial set-up instructions are entirely absent. Grrr.

So great bike (yay) but nightmare to set-up and understand all elements (boo).
