WHO IS THIS BIKE
SUITABLE FOR?
The brand new AllMtn 10 2022 is another fantastic value all mountain and trail bike the new Haibike model year and builds on the spec of others in the now incredibly vast AllMtn Range.
Built around the brand new Yamaha PW-X3 motor and their also new 750Wh in-tube battery and with an impressive specification, the new AllMtn 10 eMTB is designed to do absolutely everything in one neat, eye-catching package.
Our 5 point review...
1
Lightweight hydroformed alloy frame
2
Longest range Yamaha 750Wh electric bike battery
3
Offering the latest gen Shimano XT 12-speed gearing
4
Latest Yamaha PW-X3 motor with 85Nm torque output
5
Yamaha Interface X display with Bluetooth connectivity
Features
The 2022 Haibike AllMtn 10 carries the same frame geometry as the rest of the model range, but in a super tough alloy frame and with a keen eye on performance at a mid-spec price point.
Perhaps the most exciting update for the new model year is the new Yamaha PW-X3 motor and brand new 750Wh battery. With an impressive 85Nm of torque and a battery that really does allow riders to go all day, this new AllMtn model from Haibike will be one the bike to beat on the trails in 2022.

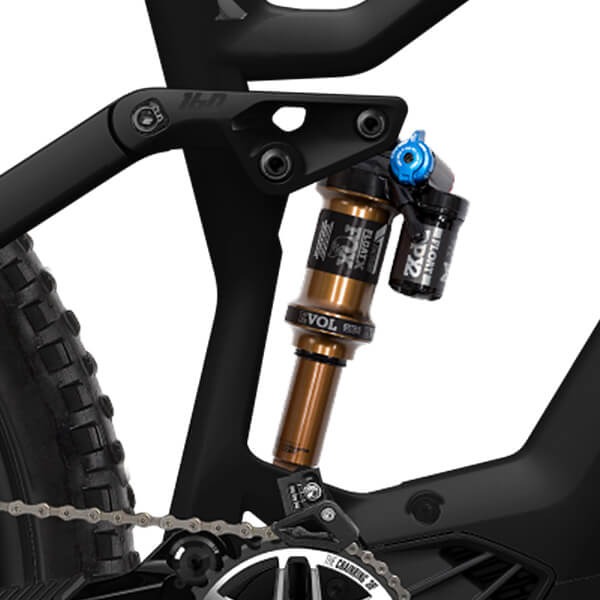

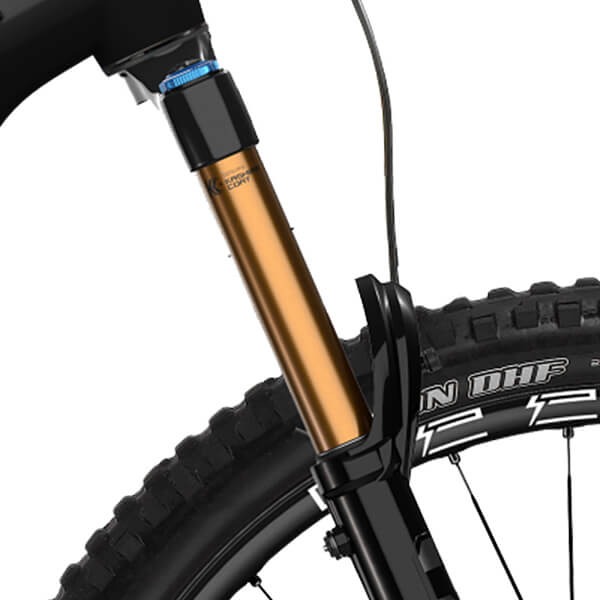

Regardless of where you plan to use your new AllMtn 10, the Fox Factory 38 air forks and Fox Factory Float X rear shock can soak it up in 160mm of plush travel.
Offering multi-way adjustment and tuning allows you to tailor your setup to your weight, riding style and terrain with a complete 160mm of travel front and rear.
Brakes & Gears
Continuing the theme of top shelf componentry, the Haibike AllMtn 10 gets the very best Shimano anchors in the form of the XT BR-M8120 set up.
These 4 piston brakes offer a huge amount of braking force, making them a perfect option for manufacturers looking to pull an eBike to a stop on even the steepest and most technical descents.
The new single finger levers offer multi-directional adjustment for the perfect pull, every time. Paired with monster 203mm discs up front and 203mm at the rear, this tried and tested competition capable setup is and easily maintained but ultra powerful.
12 Speed gearing has become the "go to" choice for eMTB manufacturers in the mid-high price tier, and the 2022 Haibike AllMtn 10 gets its 12 gears to match its brakes for 2022 in the form of the Shimano XT 8100 ShadowPlus group set.
Its super wide ratio 10-51T cassette really takes the sting out of the long ascents, without holding you back in top speed on open ground and downhill sections and offers a useful gear for every scenario, regardless of terrain.
Larger 13t pulley wheels reduced overall provide better chain management while increasing efficiency and are directly compatible with boost 12 speed cassettes.
Working together, the Shimano RapidFire shifters and the the ShadowPlus clutch system offer smooth, precise and chain slap free shifting on the fly.
Faster piston retraction gives superior modulation and much greater fast & slow speed control.
Shadow Plus rear derailleur keeps chain tension in check and chain slap to a minimum.
The Rapid-Fire Plus shifters provide smooth but positive, on-the-fly shifting.
Wheels & Tyres

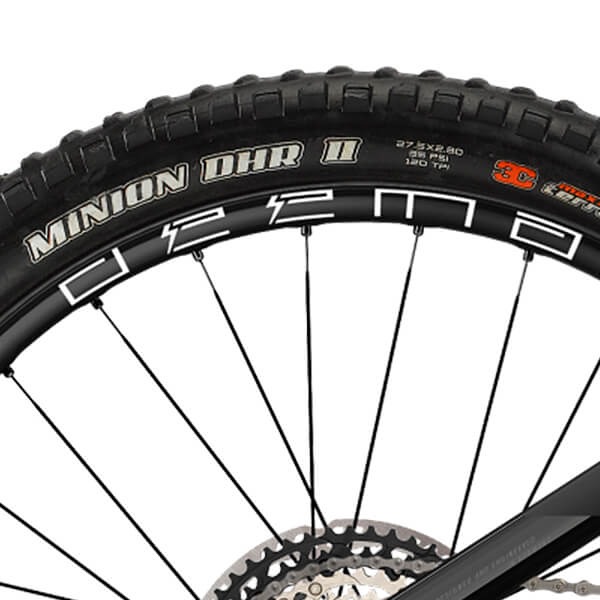

Continuing the AllMtn trend, the AllMtn 10 also gets a "mullet" wheel set up with a 29" front and 27.5" rear in the form of DT Swiss HT1900 gravity specific components.
The 2022 Haibike AllMtn 10 tyre setup offers a clue to its purpose.
With a Maxxis Minion Assegai MaxxTerra up front and a Maxxis Minion DHR II at the rear, these Tubeless Ready tyres are designed to be fast, precise and provide useful feedback on any terrain and can be set up tubeless when we build your new bike at just £49.99.
The bottom line..
The AllMtn 10, like most Haibike models is aggressively styled with a highly "angular" aesthetic. Offering full internal cable and hose routing including the factory fitted dropper post, everything is tucked neatly out of the way.
The high gloss black paint finish against the Kashima suspension coating is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.
The high gloss black paint finish against the Kashima suspension coating is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.
Power
The new Haibike AllMtn 10 2022 eBike features the latest Yamaha PW-X3 drive system.
This brand new motor for 2022 offers 85Nm of torque and peaks at over 500w. With 4 assistance modes, it can now provide up to 360% assistance in its highest power mode.
Part of the brand new PW-X3 system for 2022, the AllMtn 10 Freeride also gets a new 750Wh battery. Completely integrated into the frame, Haibike have neatly incorporated it into the downtube of the frame but with a key lock detachment, allowing it to be charged both on and off the bike.
The new 2022 Yamaha Interface X display offers battery and assist levels viewable from a display mounted at the centre of the stem, whilst the new control buttons mounted to the left of the handlebars allow the user to toggle ride modes on-the-fly. More data is available via the Bluetooth integration.
The Yamaha Interface-X offers immedate data on selected powermode and battery status, with more infromation available via Bluetooth.

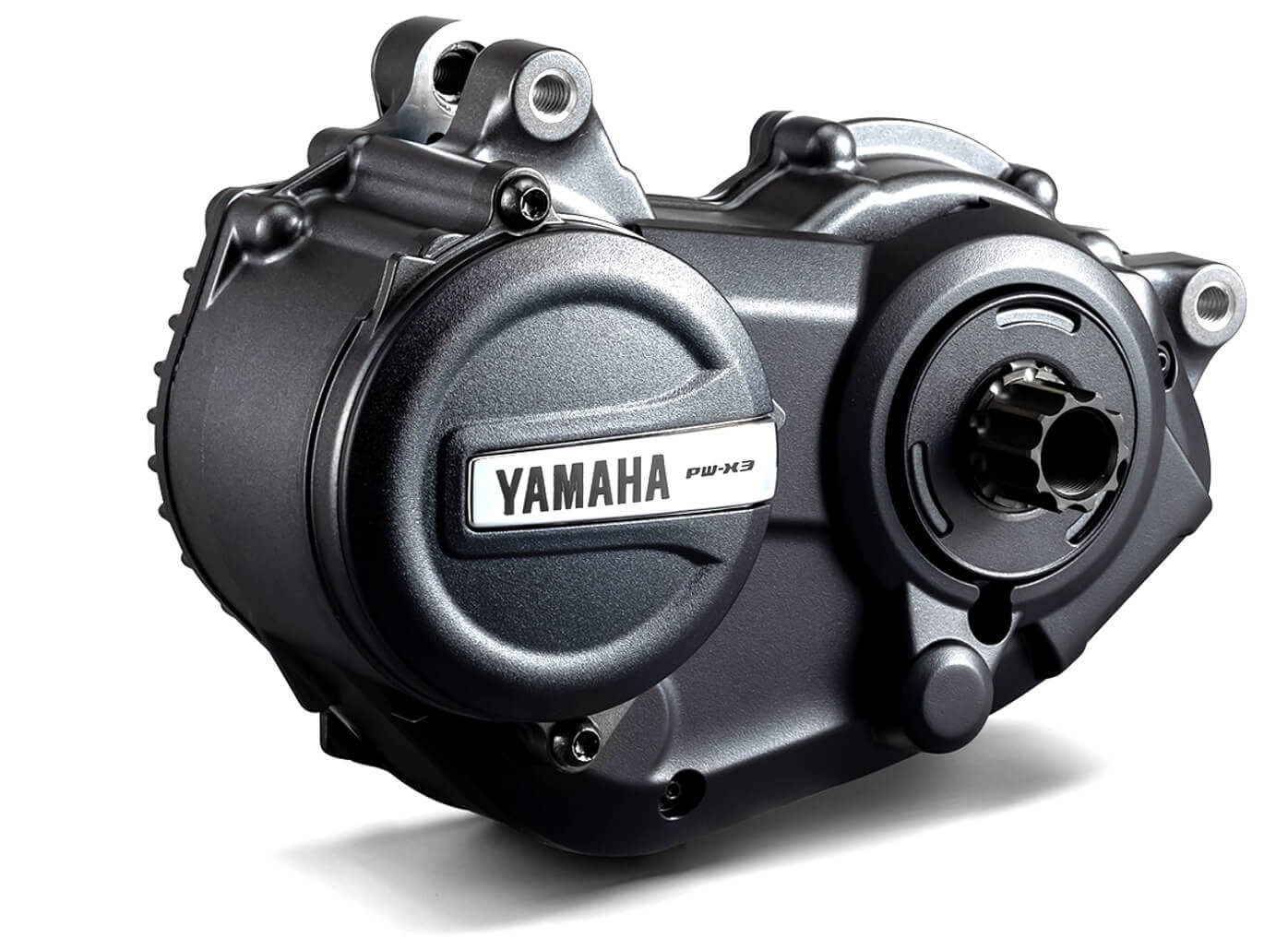

20% smaller and 10% lighter than the PW-X2, the new PW-X3 delivers 85Nm of natural feeling power with every pedal stroke.
The Yamaha 750Wh battery neatly fits inside the frame. The whopping 750Wh battery is the very largest in the model range from Yamaha, and offers upto 160 miles of worry free assisted riding.
What's included
Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Specifications
General Bike Specifications
Frame Aluminium, disc brake Post Mount
Forks FOX 38 Factory Kashima, air, Travel: 160mm
Rear Shock FOX Float X Factory EVOL LV, air
Brakes Shimano Deore XT M8100, aluminium, 203mm Rotors
Shifters Shimano Deore XT M8100, trigger switch
Rear Mech Shimano Deore XT M8100 Shadow Plus, 12-speed
Cassette Shimano M6100, 10-51 teeth
Chain Shimano SLX M7100
Wheelset Mavic E-Deemax
Tyres Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 66-584
Handlebars Haibike Components TheBar +++ Gravity 780mm
Stem Haibike Components TheStem 2, A-head, Bar bore: 31.8mm
Headset Acros Cable integration
Seatpost Dropper-Post Remote, telescope, 34.9mm, aluminium
Saddle fi'zi:k Terra Aidon X5-160
Weight TBC
Electric Bike Specifications
Battery Yamaha InTube 750Wh
Display Yamaha Interface - X
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h
Range 30-160 miles of power-assisted range, depending on terrain
