Haibike Electric Bikes

Haibike AllMtn 2 2022

£4,399.00

Pre-order
Haibike AllMtn 2 2022


Frame Size: S 41cm

Battery

Yamaha 630Wh

Display

Display A

Motor

Yamaha PW X3

Range

30-140 miles

View in store

Why choose E-Bikeshop?

E-Bikeshop's top alternate picks

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Haibike AllMtn 2 Rider Review
E-Bikeshop What's Included

The brand new AllMtn 2 2022 is another fantastic value all mountain and trail bike the new Haibike model year and builds on the spec of others in the now incredibly vast AllMtn Range. A new alloy frame built around the brand new Yamaha PW-X3 motor and a 630Wh in-tube battery and with an impressive specification, the new AllMtn 2 eMTB is designed to do absolutely everything in one neat, eye-catching package. This is the lowest priced AllMtn model to take advantage of both the new PW-X3 motor.

Although very much the entry level model in the range, the AllMtn 2 offers the largest amount of power on offer from a Yamaha motor, and a well thought out specification for its sub £4,000 price tag . It'll offer best value to new riders, or those looking for a bit of extra help on the steeper trail sections without killing the fun for more competitive riders.

Our 5 point review...

1

Lightweight hydroformed alloy frame

2

Up to 160 miles from the Yamaha 630Wh electric bike battery

3

Ultra wide range SRAM SX Eagle 12-speed gearing

4

Latest Yamaha PW-X3 motor with 85Nm torque output

5

Yamaha Interface X display with Bluetooth connectivity

Features

Haibike AllMtn 2 Internal Yamaha Battery
Haibike AllMtn 2 Brakes

Strength and value..

The 2022 Haibike AllMtn 2 carries the same frame geometry as the rest of the model range, but in a super tough alloy frame and with a keen eye on performance at an entry level price point.

Perhaps the most exciting update for the new model year is the new Yamaha PW-X3 motor and 630Wh battery. With an impressive 85Nm of torque and a battery that really does allow riders to go all day, this new AllMtn model from Haibike will be one of the bikes to beat on the trails in 2022.

Haibike AllMtn 2 RockShox Suspension Forks
Haibike AllMtn 2 RockShox Rear Shock

Rockshox Suspension

Whatever trail you call home, the AllMtn 2 with Rockshox 35 Gold RL air forks and Rockshox Deluxe Select Plus rear shock can soak it up in 160mm of plush travel.

Offering multi-way adjustment and tuning allows you to tailor your setup to your weight, riding style and terrain with a complete 160mm of travel front and rear.

Haibike AllMtn 2 Brakes & Gears

Brakes & Gears

Continuing the theme of top shelf componentry, the Haibike AllMtn 2 gets a strong set of brakes in the form of the TRP Slate T4 set up.

These 4 piston brakes offer a huge amount of braking force, making them the go to option for manufacturers looking to pull an eBike to a stop on even the steepest and most technical descents.

Paired with 203mm discs up front and 203mm at the rear, the new Shimano Deore setup is and easily maintained but ultra powerful set up at a great value price point.

12 speed gearing has become the "go to" choice for eMTB manufacturers and 2022 Haibike AllMtn 2 is no different. It gets its 12 gears for 2022 in the form of the Shimano SRAM SX Eagle group set.

Its super wide ratio 10-50T cassette really takes the sting out of the long ascents, without holding you back in top speed on open ground and downhill sections and offers a useful gear for every scenario, regardless of terrain.

The SRAM Trigger Switch shifters offers fast, precise shifting with minimal chain slap, leaving you to concentrate on the trail ahead.

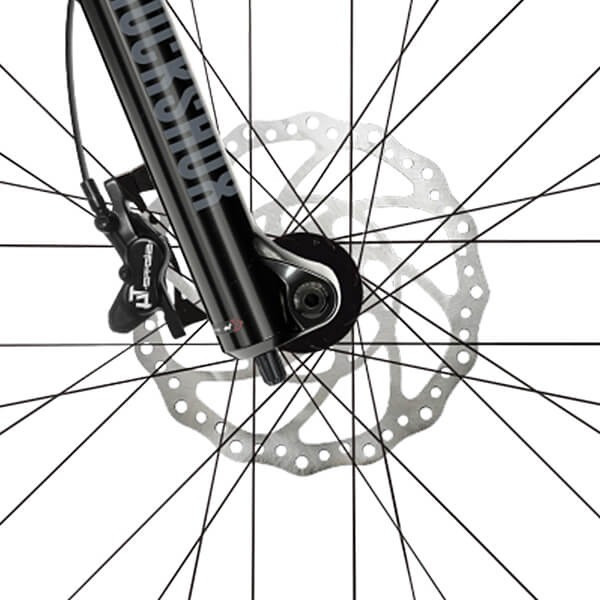

Haibike AllMtn 2 TRP Brakes

Slate TRP brakes are a great value alterntive to Shimano, with equal performance and stopping power.

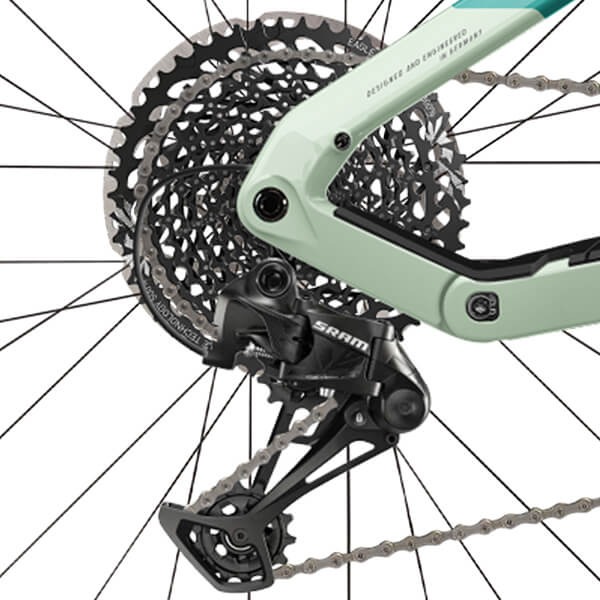

Haibike AllMtn 2 Sram SX Rear Mech

The superwide 10-50t Sram cassette has a gear for every terrain type.

Haibike AllMtn 2 Sram SX Shifters

SRAM Trigger Switch shifters provide instaneous gear under load

Haibike AllMtn 2 Yamaha Saddle

Wheels & Tyres

Continuing the AllMtn model range trend, the AllMtn 2 also gets a "mullet" wheel set up with a 29" front and 27.5" rear in the form of WTB ST i30 components.

The 2022 Haibike AllMtn 2 tyre setup offers a clue to its design purpose and are very much top level components on an entry level bike. With a Maxxis Minion DHF up front and a Maxxis Minion DHR II at the rear, these Tubeless Ready tyres are designed to be fast, precise and provide useful feedback on any terrain and can be set up tubeless when we build your new bike at just £49.99.

Haibike AllMtn 2 Maxxis Minion Tyres

The bottom line..

The AllMtn 2, like most Haibike models is aggressively styled with a highly "angular" aesthetic. Offering full internal cable and hose routing including the factory fitted dropper post, everything is tucked neatly out of the way.

The high gloss finish and colour choice is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.

The high gloss finish and colour choice is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.

Power

Haibike AllMtn 2 Yamaha PW X3 Drive Unit

Yamaha PW-X3 and Side Switch System

The new Haibike AllMtn 2 2022 eBike features the latest Yamaha PW-X3 drive system. This brand new motor for 2022 offers 85Nm of torque and peaks at over 500w. With 2 assistance modes, it can now provide up to 360% assistance in its highest power mode.

Part of the brand new PW-X3 system for 2022, the AllMtn 2 also gets a 600Wh battery. Completely integrated into the frame, Haibike have neatly incorporated it into the downtube of the frame but with a key lock detachment, allowing it to be charged both on and off the bike.

The new Yamaha Side Switch display is compact and mounted on the left handlebar. Intuitive and easy to use, the LCD display screen is easy to read and navigate on the fly.

Haibike AllMtn 2 Yamaha Side Switch A

The Yamaha Side Switch is the most commonly used Yamaha display system and has all the features a rider needs in one neat package.

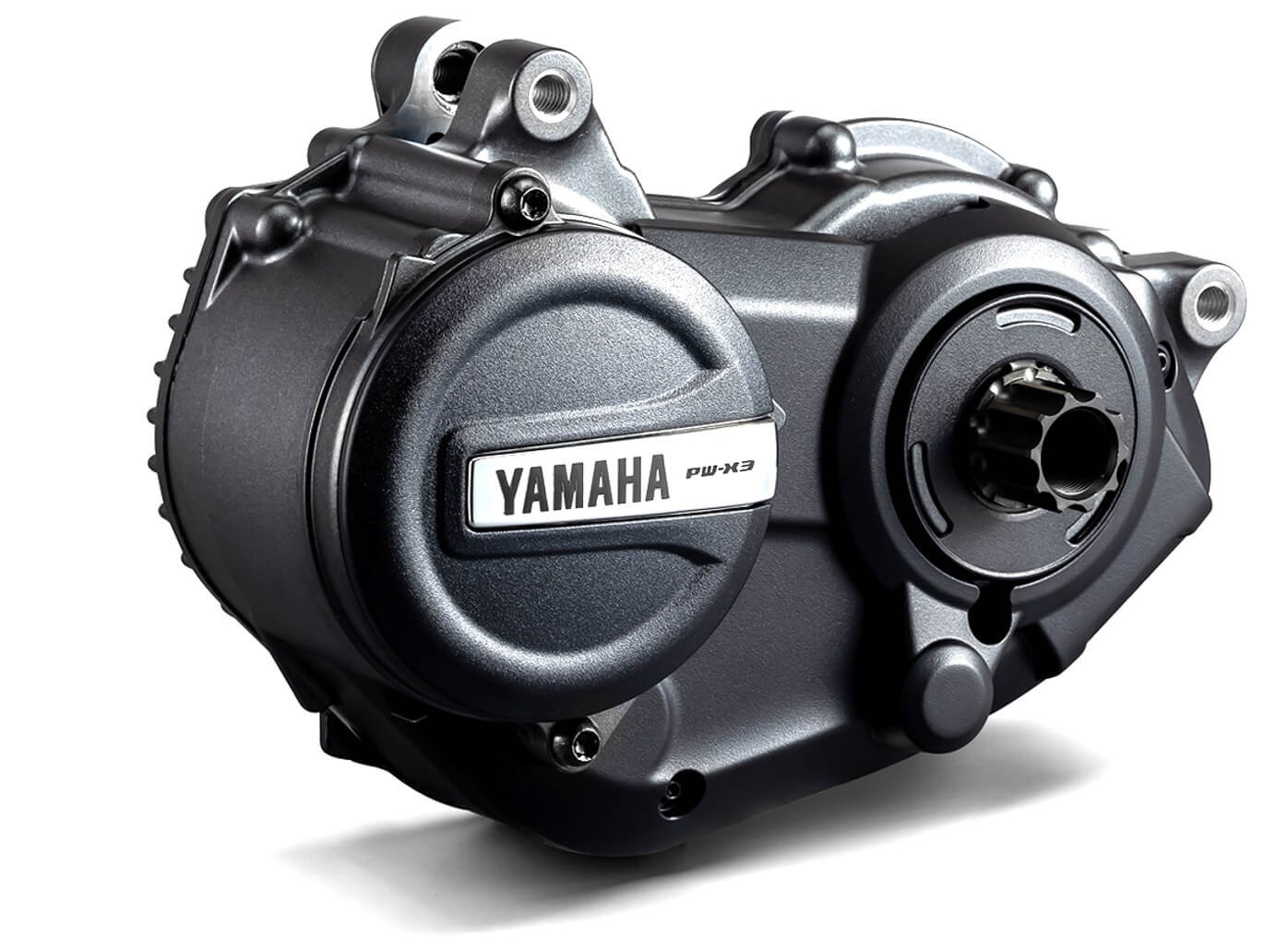

Haibike AllMtn 2 Yamaha PW X3 Motor

The Yamaha motor system gets a new update for 2022 in the form of the PW-X3. With 85Nm, it has all the power you need to cover any terrain type.

Haibike AllMtn 2 Yamaha Battery

The AllMtn 2 gets the new Yamaha 630Wh battery, offering upto 160 miles on a single charge.

Haibike AllMtn 2 Yamaha Side Switch Display A

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Aluminium, disc brake Post Mount

Forks RockShox 35 Gold RL, air, Travel: 160mm

Rear Shock RockShox Deluxe Select Plus, air

Brakes TRP Slate T4, aluminium

Shifters Sram SX Eagle, trigger switch

Rear Mech Sram SX Eagle, 12-speed

Cassette Sram Eagle PG1210, 11-50 teeth

Chain Sram SX Eagle

Wheelset WTB ST i30 TCS, double-walled rim

Tyres Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 66-584

Handlebars Haibike Components TheBar +++ Gravity 780mm

Stem Haibike Components TheStem 2, A-head, Bar bore: 31.8mm

Headset Acros Cable integration

Seatpost Dropper-Post Remote, telescope, 31.6mm, aluminium

Saddle Selle Royal Vivo

Weight TBC

Electric Bike Specifications

Battery Yamaha InTube 630Wh

Display Yamaha Side Switch

Motor Yamaha PW-X3, 250W, 85Nm, 25km/h

Range 30-140 miles of power-assisted range, depending on terrain
