Haibike Electric Bikes

Haibike AllMtn 4 2022

£4,699.00

Pre-order
Haibike AllMtn 4 2022


Frame Size: S 41cm

Battery

Yamaha 750Wh

Display

Display A

Motor

Yamaha PW X3

Range

30-160 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Haibike AllMtn 4 2022 Electric Bike Rider Review
E-Bikeshop What's Included

The brand new AllMtn 4 2022 is another fantastic value all mountain and trail bike the new Haibike model year and builds on the spec of others in the now incredibly vast AllMtn Range.

A new alloy frame built around the brand new Yamaha PW-X3 motor, their also new 750Wh in-tube battery and with an impressive specification, the new AllMtn 4 eMTB is designed to do absolutely everything in one neat, eye-catching package. This is the lowest priced AllMtn model to take advantage of both the new motor as well as the largest battery on offer.

Although towards the entry level of the range, the AllMtn 4 offers a huge amount of support on a platform suitable for those just starting out, while still offering great fun for higher skilled riders.

Our 5 point review...

1

Lightweight hydroformed alloy frame

2

Longest range Yamaha 750Wh electric bike battery

3

Offering the latest gen Shimano XT 12-speed gearing

4

Latest Yamaha PW-X3 motor with 85Nm torque output

5

Easy to use Yamaha Side Switch rider interface

Features

Haibike AllMtn 4 2022 Alloy Hydroformed Frame
Haibike AllMtn 4 2022 Yamaha PW X3 Motor Drive Unit

A bike for everything..

The 2022 Haibike AllMtn 4 carries the same frame geometry as the rest of the model range, but in a super tough alloy frame and with a keen eye on performance at an upper-entry level price point.

Haibike AllMtn 4 2022 Rock Shox Front Forks
Haibike AllMtn 4 2022 Rock Shox Rear Shock

Rockshox Suspension

Regardless of where you plan to use your new AllMtn 4, the Rockshox Yari RC air forks and Rockshox Deluxe Select Plus rear shock can soak it up in 160mm of plush travel.

Offering multi-way adjustment and tuning allows you to tailor your setup to your weight, riding style and terrain with a complete 160mm of travel front and rear.

Haibike AllMtn 4 2022 Shimano Deore Brakes & Gears

Brakes & Gears

Continuing the theme of top shelf componentry, the Haibike AllMtn 4 gets a strong set of Shimano brakes in the form of the Deore M6120 set up.

These 4 piston brakes offer a huge amount of braking force, making them the go to option for manufacturers looking to pull an eBike to a stop on even the steepest and most technical descents.

Paired with monster 203mm discs up front and 203mm at the rear, the new Shimano Deore setup is and easily maintained but ultra powerful set up at a great value price point.

12 speed gearing has become the "go to" choice for eMTB manufacturers in the mid-high price tier, and the 2022 Haibike AllMtn 4 gets its 12 gears for 2022 in the form of the Shimano M7100 SLX group set.

Its super wide ratio 10-51T cassette really takes the sting out of the long ascents, without holding you back in top speed on open ground and downhill sections and offers a useful gear for every scenario, regardless of terrain.

Haibike AllMtn 4 2022 Shimano Deore Brakes

203mm rotors and 4 piston calipers provide ultimate stopping force

Haibike AllMtn 4 2022 Shimano Deore SLX Rear Mech

Shadow Plus rear derailleur keeps chain tension in check and chain slap to a minimum.

Haibike AllMtn 4 2022 Shimano Deore SLX Shifters

The Rapid-Fire Plus shifters provide smooth but positive, on-the-fly shifting.

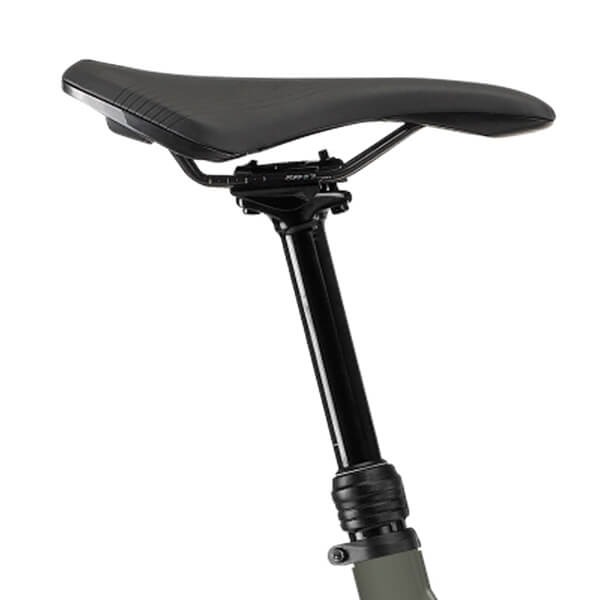

Haibike AllMtn 4 2022 Yamaha Saddle Post

Wheels & Tyres

Continuing the AllMtn model range trend, the AllMtn 4 also gets a "mullet" wheel set up with a 29" front and 27.5" rear in the form of WTB ST i30 components.

The 2022 Haibike AllMtn 4 tyre setup offers a clue to its design purpose. With a Maxxis Minion DHF up front and a Maxxis Minion DHR II at the rear, these Tubeless Ready tyres are designed to be fast, precise and provide useful feedback on any terrain and can be set up tubeless when we build your new bike at just £49.99.

Haibike AllMtn 4 2022 Maxxis Minion Tyres

The bottom line..

Perhaps the most exciting update for the new model year is the new Yamaha PW-X3 motor and brand new 750Wh battery.

With an impressive 85Nm of torque and a battery that really does allow riders to go all day, this new AllMtn model from Haibike will be one the bike to beat on the trails in 2022.

The AllMtn 4, like most Haibike models is aggressively styled with a highly "angular" aesthetic. Offering full internal cable and hose routing including the factory fitted dropper post, everything is tucked neatly out of the way.

The high gloss finish is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.

Power

Haibike AllMtn 4 2022 Yamaha PW-X3 Drive Unit

Yamaha PW-X3 & Side Switch eBike System

The new Haibike AllMtn 4 2022 eBike features the latest Yamaha PW-X3 drive system..

This brand new motor for 2022 offers 85Nm of torque and peaks at over 500w. With 4 assistance modes, it can now provide up to 360% assistance in its highest power mode.

Part of the brand new PW-X3 system for 2022, the AllMtn 4 also gets a new 750Wh battery. Completely integrated into the frame, Haibike have neatly incorporated it into the downtube of the frame but with a key lock detachment, allowing it to be charged both on and off the bike.

The new Yamaha Side Switch display is compact and mounted on the left handlebar. Intuitive and easy to use, the LCD display screen is easy to read and navigate on the fly.

Haibike AllMtn 4 2022 Yamaha Side Switch A

The Side Switch offers immedate data on selected powermode and battery status, with more infromation available via scrolling screens.

Haibike AllMtn 4 2022 Yamaha PW X3 Motor

20% smaller and 10% lighter than the PW-X2, the new PW-X3 delivers 85Nm of natural feeling power with every pedal stroke.

Haibike AllMtn 4 2022 Yamaha 750Wh Battery

The Yamaha 750Wh battery neatly fits inside the frame. The whopping 750Wh battery is the very largest in the model range from Yamaha, and offers upto 160 miles of worry free assisted riding.

Haibike AllMtn 4 2022 Yamaha Side Switch Display

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Aluminium, disc brake Post Mount

Forks RockShox Yari RC, air, Travel: 160mm

Rear Shock RockShox Deluxe Select Plus, air

Brakes Shimano Deore M6120, aluminium, 203mm

Shifters Shimano SLX M7100

Rear Mech Shimano SLX M7100, 12-speed

Cassette Shimano M6100, 10-51 teeth

Chain Shimano CN-M6100

Wheelset WTB ST i30 TCS, double-walled rim

Tyres Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II, 66-584

Handlebars Haibike Components TheBar +++ Gravity 780mm

Stem Haibike Components TheStem 2, A-head, Bar bore: 31.8mm

Headset Acros Cable integration

Seatpost Dropper-Post Remote, telescope, 34.9mm, aluminium

Saddle Selle Royal Vivo

Weight TBC

Electric Bike Specifications

Battery Yamaha InTube 750Wh

Display Yamaha Side Switch

Motor Yamaha PW-X3, 250W, 85Nm, 25km/h

Range 30-160 miles of power-assisted range, depending on terrain
