Haibike Electric Bikes

Haibike NDURO 6 2022

£4,599.00

Pre-order
Haibike NDURO 6 2022


Frame Size: S 41cm

Battery

Yamaha 630Wh

Display

Display A

Motor

Yamaha PW X3

Range

30-140 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Haibike NDURO 6 2022 Electric Bike Review
E-Bikeshop What's Included

The brand new and redeveloped NDURO 6 2022 begs for the next big challenge and finds its home on the roughest of trails. Built around the new 2022 Yamaha PW-X3 motor and their new 630Wh in tube battery, it'll zip you to the top of your favourite trail in no time and beat the uplift queues with ease.

This new NDURO model from Haibike is the perfect toy for bike parks, free-riding and any rider looking for a well built 180mm travel machine for all mountain riding at a budget friendly price.

Our 5 point review...

1

Lightweight hydroformed alloy frame

2

Longest range Yamaha 630Wh electric bike battery

3

Latest generation SRAM 12-speed gearing

4

Latest Yamaha PW-X3 motor with 85Nm torque output

5

Yamaha Interface X display with Bluetooth connectivity

Features

Haibike NDURO 6 2022 Yamaha PWX3 Motor Drive System
Haibike NDURO 6 2022 TRP Disc Brakes

Ground up redesign..

The 2022 Haibike NDURO 6 has undergone a complete redesign for the new model year - an eMTB enduro frame for all terrain types.

Perhaps the most exciting update for the new model year is the new Yamaha PW-X3 motor and brand new 630Wh battery. With an impressive 85Nm of torque and a battery that really does allow riders to go all day, this new NDURO model from Haibike will be one the bike to beat on the roughest trails in 2022.

Haibike NDURO 6 2022 Rock Shox Rear Shock
Haibike NDURO 6 2022 Rock Shox Suspension Forks

Rockshox suspension..

Whatever trail or mountain you call home, the Rockshox Domain Air forks and Deluxe Select Plus shock will soak it up with ease. Offering full tuning and adjustability allows you to tailor your setup to your weight, riding style and terrain with a complete 180mm of travel front and rear.

Haibike NDURO 6 2022 Sram SX Drivetrain

Brakes & Gears

The Haibike NDURO 6 gets a strong set of anchors in the form of the TRP Slate set up.

These 4 piston brakes offer a huge amount of braking force, making them the go to option for manufacturers looking to pull an eBike to a stop on even the steepest and most technical descents at a comptitive price point and are featuring on mulitple bikes from Haibike and Cube in 2022.

Paired with 203mm rotors front and rear, the new TRP setup is an easily maintained but ultra powerful set brakes.

12 Speed gearing has become the "go to" choice for eMTB manufacturers even at just above entry level and the NDURO 6 doesn't disappoint with a complete SRAM SX Eagle group set.

Its super wide ratio 10-50T cassette along with the impressive 85Nm of torque really make the long ascents a breeze, without holding you back in top speed on open ground and downhill sections and offers a useful gear for every scenario, regardless of terrain.

The SRAM SX Eagle trigger switch gives a crisp and precise gear shift.

Haibike NDURO 6 2022 TRP Brakes

TRP Slate 4 piston brakes combine a strong bite with excellent modulation at an ultra-competive price point.

Haibike NDURO 6 2022 Sram SX Rear Mech

SRAM SX Eagle groupsets are a favourite of Haibike and riders alike, with an ultra wide 10-50t ratio choice.

Haibike NDURO 6 2022 Sram SX Shifter

SRAM SX Eagle shifters provide a crisp, positive shift in every gear.

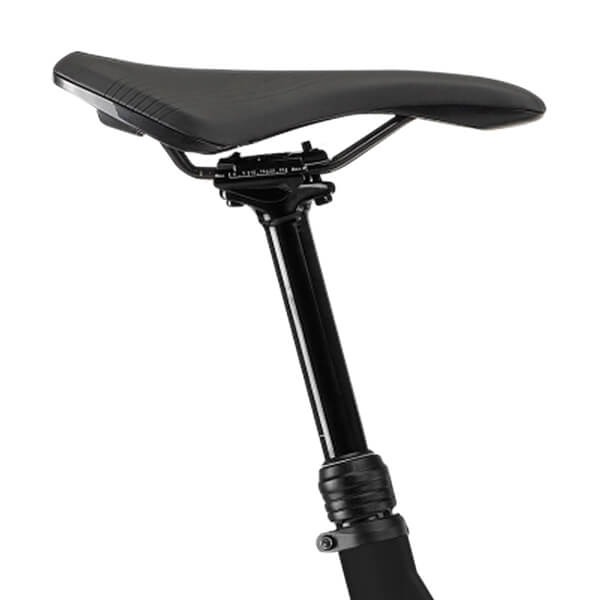

Haibike NDURO 6 2022 Dropper Seat Post

Wheels & Tyres

Common on the AllMtn models from Haibike, the NDURO 6 also gets a "mullet" wheel set up with a 29" front and 27.5" rear in the form of WTB ST i30 components

The 2022 Haibike NDURO model range tyre setup alludes to their true purpose.

With a 2.4" Schwalbe Magic Mary EVO TLE up front and a 2.6" Big Betty EVO Gravity at the rear, these Tubeless Ready tyres can be set up tubeless when we build your new bike at just £49.99.

Haibike NDURO 6 2022 Schwalbe Magic Mary Tyres

The bottom line..

The Haibike NDURO 6, like most Haibike models is aggressively styled with a highly "angular" aesthetic. Offering full internal cable and hose routing including the factory fitted dropper post, everything is tucked neatly out of the way.

The matte and beautifully contrasting black/yellow paint finish is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.

Power

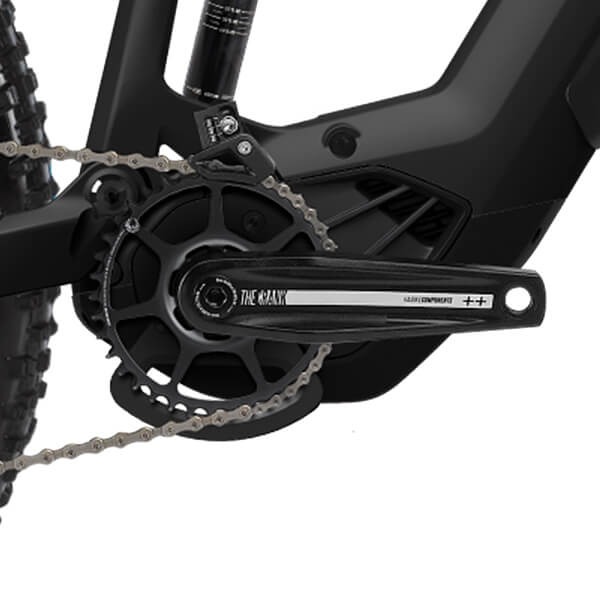

Haibike NDURO 6 2022 Yamaha PW X3 Motor

Yamaha PW-X3 & Side Switch System

The new Haibike NDURO 6 2022 eBike features the latest Yamaha PW-X3 drive system. This brand new motor for 2022 offers 85Nm of torque and peaks at over 500w. With 4 assistance modes, it can now provide up to 360% assistance in its highest power mode.

Part of the brand new PW-X3 system for 2022, the NDURO 6 also gets a new 630Wh battery. Completely integrated into the frame, Haibike have neatly incorporated it into the downtube of the frame but with a key lock detachment, allowing it to be charged both on and off the bike.

The new Yamaha Side Switch display is compact and mounted on the left handlebar. Intuitive and east to use, the LCD display screen is easy to read and navigate on the fly.

Haibike NDURO 6 2022 Yamaha Side Switch A

The Yamaha Side Switch offers immedate data on selected powermode and battery status and more information via a scrolling screen.

Haibike NDURO 6 2022 Yamaha PW X3 Motor

20% smaller and 10% lighter than the PW-X2, the new PW-X3 delivers 85Nm of natural feeling power with every pedal stroke.

Haibike NDURO 6 2022 Yamaha InTube Battery

The Yamaha 630Wh battery neatly fits inside the frame. The whopping 630Wh battery is the very largest in the model range from Yamaha, and offers upto 160 miles of worry free assisted riding.

Haibike NDURO 6 2022 Yamaha Side Switch Handlebar Controls

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Alloy Hydro-formed Frame

Forks RockShox Domain R, air, Travel: 180mm

Rear Shock RockShox Super Deluxe Select, air

Brakes TRP Slate G-Spec, adjustable grip width, aluminium, 203mm rotors.

Shifters Sram SX Eagle, trigger switch

Rear Mech Sram SX Eagle, 12-speed

Cassette Sram Eagle PG1230, 11-50 teeth

Chain Sram X01 Eagle

Wheelset WTB ST i30 TCS, double-walled rim

Tyres Schwalbe Magic Mary Evo TLE, 62-622 / Schwalbe Big Betty, 65-584

Handlebars Raceface Atlas 785mm

Stem Raceface Chester, A-head, Bar bore: 31.8mm

Headset Acros BlockLock

Seatpost Dropper-Post Remote, telescope, 34.9mm, aluminium

Saddle Selle Royal Vivo

Weight TBC

Electric Bike Specifications

Battery Yamaha InTube 630Wh

Display Yamaha Side Switch

Motor Yamaha PW-X3, 250W, 85Nm, 25km/h

Range 30-140 miles of power-assisted range, depending on terrain
