Orbea Rise M-Ltd 2022 White


Orbea Electric Bikes

Orbea Rise M-Ltd Carbon

£5,999.00 £9,599.00 Save £3,600.00

In stock

Frame Size: L 46cm

E-Bike Key Specs

Battery

Orbea RS 360Wh

Display

Shimano EN100

Motor

Shimano EP8 RS

Range

30-100 miles

View in store

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Orbea Rise M-Ltd Electric Bike Rider Review

RS or "Rider Synergy" is a newly developed rider experience concept aimed at enhancing the joy of traditional trail riding with a level of support and assistance designed to feel as "alive as your own body". The video to the right is a fantastic watch, highlighting the purest Spanish passion that went into the 2022 Rise M-Ltd concept.

The brand new Rise Carbon framed range of eBikes for 2022 are designed to be effortlessly minimalist, using no bulky or unnecessary components while bringing you closer to the trail and ride. A completely integrated system built on their 4 key elements of Power, Range, Interface and Weight.

Our 5 point review...

1

Ultra-lightweight carbon frame

2

Up to 4 hours and 4000ft of climbing from the built in 360Wh battery

3

Top level 12 Speed Shimano XTR group set

4

Unique RS Concept tuned Shimano EP8 motor with 60Nm torque

5

Optional 252Wh bolt on range extender

Features

Orbea Rise M-Ltd Shimano EP8 Motor
Orbea Rise M-Ltd Carbon Frame

RS Power..

A brand new concept with Shimano.

Armed with the well thought out concept and the dream of a "rider first" super-light all trail frame that delivers less "e" and more "Bike" to dramatically change the eMTB landscape, Orbea gained early access to the Shimano EP8 drive system and immediately realised it was the perfect solution to fit with their newly formed "RS" riding philosophy for the Rise range. Working directly alongside Shimano, Orbea have developed their own highly responsive and super-efficient RS firmware for the EP8 to make the best use of their newly designed electronics and battery system.

Weighing in at only 2.6KG and utilising their own proprietary software and electronics, the drive system delivers its peak output of 60Nm at cadences of 75-95rpm - right where experienced riders are at their own peak of power and efficiency.

Orbea Rise M-Ltd Fox Float 34 Factory Forks
Orbea Rise M-Ltd Fox Float DPS Rear Shock

Fox Suspension

The 2022 Orbea Rise M-Ltd comes with the very top specification parts.

This brand new trail orientated eBike comes with the latest Kashima coated Fox Float DPS Factory rear shock for the very best in tuning capability - perfect turns without cutting corners.

Packed with trail grabbing features, this shock is designed to exceed the demands of the Fox factory team riders.

Up front, the new Rise M-Ltd comes with the Fox Float 34 Factory 140mm forks. Working in harmony with the rear shock, they offer a lightweight and ultra robust chassis with EVOL air spring and matching Kashima Cost.

This 'eMTB Approved' fork ensures ultimate stiffness where eMTB demands are tougher.

Orbea Rise M-Ltd Shimano XTR Gears

Brakes & Gears

Coming to a halt happens just as quickly as you can take off on the Rise M-Ltd.

Orbea have equipped the Rise M-Ltd with Shimano XTR M9100 brakes. Specifically designed for fast, flowing and technical trail riding the new twin ceramic piston XTR system is cold milled from a single block of billet full the ultimate level of rigidity and precision.

Levers are an all magnesium construction to further shave weight from the braking system, but retain exceptional performance in modulation with instantaneous rebound between actions.

The 2022 Orbea Rise M-Ltd spec continues its premium path, to include a full XTR M9100 Shadow Plus group set.

Setting new standards of drivetrain silencing, the XTR 9100 derailleurs, through decreased tension in the lower gear positions and an added bumper offer next to silent operation.

Larger 13t pulley wheels reduced overall provide better chain management while increasing efficiency and are directly compatible with boost 12 speed cassettes.

The matching 10-51T cassette gives the rider an almost unparalleled range in ratio. Not only does it offer an unbelieve level of low range torque for the steeped of climbs, but the 10t bottom end means you wont be held back in top end speed either.

Orbea Rise M-Ltd Shimano XTR Disc Brakes

Shimano XTR brakes are straight from the very top level parts shelf. Despite being twin piston they offer incredible bite force and modulation at their tiny weight.

Orbea Rise M-Ltd Shimano XTR Rear Mech

Every trail bike needs limitless gear ratios and the 12 speed Shimano XTR group set never dissappoints with an 10-51t setup.

Orbea Rise M-Ltd Shimano Trigger Shifters

When you have a cassette with the width of the XTR CS-M9100, you need a shifter to easily glide through it. The i-Spec EV shifters make it light work.

Orbea Rise M-Ltd Maxxis Dissector Tyres

Wheels & Tyres

Orbea have equipped the 2022 Rise M-Ltd with a set of Race Face NEXT-SL TLR wheels. Tubless ready and pre-taped, they're the perfect light weight accompaniment to this featherweight bike.

To match the super lightweight wheel setup, Orbea fit the Maxxis Dissector 2.4" 60TPI EXO TLR up front, and the Rekon 2.40" 120TPI 3CMaxxTerra Exo+ TLR at the rear.

Orbea Rise M-Ltd Fox Factory Kashima Dropper Post

The bottom line..

Weighing in at as little as 16.5kg, the 2022 Orbea Rise was designed to provide assistance and peak torque inside the range of normal, high-quality trail riding componentry.

Lightning fast direction changes and playful handling aren't something normally associated with eBikes but with the sporty nature of the Rise model range, it'll feel just like riding your conventional trail rig!

Absolutely everything was considered when shaving weight from the new Rise range. The bare frame weighs just 2.3kg but it doesn't stop there. Orbea, in the same way they did with Shimano for their custom EP8 tune, have worked directly with EThirteen to develop an exclusive alloy forged 32T chainring for the EP8, saving weight while keeping the perfect gearing.

You'll also find fitted to the 2022 Orbea Rise range, their own custom tyre. Working in partnership with Maxxis, they've created an "EXO+" version of the Rekon trail tyre and this will remain an Orbea Exclusive.

Power

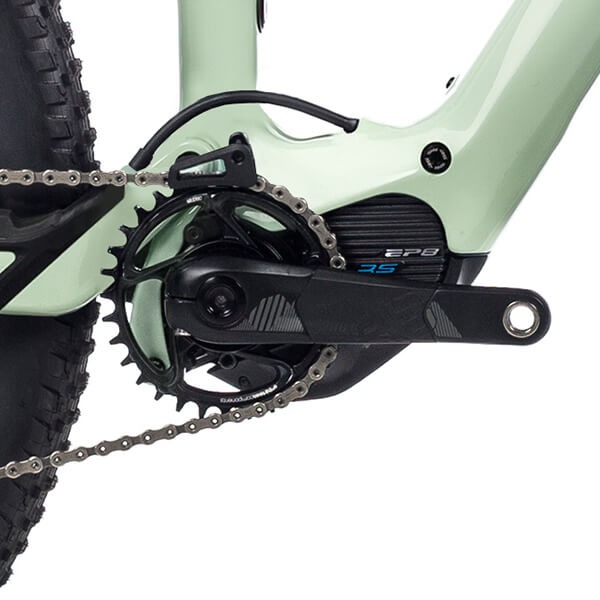

Orbea Rise M-Ltd Shimano EP8 RS Motor

Shimano EP8 RS Drive System

The new 2022 Orbea Rise M-Ltd features the latest Shimano EP8 motor, with a twist.

Working directly with Shimano in line with Orbea's brand new "RS Concept", the Shimano EP8 motor runs on their very own Orbea RS firmware. In keeping with their "Rider First" design philosophy, this unique to Orbea tuning of the EP8 motor software is designed with responsiveness and efficiency at the forefront of its level of assistance.

The EP8 motor fitted to the new 2022 Rise models has a specifically designed power band that makes the bike feel alive underneath you, offering a smooth and highly responsive ride which directly echoes your own output and cadence with a peak output of 60Nm.

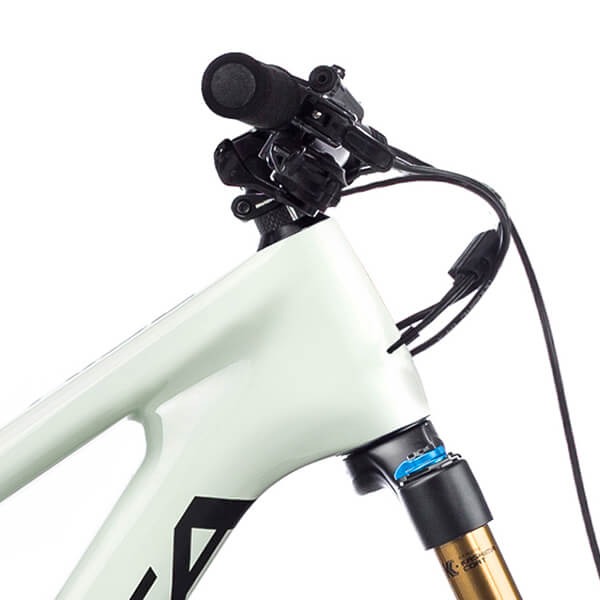

In keeping with their minimalist design, no bulky controllers are used on the 2022 Rise, instead opting for a simple rocker switch to flick between power modes and a sleek, inline twin LED display for quick visualisation of the selected mode.

Orbea Rise M-Ltd Shimano Junction Box

The Orbea Rise M-Ltd, with its ultra minimalist design uses the Shimano EW-EN Junction. (Ask us about upgrading to E7000 LCD screen!)

Orbea Rise M-Ltd Shimano EP8 Motor

The uniquely tuned Shimano EP8 Motor in the 2022 Orbea Rise M-Ltd has been honed to perfection.

Orbea Rise M-Ltd Shimano 360Wh Battery

Despite its small size, the 360Wh battery can cover distance. In testing, we managed 38 miles and a whopping 4,800ft of climbing before it gave up!

Orbea Rise M-Ltd Shimano What's Included

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Why choose E-Bikeshop?

Specifications

General Bike Specifications

Frame Orbea Rise OMR 2022 140mm travel 29" C-Boost 12x148

Forks Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima

Rear Shock Fox Float DPS Factory 3-Position Adjust Evol Kashima

Brakes Shimano XTR M9100 Hydraulic Disc Brakes

Shifters Shimano XTR M9100

Rear Mech Shimano XTR M9100 SGS Shadow Plus

Cassette Shimano XTR M9100 10-51t 12-Speed

Chain Shimano CN-9100

Wheelset Race Face NEXT-SL TLR 15/110mm IS

Tyres Maxxis Dissector 2.40", Maxxis Rekon 2.40" TLR

Handlebars Race Face Next 35 20mm Rise 760mm

Stem Race Face Turbine R 35mm interface

Headset Acros Alloy 1-1/8 - 1-1/2" Integrated

Seatpost Fox Transfer SL Factory Kashima Dropper 31.6

Saddle Selle Italia SLR Boost SuperFlow L Carbon Keramic Rail Ø7 x 9 mm

Weight 17.5 kg

Electric Bike Specifications

Battery Orbea RS Internal 360Wh

Display Shimano EW-EN100 Junction

Motor Shimano EP8-RS

Range 30-100 miles of power assisted range, depending on terrain
