Raleigh Electric Bikes

Raleigh Motus Tour Lowstep 2022

Ā£2,499.00

Pre-order
Raleigh Motus Tour Lowstep 2022 Champagne
Raleigh Motus Tour Lowstep 2022 Pink
Raleigh Motus Tour Lowstep 2022 Red


Frame Size: 41cm

Gearing: Derailleur

Color: Champagne

Battery

Bosch 400Wh

Display

Bosch Intuvia

Motor

Bosch Active Plus

Range

30-100 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

A brand new model for 2022, the new Raleigh Motus Tour Lowstep builds on an already well established model line, with a new level of integration.

The top model in the model range, the Motus Tour variants offer 270% max assistance from the super-silent Bosch Active Line Plus motor and come fully equipped with a pannier rack, mudguards, lights and a rear wheel lock.

The Motus line comes with a choice of either internal hub or derailleur gear options.

Our 5 point review...

1

Lightweight but robust classic Raleigh frame style

2

Up to 110 miles of range from the Bosch 400Wh Powertube battery

3

10 Speed Shimano Deore Gearing

4

Powerful reliability in the Bosch Active Line Plus 50Nm motor

5

Simple, easy to use and large Bosch Intuvia display system

Features

Raleigh Motus Tour Lowstep Bosch Active Line Motor
Raleigh Motus Tour Lowstep Bosch Intuvia Display

As "Dutch" as British gets..

Raleigh's new 2022 Motus Tour Lowstep uses the Bosch Active Line Plus motor, a 400Wh battery and large and easy to read and operate Intuvia display.

With a relaxed, very comfortable and posture pleasing upright seating position and style, the Motus Tour models offer a confidence building riding style for new ebike riders with its predictable but direct handling.

Raleigh Motus Tour Lowstep Hydraulic Brakes
Raleigh Motus Tour Lowstep Aluminium Frame

Brand new for 2022..

The Raleigh Motus Tour Lowstep has undergone a major frameset overhaul for 2022.

Starting from scratch, Raleigh have redesigned the entire frame to fully integrate the Bosch Active Line Plus motor and 400Wh battery, better hiding and incorporating them both into the frame, in to bring it fully up to date for 2022.

Raleigh Motus Tour Lowstep 8 Speed Shimano Acera Gears

Brakes & Gears

The Raleigh Motus Tour models are equipped with Shimano's BR-MT200 hydraulic disc brakes both front and rear These offer solid on and off-road performance with easy reach adjustment.

These levers and calipers, paired with 160mm rotors at the front and back of the bike offer exceptional bite and great modulation, making them a great choice for a variety of terrain and riding styles. Hydraulic brakes are now very much standard on top quality ebikes, taking just a small amount of pressure to generate a stronger stopping force.

The 2022 Raleigh Motus Tour models are offered with a choice of gearing. The Shimano Nexus 7 speed hub system offers a low maintenance but high level of design, quality and function in an complete, integrated gearing package.

For those who prefer a more widely used gear change solution, the 2022 Motus Tour Lowstep models are also available with a derailleur geared setup. The most commonly gear selection type on bicycles, a derailleur setup is more easily maintained and adjusted.

*The only colourway available with hub gearing option is Red.

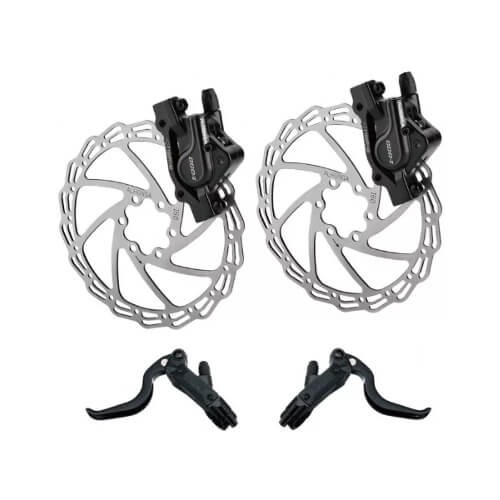

Raleigh Motus Tour Lowstep Alhonga Hydraulic Brakes

Shimano hydraulic brakes are a staple of newer town and city style bikes, where reliability and longevity are key.

Raleigh Motus Tour Lowstep Altus 8 Speed Gearing

Offered with two options, Raleigh have tried to cater for all types of rider with their choice of more common derailluer or traditonal hub gearing

Raleigh Motus Tour Lowstep Shimano Alivio Shifters

Regardless of which shift option you choose, you can be confident you'll have the necessary ratio for any urban or leisure ride.

Raleigh Motus Tour Lowstep Suspension Seat Post

Wheels & Tyres

Raleigh have used their own factory rims on the Motus Tour models for 2022 with Shimano hubs and 700c rims. The 36mm wide rims offer the ability to fit a wide choice of tyres.

Raleigh always offer a top quality tyre on their bikes, and the Schwalbe Road Cruiser is no exception. Predominantly aimed at paved road use, it'll stand up to light gravel paths and the occasional byway, if thats where you happen to end up!

Raleigh Motus Tour Lowstep Mitus Flash Tyres

The bottom line..

Although the Raleigh Motus model line has been overhauled for the 2022 model year, it will retain its reputation for being a solidly built and ultra reliable bike from one of the UK's oldest biking brands.

Exclusively using Bosch drive systems and Shimano gearing means that not only does the 2022 Raleigh Motus range offer you the power and gear range to cover whatever your local terrain throws at you, service and support is never far away.

With over 600 UK Bosch service centres and using the most commonly found components, you'll never be far from a solution for maintenance and service.

Power

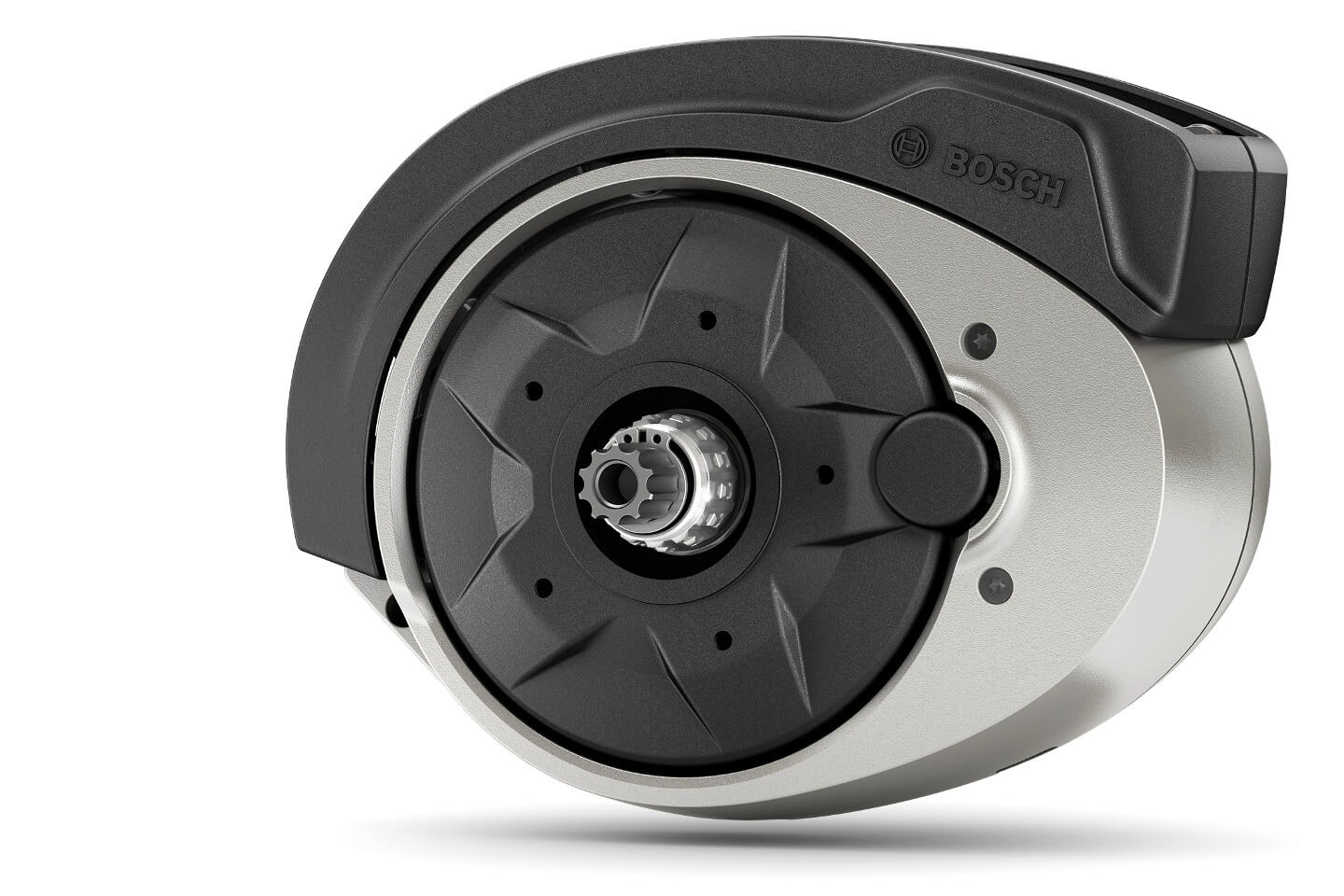

Raleigh Motus Tour Lowstep Active Line Plus Motor

Bosch Active Line Plus System

The new 2022 Raleigh Motus Tour Lowstep eBike features the Bosch Active Line Plus crank drive motor, 400Wh PowerTube frame integrated battery and Intuvia display system.

The 250w Active Line Plus system outputs 65Nm of torque and peaks at over 500w! It certainly packs a punch, offering up to 270% assistance in turbo mode. Featuring 4 levels of assistance (and remember you can always turn the power off and ride it as a normal bike) ranging from 40 to 270% assistance.

The Motus Tour Lowstep features the latest 'PowerTube' Bosch 400Wh battery technology for 2022. Completely integrated into the frame, it's neatly designed it so it can be charged both on and off the bike.

For 2022 Raleigh have equipped the Intuvia display, offering all the essential parameters on one easy to read display, including:- Speed, assistance mode, average, speed, range, odometer and battery bar. This display can be removed from the bike acting as a security immobiliser for the system.

Raleigh Motus Tour Lowstep Bosch Intuvia Display

The bright, easy to read and use Bosch Intuvia display is effortlessly simple to use and offers the rider "at-a-glance" speed, power mode and battery information.

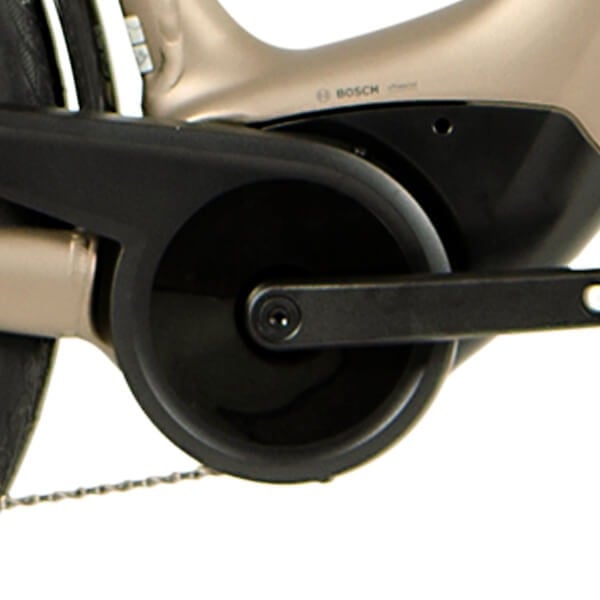

Raleigh Motus Tour Lowstep Bosch Active Line Motor

The Bosch Active Line motor is as synonymous with Raleigh as they are with the UK bike industry and is ultra-reliable.

Raleigh Motus Tour Lowstep Bosch PowerTube 400Wh Battery

The now hidden Bosch Powertube 400Wh battery is neatly integrated but can be removed from the bike for charging if required.

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Aluminium 6061

Forks RST Volant 50mm travel

Brakes Shimano BR-MT200 hydraulic disc brakes, 160mm Rotors

Shifters Shimano Nexus Revoshift 7 speed (Hub option) / Shimano Altus 8 speed Rapidfire shifter (Derailleur option)

Rear Mech Shimano Nexus 7 speed hub (Hub option) / Shimano Tourney 8 speed rear derailleur (Derailleur option)

Cassette Shimano 19t sprocket (Hub option) / Shimano 8 speed cassette 11-38t (Derailleur option)

Chain KMC e1 single speed chain (Hub option) / KMC e9 9 speed chain (Derailleur option)

Wheelset 700c double side wall rim with QR aluminium hub 36H

Tyres Schwalbe Road Cruiser Plus 700*50c

Handlebars Aluminium comfort handlebar 640mm

Stem Aluminium adjustable stem 90mm

Headset Acros

Seatpost Aluminium seatpost

Saddle Selle Royal Wave saddle

Weight 26.5 kg

Electric Bike Specifications

Battery Bosch PowerTube 400Wh with BMS Management

Display Bosch Intuvia Multi Functional Display

Motor Bosch Active Line Plus (50Nm) Cruise (250Watt)

Range 30-80 miles of power-assisted range, depending on terrain
