30 - 130 Power
30 - 130 Power
up to 15 mph

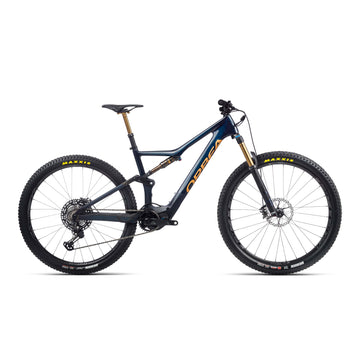

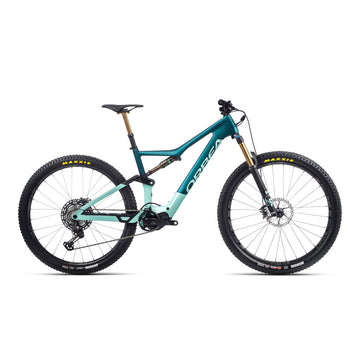

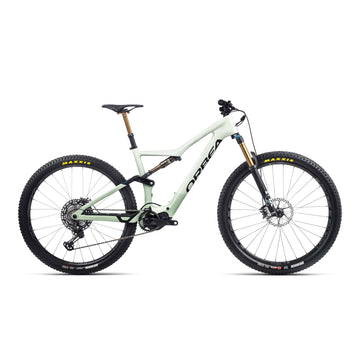

The new Orbea Rise M-Ltd 2022 electric bikes are in stock now (in limited sizes) or available to pre order now (see dates below) from the UK's premier Orbea electric bike dealer. Other sizes are available to pre-order - We recommend placing a deposit against the popular incoming bikes to avoid disappointment. Any pre-orders for bikes coming in we log and make contact with you on arrival.
Early Pre-Order* Reservation: Reserve your new 2022 model now by paying in full or alternatively leaving a small £199 deposit.
Please see below estimated delivery times. If it's showing in stock please select the 'Pay In Full' option so we can dispatch this asap.
|Current Estimated Arrival Month:|
|Sold Out||In Stock||In Stock||In Stock|
|Sold Out||Sold Out||In Stock||In Stock|
|Sold Out||Sold Out||In Stock||In Stock|
RS or "Rider Synergy" is a newly developed rider experience concept aimed at enhancing the joy of traditional trail riding with a level of support and assistance designed to feel as "alive as your own body".
The brand new Rise range of eBikes for 2022 are designed to be effortlessly minimalist, using no bulky or unnecessary components while bringing you closer to the trail and ride. A completely integrated system built on their 4 key elements of Power, Range, Interface and Weight.
A brand new concept with Shimano.
Armed with the well thought out concept and the dream of a "rider first" super-light all trail frame that delivers less "e" and more "Bike" to dramatically change the eMTB landscape, Orbea gained early access to the Shimano EP8 drive system and immediately realised it was the perfect solution to fit with their newly formed "RS" riding philosophy for the Rise range. Working directly alongside Shimano, Orbea have developed their own highly responsive and super-efficient RS firmware for the EP8 to make the best use of their newly designed electronics and battery system.
Weighing in at only 2.6KG and utilising their own proprietary software and electronics, the drive system delivers its peak output of 60Nm at cadences of 75-95rpm - right where experienced riders are at their own peak of power and efficiency.
The 2022 Orbea Rise M-Ltd comes with the very top specification parts.
This brand new trail orientated eBike comes with the latest Kashima coated Fox Float DPS Factory rear shock for the very best in tuning capability - perfect turns without cutting corners.
Packed with trail grabbing features, this shock is designed to exceed the demands of the Fox factory team riders.
Up front, the new Rise M-Ltd comes with the Fox Float 34 Factory 140mm forks. Working in harmony with the rear shock, they offer a lightweight and ultra robust chassis with EVOL air spring and matching Kashima Cost.
This 'eMTB Approved' fork ensures ultimate stiffness where eMTB demands are tougher.
Interestingly, Orbea have done away with a range figure in miles for the Rise but promise it's designed for big rides, stating that this is a bike intended for "8 hours and over 4,000m of climbs in Eco mode". As with the rest of the Orbea range of eBikes, not only does the bike come with a well built and custom designed internal battery with a 360Wh rating, they also offer an optional 252Wh bolt on range extender, taking the total capacity to over 600Wh.
In keeping with the RS concept, this dramatically lighter than average bike with super-economical power consumption extends battery life by over 1.5x - In real terms, this means that its integral 360Wh battery alone, its range is comparable with a 540Wh battery capacity on a typical crank driven eBike. Housed in a brand new all-alloy construction case and using the latest in lithium-ion cell technology, its internal 21700 form factor cells offer much higher energy density, with much less space and weight. Citing "over 4 hours of ride time", the battery weighs just 2.2kg with the option range extender offering an additional 70% capacity - comparable to 900Wh on a conventional eBike.
Coming to a halt happens just as quickly as you can take off on the Rise M-Ltd.
Orbea have equipped the Rise M-Ltd with Shimano XTR M9100 brakes. Specifically designed for fast, flowing and technical trail riding the new twin ceramic piston XTR system is cold milled from a single block of billet full the ultimate level of rigidity and precision.
Levers are an all magnesium construction to further shave weight from the braking system, but retain exceptional performance in modulation with instantaneous rebound between actions.
Riders spend hours and thousands of pounds removing excess weight from their bikes. Carbon this, hydroformed alloy that. The electrical system on eBikes is the bulk of its weight over a non-eBike and having already saved considerable weight from the motor and battery system, Orbea have elected to do away with the extra wiring, switches and screens of a traditional eBike but this isn't a compromise, this is all a critical part of the RS philosophy the Rise is built on. The power button is hidden neatly next to the bottom bracket and all wiring is internally routed.
The RS interface is sleek, but isn't lacking in the option for expandability. The configuration offers a discrete rocker style switch to control assistance modes and a small inline junction box with two LED lights to provide a readout of current mode while also transmitting wireless data. Built with direct, unique compatibility with the Garmin IQ smart watch, you can see on the fly your support mode, assistance level, cadence, range and speed. There is also an accompanying app where data recording and readout is able to be played back, giving a much greater in depth look at your riding style and performance.
The 2022 Orbea Rise M-Ltd spec continues its premium path, to include a full XTR M9100 Shadow Plus group set.
Setting new standards of drivetrain silencing, the XTR 9100 derailleurs, through decreased tension in the lower gear positions and an added bumper offer next to silent operation.
Larger 13t pulley wheels reduced overall provide better chain management while increasing efficiency and are directly compatible with boost 12 speed cassettes.
The matching 10-51T cassette gives the rider an almost unparalleled range in ratio. Not only does it offer an unbelieve level of low range torque for the steeped of climbs, but the 10t bottom end means you wont be held back in top end speed either.
Weighing in at as little as 16.5kg, the 2022 Orbea Rise was designed to provide assistance and peak torque inside the range of normal, high-quality trail riding componentry. Lightning fast direction changes and playful handling aren't something normally associated with eBikes but with the sporty nature of the Rise model range, it'll feel just like riding your conventional trail rig!
Absolutely everything was considered when shaving weight from the new Rise range. The bare frame weighs just 2.3kg but it doesn't stop there. Orbea, in the same way they did with Shimano for their custom EP8 tune, have worked directly with E*Thirteen to develop an exclusive alloy forged 32T chainring for the EP8, saving weight while keeping the perfect gearing. You'll also find fitted to the 2022 Orbea Rise range, their own custom tyre. Working in partnership with Maxxis, they've created an "EXO+" version of the Rekon trail tyre and this will remain an Orbea Exclusive.
The new 2022 Orbea Rise M-LTD features the latest Shimano EP8 motor, with a twist.
Working directly with Shimano in line with Orbea's brand new "RS Concept", the Shimano EP8 motor runs on their very own Orbea RS firmware. In keeping with their "Rider First" design philosophy, this unique to Orbea tuning of the EP8 motor software is designed with responsiveness and efficiency at the forefront of its level of assistance.
The EP8 motor fitted to the new 2022 Rise models has a specifically designed power band that makes the bike feel alive underneath you, offering a smooth and highly responsive ride which directly echoes your own output and cadence with a peak output of 60Nm.
In keeping with their minimalist design, no bulky controllers are used on the 2022 Rise, instead opting for a simple rocker switch to flick between power modes and a sleek, inline twin LED display for quick visualisation of the selected mode.
This lack of componentry is purposeful, minimising unnecessary weight while leaving the bulk of the data to be transmitted directly from the bike to the Shimano E-Tube mobile app. From here, you can also fine tune the motor output to your own preference.
Featuring a new modular battery design with an integral 360Wh battery, the 2022 Orbea Rise is designed for all day epics and with its optional 252Wh range extender, taking total capacity to 612Wh, there's no-where you can't explore. Being a super-lightweight package, its 612Wh configuration amounts to a whopping 900Wh of conventional eBike power!
Weighing in at just 1.4kg & offering up to 70% extra ride time!
This electric bike comes fully set-up by our workshop technicians. You can be sure that every aspect of the eBike has been dialled in for optimum performance. All our electric bikes arrive with a user manual, keys, charger & free follow up service within 3 months.
Our electric bikes also include a 5yr warranty on the frame, 2yr warranty on all the electrics & 1yr warranty on the components. In the event of a problem, we handle all warranty claims in-house. We can also offer worldwide support for customers further afield.
All our Orbea eBikes can benefit from a LIFETIME frame warranty once online registration with Orbea is completed.
*Range is dependant on many factors inc rider weight, wind, hills, terrain etc.
We've exclusively teamed up with Bikmo to offer 14 days free electric bike insurance when you purchase your new electric bike with e-bikeshop.co.uk.
You'll be covered for eBike theft, accessories, crash damage, clothing/headgear, accidental damage, public liability and Bikmo will even cover the cost of getting you home as a result of damage or theft.
The perfect package to get you started with your new eBike without the need for any worry or hassle. Of course, you'll have the no obligation option to continue your insurance over after the initial period.
To get this exclusive special offer, simply tick the checkbox in the checkout.
*You must meet all of the standard Bikmo eligibility criteria and understand the Bikmo locking requirements. You can find this info on the dedicated page here.
*Pre-order service: Take advantage of our pre-order service which places you in the queue to obtain a bike as soon as it is available. Orders are fulfilled on a first come served, queued basis. Dates are predicted production times and with all manufacturing dates can move back and forth. Specifications can change and images are artists impressions.
Orbea Rise OMR 2022 140mm travel 29" C-Boost 12x148
Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
Fox Float DPS Factory 3-Position Adjust Evol Kashima
Shimano XTR M9100 Hydraulic Disc Brakes
Shimano XTR M9100
Shimano XTR M9100 SGS Shadow Plus
Shimano XTR M9100 10-51t 12-Speed
Race Face NEXT-SL TLR 15/110mm IS
Maxxis Dissector 2.40", Maxxis Rekon 2.40" TLR
Race Face Next 35 20mm Rise 760mm
Race Face Turbine R 35mm interface
Acros Alloy 1-1/8 - 1-1/2" Integrated
Fox Transfer SL Factory Kashima Dropper 31.6
Selle Italia SLR Boost SuperFlow L Carbon Keramic Rail Ø7 x 9 mm
Orbea RS Internal 360Wh
Shimano EW-EN100 Junction
30-130 miles of power assisted range, depending on terrain
These questions relate to this bike. You can find a full F.A.Q on general eBike & website questions by clicking here.
What sizes is this bike available in?
The Orbea Rise M-Ltd 2022 is available in sizes - 38cm (15"), 42cm (16.5"), 46cm (18") & 50cm (19.5").
How do I know which frame size to order?
150 - 165cm
4ft11 - 5ft5
160 - 175cm
5ft3 – 5ft9
170 – 185cm
5ft7 – 6ft
180 – 198cm
5ft10 – 6ft6
Is this bike in stock now?
The stock status is shown at the top of this page next to the price. If the stock level is shown as 'Pre-Order' this means it is a new model arriving soon, you can see an expected date at the top of each bike description.
Are there any colour options?
Yes, The Orbea Rise M-Ltd 2022 bike is available in the colours shown above. Please note: Some colour options may be a special order.
Where can I find a geometry chart of this bike?
You can find the geometry chart of each bike by clicking on the 'Downloads' tab of each bike.
Where is this bike made?
MADE IN SPAIN
Can I try the bike before I buy?
Yes of course, you can visit, we can talk you through your riding style and requirements and offer expert advice as to which model to select. We will be able to advise particular eBikes and talk them through in more detail. We also give you the opportunity to ride crank drive bikes so you can get a feel for them prior to purchase.
At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible. If you like the bike, you have the option to take it away there and then with any accessories selected fitted and a full fitting session on the bike itself. We ask you to go for a short ride on the bike to make sure you are happy with the setup and also able to answer any operational questions you may have.
