Specifications
General Bike Specifications
Frame C;62 Monocoque Twin Mould frame with Aluminium 6061 T6 Rear Triangle.

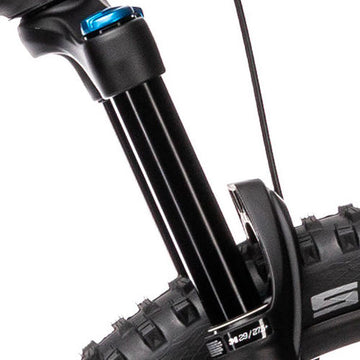

Forks Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 140mm

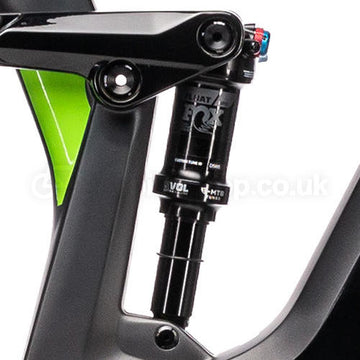

Rear Shock Fox Float DPS EVOL, 185x55mm, Open/Medium/Firm Mode, Trunnion Mount
Brakes Shimano XT MT-M8120 Hydraulic disc brakes
Shifters Shimano Deore SL-M6100-I, Direct Attach, Rapidfire-Plus 12-Speed
Rear Mech Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Cassette Shimano Deore CS-M6100, 10-51T 12-Speed
Chain Shimano CN-M6100
Wheelset Newmen Evolution SL E:30 TR
Tyres Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.60"
Handlebars Newmen Evolution SL 318.25, 760mm
Stem CUBE Performance Stem E-MTB, 31.8mm
Headset ACROS AZX-1032
Seatpost CUBE Dropper Post
Saddle Natural Fit Venec
Weight 24.8 kg
Electric Bike Specifications

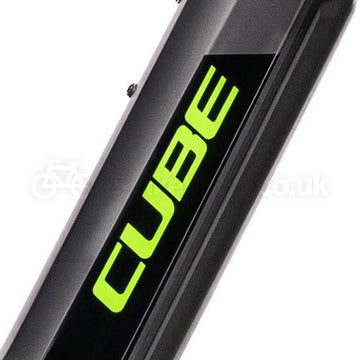

Battery Bosch Powertube 625Wh 36v

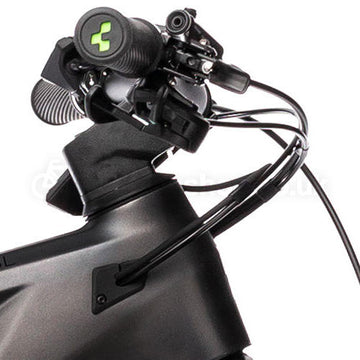

Display Bosch Kiox

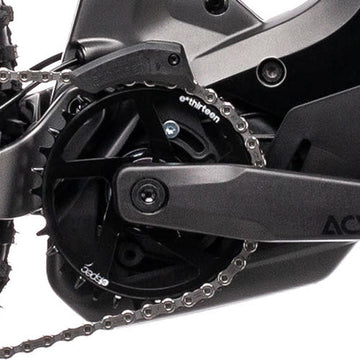

Motor Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Range 30-160 miles of power assisted range, depending on terrain
E&OE
