Haibike Electric Bikes

Haibike AllMtn 3

£4,499.00

Pre-order
Haibike AllMtn 3


Frame Size: S 41cm

Battery

Bosch 625Wh

Display

Bosch Purion

Motor

Bosch CX Gen 4

Range

30-140 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Haibike AllMtn 3 Electric Bike Rider Review
Haibike AllMtn 3 Bosch CX Motor System

The Haibike AllMtn 3 2021 is the entry level Bosch driven contender in the Haibike "All Mountain" range using the very latest 4th Generation Bosch Performance CX system.

Don't let the words "entry level" fool you though. The bike comes with a newly updated 85Nm of torque, a 625Wh battery and lots of other well thought out spec to offer a riding platform which encourages new riders to push themselves while not holding back a more advanced rider.

Built for all mountain, fast trail riding and technical descents, it's tough enough for more demanding trails but light enough for cross country too, with a 625Wh battery for excellent range.

Our 5 point review...

1

Lightweight hydroformed alloy frame

2

Long range Bosch 625Wh electric bike battery

3

Ultra-wide ratio SRAM SX Eagle 12-speed gearing

4

Highest performing Bosch motor with up to 340% assistance

5

Simple, easy to use Bosch Purion display system

Features

Haibike AllMtn 3 Rock Shox Forks
Haibike AllMtn 3 Rock Shox Rear Shock

Feature packed fun..

The new AllMtn 3 for 2021 features the latest Bosch Gen 4 Performance CX motor and 625Wh battery.

Much of the spec from the 2020 model has carried over to the new 2021 AllMtn 3, including the RockShox Deluxe Select+ rear shock. New Maxima Plush damping fluid has been used to reduce stiction to ensure smooth, plush operation.

The Select+ feature allows the rider to "lock out" the rear shock, reducing pedal bounce on flat ground. Ready to hit the downhill sections? No problem, simply flick the switch to "open" and unleash the full potential of this 160mm travel shock.

The Debonair air spring offers a highly tuneable and consistent feeling shock, fully adjustable for the riders weight. At the front of the bike, Haibike have one again equipped the AllMtn 3 with the Rockshox Yari RC air fork.

The RockShox Yari RC's offer stiff 35mm stanchions, a Motion Control Damper and are fully air adjustable for rider weight using a shock pump.

Haibike AllMtn 3 MRS System Bosch Battery
Haibike AllMtn 3 Bosch CX Motor Drive Unit

Haibike MRS (Modular Rail System)

The all new MRS from Haibike allows accessories to be integrated neatly onto your new Haibike electric Bike. This can include anything from a water bottle to a lock.

Exclusively compatible with new Haibike electric bikes with Bosch 'InTube' integration, this system is both flexible and versatile in a way that's never been possible before.

At E-Bikeshop we'll exclusively be offering these accessories fitted to your new bike. Any that you add to the basket will arrive fitted, these cannot be purchased separately for bikes bought elsewhere.

In true Haibike German design the accessories are matched perfectly, with quality fixings like the water bottle for example, which quickly snap locks back into place when you get it back near the magnets. Thus not allowing it to fall off mid ride!

Furthermore, you are not restricted to just one accessory. Many you can mount in tandem, like the frame lock and bottle for example.

Please Note: These accessories are only compatible with Haibikes using the MRS system.

Haibike AllMtn 3 Sram Gears & Shimano Brakes

Brakes & Gears

The AllMtn 3 2021 has Shimano MT420 brakes, with 203mm rotors both front and rear. These mid-spec four piston brakes offer great power and modulation, with a huge choice of pad compound to suit all types of terrain and riding styles.

The 2021 Haibike AllMtn 3 eBike is equipped with the new SRAM SX Eagle 12-speed group set.

The SRAM SX X-HORIZON design reduces chain slap and shifting force, allowing a smooth, reliable setup.

The super wide range PG1210 cassette dominates the rear wheel. This 12 speed cassette offers an incredible 11-50t - a gear range of 500%. This exceptional range allows riders the freedom of scaling even the steepest of inclines, while not holding them back on the flat, open ground of fire roads and paths.

Haibike AllMtn 3 Shimano Deore Brakes

Faster piston retraction gives superior modulation and much greater fast & slow speed control.

Haibike AllMtn 3 Sram SX Rear Mech

SX Horizon design rear derailleur keeps chain tension in check and chain slap to a minimum.

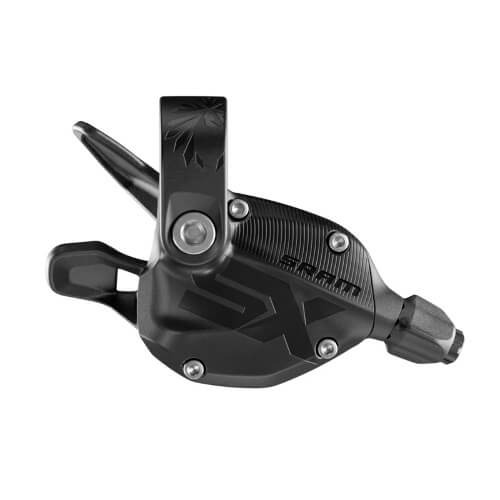

Haibike AllMtn 3 Sram SX Shifters

SRAM SX single click shifters provide, instaneous, crisp shifting even under load.

Haibike AllMtn 3 Saddle

Wheels & Tyres

In keeping with the rest of the AllMtn range, Haibike continue their "Mullet Bike" theme, using a 27.5+ wheel at the rear and 29" up front. This keeps the handling tight whilst offering the rollover characteristics of a 29".

The 2.8/2.6" width combination give a wide footprint of grip, whilst offering the ability for running lower pressures for superb cushioning and trail comfort.

The 2021 AllMtn 3 ships with a Maxxis Minion DHF up front and Minion DHF at the rear - a favoured combination amongst many types of rider both for super slippy areas, up hill grip and down hill control.

Haibike AllMtn 3 Maxxis Minion Tyres

The bottom line..

With the lighter, more powerful and compact Bosch Gen 4 Performance CX motor, Haibike have opted for the same 10mm shorter chain stays for 2021, whilst moving away from the need for the S.E.S pulley used on previous AllMtn models.

This shorter chain stay strikes the perfect balance between climbing and descending performance, offering plenty of manoeuvrability whilst stopping the front from feeling too vague on technical climbs.

The new Bosch Gen 4 motor uses a "full size" SRAM X-Sync front sprocket - a 38t wide-narrow chain ring as standard to ensure chain retention. This hasn't stopped Haibike from also fitting a chain guide for peace of mind when it comes to dropped chains, regardless of the terrain.

The 2021 AllMtn 3 is a great all rounder for trail riding, with smooth, sleek lines aided by the integrated Bosch Powertube 625Wh battery. Fancy upgraded components, including suspension, brakes & DT Swiss wheels? Check out the other Haibike AllMtn models!

Power

E-Bikeshop What's Included

Bosch CX & Purion eBike System

The new Haibike AllMtn 3 2021 eBike features the newest and most powerful Gen 4 Bosch Performance CX crank drive motor, so you can be sure it's fitted with the latest kit & setup for optimum trail performance.

The 250w Bosch Performance CX system outputs 85Nm of torque & peaks at 500w output It certainly packs a punch, it will also offer up to 340% assistance in turbo mode. Featuring 4 levels of assistance & remember you can always turn the power off and ride it as a normal bike! In addition, the new eMTB mode allows the user to set in one assistance mode and the system itself will determine the assistance offered.

The 2021 AllMtn 3 also features the latest 'PowerTube' design Bosch 625Wh battery technology for 2021. Completely integrated into the frame for security and safety, Cube have cleverly designed it so it can be charged both on and off the bike.

Haibike AllMtn 3 Bosch Purion Display

The Bosch Purion display is simple to use and offers on the fly vision of selected power mode and battery life.

Haibike AllMtn 3 Bosch Gen 4 CX Motor

The Bosch Generation 4 Performance CX motor is the mostly widely used on eMTB models, offering 85Nm of super reliable support.

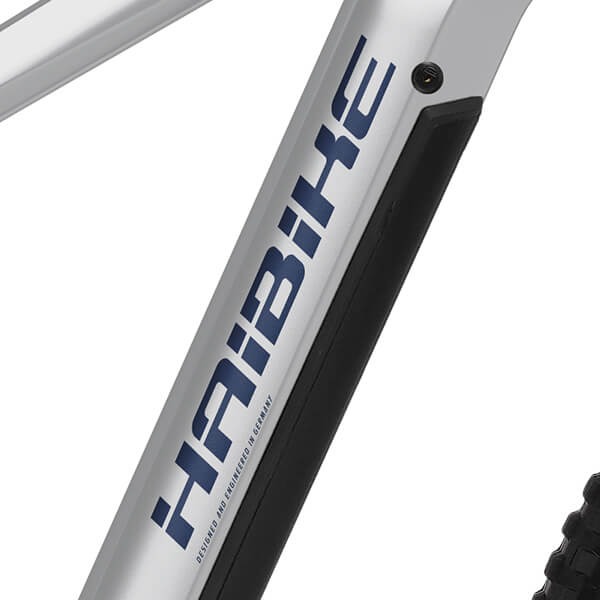

Haibike AllMtn 3 Bosch PowerTube 625Wh battery

The Bosch PowerTube 625Wh battery neatly fits inside the frame. Providing up to 160 miles of assisted riding, you'll get much further than you ever imagined!

Haibike AllMtn 3 Bosch Purion Display

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Alu 6061, Hydro Formed with InTube Integration & Modular Rail System

Forks RockShox Yari RC, 160mm, Tapered

Rear Shock RockShox Deluxe Select Plus 160mm

Brakes Shimano MT420, 203mm Rotors

Shifters Sram SX 12-Speed Shifter

Rear Mech Sram SX Eagle, 12-Speed

Cassette Sram PG1210, 11-50t, 12-Speed

Chain Sram SX Eagle

Wheelset Shimano Hubs on Alloy Rodi Rims

Tyres Maxxis Minion F29" x 2.5 / R27.5+ x 2.8

Handlebars Haibike xDuro TheBar 31.8mm, 780mm

Stem Haibike TheStem 31.8mm

Headset A-Head, Alloy, Tapered

Seatpost Haibike Dropper Post, Remote, 31.6mm

Saddle Selle Royal Vivo

Weight TBC

Electric Bike Specifications

Battery Bosch Lithium Ionen 36 Volt, 625Wh, with InTube Integration

Display Bosch Purion Display / Integrated Buttons

Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm

Range 30-140 miles of power assisted range, depending on terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.

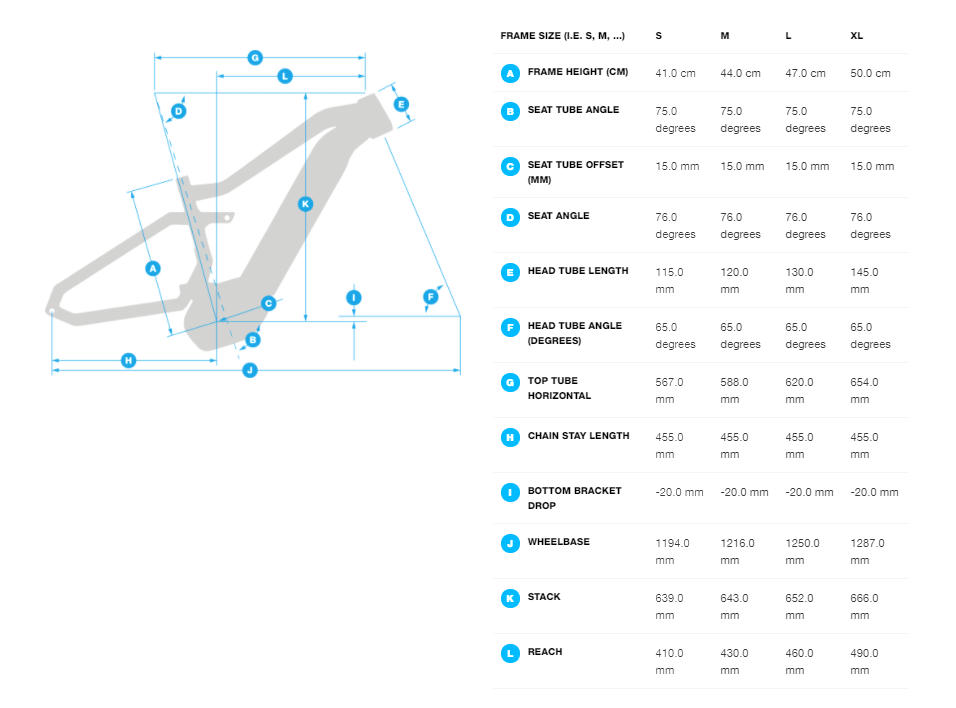

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.



At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Haibike in Germany.



At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.


We can talk you through your riding style and requirements and offer expert advice as to which model to select.


We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.

Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.



Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.


We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.



If you cannot find the answer you are looking for, please don't hesitate to get in touch.
Remember you can find a full F.A.Q on general electric bike & website questions by clicking here.
