Haibike Electric Bikes

Haibike AllMtn 3 2022


Haibike AllMtn 3 2022

Frame Size: S 41cm


Bosch 625Wh


Bosch Kiox


Bosch CX Gen 4


30-140 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights


Haibike AllMtn 3 2022 Electric Bike Rider Review
E-Bikeshop What's Included

The brand new AllMtn 3 2022 is the entry level Bosch driven all mountain and trail bike for the new Haibike model year and offers some of the best componentry in the now incredibly vast AllMtn Range at an ultra competitive price. A brand new all alloy frame built around the latest Bosch Performance Line CX motor and 625Wh battery, the new AllMtn 3 eMTB is designed to do absolutely everything in one neat, eye-catching package.

Although toward the entry level price range in the AllMtn line up for the 2022 model year, the AllMtn 3 is a very capable machine and will be just as at home in the hands of a novice rider as it will a competent rider looking for an easier route to the top!

Our 5 point review...


Lightweight hydroformed alloy frame


Long range Bosch 625Wh electric bike battery


Ultra-wide ratio SRAM SX Eagle 12-speed gearing


Highest performing Bosch motor with up to 340% assistance


Simple, easy to use Bosch Purion display system


Haibike AllMtn 3 2022 Bosch 625Wh Battery
Haibike AllMtn 3 2022 Front Wheel Axle

New frame for 2022..

The 2022 Haibike AllMtn 3 carries the same frame geometry as the rest of the model range, but in a brand new alloy frame.

Haibike AllMtn 3 2022 Rock Shox Suspension Forks
Haibike AllMtn 3 2022 Rock Shox Suspension Rear Shock

Full Rockshox suspension..

Whatever mountain you need to scale, the AllMtn 3 with its Rockshox 35 Silver air forks and Rockshox Deluxe Select rear shock can soak it up in 160mm of plush travel.

Offering multi-way adjustment and tuning allows you to tailor your setup to your weight, riding style and terrain with a complete 160mm of travel front and rear.

Haibike AllMtn 3 2022 Brakes & Gears

Brakes & Gears

Continuing the theme of high specification componentry at a great value price point, the Haibike AllMtn 3 is fitted with Shimano MT401 brakes.

These twin piston brakes offer a great amount of braking force, making them the go to option for manufacturers looking to pull an eBike to a stop on even the steepest and most technical descents.

Paired with monster 203mm discs up front and 203mm at the rear, the full Shimano setup is and easily maintained but ultra powerful.

12 speed gearing has become the "go to" choice for eMTB manufacturers and 2022 Haibike AllMtn 3 is no different. It gets its 12 gears for 2022 in the form of the SRAM SX Eagle group set.

Its super wide ratio 10-50T cassette really takes the sting out of the long ascents, without holding you back in top speed on open ground and downhill sections and offers a useful gear for every scenario, regardless of terrain.

The SRAM Trigger Switch shifters offers fast, precise shifting with minimal chain slap, leaving you to concentrate on the trail ahead.

Haibike AllMtn 3 2022 Shimano Deore Brakes

Faster piston retraction gives superior modulation and much greater fast & slow speed control.

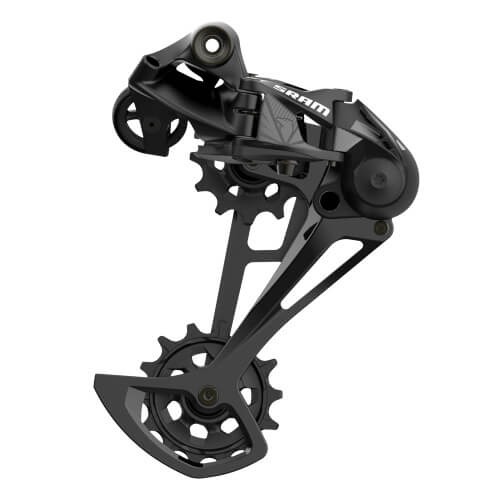

Haibike AllMtn 3 2022 Sram SX Rear Mech

SX Horizon design rear derailleur keeps chain tension in check and chain slap to a minimum.

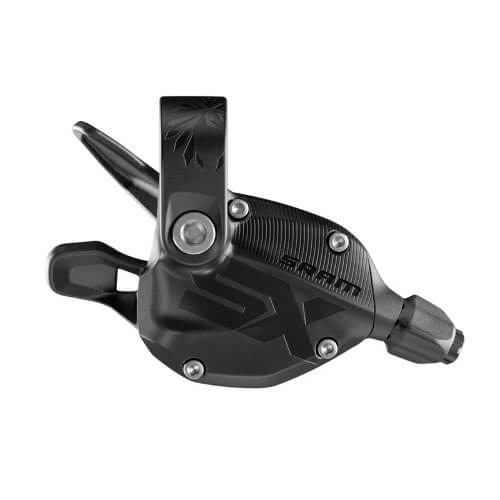

Haibike AllMtn 3 2022 Sram SX Shifters

SRAM SX single click shifters provide, instaneous, crisp shifting even under load.

Haibike AllMtn 3 2022 Bosch Dropper Seat Post

Wheels & Tyres

Continuing the AllMtn model range trend, the AllMtn 3 also gets a "mullet" wheel set up with a 29" front and 27.5" rear in the form of Rodi Tryp 30 components.

The 2022 Haibike AllMtn 3 tyre setup offers a clue to its design purpose and are very much top level components on an entry level bike.

With a Maxxis Minion DHF II up front and a Maxxis Minion DHR II at the rear, these Tubeless Ready tyres are designed to be fast, precise and provide useful feedback on any terrain and can be set up tubeless when we build your new bike at just £49.99.

Haibike AllMtn 3 2022 maxxis Minion DHR Tyres

The bottom line..

The AllMtn 3, like most Haibike models is aggressively styled with a highly "angular" aesthetic. Offering full internal cable and hose routing including the factory fitted dropper post, everything is tucked neatly out of the way. The low gloss finish is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.

The low gloss finish is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.


Haibike AllMtn 3 2022 Bosch CX Drive Unit

Bosch CX & Purion eBike System

The new Haibike AllMtn 3 2022 eBike features the newest and most powerful Gen 4 Bosch Performance CX crank drive motor, so you can be sure it's fitted with the latest kit & setup for optimum trail performance.

The 250w Bosch Performance CX system outputs 85Nm of torque & peaks at 500w output It certainly packs a punch, it will also offer up to 340% assistance in turbo mode. Featuring 4 levels of assistance & remember you can always turn the power off and ride it as a normal bike! In addition, the new eMTB mode allows the user to set in one assistance mode and the system itself will determine the assistance offered.

The 2022 AllMtn 3 also features the latest 'PowerTube' design Bosch 625Wh battery technology for 2022. Completely integrated into the frame for security and safety, Haibike have cleverly designed it so it can be charged both on and off the bike.

Haibike AllMtn 3 2022 Bosch Purion Display

The Bosch Purion display is simple to use and offers on the fly vision of selected power mode and battery life.

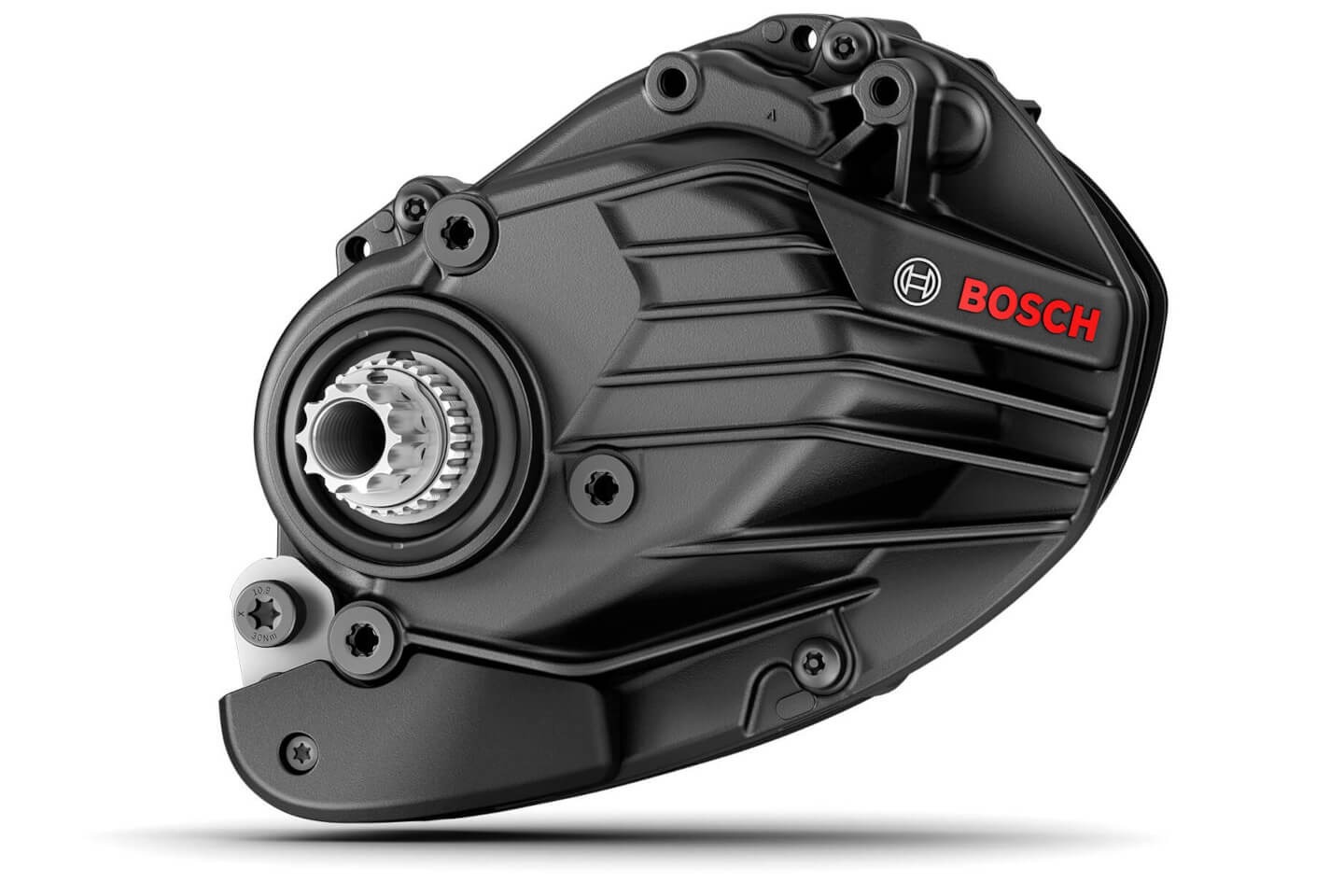

Haibike AllMtn 3 2022 Bosch CX Motor

The Bosch Generation 4 Performance CX motor is the mostly widely used on eMTB models, offering 85Nm of super reliable support.

Haibike AllMtn 3 2022 Bosch PowerTube 625Wh Battery

The Bosch PowerTube 625Wh battery neatly fits inside the frame. Providing up to 160 miles of assisted riding, you'll get much further than you ever imagined!

Haibike AllMtn 3 2022 Bosch Purion Handlebar Display

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.


General Bike Specifications

Frame Aluminium 6061, thru-axle M12 (1.75) x 148mm, disc brake

Forks RockShox 35 Silver, steel spring, Travel: 160mm

Rear Shock RockShox Deluxe Select, air

Brakes Shimano MT401, aluminium

Shifters Sram SX Eagle, trigger switch

Rear Mech Sram SX Eagle, 12-speed

Cassette Sram Eagle PG1230, 11-50 teeth

Chain Sram X01 Eagle

Wheelset Rodi Tryp 30, eyed, double-walled rim, aluminium

Tyres Maxxis Minion DHF II, 65-622 / Maxxis Minion DHR II, 71-584

Handlebars Haibike Components TheBar ++ 780mm

Stem Alu, A-head, Bar bore: 31.8mm

Headset Acros BlockLock

Seatpost Dropper-Post Remote, telescope, 31.6mm, aluminium

Saddle XLC MTB

Weight TBC

Electric Bike Specifications

Battery Bosch PowerTube 625Wh

Display Bosch Purion Multi-functional display

Motor Bosch Performance CX Gen 4, 250W, 85Nm, 25km/h

Range 30-140 miles of power-assisted range, depending on terrain



You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.

Note: Some models have more available sizes than others.

Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.

Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.

You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:

In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order

On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.

If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.

Note: Not all of our electric bikes have colour options available.

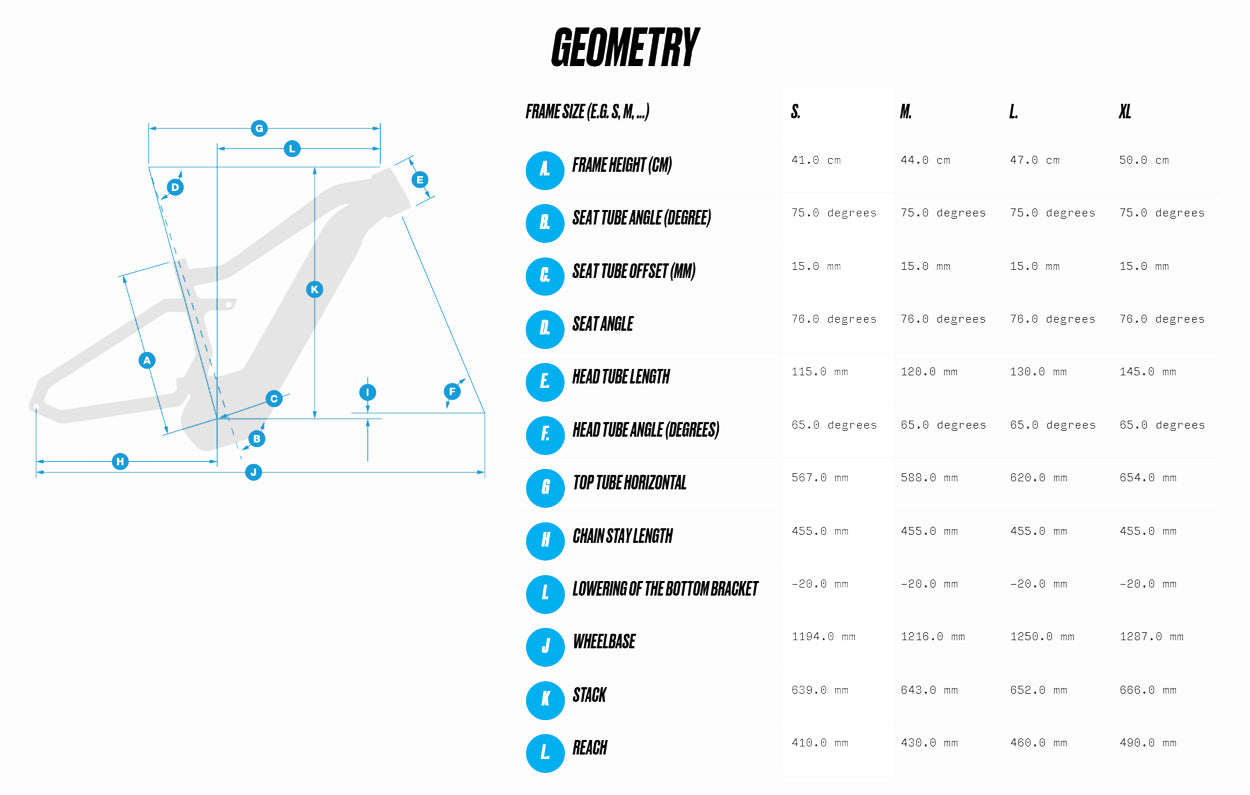

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.

At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Haibike in Germany.

At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.

We can talk you through your riding style and requirements and offer expert advice as to which model to select.

We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.
Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.

Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.

We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.

If you cannot find the answer you are looking for, please don't hesitate to get in touch.
Remember you can find a full F.A.Q on general electric bike & website questions by clicking here.
