E-Bike Key Specs
Battery
Yamaha 720Wh
Display
Display A
Motor
Yamaha PW X3
Range
30-160 miles
E-Bike Highlights
WHO IS THIS BIKE
SUITABLE FOR?

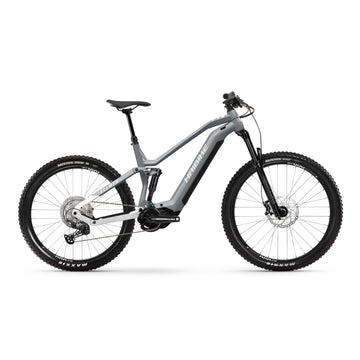

Introducing the 2024 Haibike AllMtn 3, a remarkable electric mountain bike designed to elevate your trail-riding experience. With a powerful Yamaha PW-X3 motor and a robust 720Wh battery, it delivers relentless power and extended range, conquering steep climbs and rugged descents effortlessly. The AllMtn 3's aluminum frame strikes the perfect balance between strength and agility, ensuring responsive handling and durability.
Equipped with Shimano Deore components, this bike offers precise shifting and reliable braking. The RockShox suspension system enhances comfort and control, making each ride a pleasure. Whether you're an experienced rider seeking adventure or a newcomer to mountain biking, the 2024 Haibike AllMtn 3 offers an exceptional off-road experience. Elevate your trail game and explore the outdoors with confidence on this impressive electric mountain bike. Get ready for the ride of a lifetime!
Our 5 point review...
1
Lightweight and robust alloy frame
2
Yamaha's biggest 720Wh electric bike battery
3
12 speed Shimano SLX 10-51t gearing
4
Yamaha's most powerful PW-X3 motor with 85Nm torque output
5
Large, easy to read Yamaha Side Switch display
Features
New drive system for 2024..
Having previously been a Bosch equipped model, the new 2024 AllMtn 3 is now equipped with Yamaha's latest PW-X3 motor system, Side Switch display and the 720Wh InTube battery cleverly incorporated within the frame.
Shimano components ensure precise shifting, while RockShox suspension enhances ride comfort. This e-bike combines innovation and performance for an exceptional off-road adventure.
Full Rockshox suspension..
The 160mm RockShox 35 Gold fork and Deluxe Select shock are a dynamic duo in the world of mountain biking suspension. The 35 Gold fork boasts a robust chassis with 35mm stanchions for impressive stiffness and control on the trails.
Complementing this on the 2024 Haibike AllMtn 3 is the Deluxe Select shock, offering adjustable damping and a smooth performance, enhancing traction and ride comfort. Together, they provide an excellent balance of responsiveness and reliability, making them an ideal choice for riders seeking an improved off-road experience.
Brakes & Gears
Shimano Deore 12-speed gears represent a remarkable advancement in mountain biking drivetrains. Offering a wide gear range, these components provide seamless and precise shifting, ensuring riders can conquer steep climbs and fast descents with ease.
Deore 12-speed gears incorporate Shimano's Hyperglide+ technology, facilitating quick and smooth gear changes. The durability and reliability of Deore components make them an excellent choice for riders seeking high-performance shifting without the premium price tag, making them a top pick for off-road adventures.
The Shimano M420 brakes are a reliable and budget-friendly option for mountain biking enthusiasts. With their sturdy construction and efficient braking performance, they offer dependable stopping power on various terrains.
These hydraulic disc brakes are easy to maintain and provide consistent modulation, allowing riders to fine-tune their speed confidently. While not the most high-end option, the M420 brakes provide a practical and cost-effective solution for riders looking for reliable stopping capabilities on the trails, enhancing safety and control.
Shimano MT420 brakes are a dependable hydraulic disc brake system, offering consistent stopping power and modulation for mountain biking. They provide reliable performance at an affordable price point.
Shimano Deore 12-speed drivetrains provide a wide gear range and precise shifting, making them ideal for conquering diverse terrains while maintaining affordability and reliability.
Shimano M6100 trigger shifters offer precise and smooth gear changes for 12-speed drivetrains, delivering reliable performance and ease of use to enhance the riding experience.
Wheels & Tyres
WTB ST i30 wheels are a versatile and rugged choice for mountain bikers and are at home on the 2024 Haibike AllMtn 3. With a 30mm inner rim width, they accommodate wider tires for enhanced traction and comfort on various terrains.
These wheels feature sturdy alloy construction and dependable hubs, ensuring durability on demanding trails. Their tubeless compatibility reduces the risk of flats and improves grip. The ST i30 wheels strike a balance between performance and durability, making them a popular option for riders seeking reliability and capability on the trails.
Pairing Maxxis Minion DHF (Minion DHR Front) and DHR (Minion DHR Rear) tires is a winning combination for aggressive off-road riders. The DHF's aggressive tread pattern provides exceptional grip and precise steering, making it ideal for the front wheel.
The DHR, designed for the rear wheel, offers great traction and braking with staggered knobs for excellent control while cornering and accelerating. This tire combination ensures optimum performance, balance, and confidence for riders tackling challenging terrains and demanding trails.
The bottom line..
The 2024 Haibike AllMtn 3 exemplifies superb build quality. Its meticulously crafted aluminum frame is robust yet lightweight, offering strength and agility. Equipped with high-quality components like the Yamah PW-X3 motor and Shimano drivetrain, it delivers precision and reliability.
The RockShox suspension system enhances ride comfort and control. This e-bike showcases Haibike's commitment to durability and attention to detail, ensuring a dependable and enduring off-road experience for riders seeking top-tier build quality in their electric mountain bike.
Haibike sets the standard for quality in German finish and design. Their meticulous craftsmanship and attention to detail result in flawless paintwork that enhances both aesthetics and durability.
The carefully crafted frames and components are not only visually appealing but also built to withstand the rigors of off-road riding. Haibike's design philosophy focuses on ergonomics and functionality, ensuring that every aspect of the bike is thoughtfully engineered for an exceptional riding experience. The result is a perfect blend of form and function that riders can rely on.
Power
Yamaha PW-X3 and Side Switch display
The new Haibike AllMtn 3 2024 eBike features the latest Yamaha PW-X3 drive system. This brand new motor for 2024 offers 85Nm of torque and peaks at over 500w.
With 4 assistance modes, it can now provide up to 360% assistance in its highest power mode. Part of the brand new PW-X3 system for 2024, the AllMtn 3 also gets a new 720Wh battery.
Completely integrated into the frame, Haibike have neatly incorporated it into the downtube of the frame but with a key lock detachment, allowing it to be charged both on and off the bike.
The Side Switch display is incredibly simple to use, and offers immediate information on battery and assist levels viewable from its integrated screen and button system. The control buttons mounted to the left of the handlebars allow the user to toggle ride modes on-the-fly.
The Yamaha Side Switch controller is a user-friendly handlebar-mounted interface, allowing riders to access and adjust key e-bike functions such as power assist levels and information displays with ease.
The Yamaha PW-X3 motor is a powerful and efficient electric bike motor, offering impressive torque and performance for e-bike riders, particularly those who enjoy off-road adventures.
The Yamaha 720Wh battery is a high-capacity power source for e-bikes, providing an extended range and long-lasting performance, making it ideal for riders seeking extended journeys on a single charge.
What's included
Your new Haibike electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your Haibike eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
Haibike electric bikes include a 5yr (Alloy) or 2yr (Carbon) warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a Haibike UK eBike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Why choose E-Bikeshop?
Specifications
General Bike Specifications
Frame Aluminium, through axle M12 (1.00) x 148mm, disc brake Post Mount
Forks RockShox 35 Gold RL, air, aluminum shaft 1 1/8" - 1 1/2" tapered, thru-axle Boost, Travel: 160mm
Rear Shock RockShox Deluxe Select, air, Travel: 160mm
Brakes Shimano MT420, aluminium, 203mm
Shifters Shimano Deore M6100, trigger switch
Rear Mech Shimano Deore M6100, 12-speed
Cassette Shimano M6100, 10-51 teeth
Chain Shimano M6100
Wheelset WTB ST i30 TCS, double-walled rim
Tyres Continental Kryptotal- F, 60-622 (Front) / Continental Kryptotal- R, 65-584 (Rear)
Handlebars Haibike Components TheBar +++ 780mm
Stem Haibike Components TheStem +++, Bar bore: 31.8mm
Headset Acros BlockLock
Seatpost Dropper-Post Remote, telescope, 34.9mm, aluminium
Saddle Selle Royal Vivo
Weight 26 kg
Electric Bike Specifications
Battery Yamaha InTube 720Wh
Display Yamaha Side Switch
Motor Yamaha PW-X3, 250W, 85Nm, 25km/h
Range 30-160 miles of power-assisted range, depending on terrain
Downloads

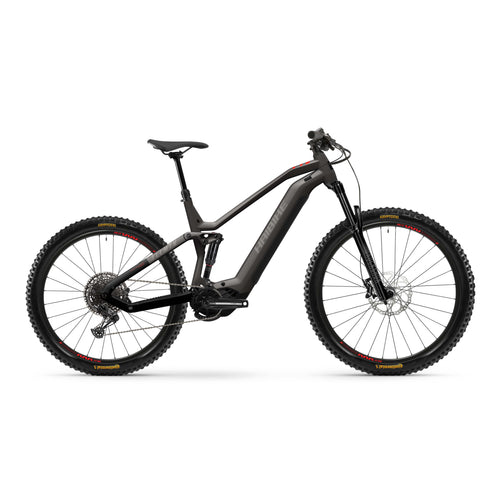

E-Bikeshop's top alternate picks
