Haibike Electric Bikes

Haibike AllMtn CF 11 2022

£6,199.00

Pre-order
Haibike AllMtn CF 11 2022


Frame Size: S 41cm

Battery

Bosch 750Wh

Display

Bosch Kiox 300

Motor

Bosch CX Gen 4

Range

30-160 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Haibike AllMtn CF 11 2022 Electric Bike Rider Review
Haibike AllMtn CF 11 2022 Bosch Gen 4 CX Motor

The brand new AllMtn CF 11 2022 is a mid-range all mountain and trail bike for the new Haibike model year and offers some of the best componentry in the now incredibly vast AllMtn Range at a really competitive price. A brand new carbon frame built around the latest Bosch Performance Line CX motor, new 750Wh battery and the new Bosch Smart System, the new AllMtn CF 11 eMTB is designed to do absolutely everything in one neat, eye-catching package.

Bridging the gap between the mid and high price bikes in the AllMtn line up for the 2022 model year, the AllMtn CF 11 will be at its best under the most capable riders, but offers new and rapidly improving riders a ride with a lot of headroom without having to continually upgrade components as skill levels increase.

Our 5 point review...

1

Advanced carbon fibre lightweight frame

2

Longest range Bosch 750Wh electric bike battery

3

Latest gen Shimano XT 12-speed gearing

4

Highest performing Bosch motor at 340% assistance

5

Full rider control with the new Bosch Kiox 300 display

Features

Haibike AllMtn CF 11 2022 Bosch Gen 4 CX Motors
Haibike AllMtn CF 11 2022 MT5 Brakes

Same, but new..

The 2022 Haibike AllMtn CF 11 carries the same frame geometry as the rest of the model range, but in a brand new Carbon frame. This new frame builds on the success of the 2021 AllMtn 6, 7 and SE models.

Haibike AllMtn CF 11 2022 Fox Suspension Forks
Haibike AllMtn CF 11 2022 Fox Suspension Shock

Rockshox Suspension

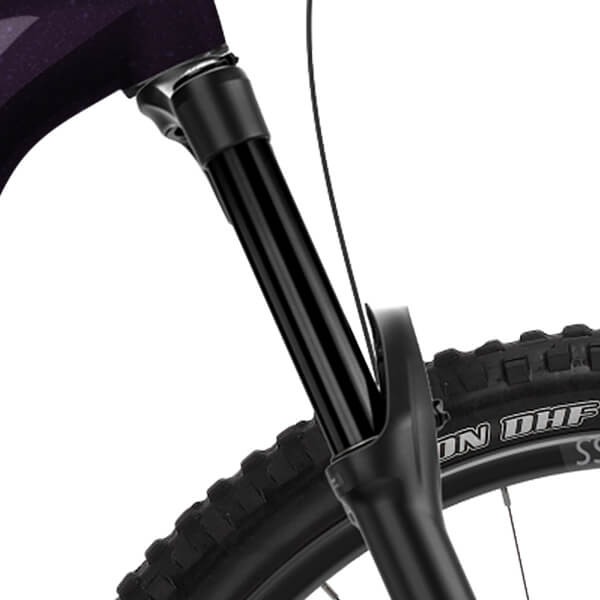

Whatever mountain you need to scale, the AllMtn CF 11 with its Rockshox Lyric Select RC air forks and Rockshox Deluxe Select Plus rear shock can soak it up in 160mm of plush travel.

Offering multi-way adjustment and tuning allows you to tailor your setup to your weight, riding style and terrain with a complete 160mm of travel front and rear.

Haibike AllMtn CF 11 2022 Shimano XT Gears

Brakes & Gears

Continuing the theme of top shelf componentry, the Haibike AllMtn CF 11 gets the very best Magura anchors in the form of the MT5 HC set up. These 4 piston brakes offer a huge amount of braking force, making them the go to option for manufacturers looking to pull an eBike to a stop on even the steepest and most technical descents.

The new HC single finger levers offer multi-directional adjustment for the perfect pull, every time. Paired with monster 203mm discs up front and 203mm at the rear, the new Magura MT5 setup is and easily maintained but ultra powerful set up.

12 Speed gearing has become the "go to" choice for eMTB manufacturers in the mid-high price tier, and the 2022 Haibike AllMtn CF 11 gets its 12 gears for 2022 in the form of the Shimano XT 8100 ShadowPlus group set.

Its super wide ratio 10-51T cassette really takes the sting out of the long ascents, without holding you back in top speed on open ground and downhill sections and offers a useful gear for every scenario, regardless of terrain.

Larger 13t pulley wheels reduced overall provide better chain management while increasing efficiency and are directly compatible with boost 12 speed cassettes.

Working together, the Shimano RapidFire shifters and the the ShadowPlus clutch system offer smooth, precise and chain slap free shifting on the fly.

Haibike AllMtn CF 11 2022 Magura MT 5 Brakes

Faster piston retraction gives superior modulation and much greater fast & slow speed control.

Haibike AllMtn CF 11 2022 Shimano Deore XT Rear Mech

Shadow Plus rear derailleur keeps chain tension in check and chain slap to a minimum.

Haibike AllMtn CF 11 2022 Shimano SLX Shifters

The Rapid-Fire Plus shifters provide smooth but positive, on-the-fly shifting.

Haibike AllMtn CF 11 2022 Dropper Seat Post & Fizik Saddle

Wheels & Tyres

Continuing the AllMtn model range trend, the AllMtn CF 11 also gets a "mullet" wheel set up with a 29" front and 27.5" rear in the form of DT Swiss H1900 components.

The 2022 Haibike AllMtn CF 11 tyre setup offers a clue to its design purpose and are very much top level components on an entry level bike.

With a Maxxis Minion DHF II up front and a Maxxis Minion DHR II at the rear, these Tubeless Ready tyres are designed to be fast, precise and provide useful feedback on any terrain and can be set up tubeless when we build your new bike at just £49.99.

Haibike AllMtn CF 11 2022 Maxxis Minion DHR Tyres

The bottom line..

The AllMtn CF 11, like most Haibike models is aggressively styled with a highly "angular" aesthetic. Offering full internal cable and hose routing including the factory fitted dropper post, everything is tucked neatly out of the way. The high gloss and unusual purple paint finish and contrasting colour choice is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.

The high gloss and unusual purple paint finish and contrasting colour choice is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.

Power

E-Bikeshop What's Included

Bosch CX & Kiox eBike System

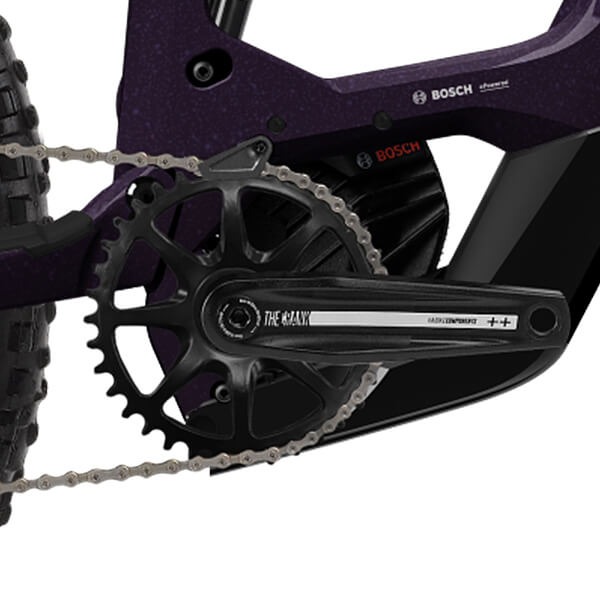

The new Haibike AllMtn CF 11 2022 eBike features the latest Gen 4 Bosch Performance CX crank drive motor, with a brand new twist.

The recently updated 250w CX system now provides 85Nm of torque and peaks at 500w. With 4 assistance modes, it can now provide up to 340% assistance in Turbo mode. In addition, the new eMTB mode allows the user to set off in one assistance mode and clever sensor driven system will provide exactly the right amount of power right when you need it and less when you don't.

Part of the brand new "Smart System" 2022 Bosch Update, the new 2022 Haibike CF 8 features their new Bosch 'PowerTube' 750Wh battery. Haibike have neatly integrated it into the frame, allowing it to be charged both on and off the bike.

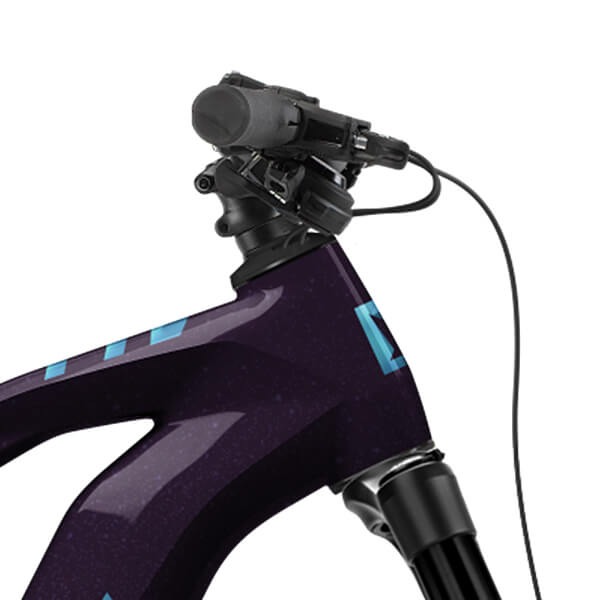

Haibike AllMtn CF 11 2022 Bosch Kiox 300 display

The new Bosch Kiox 300 display is neat and super compact with a bright, intuitive LCD display screen and tailored around helping riders with their training. It can also be updated wirelessly via the new eBike Flow app.

Haibike AllMtn CF 11 2022 Bosch eBike LED Remote

The new Bosch eBike LED Remote keeps the rider in-tact with the ride assist mode at any moment during the ride, it's easy to read featuring a built-in ambient light sensor and ergonomic design for quick assist changes on-the-go.

Haibike AllMtn CF 11 2022 Bosch PowerTube 750Wh battery

The Bosch PowerTube 750Wh battery neatly fits inside the frame. The whopping 750Wh battery is the latest in the Bosch eBike line-up offering the very longest range possible. It can be charged both in the bike or when removed.

Haibike AllMtn CF 11 2022 Handlebar Display

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Carbon/Aluminium

Forks RockShox Lyrik Select RC, air/oil, Travel: 160mm

Rear Shock RockShox Deluxe Select Plus, air

Brakes Magura MT5 HC-lever, aluminium

Shifters Shimano Deore SLX M7100

Rear Mech Shimano Deore XT M8100 Shadow Plus, 12-speed

Cassette Shimano M6100, 10-51 teeth

Chain Shimano CN-M6100

Wheelset DT Swiss H1900

Tyres Maxxis Minion DHF II, 65-622 / Maxxis Minion DHR II, 71-584

Handlebars Haibike Components TheBar ++ 780mm

Stem Alu, A-head, Bar bore: 31.8mm

Headset Acros Cable integration

Seatpost Dropper-Post Remote, telescope, 31.6mm, aluminium

Saddle Fizik Terra Aidon X5-160

Weight TBC

Electric Bike Specifications

Battery Bosch PowerTube 750Wh

Display Bosch Kiox 300 + LED Remote

Motor Bosch Performance CX Smart System, 250W, 85Nm, 25km/h

Range 30-160 miles of power-assisted range, depending on terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.

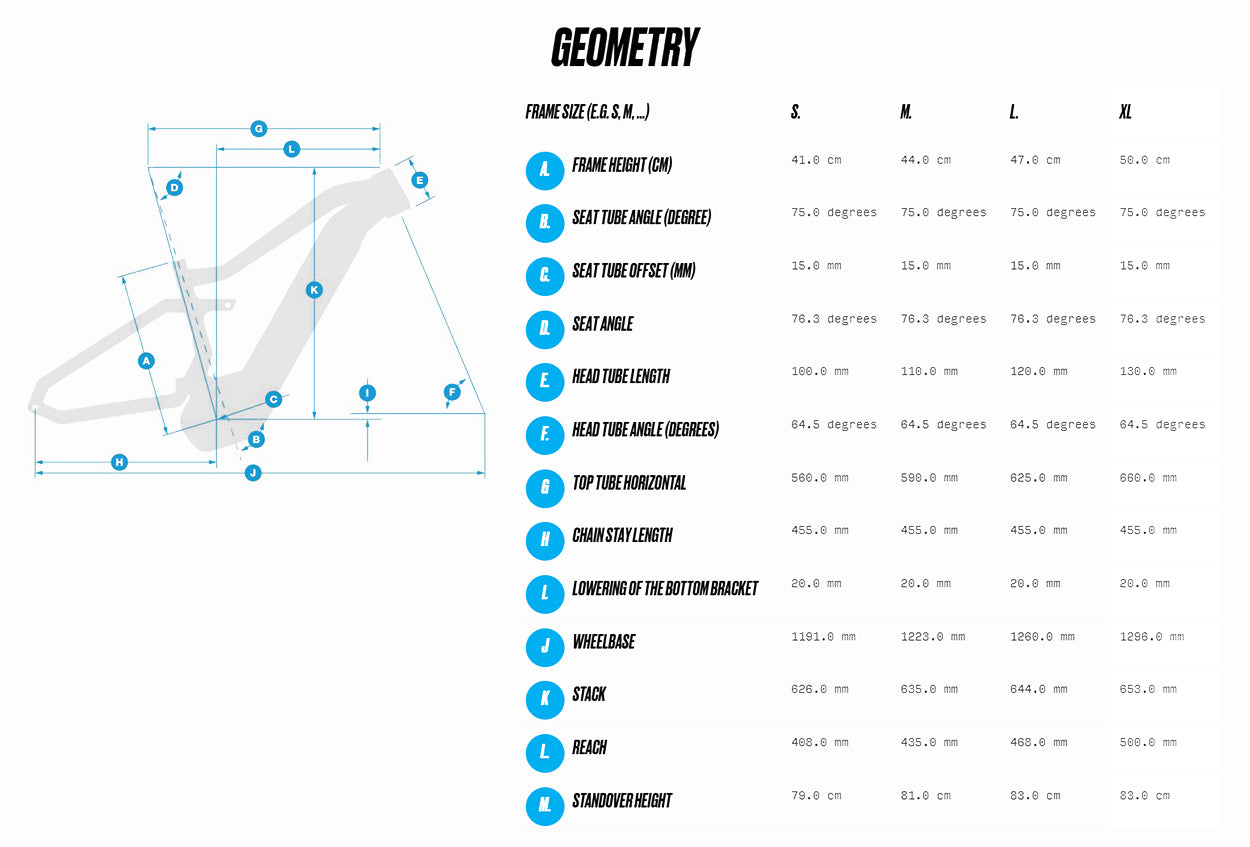

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.



At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Haibike in Germany.



At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.


We can talk you through your riding style and requirements and offer expert advice as to which model to select.


We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.

Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.



Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.


We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.



If you cannot find the answer you are looking for, please don't hesitate to get in touch.
Remember you can find a full F.A.Q on general electric bike & website questions by clicking here.
