Haibike Electric Bikes
Haibike AllTrack Kids eBike 2022
£2,299.00
Haibike Electric Bikes
Haibike AllTrack Kids eBike 2022
£2,299.00
Battery
Yamaha 400Wh
Display
Display A
Motor
Yamaha PW TE
Range
30-80 miles
Why choose E-Bikeshop?
E-Bikeshop's top alternate picks
E-Bike Highlights
WHO IS THIS BIKE
SUITABLE FOR?


This one's pretty obvious - The Haibike Alltrack 2022 eBike is for kids who require that little bit of assistance!
This 24" wheeled unisex kids electric bike is suitable for children ranging from the age of 8 onward. A kids specific chassis and refined Yamaha eBike system.
Our 5 point review...
1

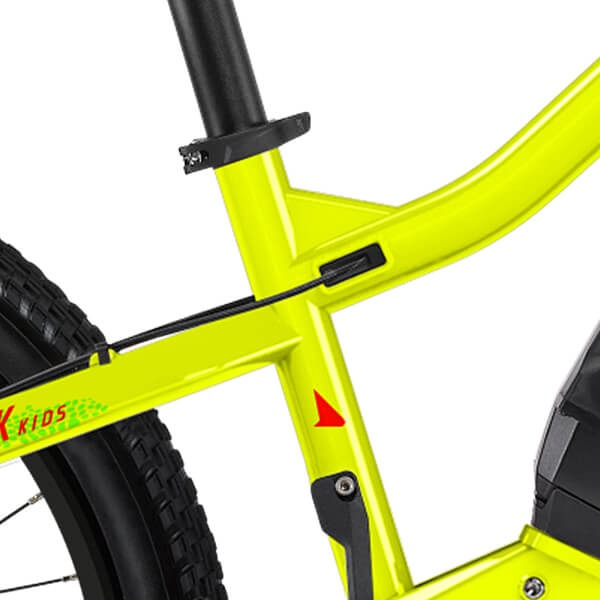

Lightweight alloy frame
2
400Wh Yamaha battery offers miles of joint riding fun
3
9 speed Shimano Altus gearing
4
Specially tuned Yamaha PW-TE motor
5
Simple, easy to use Yamaha Side Switch control system
Features


No more struggling to keep up..
The new AllTrack 2022, finally we have a 24" kids electric bike. Do your children get fed up and tired mid way through the ride? Do you want to ride further with your family? Or does your child require some support?


A boost for the little ones..
The new Haibike AllTrack 2022 is the answer!
The AllTrack offers refined kids geometry and a smaller 24" wheel. Suitable for boys or girls with an average age of 8 years old and up.
This simple spec'd electric bike is great for children and Haibike have included a refined version of the 2022 Yamaha system, learn more further down the page.

Brakes & Gears
The 2022 AllTrack comes with Tektro hydraulic disc brakes. Simple to use and fairly maintenance free, it's a good option on this 24" kid's bike. With the electric assistance we want to ensure braking power remains solid.
The 2022 AllTrack features a 9 speed Shimano Altus gear system with simple to use trigger shifters to give the kids full versatility across varied climbs and descents.

Hydraulic disc brakes ensure your child has the confidence to come to stop as quickly as they take off

Simple to use 9 speed gearing is a great introduction to bigger bikes in years to come

The Shimano Altus shifters have been chosen to ensure ease of use for smaller hands

Wheels & Tyres
Although kids sized wheels, Haibike have built them with decent disc hubs and Rodi alloy, double wall, rims.
For 2022 the 24" Schwalbe Billy Bonkers tyres are both lightweight & durable in their construction, they allow a faster rolling resistance while maintaining grip at the same time.
A good choice for a mixture of surfaces.

The bottom line..
We are excited about this children's electric bike. A proper German crank drive Yamaha eBike. Finally you can take the kids on a full ride out without the stresses and strains of them getting worn out after a short distance.
The Yamaha controls are very simple to operate. There's only three buttons, one to turn it on/off and two to adjust the assist up/down.
Power

Yamaha PW-TE eBike System
The new 2022 Haibike AllTrack is powered by the latest Yamaha electric bike system. This 250w motor offers up to 280% assistance and peaks at 60Nm of restricted torque (on this kids version).
The assistance is set in 4 levels on the kids version - 'Eco +', 'Eco', 'Standard' & 'High'. This allows the child to fine tune the amount of assistance required. We also see a new set of controls that loose the LCD screen in replace of simple on / off power and assistance, easy to use buttons.
The Haibike AllTrack 2022 kids eBike is offered with the 400Wh Yamaha battery to give a full day's ride time. Now your son / daughter can join you for the longer rides too!
On the Kids version the assistance speed is lowered down to 12.5mph. We want children to have fun whilst maintaining a safe pace. We also remove the walk assist and simplify the levels to make it as user friendly as possible.

Easy to use Yamaha Side Switch controller only needs 3 buttons to use. On/off and up and down for the power mode selection.

The Yamaha PW-TE motor fitted in the Alltrack has been tuned down to 60Nm of torque for safety on this small bike but offers 280% assitance.

The 400Wh Yamaha battery is one of their smallest, but will still cover the miles on a lighter bike with only a small child on board!

What's included
Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Specifications
General Bike Specifications
Frame Aluminium 6061 with Internal Cable Routing
Forks SR Suntour XCR LO, Lockout, 63mm, Tapered
Rear Shock N/A
Brakes Tektro M282 160mm
Shifters Shimano Altus M2010 9-Speed Triggers
Rear Mech Shimano Altus M2000 9-Speed
Cassette SunRace CSM90, 11-36 Teeth, 9-Speed
Chain KMC X9 9-Speed
Wheelset Rodi Alloy Rims, Haibike TheHub+
Tyres Schwalbe Billy Bonkers 24 x 2.00"
Handlebars Haibike TopFlat Bar 31.8mm 640mm
Stem Haibike TheStem++ 31.8mm
Headset A-Head, Alloy, Tapered
Seatpost Haibike Alloy TheSeatpost+, 31.6mm
Saddle Haibike TheSaddle Kids
Weight 19.9kg
Electric Bike Specifications
Battery Yamaha Lithium Ionen 36 Volt, 400 Wh, with BMS Management
Display Yamaha Side Switch multi functional LCD display
Motor Yamaha PW-TE Crank Drive 36V 250 W, 60Nm
Range 30 - 80 miles of power assisted range, depending on terrain
