E-Bike Key Specs
Battery
Bosch 500Wh
Display
Bosch Purion
Motor
Bosch Perf Gen 3
Range
30-120 miles
Specifications
General Bike Specifications
Frame Haibike Hydro-Formed 6061 Aluminium Frame

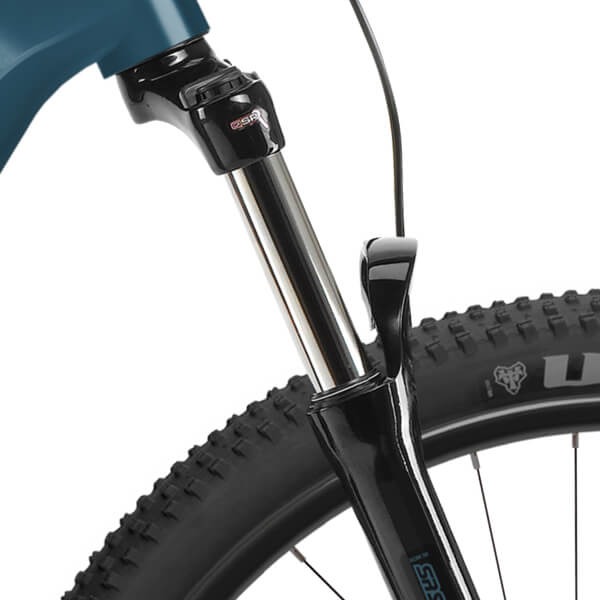

Forks SR Suntour XCM32 ATB Coil, 120mm

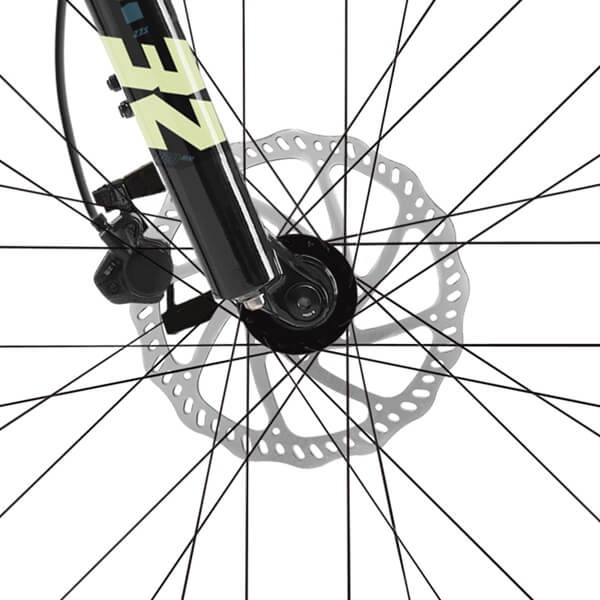

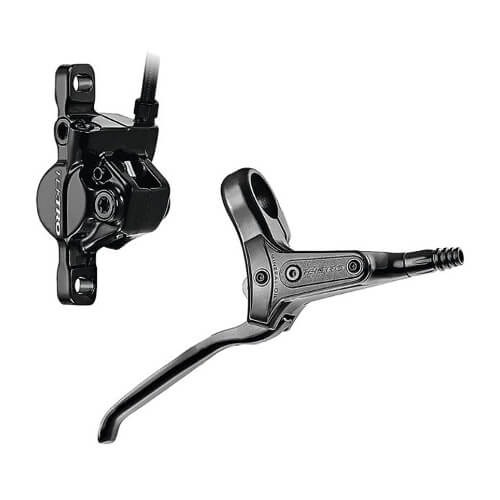

Brakes Tektro M275 hydraulic disc brakes, 180mm Rotors
Shifters Shimano Alivio SL-M3100-R, Rapidfire-Plus, 9-Speed

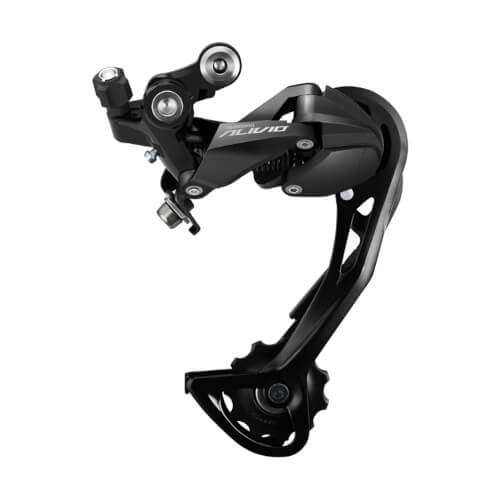

Rear Mech Shimano Alivio RD-M3100-SGS, 9-Speed
Cassette Shimano, HG200, 11-36T
Chain KMC e9s 9-Speed
Wheelset Schürmann, Yak25 rims built on Haibike, Alu Nabe, 6-bolt hubs
Tyres WTB Ranger Comp 27.5 x 2.3"
Handlebars XLC Alloy Top Flat 720mm 31.8mm
Stem XLC Alloy, 31.8mm
Headset Feimin, A-Head Tapered
Seatpost XLC Alloy 31.6mm
Saddle XLC MTB Comfort
Weight TBC
Electric Bike Specifications

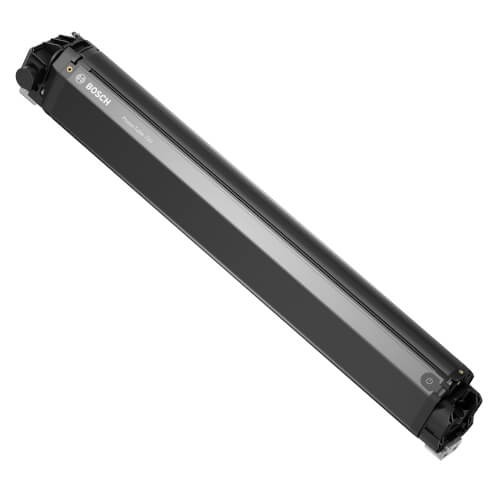

Battery Bosch PowerTube Lithium Ionen 36 Volt, 500Wh, with BMS Management

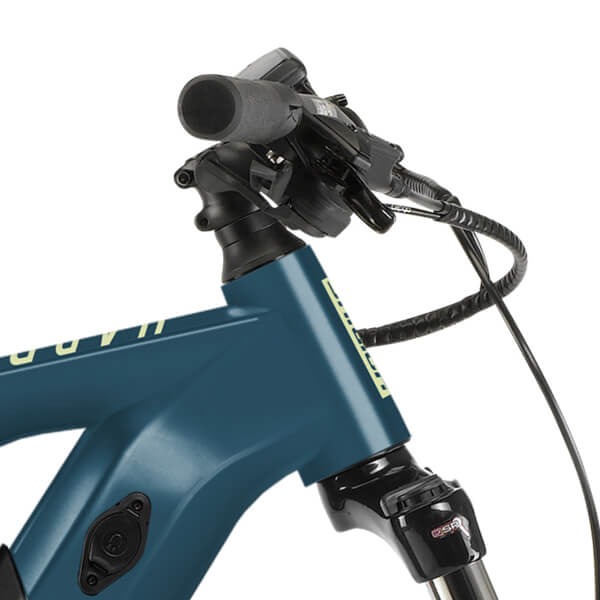

Display Bosch Purion Display
Motor Bosch Performance G3 36 Volt, Gen 3, 250 Watt. 50-300% Assist, 65Nm
Range 30-120 miles of power assisted range, depending on terrain
