Specifications
General Bike Specifications
Frame Aluminium 6061, 29", 4-Link System, Yamaha-Interface, hydroforced tubes, 100mm

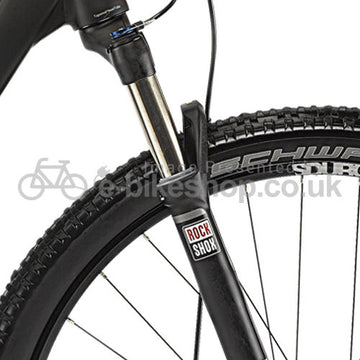

Forks Rock Shox XC32, Turn Key, PopLoc, suspension: air, Damping: oil, travel: 100mm

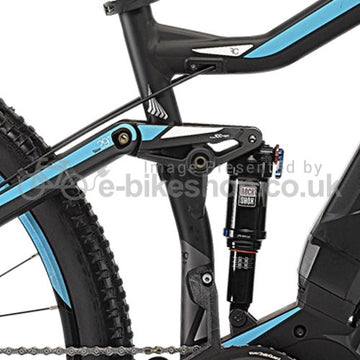

Rear Shock Rock Shox Monarch RT, suspension: air, damping: oil
Brakes Tektro Gemini, hydraulic disc brake, 180mm
Shifters Shimano Deore, SL-M 610, Rapidfire, I-Spec

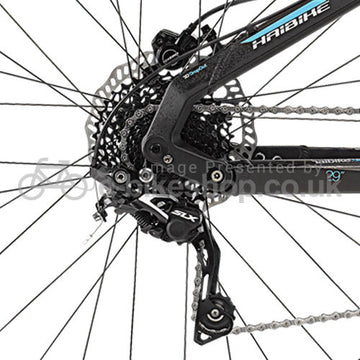

Rear Mech Shimano SLX M 675 Shadow Plus, 10 Speed
Cassette Sram PG 1020 11-36 Teeth, 10 Speed
Chain KMC X10e 10 Speed
Wheelset XLC Evo Disc Hubs, Rodi Alloy Double Wall Rims & Sapim Spokes Front 15mm Rear 142/12mm
Tyres Schwalbe Racing Ralph Performance, 29x2.25, Presta valve
Handlebars sDuro Lowriser Aluminium
Stem sDuro Aluminium, A-Head
Headset FSA No. 57, A-Head, semi-integrated, tapered
Seatpost Sduro Alu 31,6mm, Alu Patent, clamp with QR

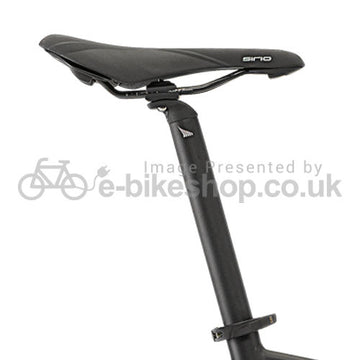

Saddle Selle Royal Sirio
Weight 22.2 kg
Electric Bike Specifications
Battery Yamaha Lithium Ionen 36 Volt, 400 Wh
Display Yamaha multifunctional display with operation unit & walk assist
Motor Yamaha Crank Drive 36V 250W
Range 40-80 miles range, cost to charge from flat - 5 pence
E&OE
