Specifications
General Bike Specifications
Frame Alu 6061, Hydro Formed, Gravity Casting Interface

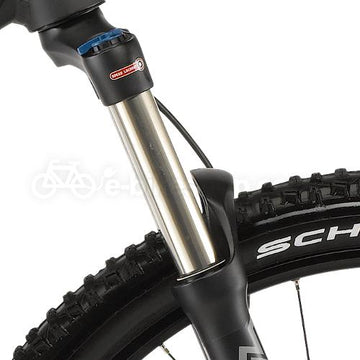

Forks SR Suntour XCR Air LO-R, 120mm, Tapered

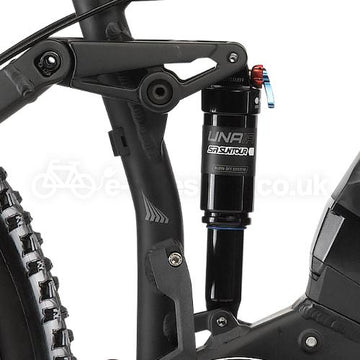

Rear Shock SR Suntour Unair EB LO-R
Brakes Tektro M275 Twin Piston 180mm
Shifters Shimano Deore M6000, Rapidfire 10 Speed

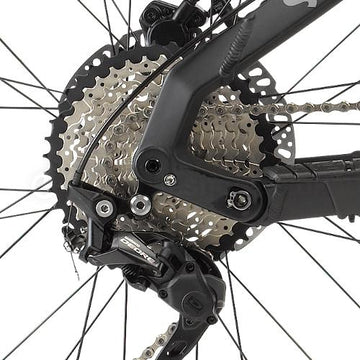

Rear Mech Shimano Deore M6000 10 Speed
Cassette Shimano HG500, 11-42t, 10 Speed
Chain KMC e10s 10 Speed
Wheelset Rodi Black Rock 23 Rims, Haibike TheHub++

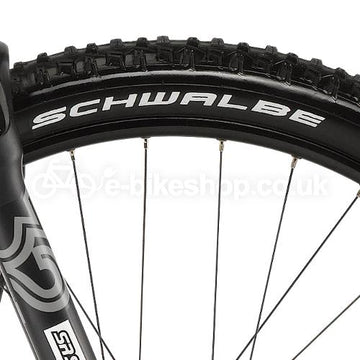

Tyres Schwalbe Tough Tom, 27.5 x 2.35"
Handlebars Haibike TheBar 31.8mm 740mm
Stem Haibike TheStem 31.8mm
Headset A-Head, Alloy, Tapered
Seatpost Haibike Alloy Post, 31.6mm

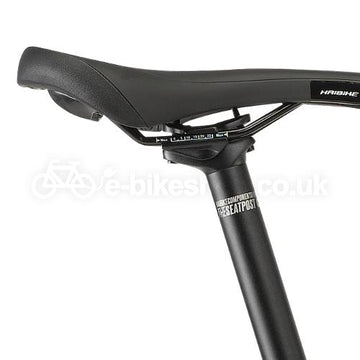

Saddle Haibike TheSaddle
Weight 22.9 kg
Electric Bike Specifications
Battery Yamaha Lithium Ionen 36 Volt, 500 Wh
Display Yamaha Side Switch multi functional LCD display with walk assistance
Motor Yamaha PW-SE Crank Drive 36V 250 Watt. 50 - 280% Assist, 70Nm
Range 30-140 miles of power assisted range, depending on terrain
E&OE
