Specifications
General Bike Specifications
Frame Alu 6061, Hydro Formed, Gravity Casting Interface
Forks RockShox Yari RC, 150mm Tapered

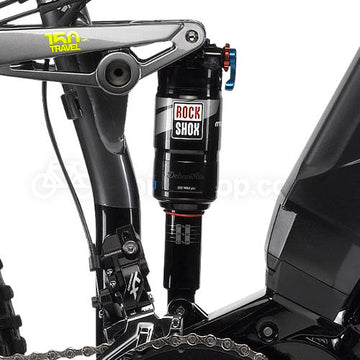

Rear Shock RockShox Monarch RT

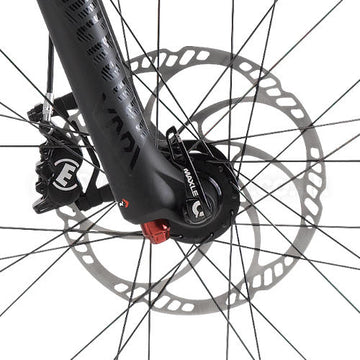

Brakes Magura MT32 203/180mm
Shifters Shimano XT M6000 20 Speed Trigger
Rear Mech Shimano XT M786 Shadow 10 Speed
Cassette Shimano HG50, 11-36t, 10 Speed
Chain KMC X10e 10 Speed
Wheelset Rodi TR35 Rims, Haibike TheHub++

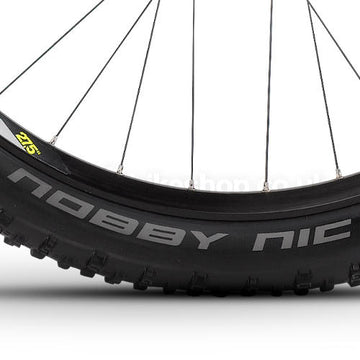

Tyres Schwalbe Nobby Nic Evo 27.5+ x 2.80
Handlebars Haibike sDuro TheBar 31.8mm 740mm
Stem Haibike TheStem 31.8mm
Headset A-Head, Alloy, Tapered
Seatpost XLC AllMtn Dropper, Remote, 31.6mm
Saddle Haibike TheSaddle
Weight 23.2 kg
Electric Bike Specifications
Battery Yamaha Lithium Ionen 36 Volt, 500 Wh, with BMS Management

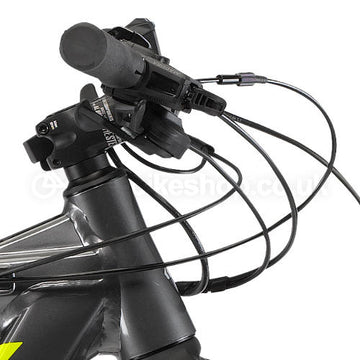

Display Yamaha PW-SE LCD-X Multi Functional Handlebar Display

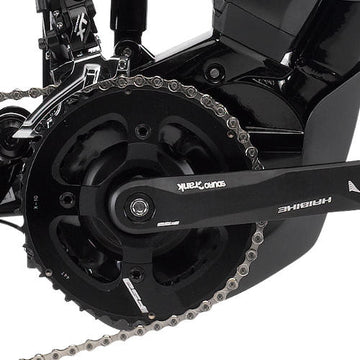

Motor Yamaha PW-SE Crank Drive 36V 250 Watt. 50 - 280% Assist, 70Nm
Range 30-140 miles of power assisted range, depending on terrain
E&OE
