Specifications
General Bike Specifications
Frame Alu 6061, Hydro Formed, Gravity Casting Interface

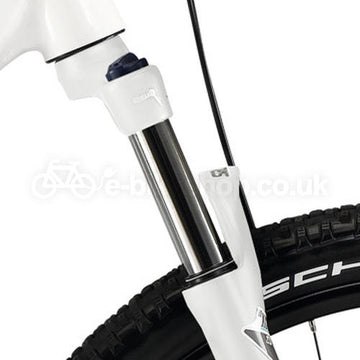

Forks SR Suntour XCM RL, 100mm
Rear Shock N/A
Brakes Tektro HD-M286 180mm
Shifters Shimano Altus Rapid Fire 9 Speed
Rear Mech Shimano Acera 9 Speed
Cassette Sram PG920, 11-34 Teeth, 9 Speed
Chain KMC X9 9 Speed
Wheelset XLC Disc Hubs on Rodi FW Rims QR
Tyres Schwalbe Smart Sam 27.5 x 2.25
Handlebars Haibike sDuro Flat Bar 31.8mm 720mm
Stem Haibike TheStem 31.8mm
Headset A-Head, Alloy, Tapered
Seatpost Alloy Straight Post, 31.6mm

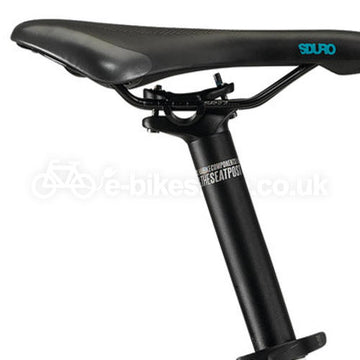

Saddle Selle Royal Voga
Weight 21.4 kg
Electric Bike Specifications
Battery Yamaha Lithium Ionen 36 Volt, 400 Wh, with BMS Management
Display Yamaha LED 3-Way Digital Main Display Switch

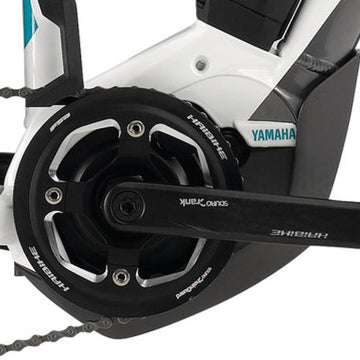

Motor Yamaha PW Crank Drive 36V 250 Watt. 100 - 280% Assist, 80Nm
Range 30 - 80 miles of power assisted range, depending on terrain
E&OE
