Specifications
General Bike Specifications

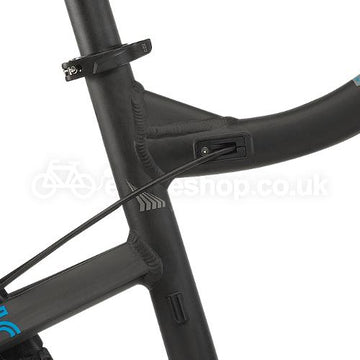

Frame Aluminium 6061 with Internal Cable Routing

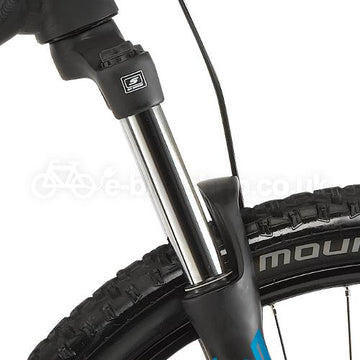

Forks SR Suntour XCM DS, 120mm
Rear Shock N/A

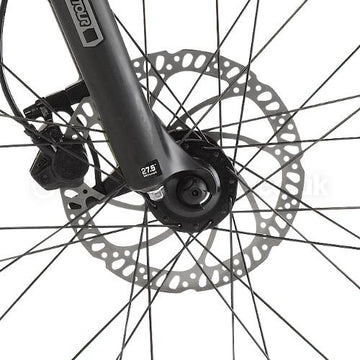

Brakes Tektro M275 180mm
Shifters Shimano Altus M2000 9 Speed Triggers

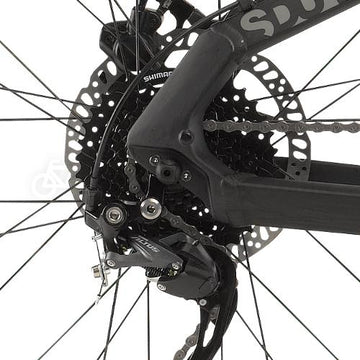

Rear Mech Shimano Altus M2000 9 Speed
Cassette Shimano HG200, 11-36 Teeth, 9 Speed
Chain KMC X9 9 Speed
Wheelset Rodi Black Rock Rims, Haibike TheHub++
Tyres XLC Mountain X, 27.5 x 2.25"
Handlebars Haibike TheBar 31.8mm 720mm
Stem Haibike TheStem 31.8mm
Headset A-Head, Alloy, Tapered
Seatpost Haibike Alloy Post, 31.6mm

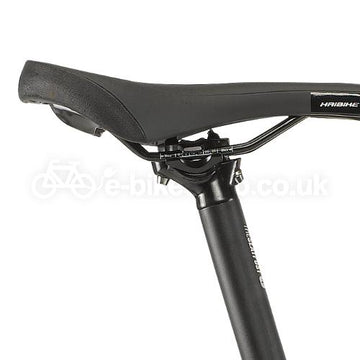

Saddle Haibike TheSaddle
Weight 22.4 kg
Electric Bike Specifications
Battery Yamaha Lithium Ionen 36 Volt, 400 Wh, with BMS Management
Display Yamaha Side Switch multi functional LCD display with walk assistance
Motor Yamaha PW-SE Crank Drive 36V 250 Watt. 50 - 280% Assist, 70Nm
Range 30 - 80 miles of power assisted range, depending on terrain
E&OE
