Specifications
General Bike Specifications
Frame Alu 6061, Hydro Formed, Gravity Casting Interface

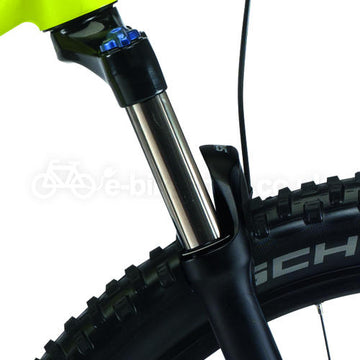

Forks SR Suntour Raidon RL, 120mm, Tapered
Rear Shock N/A

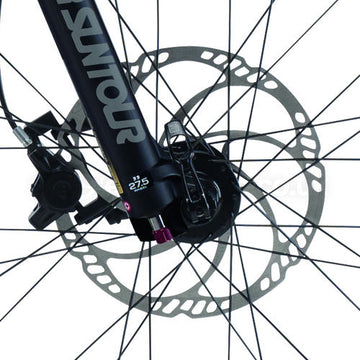

Brakes Magura MT4 180mm
Shifters Shimano Deore M610 20 Speed

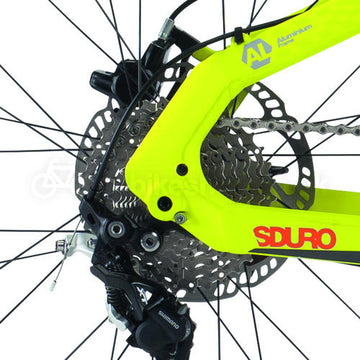

Rear Mech Shimano XT M786 Shadow 10 Speed
Cassette SunRace CSMS2, 11-40 Teeth, 10 Speed
Chain KMC X10e 10 Speed
Wheelset XLC Evo Disc Hubs on Rodi TR40 Rims, Front: 15mm, Rear: 148/12mm axle
Tyres Schwalbe Nobby Nic Evo 27.5+ x 3.00
Handlebars Haibike sDuro Bar 31.8mm
Stem Haibike TheStem DisplayIntegration 31.8mm
Headset A-Head, Alloy, Tapered
Seatpost Alloy Straight Post, 31.6mm
Saddle Selle Royal Voga
Weight 20.2 kg
Electric Bike Specifications
Battery Yamaha Lithium Ionen 36 Volt, 500 Wh, with BMS Management

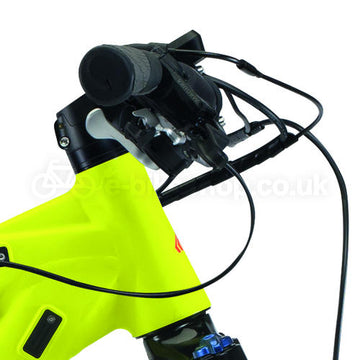

Display Yamaha PW-X Integrated into sDuro Stem
Motor Yamaha PW-X Crank Drive 36V 250 Watt. 50 - 320% Assist, 80Nm
Range 30-140 miles of power assisted range, depending on terrain
E&OE
