Haibike Electric Bikes
Haibike Trekking 4 Crossbar
£2,299.00
Haibike Electric Bikes
Haibike Trekking 4 Crossbar
£2,299.00
Battery
Yamaha 500Wh
Display
Display A
Motor
Yamaha PW TE
Range
30-120 miles
Why choose E-Bikeshop?
Alternative bike frame styles
E-Bike Highlights
WHO IS THIS BIKE
SUITABLE FOR?


The 2021 Haibike Trekking 4 eBike is the base spec model in the Haibike trekking range for 2021 built with the new Yamaha PW-TE system and larger capacity 500Wh InTube battery mounted in the frame.
Designed for road and light path use. Featuring the 'balloon style' tyres for comfort. It's equipped with essentials like lights, mudguards, pannier rack and a side stand. Popular with leisure & commuters alike, this fast bike rolls well on roads and the hybrid tyre also takes well to light paths.
Our 5 point review...
1
Lightweight alloy hybrid frame
2
Long range 500Wh electric bike battery
3
9 speed Shimano Altus 11-36t gearing
4
Reliable Yamaha PW-TE motor with 60Nm torque output
5
Easy to use, backlit Yamaha Side Switch display
Features


Yamaha driven reliability..
Featuring the Yamaha PW-TE 60nm motor system, LCD "Side Switch" control buttons and the internal battery design within the frame, the new 2022 Haibike Trekking 4 is a great value contender for those just starting out in the world of electric biking, or looking to go further.


Functional power and value..
The Trekking 4 comes with a Suntour coil spring fork, giving extra comfort where required across bumpier terrain.
These forks have a quick release wheel mounting; meaning taking wheels on and off is a breeze, should you wish to put the bike in the car for example. This is the same for the rear wheel too.

Brakes & Gears

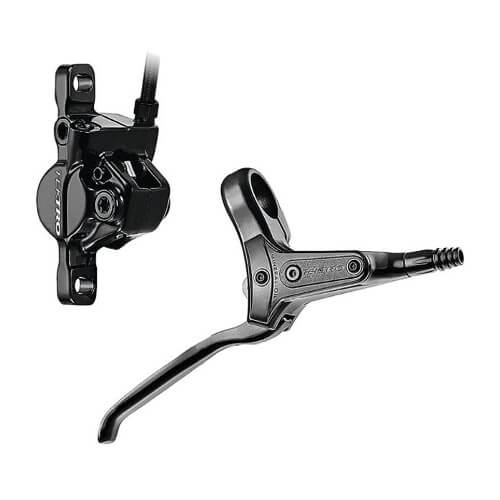

Haibike have opted for the Tektro hydraulic disc brakes. These are powerful and relatively maintenance free. Simple to use and easy to pull, they offer reach adjust so riders with bigger or smaller hands can adjust where the lever sits.
The gear system on the Trekking 4 is provided by Shimano for 2022. The Shimano Altus 9-speed rear mech provides plenty of gearing to the rider for a mix of ascending and descending.
The gears are controlled by a simple handlebar trigger that selects the gear up and down while pedalling to the riders preference.

Hydraulic brakes are the minimum we expect at e-Bikeshop and even on the entry level models, Haibike dont dissapoint.

Shimano Altus 9 speed gearing is simple to use and offers a great ratio range for leisure riding

Shimano Altus shifters are smooth, easy to use and require little effort to quickly zip between gears.

Wheels & Tyres
The Haibike Trekking 4 uses 27.5" (650B) wheels, optimising the benefits of both 26" & 29" wheels and combining them into one fast rolling, easy to manoeuvre wheel size.
Fitted with Continental Contact Urban tyres, the broader tyre profile absorbs rough terrain better and allows for more grip whilst maintaining a fast rolling resistance on the road.

The bottom line..
Haibike Trekking models are always popular with riders looking for a bike to cover a mix of town/city, commuting and leisure riding, with everything needed available "straight out of the box".
The Haibike Trekking 4 eBike is equipped with all the essentials including front/rear lights (Powered by the Yamaha eBike system itself), mudguards, a rear rack & side stand. Considering all of this and the German build quality, it's a well priced bike of this spec!
Power

Yamaha PW-TE eBike System
The Haibike Trekking 4 features the Yamaha PW-TE drive system. This Yamaha motor has a built in quad sensor which applies assistance in a even more efficient and smooth way. It makes the PW-TE the perfect all rounder for different riding styles.
The assistance is offered in 4 levels - 'Eco+', 'Eco', 'Standard' & 'High'. Now also featuring the Automatic Support Mode which selects the right amount of riding assistance based on the terrain.
This allows the user to fine tune the amount of assistance required during the ride offering complete flexibility and control. The Trekking 4 2022 eBike uses the 500Wh in-tube battery so it's completely concealed within the frame, but can be charged in the frame or removed easily for charging too.
The new LCD display mounted on the handlebars, shows not just how much capacity the battery holds but also the predicted range in assisted miles. Offered with a lightweight and compact charger.
You can learn more / read reviews of the Yamaha eBike system on our blog pages.

The Yamaha Side Switch display is backlit, easy to read and even easier to use.

60Nm of assistance from the Yamaha PW-TE motor is available from the first stroke of the pedal and it great to hill starts.

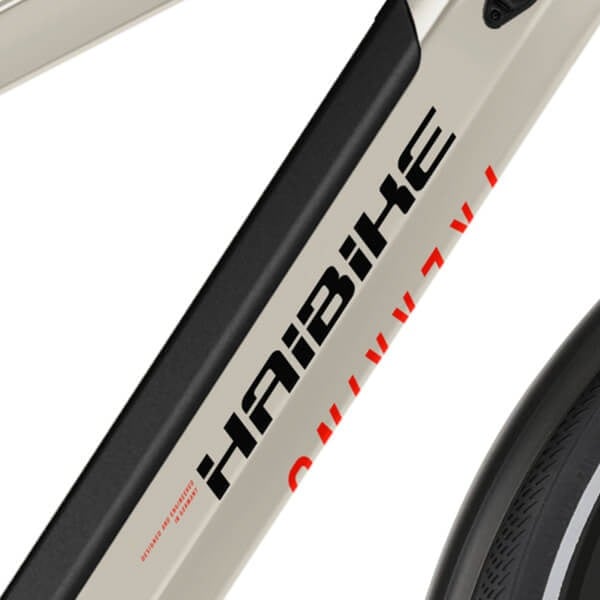

The Yamaha 500Wh InTube battery offers upto 140 miles of assisted riding and will return reasonable miles even in higher power modes.

What's included
Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Specifications
General Bike Specifications
Frame Alu 6061, Hydro Formed with Internal Cable Routing
Forks SR Suntour NEX E25, 63mm
Brakes Tektro T275 Hydraulic Disc Brakes, 160/180mm
Shifters Shimano Alivio 8-Speed Triggers
Rear Mech Shimano Altus 9-Speed
Cassette Shimano HG200 11-36t, 9-Speed
Chain KMC e9s 9-Speed
Wheelset Schurmann 25mm Alloy Rims on Haibike Hubs
Tyres Continental Contact Urban 27.5 x 2.20"
Handlebars XLC TopFlat 720mm
Stem XLC Alloy 31.8mm
Headset A-Head, Alloy
Seatpost XLC, Alloy, 31.6mm
Saddle Selle Royal Wave Comfort
Weight 26.4 Kg
Electric Bike Specifications
Battery Yamaha Lithium Ionen 36 Volt, 500 Wh, with BMS Management
Display Yamaha Side Switch multi functional LCD display with walk assistance
Motor Yamaha PW-TE Crank Drive 36V 250 Watt. 50 - 280% Assist, 60Nm
Range 30 - 120 miles of power assisted range, depending on terrain
Downloads
FAQs
You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.
Note: Some models have more available sizes than others.
Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.
Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.
You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:
In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order
On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.
If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.
Note: Not all of our electric bikes have colour options available.

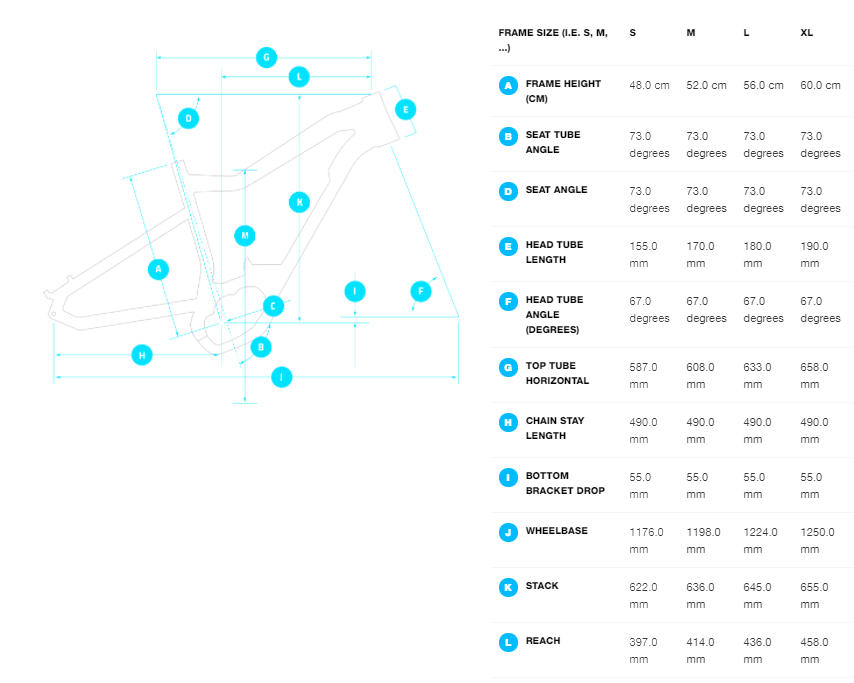

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.
At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Haibike in Germany.
At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.
We can talk you through your riding style and requirements and offer expert advice as to which model to select.
We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.
Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.
Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.
We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.
If you cannot find the answer you are looking for, please don't hesitate to get in touch.
Remember you can find a full F.A.Q on general electric bike & website questions by clicking here.
