E-Bike Key Specs
Battery
Yamaha 630Wh
Display
Display A
Motor
Yamaha PW ST
Range
30-140 miles
Specifications
General Bike Specifications
Frame Alu 6061, Hydro Formed with Internal Cable Routing
Forks SR Suntour NEX E25-HLO Lockout 63mm
Brakes Alhonga HT474, aluminium
Shifters Shimano Deore M4100, trigger switch

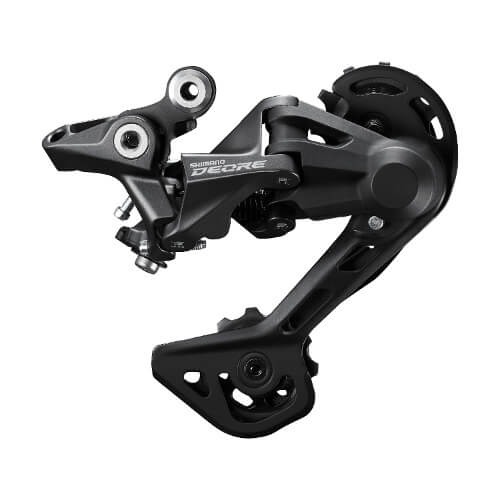

Rear Mech Shimano Deore M4120, 10-speed
Cassette Shimano M4100, 11-42 teeth
Chain KMC e10S
Wheelset Schürmann Yak25, eyed, double-walled rim, aluminium
Tyres Schwalbe Al Grounder Performance, 60-584, reflex
Handlebars XLC Topflat 720mm
Stem XLC Alu, A-head
Headset Acros Cable integration
Seatpost XLC, patent, 31.6mm, aluminium
Saddle XLC Trekking
Weight 26.9 Kg
Electric Bike Specifications
Battery Yamaha Lithium Ionen 36 Volt, 630 Wh, with BMS Management
Display Yamaha Multi Switch, 2.8" TFT multi-functional LCD display with walk assistance

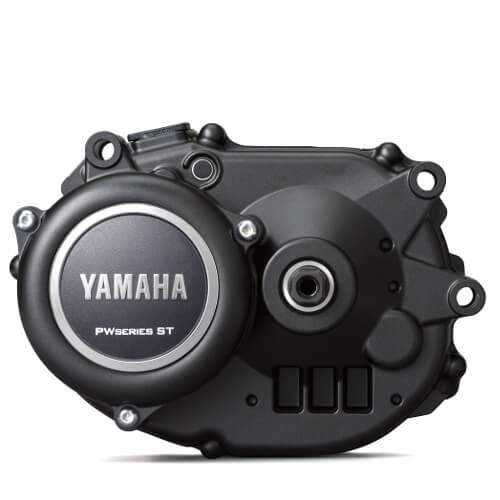

Motor Yamaha PW-ST Crank Drive 36V 250 Watt. 50 - 280% Assist, 70Nm
Range 30-140 miles of power-assisted range, depending on terrain
Downloads
Reviews
"RECOMMEND TO EVERYBODY"
I’ve been riding this brilliant bike for 18 months and can find nothing but good comments to make. Didn’t realise the power available prior to buying the bike. This is a well made, reliable, well designed product which I would recommend to everybody.
RICHARD - Read more
