E-Bike Key Specs
Battery
Bosch 625Wh
Display
Bosch Intuvia
Motor
Bosch CX Gen 4
Range
30-140 miles
Specifications
General Bike Specifications
Frame Alu 6061, Hydro Formed with Internal Cable Routing

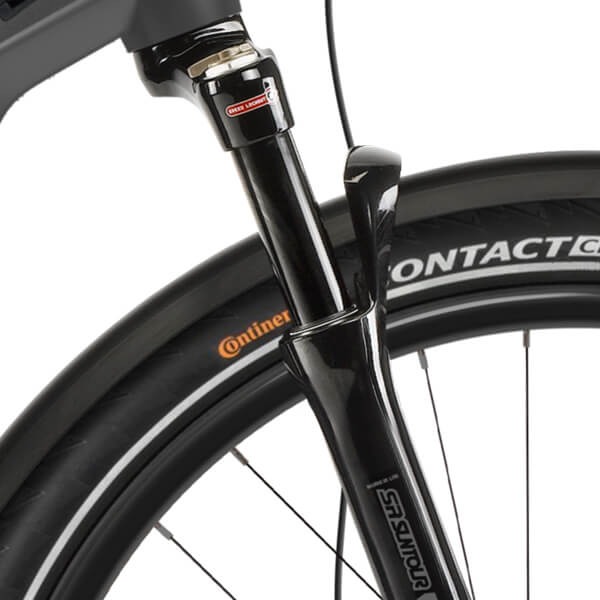

Forks SR Suntour Mobie 25 LOR, 75mm

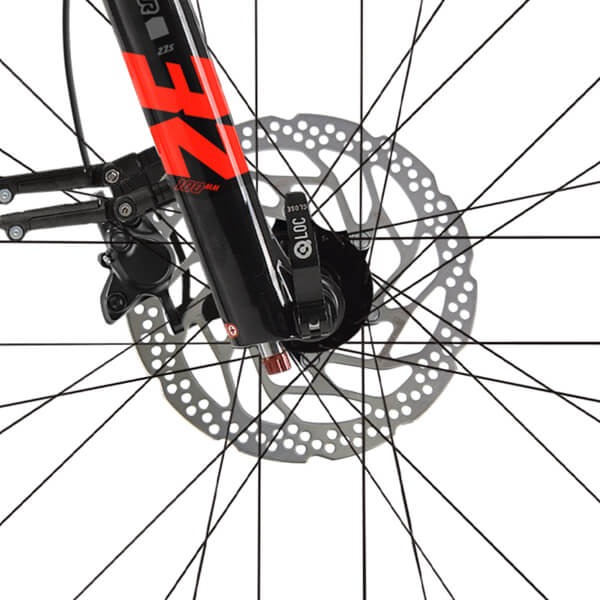

Brakes Shimano MT410 Twin Pot Hydraulic Disc Brakes, 180mm
Shifters Shimano Deore M5100, 11-Speed Triggers
Rear Mech Shimano Deore M5100, 11-Speed
Cassette Shimano M5100, 11-Speed 11-51t
Chain KMC e11s 11-Speed
Wheelset Rodi 30mm Alloy Rims on Shimano Hubs
Tyres Continental Contact Cruiser 27.5 x 2.40"
Handlebars Haibike TheBar 740mm
Stem Haibike TheStem Alloy 31.8mm
Headset A-Head, Alloy
Seatpost XLC, Alloy, 31.6mm
Saddle Haibike Comfort Saddle
Weight 25.9 kg
Electric Bike Specifications

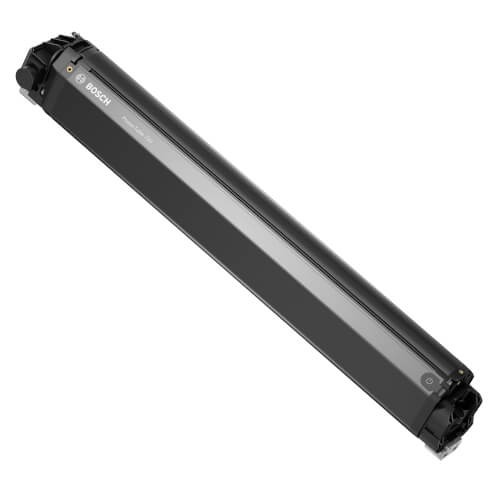

Battery Bosch Lithium Ionen 36 Volt, 625 Wh, with InTube Integration
Display Bosch Intuvia Multi Functional Display
Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm
Range 30 - 140 miles of power assisted range, depending on terrain
Downloads
Reviews
"WELL DEVELOPED PIECE OF KIT"
I've had my Haibike for just over a month. It's a very comfortable and very capable machine which makes short work of the hills around my home that used to give me hard times on my "normal" road bike. The Bosch CX drive is a very flexible and well-developed piece of kit, and is well-integrated into the quality frameset.
STEVE - Read more
E&OE
