Battery
Flyon 630Wh
Display
Flyon LCD
Motor
Flyon TQ
Range
25-100 miles
Why choose E-Bikeshop?
E-Bikeshop's top alternate picks
E-Bike Highlights
WHO IS THIS BIKE
SUITABLE FOR?

The Haibike xDuro AllMtn 10.0 FLYON 2021 full suspension electric mountain bike is the top spec model in the FLYON range with up rated DT Swiss wheels and suspension and Sram Eagle 12 Speed drive train.
Built with 150mm front and rear travel. Ideal for trail riding, all mountain, single track & trail centres. With big enough travel to tackle the bike parks but not too big to tackle single track.
Our 5 point review...
1
Fully carbon fibre, exceptionally strong frame
2
Proprietary 630Wh FLYON lithium ion battery
3
12 speed SRAM XX1 11-50t gearing
4
Utterly insane 120Nm FLYON TQ Motor
5
Easy to use, full colour FLYON multi function LCD display
Features


Technology and geometry..
The 2021 FLYON AllMtn 10.0 eBikes have lights built into the frame/system, both front and rear, which are self powered.
The 2021 FLYON ALLMTN models are designed & engineered to let you travel in first class up and down the trails! The 29" front tire offers precision & rollover comfort. Whilst the 27.5"+ tire on the back gives the 120Nm FLYON motor traction to tackle the steepest of climbs. The flip-chip geometry of the new 2021 carbon fibre frame, coupled with a nimble 150mm of suspension travel and the long lasting 630Wh built in battery let you ride better, further and faster.


Fox Suspension
Haibike offer the xDuro AllMtn 10.0 FLYON bike in top spec Fox Factory suspension offering 150mm travel all round. It's nimble enough for trail centres and XC, whilst still bigger hitting for bike parks too.
The Fox Float DPX2 Evol Factory rear shock has a large negative air chamber ensuring maximum traction when rolling over bumpier terrain. Not only is it plush, it has a really nice ramp up meaning no harsh bottom-outs, even while using all of the available travel. This makes the bike feel much more confidence-inspiring off drops and bigger hits, as it almost feels bottomless. All of this results in the bike tracking the ground really well, much more reactive to changes in terrain, super smooth, and much more composed all around

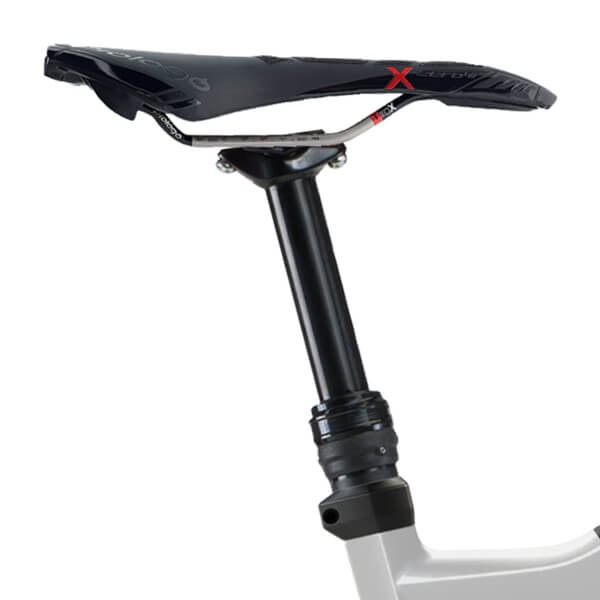

The suspension is fully air adjustable using a shock pump to the riders weight, featuring rebound controls and a lockout too for all round versatility both on the road and off road. The 2021 AllMtn 10.0 comes as standard with a built-in dropper post, so you can raise and lower the seat at the flick of a switch on the handlebars, whilst on the move.

Brakes & Gears
The stoppers on the 2021 xDuro AllMtn 10.0 are provided by Magura's MT7 4 piston hydraulic disc brakes.
The new 2 finger lever offers good control whilst attacking the trails. The new Carbontecture construction brings the overall weight down while maintaining optimal braking performance.
Built on larger disc rotors to make sure this beast of a bike comes to a stop exactly as you'd want it to!
Now onto a very special part of the Haibike xDuro AllMtn 10.0 2021 spec - The new Sram Eagle XX1 gearing.
This new ultra-wide ratio 12 speed drive train offers an insane 10-50t wide ratio casette. SRAMsay it gives a 500% greater range and it's made of their highest spec, lightweight materials.
Designed to be tough, durable and the most precise XC gear set in the world. The Sram XX1 Eagle just rewrote the rules.

Magura MT7 brakes offer reliability and incredible bite force from their 4 piston setup.

The latest SRAM XX1 groupset is only found on the very highest level spec bikes and it as good to look at as its performance.

The SRAM XX1 Eagle shifters offer immediate, crisp shifting up and down the huge rear cassette.

Wheels & Tyres
New for FLYON bikes in 2021 is the 29/27.5 mix of wheels. The idea, inspired from motocross, offers a fast rolling 29" wheel at the front to tackle bumps & obstacles on the trail.
Whilst the 27.5+ rear tyre gives true grip and traction to the rider at the rear.
The 2021 Haibike AllMtn 10.0 grips the trail with Maxxis Minion tyres which are dual compound with softer edges to give maximum control and grip.

The bottom line..
Haibike’s new FLYON series is probably the biggest developmental leap since the invention of the eMTB, once again proving the brand’s pioneering spirit!
At the heart of the futuristic-looking carbon frame is the FLYON HPR120S motor from TQ Systems, which is the most powerful pedelec motor currently available, offering a full 120 Nm of torque.
While the motor perfectly integrated into the overall concept, the bike is full of individual solutions regarding design and technology. All features are controlled by a specially developed remote and a large colour display provides the rider with all the relevant information.
Haibike has succeeded in developing an eMTB that is much more than the sum of its parts.
Power

Haibike FLYON TQ eBike System
The Haibike xDuro AllMtn 10.0 electric bike uses the exclusive Haibike FLYON eBike system. Haibike have developed this system in house with their own huge range 630Wh battery, LCD multi functional display and built in front/rear lights. The motor is designed by a company called TQ.
TQ designs & manufactures direct-current motors for the control of modern satellites. They have used this technology to create the HPR 120S crank drive eBike motor. The super powerful and reliable motor provides up to 120Nm of torque & assistance levels up to 820% in EXTREME mode.
Thanks to the integrated freewheel, the bicycle can be pedalled just like a regular bike without a motor. When the drive is disengaged, no internal components are moving. It’s super efficient with ultra high torque and ability, specifically designed to meet the demands of eBike riders.
The system offers 5 levels of assist:- ECO, LOW, MID, HIGH & XTREME. The new colour TFT display offers all the rider credentials in a neat and compact screen.

The FLYON HMI screen, with its bright LCD screen is easy to read and navigate in any weather.

Dubbed "Cockpit Control Buttons", the FLYON system is commanded from the left side of the bar with a multi function controller.

The FLYON 630Wh battery offers hours of trail ripping fun, necessary to supply the incredibly powerful TQ motor.

What's included
Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Specifications
General Bike Specifications
Frame Haibike Carbon Frame with Internal Cable Routing
Forks Fox 38E Factory Fork
Rear Shock Fox Float DPX2 Evol Rear Shock 150mm travel
Brakes Magura MT 7 Disc Brakes 203mm
Shifters Sram XX1 Eagle 12 Speed Trigger Shifter
Rear Mech Sram XX1 Eagle 12 Speed
Cassette Sram XX1 Eagle 12 Speed 10 - 50t
Chain Sram XX1 Eagle 12 Speed
Wheelset DT Swiss HX1501 Alloy Double Wall Mix 29" / 27.5+
Tyres Maxxis Minion F29" x 2.5 / R27.5+ x 2.8
Handlebars Haibike TheBar 780mm 31.8mm
Stem Haibike TheStem 31.8mm
Headset Haibike TheHeadset Tapered Sealed Bearing
Seatpost KS LEV Dropper Seat Post, Alloy, 34.9mm
Saddle Prologo PROXIM TiroX
Weight 26.9 kg
Electric Bike Specifications
Battery Haibike InTube Lithium Ionen 48 Volt, 630 Wh, with BMS Management
Display Haibike HMI & System Control with LCD Colour Screen and Multi Status Control Buttons
Motor TQ HPR 120 S Crank Drive 48V 250 Watt. 150 - 820% Assist, 120Nm
Range 25 - 100 miles of Power Assisted Range, Depending on Terrain
Downloads
FAQs
You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.
Note: Some models have more available sizes than others.
Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.
Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.
You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:
In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order
On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.
If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.
Note: Not all of our electric bikes have colour options available.

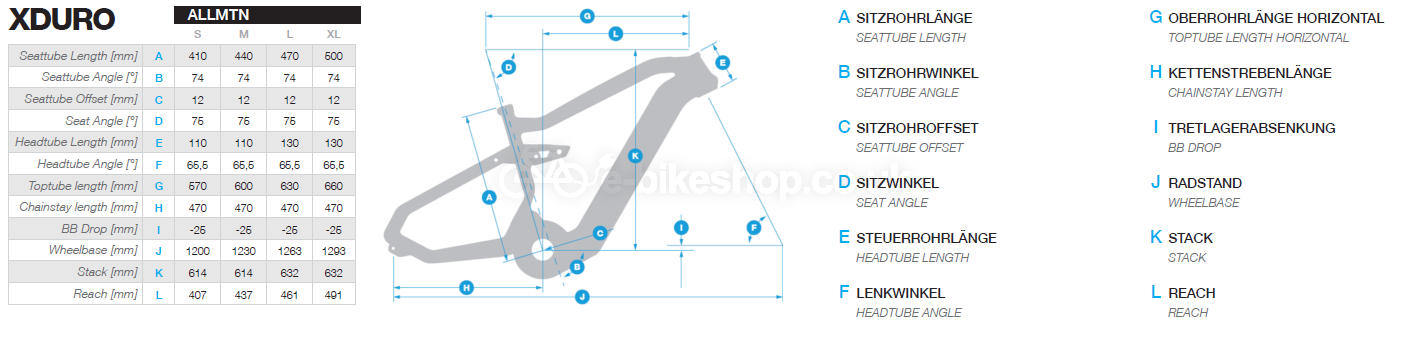

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.
At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Haibike in Germany.
At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.
We can talk you through your riding style and requirements and offer expert advice as to which model to select.
We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.
Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.
Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.
We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.
If you cannot find the answer you are looking for, please don't hesitate to get in touch.
Remember you can find a full F.A.Q on general electric bike & website questions by clicking here.
