Haibike Electric Bikes

Haibike xDuro AllTrail 6.0 FLYON

£5,399.00

In stock
Haibike xDuro AllTrail 6.0 FLYON


Frame Size: S 42cm

Battery

Flyon 630Wh

Display

Flyon LCD

Motor

Flyon TQ

Range

25-100 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Haibike xDuro AllTrail 6 Flyon Rider Review

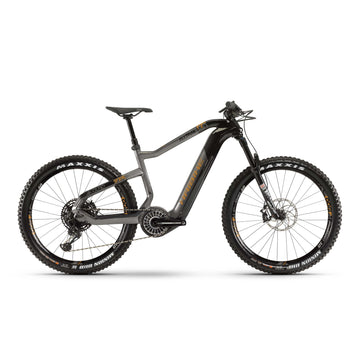

The Haibike xDuro AllTrail 6.0 FLYON 2021 hard tail electric bike is built for those who want to explore both on road and more vigorous off road riding too.

With 140mm travel it's capable enough for the trails as well as everyday riding. It's the top spec one of two new HardTail mountain bikes in the Haibike FLYON range of 2021 electric bikes.

Our 5 point review...

1

Fully carbon fibre, exceptionally strong frame

2

Proprietary 630Wh FLYON lithium ion battery

3

Reliable, ultra wide range SRAM GX Eagle 12 speed gearing

4

Utterly insane 120Nm FLYON TQ Motor

5

Easy to use, full colour FLYON multi function LCD display

Features

Haibike xDuro AllTrail 6 Flyon TQ Motor
Haibike xDuro AllTrail 6 Flyon LCD Rider Display

A new way to get to the top..

At times everybody feels the need to spread their wings and set off into the unknown, and explore off the beaten track. To do that you need to be confident.

The new Haibike AllTrail 6.0 with the FLYON eSystem gives you that confidence.

Haibike xDuro AllTrail 6 Flyon RockShox Forks
Haibike xDuro AllTrail 6 Flyon Magura MT5 Brakes

Monster trail blazer..

The new Haibike xDuro AllTrail 6.0 2021 eBike features RockShox Revelation RC front forks.

The 35mm chassis is directly derived from the well know Pike fork. Offering full air adjust-ability so the rider can determine comfort based on the air pressure and damping is controlled by the new Motion Control system so damping is controlled on the fly. It's now also lighter than before!

Haibike xDuro AllTrail 6 Flyon Sram NX Drivetrain

Brakes & Gears

The Haibike xDuro AllTrail 6.0 2021 eBike features the Magura MT 5 brakes with twin piston callipers front and rear.

Fully hydraulic and practically maintenance free these brakes offer superior stopping performance.

The Haibike AllTrail 6.0 2021 features the brand new Sram GX Eagle drive train. This new gear setup from Sram allows a much wider range of gears to be used, in fact it's the widest range possible to date!

With a whopping 11-50t setup you'll be sure there's no climb or descent you cant tackle! Using a type 3 roller clutch bearing means there's a smoother torque curve for quieter more precise gear shifting too.

Haibike xDuro AllTrail 6 Flyon Magura MT 5 Brakes

Magura MT5 brakes offer reliability and incredible bite force from their 4 piston setup.

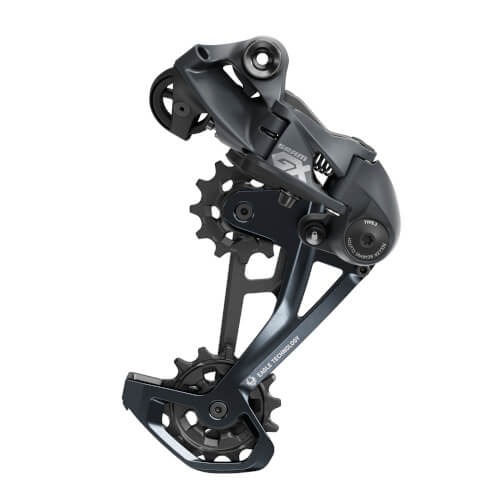

Haibike xDuro AllTrail 6 Flyon Sram GX Rear Mech

The SRAM GX Eagle groupset is only found on the very highest level spec bikes and it as good to look at as its performance.

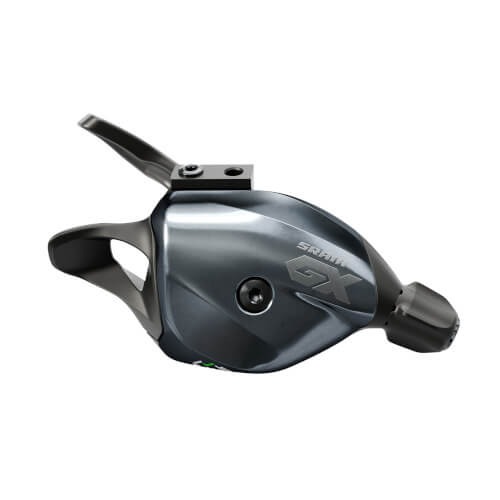

Haibike xDuro AllTrail 6 Flyon Sram GX Shifters

The SRAM GX Eagle shifters offer immediate, crisp shifting up and down the huge rear cassette.

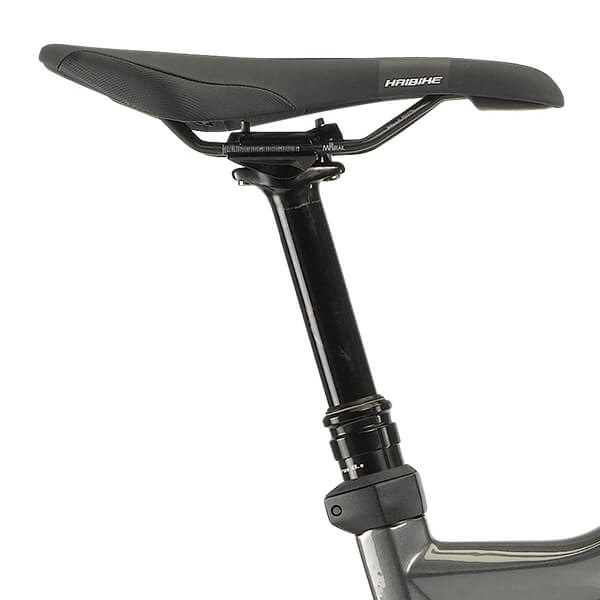

Haibike xDuro AllTrail 6 Flyon Saddle

Wheels & Tyres

The top spec hard tail of course has a decent set of wheels on it, these are by DT Swiss for a fast, lightweight and strong set of rollers.

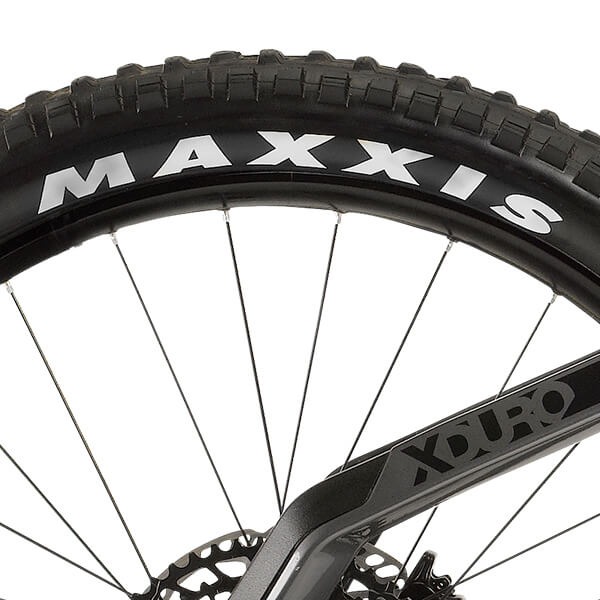

Haibike wrap these with Maxxis Minion 27.5+ tyres so maximum grip and comfort can be felt out on the trail.

Haibike xDuro AllTrail 6 Flyon Maxxis Tyres

The bottom line..

Haibike’s new FLYON series is probably the biggest developmental leap since the invention of the eMTB, once again proving the brand’s pioneering spirit!

At the heart of the futuristic-looking carbon frame is the FLYON HPR120S motor from TQ Systems, which is the most powerful pedelec motor currently available, offering a full 120 Nm of torque.

While the motor perfectly integrated into the overall concept, the bike is full of individual solutions regarding design and technology. All features are controlled by a specially developed remote and a large colour display provides the rider with all the relevant information.

Haibike has succeeded in developing an eMTB that is much more than the sum of its parts.

Power

E-Bikeshop What's Included

Haibike FLYON TQ eBike System

The Haibike xDuro AllTrail 6.0 2021 electric bike uses the exclusive Haibike FLYON eBike system. Haibike have developed this system in house with their own huge range 630Wh battery, LCD multi functional display and built in front/rear lights. The motor is designed by a company called TQ.

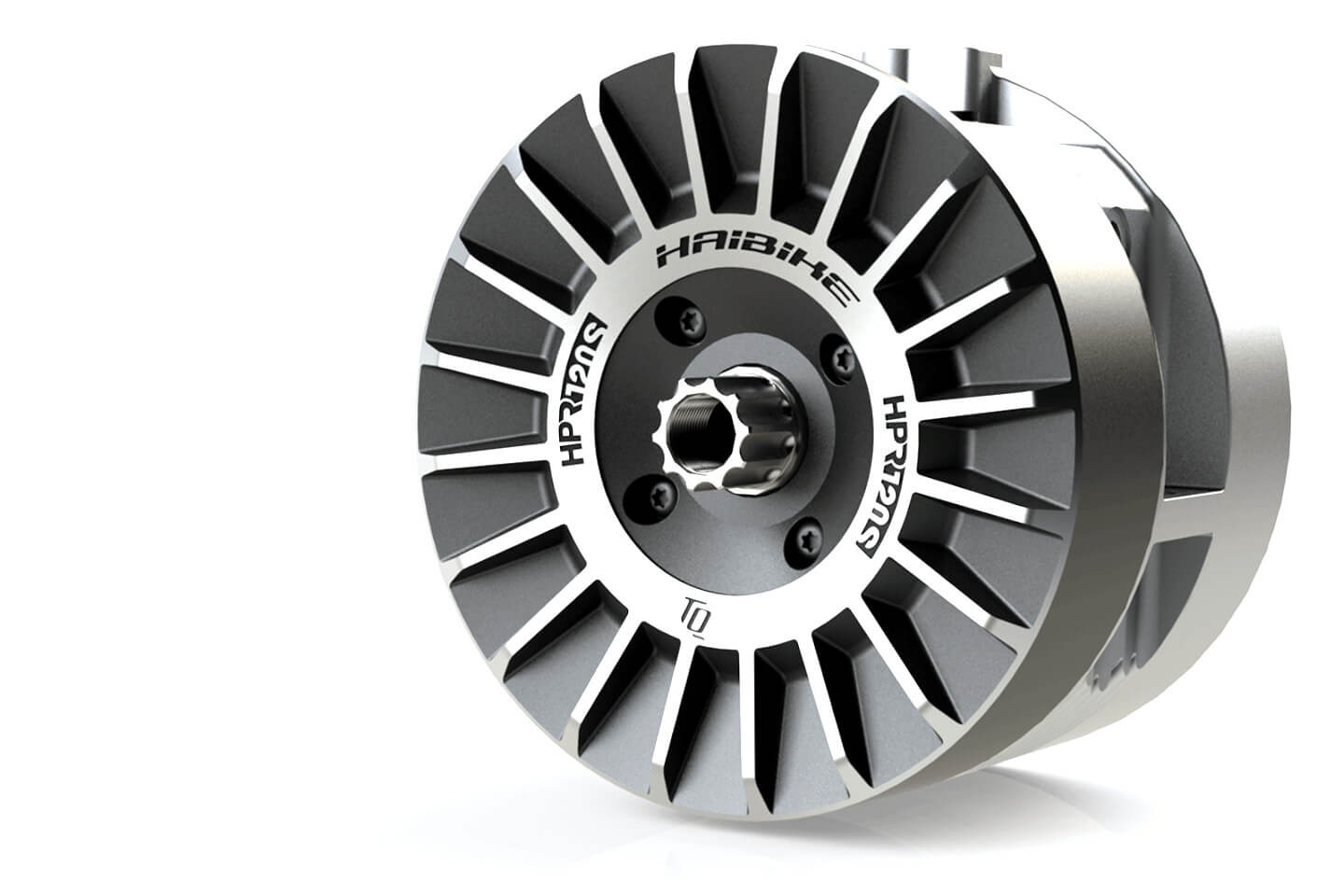

TQ designs & manufactures direct-current motors for the control of modern satellites. They have used this technology to create the HPR 120S crank drive eBike motor. The super powerful and reliable motor provides up to 120Nm of torque & assistance levels up to 820% in EXTREME mode.

Thanks to the integrated freewheel, the bicycle can be pedalled just like a regular bike without a motor. When the drive is disengaged, no internal components are moving. It’s super efficient with ultra high torque and ability, specifically designed to meet the demands of eBike riders.

The system offers 5 levels of assist:- ECO, LOW, MID, HIGH & XTREME. The new colour TFT display offers all the rider credentials in a neat and compact screen.

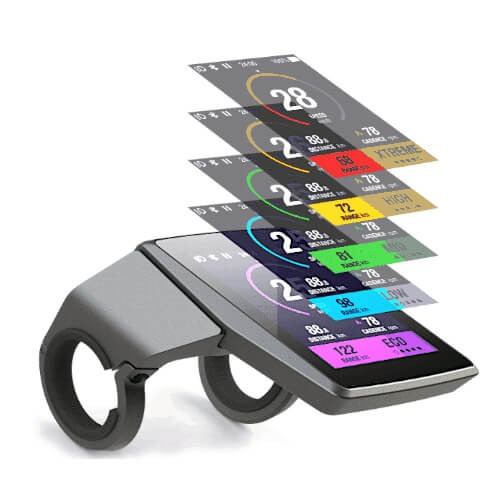

Haibike xDuro AllTrail 6 Flyon LCD Display

The FLYON HMI screen, with its bright LCD screen is easy to read and navigate in any weather.

Haibike xDuro AllTrail 6 Flyon Cockpit Controls

Dubbed "Cockpit Control Buttons", the FLYON system is commanded from the left side of the bar with a multi function controller.

Haibike xDuro AllTrail 6 Flyon Battery

The FLYON 630Wh battery offers hours of trail ripping fun, necessary to supply the incredibly powerful TQ motor.

Haibike xDuro AllTrail 6 Flyon TQ Motor

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Haibike Carbon Frame with Internal Cable Routing

Forks RockShox Revelation RC 140mm

Rear Shock N/A

Brakes Magura MT5 203mm

Shifters Sram GX 12-Speed Eagle X-ACTUATION™ Trigger Shifter

Rear Mech Sram GX 12 Speed Eagle

Cassette Sram 12 Speed Eagle 10 - 50t

Chain SRAM 12 Speed Eagle

Wheelset DT Swiss H1900

Tyres Maxxis Minion 27.5" x 2.8"

Handlebars Haibike TheBar 780mm 31.8mm

Stem Haibike TheStem 31.8mm

Headset Haibike TheHeadset Tapered Sealed Bearing

Seatpost Haibike Dropper Post, Alloy, 34.9mm

Saddle Haibike TheSaddle

Weight 25.4 kg

Electric Bike Specifications

Battery Haibike InTube Lithium Ionen 48 Volt, 630 Wh, with BMS Management

Display Haibike HMI & System Control with LCD Colour Screen and Multi Status Control Buttons

Motor TQ HPR 120 S Crank Drive 48V 250 Watt. 150 - 820% Assist, 120Nm

Range 25 - 100 miles of Power Assisted Range, Depending on Terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.

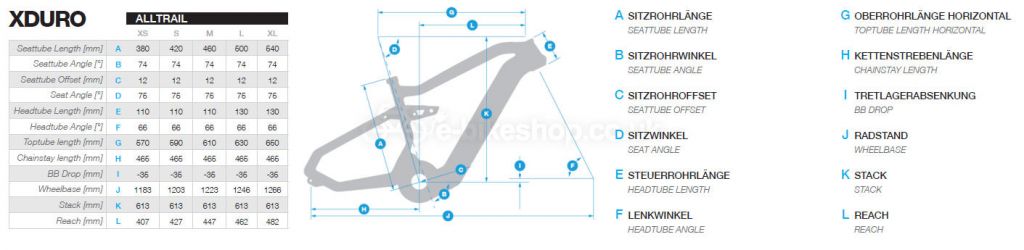

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
