Haibike xDuro NDURO 10.0 FLYON


In stock
Haibike xDuro NDURO 10.0 FLYON

Frame Size: S 42cm


Flyon 630Wh


Flyon LCD


Flyon TQ


25-100 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights


Haibike xDuro NDURO 10 Flyon Rider Electric Bike Review

The new 2021 Haibike xDuro NDURO 10.0 is the top spec model in the FLYON range built with 180mm of trail eating travel.

With Factory Kashima coated Fox suspension, Shimano XTR/XT drivetrain & an ultra lightweight and stiff wheel set.

It's perfect for single track, Down Hill, Enduro and bigger hitting Trail Centres. The perfect do-it-all mountain bike which will soak up even the most demanding of conditions. The new geometry base, carbon frame and flip chip at the rear mean it's both nimble and play full to ride.

Our 5 point review...


Fully carbon fibre, exceptionally strong frame


Proprietary 630Wh FLYON lithium ion battery


Top of the range 12 speed Shimano XTR 11-51t gearing


Utterly insane 120Nm FLYON TQ Motor


Easy to use, full colour FLYON multi function LCD display


Haibike xDuro NDURO 10 Flyon TQ Motor
Haibike xDuro NDURO 10 Flyon Sky Beamer Light

Power and prowess..

The all new long travel 180mm NDURO FLYON models are designed to get you to the top of your favourite trails faster than ever before, ready to shred back down, again, & again.

Whilst other motors struggle to stay up to speed on steep climbs, the TQ HPR 120S FLYON motor with 120 Nm of torque keeps you at a steady speed in the new XTREME mode! Flying uphill was never this fun before!

Haibike xDuro NDURO 10 Flyon Fox Factory Forks
Haibike xDuro NDURO 10 Flyon Fox Float X2 Rear Shock

Fox Suspension

Haibike have equipped Fox's new Float X2 rear shock to the 2021 Haibike NDURO 10.0 with advanced RVS damping providing a high tune-ability and of course the high and low speed compression adjustment.

The 2021 Fox X2 is one of the most adjustable shocks on the planet built specifically for hard hits, downhill & gravity riding.

Fully air adjustable and of course factory shocks receive a Kashima coating for silky smooth gliding the full travel.

FOX Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences for 2021.

Haibike xDuro NDURO 10 Flyon Shimano XT Drivetrain

Brakes & Gears

The stoppers on the 2021 xDuro NDURO 10.0 are Magura's MT7 dual piston hydraulic disc brakes. Due to the adjustable lever bite point they offer maximum braking control & minimum fade. Considered one of the lightest yet most powerful brakes on the market.

The new 2 finger lever offers good control whilst attacking the trails. The new Carbontecture construction brings the overall weight down while maintaining optimal braking performance.

The Haibike FLYON NDURO 10.0 comes fully equipped with the incredible Shimano 12-speed drivetrain.

Designed to meet the highest levels of competitive mountain bike racing with second-to-none performance and experience, the XTR/XT series are the most versatile groupsets for XC, enduro and marathon racing.

The XTR derailleur brings a new level of drivetrain silence thanks to decreased tension in the low gear position and an added bumper on the pulley cage. Larger 13T pulleys increase efficiency and chain management, while compatibility with Shimano's new 12-speed cassettes boosts range.

With its BEAM SPIDER construction, the XT 12-speed cassette shaves weight while increasing gearing range another gear. Using Shimano's new MICRO SPLINE freehub body and HYPERGLIDE+ tooth profile, this 10-51T cassettes delivers advanced shifting performance

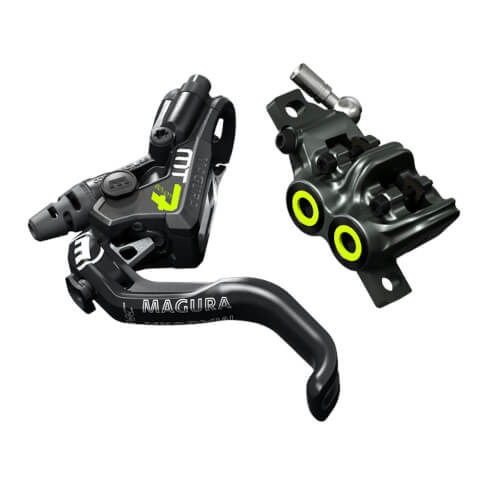

Haibike xDuro NDURO 10 Flyon Magura MT 7 Brakes

Magura MT7 brakes offer reliability and incredible bite force from their 4 piston setup.

Haibike xDuro NDURO 10 Flyon Shimano XT Rear Mech

The latest Shimano XTR groupset is only found on the very highest level spec bikes and it as good to look at as its performance.

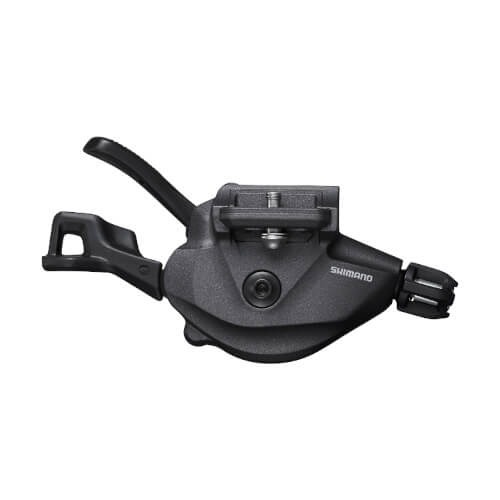

Haibike xDuro NDURO 10 Flyon Shimano XT Shifters

The Shimano XTR shifters offer immediate, crisp shifting up and down the huge rear cassette.

Haibike xDuro NDURO 10 Flyon KS Dropper Seat Post

Wheels & Tyres

The 2021 wheel set is built on DT Swiss boost hubs and gravity/free ride rims offering fast and stiff manoeuvrability.

Haibike have wrapped these with Schwalbe's Magic Mary Evo tyres to grip these wheels to the terrain. A firm contender for both slippy areas & up hill grip.

Haibike xDuro NDURO 10 Flyon Wheels and Magic Mary Tyres

The bottom line..

Haibike’s new FLYON series is probably the biggest developmental leap since the invention of the eMTB, once again proving the brand’s pioneering spirit!

At the heart of the futuristic-looking carbon frame is the FLYON HPR120S motor from TQ Systems, which is the most powerful pedelec motor currently available, offering a full 120 Nm of torque.

While the motor perfectly integrated into the overall concept, the bike is full of individual solutions regarding design and technology. All features are controlled by a specially developed remote and a large colour display provides the rider with all the relevant information.

Haibike has succeeded in developing an eMTB that is much more than the sum of its parts.


E-Bikeshop What's Included

Haibike FLYON TQ eBike System

The Haibike xDuro NDURO 10.0 2021 electric bike uses the exclusive Haibike FLYON eBike system. Haibike have developed this system in house with their own huge range 630Wh battery, LCD multi functional display and built in front/rear lights. The motor is designed by a company called TQ.

TQ designs & manufactures direct-current motors for the control of modern satellites. They have used this technology to create the HPR 120S crank drive eBike motor. The super powerful and reliable motor provides up to 120Nm of torque & assistance levels up to 820% in EXTREME mode.

Thanks to the integrated freewheel, the bicycle can be pedalled just like a regular bike without a motor. When the drive is disengaged, no internal components are moving. It’s super efficient with ultra high torque and ability, specifically designed to meet the demands of eBike riders.

The system offers 5 levels of assist:- ECO, LOW, MID, HIGH & XTREME. The new colour TFT display offers all the rider credentials in a neat and compact screen.

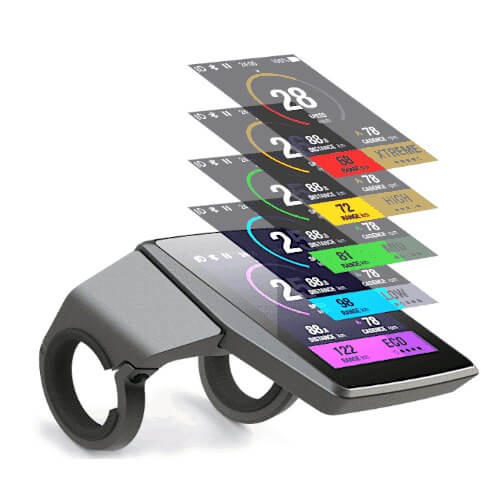

Haibike xDuro NDURO 10 Flyon LCD HMI Display

The FLYON HMI screen, with its bright LCD screen is easy to read and navigate in any weather.

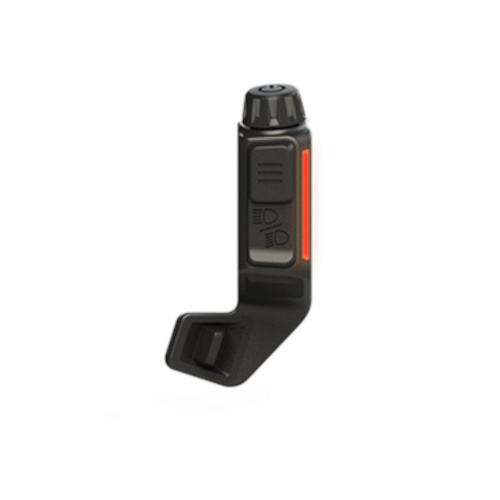

Haibike xDuro NDURO 10 Flyon LED Remote Buttons

Dubbed "Cockpit Control Buttons", the FLYON system is commanded from the left side of the bar with a multi function controller.

Haibike xDuro NDURO 10 Flyon Battery

The FLYON 630Wh battery offers hours of trail ripping fun, necessary to supply the incredibly powerful TQ motor.

Haibike xDuro NDURO 10 Flyon TQ Motor

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.


General Bike Specifications

Frame Haibike Carbon Frame with Internal Cable Routing

Forks Fox Float Factory 38 eBike Optimised & Kashima Coated 180mm

Rear Shock Fox Factory Float X2 180mm

Brakes Magura MT7 Disc Brakes 203mm

Shifters Shimano XTR Rapidfire Plus

Rear Mech Shimano XTR 12-speed, SGS, Shadow+

Cassette Shimano DEORE XT 12-Speed 10-51T

Chain Sram EX1 eBike Chain

Wheelset DT Swiss FR 1950 Alloy Double Wall Rims, Sealed Hubs 27.5"

Tyres Schwalbe Magic Mary EVO 27.5 x 2.6"

Handlebars Haibike TheBar 780mm 31.8mm

Stem Haibike TheStem 31.8mm

Headset Haibike TheHeadset Tapered Sealed Bearing

Seatpost KS LEV Dropper Seat Post, Alloy, 34.9mm

Saddle Prologo PROXIM TiroX

Weight 28 kg

Electric Bike Specifications

Battery Haibike InTube Lithium Ionen 48 Volt, 630 Wh, with BMS Management

Display Haibike HMI & System Control with LCD Colour Screen and Multi Status Control Buttons

Motor TQ HPR 120 S Crank Drive 48V 250 Watt. 150 - 820% Assist, 120Nm

Range 25 - 100 miles of Power Assisted Range, Depending on Terrain
