Specifications
General Bike Specifications
Frame Alu 6061, 26", Enduro, 180mm, 4-Link System, Equalizing System, Gravity Casting Interface, hydroforced tubes

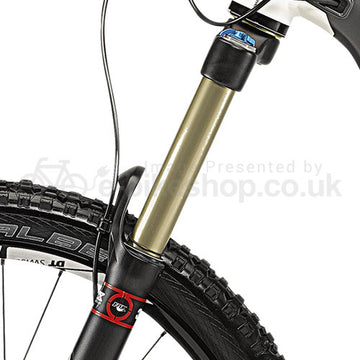

Forks Fox 36 Talas 180mm R O/B, Tapered
Rear Shock Fox CTD X 216mm, 8-22,2/22,2mm

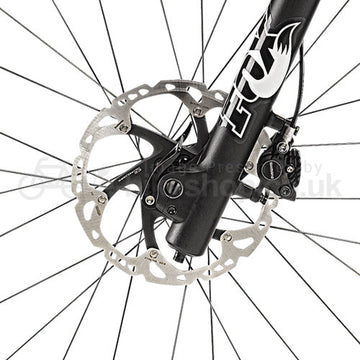

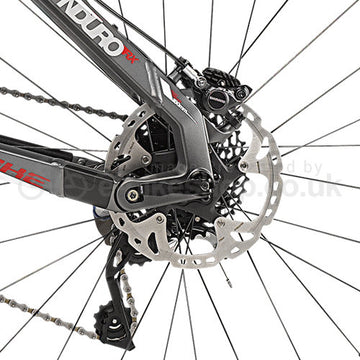

Brakes Shimano SLX M 675, Ice-Tech, hydraulic disc brake, 180 / 203mm
Shifters Shimano Deore, SL-M 610, Rapidfire, I-Spec
Rear Mech Shimano Deore XT M786 Shadow Plus, 10 Speed
Cassette Sram PG 1020 11-36 Teeth, 10 Speed
Chain DT Swiss E1900 Spline, front: 20mm, rear: 142/12mm axle
Wheelset DT Swiss E1900 Spline, Front: 20mm, Rear: 142/12mm Through Axle

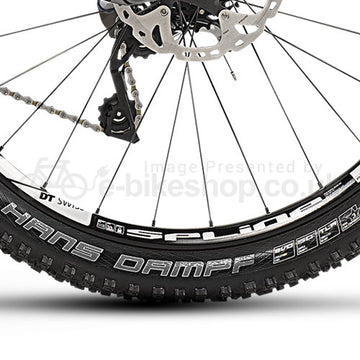

Tyres Schwalbe Hans Dampf TSC, foldable, 26 x 2.35
Handlebars Truvativ Boobar, 780mm 31.8mm
Stem Truvativ AKA 1 1/8" 31.8mm
Headset Cane Creek Angleset, angele 0°, incl.1° angular, Tapered

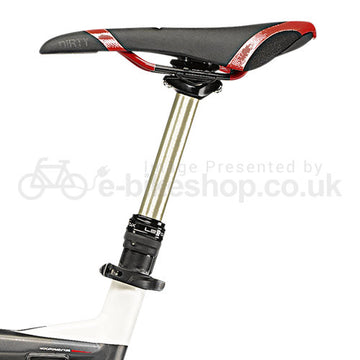

Seatpost Kind Shox LEV-DX, Remote, 31,6mm
Saddle Selle San Marco Squad Team
Weight 23kg
Electric Bike Specifications
Battery Lithium Ionen 36 Volt, 400 Wh
Display Bosch Nyon Bordcomputer with operation unit, push-assistance & GPS
Motor Bosch Midmount Performance 36 Volt, 250 Watt
Range 30-110 miles range, cost to charge from flat - 6 pence
E&OE
