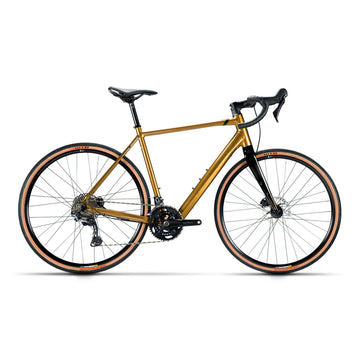

Lapierre eCrosshill 5.2 Electric Gravel Bike 2022


In stock
Lapierre eCrosshill 5.2 Electric Gravel Bike 2022

Frame Size: S 46cm


Panasonic 250Wh


iWoc One


Ebike Motion X35


30-80 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights


Lapierre Crosshill 5.2 Rider Review Electric Bike
E-Bikeshop What's Included

he 2022 Lapierre eCrosshill is a great value, mid-level electric gravel bike or cyclocross bike built using the well renowned Shimano GRX Groupset and Mahle eBikemotion motor system.

Whether you're just starting out and want to enter the market on an impeccable value bike with room to grow into it, or have tens of thousands of miles on your Strava account, this bike is a great way to explore more than just the tarmac roads and paths and is a very competitive machine with limitless luggage and accessory options built in.

Our 5 point review...


Lightweight and rugged alloy frame with generous accessory mounts


Internally mounted 248Wh battery


Shimano GRX groupset - the most popular gravel/cyclocross option.


Compact, punchy and reliable Mahle eBikemotion X35 motor


Simple IWOC control system with Bluetooth and ANT+ app integration


Lapierre Crosshill 5.2 Cyclcross Handlebars
Lapierre Crosshill 5.2 Shimano GRX Brakes

New for 2022..

A brand new model to us for the 2022 model year, the 2022 eCrosshill takes its place in our showroom alongside the slightly more expensive but similar specification Orbea Gain D30 1X.

Lapierre Crosshill 5.2 Forks

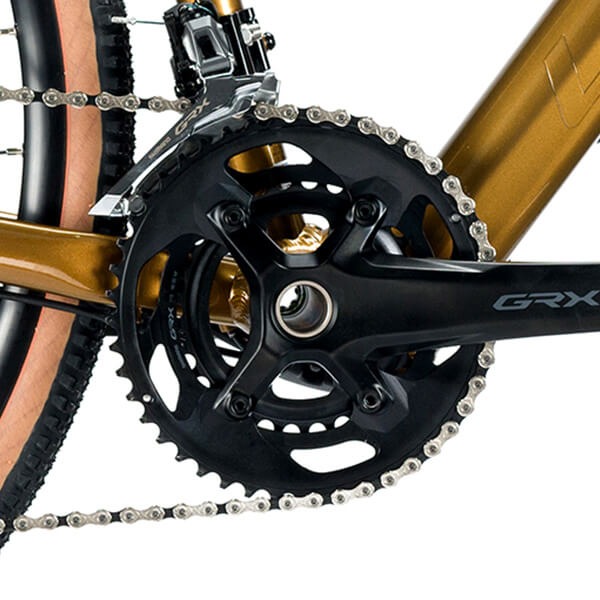

Lapierre Crosshill 5.2 Shimano GRX Chainset

Power on demand..

The IWOC One system on the Lapierre eCrosshill 5.2 has a flush mounted button in the top tube next to the stem for easy access.

The "one for all" button system is used for turning the bike on and off, cycling through power modes, displaying current power mode while also offering an at-a-glance visual of the remaining battery power.

Lapierre Crosshill 5.2 Shimano GRX Brakes & Gears

Brakes & Gears

The Shimano GRX hydraulic disc brakes are specifically designed for the gravel/cyclocross market and ensure you can come to a stop as fast as you accelerate on this electric road bike.

The Shimano GRX group set is widely seen as the best possible option for either dedicated gravel/cyclocross bikes, or those looking to convert a current road bike for the trickier terrain of gravel, dirt and light trail riding.

Lapierre Crosshill 5.2 Shimano GRX Brakes

The Shimano GRX disc brakes are widely regarded as some of the best in mixed terrain cycling, with a large range of pad choice.

Lapierre Crosshill 5.2 Shimano GRX Rear Mech

The twin front chain ring version of the GRX group set is a welcome addition for anyone needing to ride on the road as well as offroad.

Lapierre Crosshill 5.2 Shimano GRX Shifters

The Shimano GRX combined gear and brake levers are ultra-smooth and offer controlled braking and smooth shifting in one neat unit.

Lapierre Crosshill 5.2 Saddle

Wheels & Tyres

Lightweight XC 621 alloy rims from Mavic are agile but strong, wrapped with fast rolling WTB riddler all terrain tyres.

This wheelset is an uncommon feature on a bike that offers such value and it normally found on much more expensive bikes!

Designed with maximum clearance, the Laiperre eCrosshill offers the option for tyres up to 45c in width, for an almost limitless choice of 700c tyre option for all year round riding on multiple terrains.

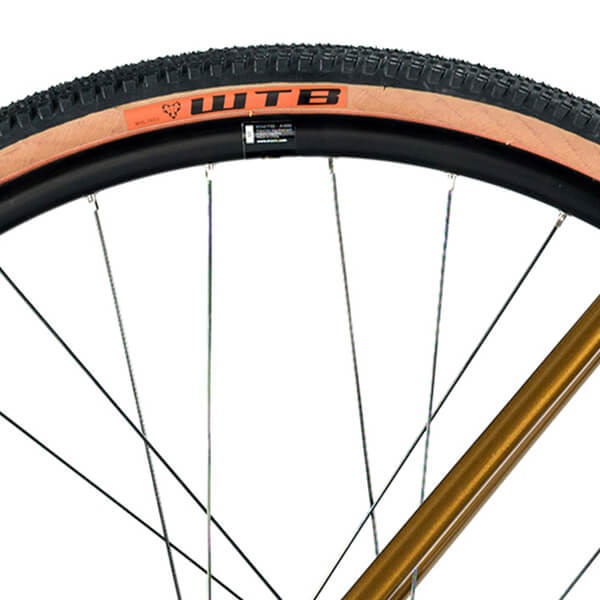

Lapierre Crosshill 5.2 WTB Tyres

The bottom line..

Normally, the most noticeable component on an eBike is the Battery, but this isn't the case on the Lapierre models.

Seamlessly integrated into the downtube, the 248Wh internal battery on the 2022 Lapierre eCrosshill is hidden from view to provide a totally integrated and aesthetically immaculate look.

The latest Mahle Ebikemotion drive system offers smooth and reliable assistance to enhance and improve on your own ride but without dominating it.

The Torque Simulation Algorithm directly mirrors the rider input to provide maximum power when you need it, but preserves range when you're spinning freely, making the eCrosshill a joy to ride on almost any terrain.


Lapierre Crosshill 5.2 eBike Motion X35 Motor

eBikemotion X35 eSystem

Riding the bike aside, one of the best parts of the new 2022 Lapierre electric road bikes is the completely 'hidden' eDrive system.

Designed to not take away from the ride but to assist your performance, the extra 40Nm from the rear hub motor allows the rider to climb bigger ascents and average a faster overall speed.

3 Modes of Assistance - Controllable by the multi-function power button on the top tube.

Full rider credentials are displayed in the Smart Phone (not essential) application including speed, distance travelled, altitude, battery capacity, trip time and many more.

The smart phone app also has the functionality to pair Bluetooth heart rate monitors or simply connect your Android Wearable or iWatch to run alongside for the full sporting package.

Lapierre Crosshill 5.2 eBike Motion X35 Control Button

The IWOC control system uses just a single button to display the current battery status and change between power modes.

Lapierre Crosshill 5.2 eBike Motion X35 Motor

The eBikemotion motor is small, compact and ultra reliable but packs a punch on long ascents and false flats.

Lapierre Crosshill 5.2 eBike Motion X35 Range Extender

An optional range extender option offers the ability to bolt on an extra 70% of range in just seconds.

Lapierre Crosshill 5.2 Lightweight Alloy Frame

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.


General Bike Specifications

Frame Lapierre Crosshill Gravel Supreme Alloy

Forks Lapierre Carbon Blade Fork

Brakes Shimano GRX ST-RX600 Hydraulic Flatmount

Shifters Shimano GRX ST-RX600 2x11spd

Rear Mech Shimano GRX RX810 Shadow Plus 11spd

Cassette Shimano HG70011 11-34t

Chain KMC X11 11-Speed

Wheelset Mavic XC621 32H 700c

Tyres WTB Riddler 700x37C Tan Wall Dual DNA Compound with Aramid Bead

Handlebars Lapierre 38.2mm Alloy Gravel Bar

Stem Laiperre Alloy 31.8mm (Ø: 31.8mm R:6° L: XS/SM =90mm, MED = 100mm, LG = 110mm, XL = 120mm)

Headset Acros AIX 532 IS52/28.6 IS52/40

Seatpost Lapierre Alloy Twin Bolt 27.2mm

Saddle Selle Royal Vivo - (Lapierre Branded)

Weight 14.8 kg

Electric Bike Specifications

Battery Ebikemotion 36V 6.9A 250Wh

Display Built in frame power button / Smart Phone App

Motor Ebikemotion X35

Range 30-80 miles of power assisted range, depending on terrain
