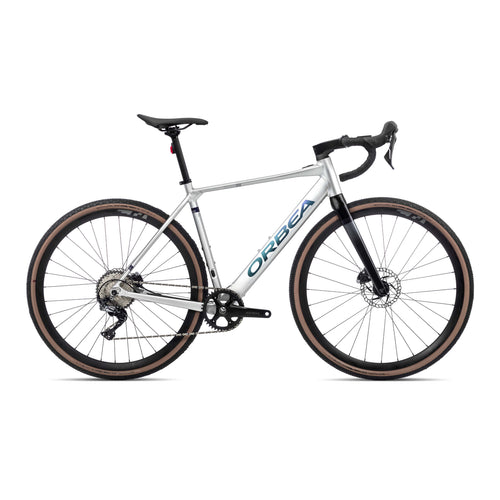

Orbea Gain D30 2023 Silver Electric Road Bike

Orbea Electric Bikes

Orbea Gain D30 105 Electric Road Bike

£2,899.00 £3,599.00 Save £700.00

In stock

Frame Size: M 52cm

Colour: Silver

E-Bike Key Specs


Mahle 250Wh


iWoc One


Mahle X35


30-80 miles

View in store

E-Bike Highlights


Orbea Gain D30 2023 Electric Road Bike Rider Review

The 2023 Orbea Gain D30 is a great value, mid-level electric road bike.

Whether you're just starting out and looking to get started on an impeccable value bike with room to grow into it, or you're already and accomplished rider with tens of thousands of miles on your Strava account, the Orbea Gain D30 is a great way to explore, build fitness and make sure you're at the front of the pack.

The Gain range, with its "Enough Energy" concept is designed to improve but not take over your ride. Lightweight, highly nimble and effortlessly ridable, the new Orbea Gain D30 is a bike which "heeds the call of the open road".

Our 5 point review...


Lightweight and rugged alloy frame


Internally mounted 248Wh battery


Shimano 105 group set - the most widely used "every day" road group set in the world


Compact, punchy and reliable Mahle eBikemotion X35 Plus motor


Mahle Pulsar One display with Bluetooth and ANT+ app integration


Orbea Gain D30 2023 Shimano 105 Crank Set
Orbea Gain D30 2023 Shimano 105 Shifters

Engineered Efficiency..

Having had a complete frame redesign in the previous model year, the 2023 Gain D30 retains the previously well proven and "less aggressive" geometry, seeing only subtle changes to the hydroformed alloy tubing shape.

These changes increase aerodynamic efficiency while shaving a little more weight from this already very light alloy electric road eBike.

Orbea Gain D30 2023 Carbon Fork
Orbea Gain D30 2023 Shimano 105 Disc Brakes

Fully integrated...

Along with its completely redesigned headset area to fully integrate the gearshift cables and brake lines, Orbea have also designed a brand new integrated daytime running light which doubles as a cycle computer mount for Garmin and Wahoo devices, now compatible across the full Gain range.

This is complemented at the rear of the bike with a bright but aesthetically unobtrusive tail light built into the seat tube and runs directly from the eBike battery system. Both lights are bright but low drain LEDs.

Orbea Gain D30 2023 Shimano 105 Gears

Brakes & Gears

The Shimano 105 R7070 twin piston hydraulic disc brakes are specifically designed for and the most widely used system in the road cycling market and will bring the 2023 Orbea Gain D30 to a stop quickly and with complete control, whatever the weather.

The D30, being at the towards the top of the specification level for the Gain range comes with a complete Shimano 105 group set. The compact twin chain ring, 105 R7000 rear derailleur and cassette, ST-7020 shifters and R7070 brakes make up this smooth and reliable 22spd set-up.

Orbea Gain D30 2023 Shimano 105 Brakes

The Shimano 105 hydraulic disc brakes are widely regarded as the best value, with a large range of pad choice.

Orbea Gain D30 2023 Shimano 105 Rear Mech

Shimano 105 11 speed gearing is only two steps down from competition grade Dura-Ace components and is silky smooth and highly durable.

Orbea Gain D30 2023 Shimano 105 Levers

The Shimano 105 combined gear and brake levers are ultra-smooth and offer controlled braking and smooth shifting in one neat unit.

Orbea Gain D30 2023 Hutchinson Fusion Tyres

Wheels & Tyres

Lightweight Ready GR alloy rims from Blackjack are agile but strong and allow for a wide choice of tyre fitment.

The Blackjack rims are wrapped with fast rolling Hutchinson Fusion 5 30c TLR road tyres, but the forks and frame allow for up to 40c options.

Orbea Gain D30 2023 Fizik Saddle

The bottom line..

Normally, the most noticeable components on an eBike are the motor battery, but this isn't the case on the Gain models.

Seamless union of components over the whole bike ensures the 248Wh internal battery and Mahle X35 hub motor are neatly hidden from view on the 2023 Orbea Gain D30, allowing for a completely integrated and aesthetically immaculate look.

The latest Mahle Ebikemotion drive system offers smooth and reliable assistance to enhance and improve on your own ride but without dominating it.

The Torque Simulation Algorithm directly mirrors the rider input to provide maximum power when you need it, but preserves range when you're spinning freely, making the Gain D30 a joy to ride on almost any terrain.


Orbea Gain D30 2023 Mahle X35 Motor

eBikemotion X35 eSystem

Riding the bike aside, one of the best parts of the new 2023 Gain D30 electric road bikes is the completely 'hidden' eDrive system.

Designed to not take away from the ride but to assist your performance, the extra 40Nm from the rear hub motor allows the rider to climb bigger ascents and average a faster overall speed.

3 Modes of Assistance - Controllable by the multi-function power button on the top tube.

Full rider credentials are displayed in the Smart Phone (not essential) application including speed, distance travelled, altitude, battery capacity, trip time and many more.

The smart phone app also has the functionality to pair Bluetooth heart rate monitors or simply connect your Android Wearable or iWatch to run alongside for the full sporting package.

Orbea Gain D30 2023 Mahle X35 iWOC Button

The IWOC control system uses just a single button to display the current battery status and change between power modes.

Orbea Gain D30 2023 Mahle X35 Motor

The eBikemotion motor is small, compact and ultra reliable but packs a punch on long ascents and false flats.

Orbea Gain D30 2023 Mahle X35 Rage Extender

An optional range extender option offers the ability to bolt on an extra 70% of range in just seconds.

Orbea Gain D30 2023 What's Included?

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Why choose E-Bikeshop?


General Bike Specifications

Frame Orbea Gain Hydro 6061 Hydroformed Aluminium 2023

Forks Gain Hydro carbon fork

Brakes Shimano R7070 Hydraulic Disc Brakes

Shifters Shimano ST-7020 11-Speed

Rear Mech Shimano 105 R7000 GS 11-Speed

Cassette Shimano 105 R7000 11-32t 11-Speed

Chain KMC X11 11-Speed

Wheelset Alloy, Tubeless, 700c, 21c, 32H

Tyres Hutchinson Fusion 5 Performance TLR 700x30

Handlebars OC Road Performance RP20 Alu SL, Reach 80, Drop 125

Stem OC Road Performance RP21, -6º

Headset Acros Alloy 1-1/2" Internal Cable Routing

Seatpost OC 27.2 Offset 0, for integrated light

Saddle Fizik Aliante R5

Weight 13 kg

Electric Bike Specifications

Battery Ebikemotion 36V 6.9A 250Wh

Display Mahle Pulsar One monochrome ANT+ LEV

Motor Ebikemotion X35 Plus

Range 30-80 miles of power assisted range, depending on terrain
