Orbea Electric Bikes
Orbea Gain D40 2022 Alloy Tiagra Electric Road Bike
£2,899.00
Orbea Electric Bikes
Orbea Gain D40 2022 Alloy Tiagra Electric Road Bike
£2,899.00
Battery
Panasonic 250Wh
Display
iWoc One
Motor
Ebike Motion X35
Range
30-80 miles
Why choose E-Bikeshop?
E-Bikeshop's top alternate picks
E-Bike Highlights
WHO IS THIS BIKE
SUITABLE FOR?

The Orbea Gain D40 is a great value entry level electric road bike whether you're just starting out or have tens of thousands of miles on your Strava account.
The Gain range, with its "Enough Energy" concept is designed to improve but not take over your ride. Lightweight, sportive and effortlessly rideable, its a bike that "heeds the call of the open road".
Our 5 point review...
1
Lightweight and rugged alloy frame
2
Internally mounted 248Wh battery
3
Shimano Tiagra group set - a great value entry to road cycling
4
Compact, punchy and reliable Mahle eBikemotion X35 motor
5
Simple IWOC control system with Bluetooth and ANT+ app integration
Features


New for 2022..
Along with the rest of the Gain range, the price of the 2022 Orbea Gain D40 has increased slightly over the previous two years, but not without very good cause - the model has been dramatically overhauled and offers exceptional value.
A brand new frame design while retaining the previous well proven geometry sees subtle changes to the hydroformed alloy tubing shape.
This increases aerodynamic efficiency while shaving a little more weight from this already very light electric road eBike.


Fully integrated..
Along with its new headset design to fully integrate the gearshift cables and brake lines, Orbea have also designed a brand new integrated daytime running light which doubles as a cycle computer mount for Garmin and Wahoo devices, now compatible across the full Gain range.
This is complemented at the rear of the bike with a bright but aesthetically unobtrusive tail light built into the seat tube and runs directly from the eBike battery system.

Brakes & Gears
The Shimano Tiagra 4770 hydraulic disc brakes ensure you can come to a stop just as quickly as you accelerate on this eRoad bike.

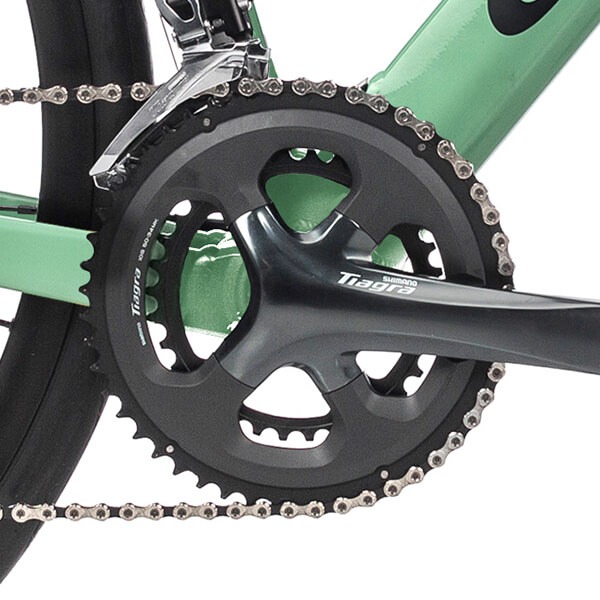

Setting the benchmark for entry-level group sets, the Shimano Tiagra 4700 setup on the 2022 Orbea Gain D40 is the perfect blend of function and performance against price.
Using technology borrowed from their more premium 105, Dura-Ace and Ultegra setups, Shimano bring top quality performance to the grass roots of road cycling at incredible value.

The Shimano Tiagra hydraulic disc brakes aoffer smooth, controlled braking regardless of terrain or weather.

Shimano Tiagra 10 speed gearing is a common feature on some mid-tier road bikes, but is well placed on this entry level Gain.

The Shimano Tiagra combined gear and brake levers are ultra-smooth and offer controlled braking and reliable shifting in one neat unit.

Wheels & Tyres
Lightweight Ready GR alloy rims from Blackjack are agile but strong and allow for a wide choice of tyre fitment.
The Blackjack rims are wrapped with fast rolling Hutchinson Fusion 5 30c Performance road tyres, but the forks and frame allow for upto 40c options.

The bottom line..
Normally, the most noticeable component on an eBike is the Battery, but this isn't the case on the Gain models.
Seamlessly integrated into the downtube, the 248Wh internal battery on the 2022 Orbea Gain D40 is hidden from view to provide a totally integrated and aesthetically immaculate look.
The latest Mahle Ebikemotion drive system offers smooth and reliable assistance to enhance and improve on your own ride but without dominating it.
The Torque Simulation Algorithm directly mirrors the rider input to provide maximum power when you need it, but preserves range when you're spinning freely, making the Gain D40 a joy to ride on almost any terrain.
Power

eBikemotion X35 eSystem
Riding the bike aside, one of the best parts of the new 2022 Gain D40 electric road bikes is the completely 'hidden' eDrive system.
Designed to not take away from the ride but to assist your performance, the extra 40Nm from the rear hub motor allows the rider to climb bigger ascents and average a faster overall speed.
3 Modes of Assistance - Controllable by the multi-function power button on the top tube.
Full rider credentials are displayed in the Smart Phone (not essential) application including speed, distance travelled, altitude, battery capacity, trip time and many more.
The smart phone app also has the functionality to pair Bluetooth heart rate monitors or simply connect your Android Wearable or iWatch to run alongside for the full sporting package.

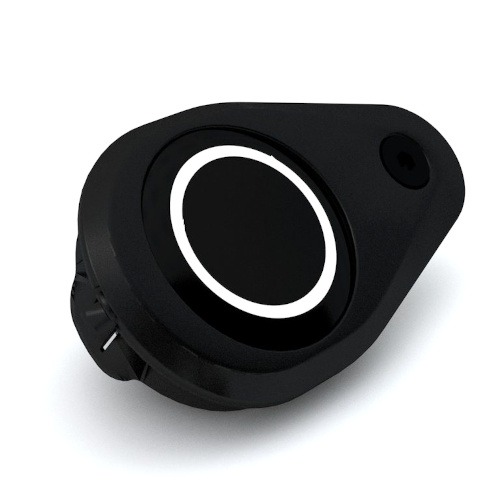

The IWOC control system uses just a single button to display the current battery status and change between power modes.

The eBikemotion motor is small, compact and ultra reliable but packs a punch on long ascents and false flats.

An optional range extender option offers the ability to bolt on an extra 70% of range in just seconds.

What's included
Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Specifications
General Bike Specifications
Frame Orbea Gain Hydro 6061 Hydroformed Aluminium 2022
Forks Gain Hydro carbon fork
Brakes Shimano Tiagra 4770 Hydraulic Disc Brakes
Shifters Shimano Tiagra ST-4770 10-Speed
Rear Mech Shimano Tiagra 4700 GS 10-Speed
Cassette Shimano Tiagra HG-500 11-32t 10-Speed
Chain KMC X10 10-Speed
Wheelset Ready GR 700c Alloy Wheels
Tyres Hutchinson Fusion 5 Performance TLR 700x30
Handlebars OC2 Road, reach 80mm, drop 125mm
Stem OC1 31.8mm interface -6º
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost OC 27.2 Offset 0, for integrated light
Saddle Selle Royal Asphalt GR
Weight 14 kg (Approx)
Electric Bike Specifications
Battery Ebikemotion 36V 6.9A 250Wh
Display OC monochrome ANT+ LEV
Motor Ebikemotion X35 Plus
Range 30-80 miles of power assisted range, depending on terrain
