Orbea Electric Bikes

Orbea Keram 10

£2,799.00

In stock
Orbea Keram 10


Frame Size: M 40cm

Battery

Bosch 500Wh

Display

Bosch Purion

Motor

Bosch CX Gen 4

Range

30-120 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Orbea Keram 10 Electric Bike Rider Review
E-Bikeshop What's Included

The new Orbea Keram 10 is one of the Spanish manufacturers fastest selling models.

At only £2,799 but equipped with the latest and most powerful Bosch Generation 4 CX motor with a newly increased 85Nm of torque, a revised eMTB mode and a 500Wh battery, this mid range specification Keram 10 enters the market at an ultra competitive, entry level price and is suitable for any mixed ability rider whether you prefer the quiet of country lanes and bridleways, or tougher off-road trails and forest tracks.

Our 5 point review...

1

Lightweight hydroformed alloy frame

2

Up to 140 miles of range from the Bosch 500Wh Powertube battery

3

10 Speed Shimano Deore Gearing

4

Latest Generation 4 Bosch Performance CX motor with 85Nm torque output

5

Simple, easy to use Bosch Purion display system

Features

Orbea Keram 10 Electric Bike Bosch CX Motor
Orbea Keram 10 Electric Bike Bosch eBike Battery

Go further, with the Keram 10..

With the latest and most powerful Generation 4 Bosch Performance CX drive system and a 500Wh battery, the Orbea Keram 10 is ready to take you much further this year.

Orbea Keram 10 Electric Bike Suntour Forks
Orbea Keram 10 Electric Bike Suntour Forks

A capable Hardtail..

Suntours XCM32 coil front fork helps to soak up the rough terrain, keeping the steering precise. These feature a 15mm axle for improved stiffness and preload adjustment.

Orbea Keram 10 Electric Bike Shimano Deore Gear System

Brakes & Gears

Hydraulic brakes have become the minimum level of equipment you can expect to see on good quality eBikes, helping to bring to a stop the heavier mass of an added motor and drive system.

Maintenance is minimum and very simple. Aside from an occasional brake pad change, they're a "fit and forget" item.

The Orbea Keram 10 eBike is equipped with Shimano's latest Deore 10-speed groupset. This setup with their 11-46t rear cassette offers a climb friendly, ultra wide ratio range.

This wide ratio gearing allows riders to not only ascend some of the steepest inclines imaginable, but also doesn't limit top end speed on flat ground. The Deore shifter is responsive, positive and crisp, allowing you to simply focus on the ride.

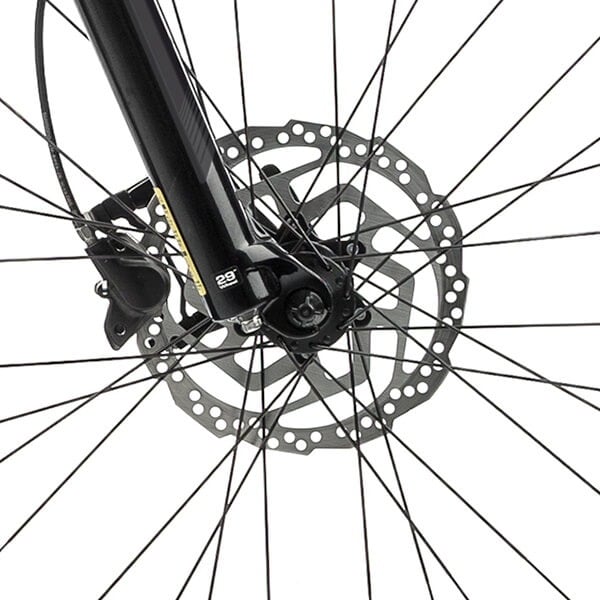

Orbea Keram 10 Electric Bike Shimano Deore Brakes

Shimano BR MT-200 hydraulic brakes offer strong breaking force with minimal grip strength

Orbea Keram 10 Electric Bike Shimano Deore Rear Mech

10 Speed Shimano Deore gearing provides a wide ratio choice for every type of terrain

Orbea Keram 10 Electric Bike Shimano Deore Shifters

Shimano SL-M4100 Rapidfire-Plus shifters make light work of flicking through the 10 speed rear cassette

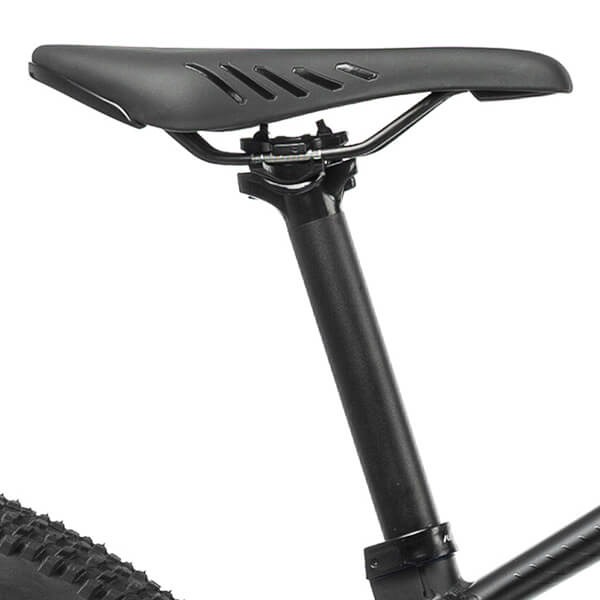

Orbea Keram 10 Electric Bike Saddle

Wheels & Tyres

Orbea have used their own 29" Tryp 25C wheels on the Keram 10.

These 25mm wide rims offer an a great platform for an ever increasing choice of on and off-road tyres to suit all riding styles and terrains.

Equipped with Kenda's large volume 2.35" L1153 tyres, the new Orbea Keram 10 is set up perfectly for riders who find themselves frequently switching between tarmac and dirt - performing effortlessly on both.

The innermost central band of tread features a continual tread band for low rolling resistance on tarmac and hard surfaces, while the outer shoulders of the tire have wider spacing and more aggressive tread to optimise off road grip optimised for cornering and braking.

Orbea Keram 10 Electric Bike Kenda Tyres

The bottom line..

Orbea have over 100 years of tradition turning out exceptionally well built bikes, and the Keram is no different. Hand crafted in Spain, the level of fit and finish on every Keram is in keeping with the rest of their model lineup, and the result is a bike which performs every bit as well as it looks.

The Keram 10 is the perfect balance of performance, build quality and componentry at a price which really makes sense, even from a company who are still hand painting and assembling their bikes at their original Spanish factory.

Power

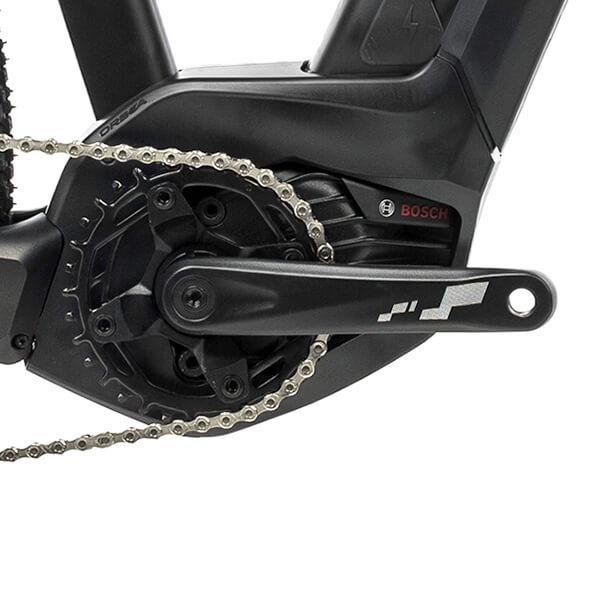

Orbea Keram 10 Bosch CX Motor System

Bosch CX & Purion eBike System

The Keram 10 eBike features the very latest Generation 4 Bosch Performance CX crank drive motor.

Coming with the very latest Bosch update, the 250w CX system now provides 85Nm of torque & peaks at 500w! It packs a punch, and will offer up to 340% assistance in turbo mode. Featuring 4 levels of assistance, the new eMTB mode allows the user to set in one assistance mode and the system itself will determine the assistance offered.

The Orbea Keram 10 features the latest Bosch battery technology which has its 500Wh PowerTube battery located inside the down tube for security and to improve frame aesthetics.

As with previous generations, Orbea have equipped the Bosch Purion display, a revised smaller dash that offers quick vision of essential parameters whilst occupying a minimal amount of cockpit space and not distracting attention.

Orbea Keram 10 Bosch Purion Display

For 2022 Orbea have equipped the Purion display, offering all the essential parameters on one easy to read display, including:- Speed, assistance mode, average, speed, range, odometer and battery bar.

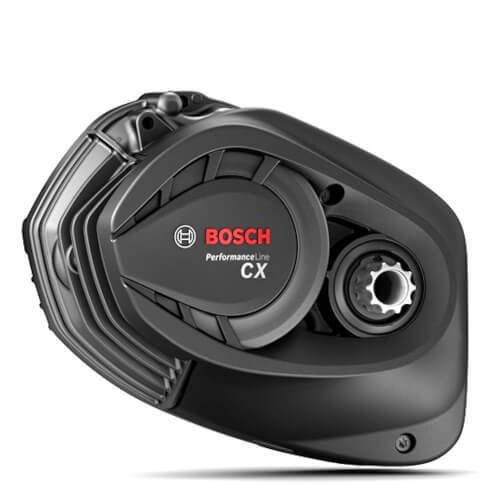

Orbea Keram 10 Bosch CX Motor

The Bosch Generation 4 Performance CX motor is their most powerful, and only found an overwhelming maority of the top eMTB models around the world. A highly reliable motor, its 85Nm can ascend just about anything!

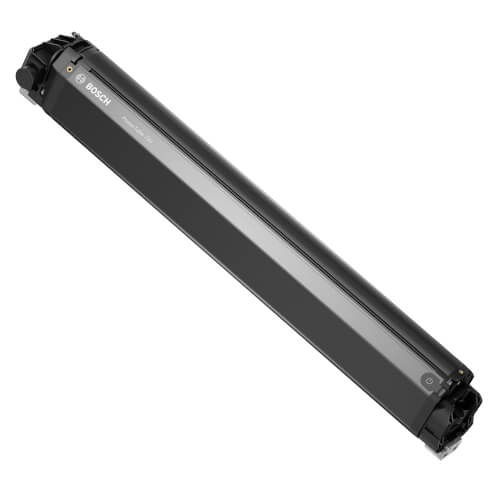

Orbea Keram 10 Bosch PowerTube 500Wh Battery

The Bosch Powerpack 500Wh battery neatly fits inside the frame. Offering upto 140 miles on a single charge, its one of the largest batteries available on ebikes.

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Orbea Keram Hydroformed Alloy 6061

Forks SR Suntour XCR32 LO Coil 100mm QR

Brakes Shimano BR-MT200 hydraulic disc brakes, 180mm Rotors

Shifters Shimano Deore M4100 10-Speed

Rear Mech Shimano Deore M5120 SGS Shadow Plus

Cassette Shimano Deore M4100 11-46t 10-Speed

Chain KMC e10 Turbo Silver

Wheelset Orbea Tryp 25c Disc Tubeless ready

Tyres Kenda K1153 2.35" 30TP

Handlebars OC1 Flat 31.8mm 740mm

Stem Alloy 31.8mm interface 7º

Seatpost Alloy 31.6x400mm Offset 0

Saddle Selle Royal 2077 DRN

Weight TBC

Electric Bike Specifications

Battery Bosch PowerTube Lithium Ionen 36 Volt, 500Wh, with BMS Management

Display Bosch Purion Display

Motor Bosch Performance CX 36 Volt, 250 Watt. 60- 340% Assist, 85Nm

Range 30-120 miles of power assisted range, depending on terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.

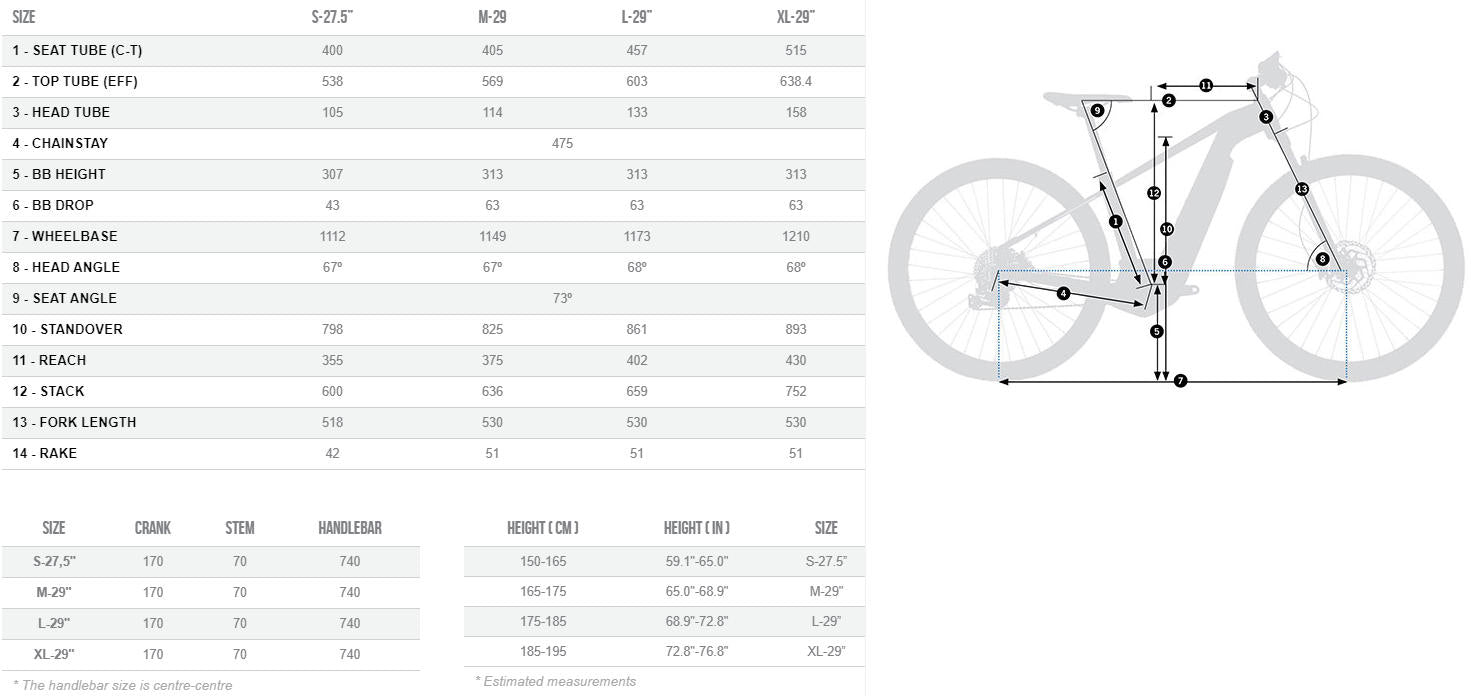

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
