Description
The all new 2023 Orbea Rise H10 combines ultra-light weight with top end componentry, and a punchy Shimano motor to bring you an electric mountain bike which feels every bit as good as a conventional bike, without the sting of the hills
The brand new Rise Alloy framed range of eBikes for 2023 are designed to be effortlessly minimalist, using no bulky or unnecessary components while bringing you closer to the trail and ride. A completely integrated system built on their 4 key elements of Power, Range, Interface and Weight.
Full product details-
Our 5 point review...
-
1
Ultra-lightweight alloy frame
-
2
Up to 4 hours and 4000ft of climbing from the built in 540Wh battery
-
3
12 Speed Shimano XT Gearing
-
4

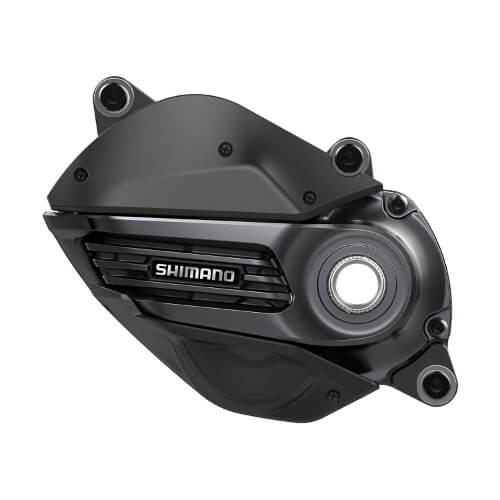

Unique RS Concept tuned Shimano EP8 motor with 60Nm torque
-
5
Optional 252Wh bolt on range extender
- E-Bike Key Specs
-
Battery
Orbea RS 540Wh
-
Display
Shimano EN600-L
-
Motor
Shimano EP8 RS
-
Range
30-140 miles
Specifications
General Bike Specifications
Frame Orbea Rise Hydro 2023 140mm travel 29" Boost 12x148
Forks Fox 36 Float Performance 150 Grip 3-Position QR15x110
Rear Shock Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Brakes Shimano M6120 Hydraulic Disc
Shifters Shimano XT M8100 I-Spec EV
Rear Mech Shimano XT M8100 SGS Shadow Plus
Cassette Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M7100
Wheelset OQUO Mountain Control MC32TEAM
Tyres Maxxis Dissector 2.40" 60 TPI Exo TLR, Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Handlebars OC Mountain Control MC21 Alu SL, Rise20, Width 800
Stem OC Mountain Control MC10 Alu SL, 0º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC MC20 Mountain Control Dropper, 31,6mm
Saddle Fizik Taiga S-alloy rail
Weight 20 kg
Electric Bike Specifications
Battery Orbea RS Internal 540Wh
Display Shimano EN600-L
Motor Shimano EP8-RS
Range 30-140 miles of power assisted range, depending on terrain
