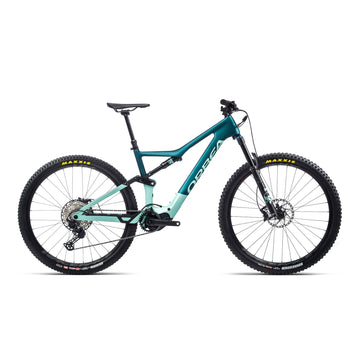

Orbea Rise M20 2022 Green

Orbea Electric Bikes

Orbea Rise M20 Carbon

£3,699.00 £5,899.00 Save £2,200.00

In stock

Frame Size: XL 50cm

Colour: Green

E-Bike Key Specs


Orbea RS 360Wh


Shimano EN100


Shimano EP8 RS


30-100 miles

View in store

E-Bike Highlights


Orbea Rise M20 2022 Electric Bike Review

RS or "Rider Synergy" is a newly developed rider experience concept aimed at enhancing the joy of traditional trail riding with a level of support and assistance designed to feel as "alive as your own body". The video to the right is a fantastic watch, highlighting the purest Spanish passion that went into the 2022 Rise M20 concept.

The brand new Rise Carbon framed range of eBikes for 2022 are designed to be effortlessly minimalist, using no bulky or unnecessary components while bringing you closer to the trail and ride. A completely integrated system built on their 4 key elements of Power, Range, Interface and Weight.

Our 5 point review...


Ultra-lightweight carbon frame


Up to 4 hours and 4000ft of climbing from the built in 360Wh battery


Top level 12 Speed Shimano SLX group set


Unique RS Concept tuned Shimano EP8 motor with 60Nm torque


Optional 252Wh bolt on range extender


Orbea Rise M20 2022 eBike Shimano EP8 Motor
Orbea Rise M20 2022 eBike Handlebars

RS Power..

A brand new concept with Shimano.

Armed with the well thought out concept and the dream of a "rider first" super-light all trail frame that delivers less "e" and more "Bike" to dramatically change the eMTB landscape, Orbea gained early access to the Shimano EP8 drive system and immediately realised it was the perfect solution to fit with their newly formed "RS" riding philosophy for the Rise range. Working directly alongside Shimano, Orbea have developed their own highly responsive and super-efficient RS firmware for the EP8 to make the best use of their newly designed electronics and battery system.

Weighing in at only 2.6KG and utilising their own proprietary software and electronics, the drive system delivers its peak output of 60Nm at cadences of 75-95rpm - right where experienced riders are at their own peak of power and efficiency.

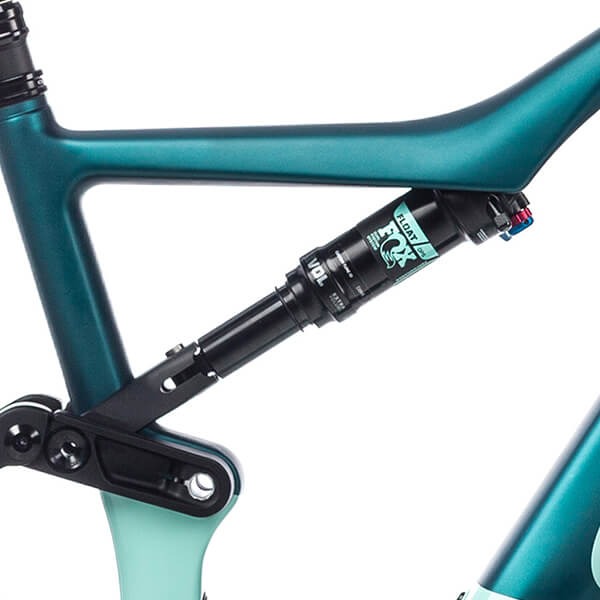

Orbea Rise M20 2022 eBike FOX Rear Shock
Orbea Rise M20 2022 eBike FOX Forks

Fox Suspension

The 2022 Orbea Rise M20 comes with a great level of spec for its highly competitive price point. This brand new trail orientated eBike comes with the latest Fox Float DPS Factory tuned rear shock for the very best in tuning capability - perfect turns without cutting corners.

Packed with trail grabbing features, this shock is designed to exceed the demands of the Fox factory team riders.

Up front, the new Rise M20 comes with the Fox Float 34 Performance 140mm forks. Working in harmony with the rear shock, they offer a lightweight and ultra robust chassis with EVOL air spring.

This 'eMTB Approved' fork ensures ultimate stiffness where eMTB demands are tougher.

Orbea Rise M20 2022 eBike Shimano Deore SLX Drivetrain

Brakes & Gears

Coming to a halt happens just as quickly as you can take off on the Rise M20.

Orbea have equipped the Rise M20 with Shimano Deore M6100 brakes. Specifically designed for fast, flowing and technical cross country and trail riding, these twin piston callipers are highly popular on many trail bikes due to their performance and weight.

Levers are an all magnesium construction to further shave weight from the braking system, but retain exceptional performance in modulation with instantaneous rebound between actions.

To match the braking setup, the 2022 Orbea Rise M20 uses the Shimano Deore M7100 group set.

Delivering enhanced shifting performance, the SLX M7100 derailleurs, through decreased tension in the lower gear positions and an added bumper offer next to silent operation.

Larger 13t pulley wheels reduced overall provide better chain management while increasing efficiency and are directly compatible with boost 12 speed cassettes.

The matching 10-51T cassette gives the rider an almost unparalleled range in ratio. Not only does it offer an unbelieve level of low range torque for the steeped of climbs, but the 10t bottom end means you wont be held back in top end speed either.

Orbea Rise M20 2022 eBike Shimano Deore Brakes

Shimano Deore brakes are very often found on top spec mountain bikes. Their 4 piston design offers incredible bite force and modulation.

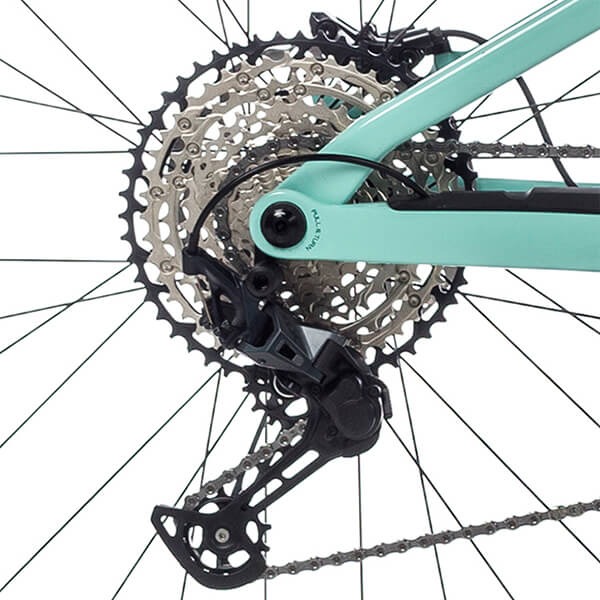

Orbea Rise M20 2022 eBike Shimano Deore SLX Rear Mech

Every trail bike needs limitless gear ratios and the 12 speed Shimano SLX group set never dissappoints with an 10-51t setup.

Orbea Rise M20 2022 eBike Shimano Deore SLX Shifters

When you have a cassette with the width of the SLX CS-M7100, you need a shifter to easily glide through it. The i-Spec EV shifters make it light work.

Orbea Rise M20 2022 eBike Saddle

Wheels & Tyres

Orbea have equipped the 2022 Rise M20 with a set of Race Face AR TLR wheels. Tubless ready and pre-taped, they're the perfect light weight accompaniment to this featherweight bike.

To match the super lightweight wheel setup, Orbea fit the Maxxis Dissector 2.4" 60TPI EXO TLR up front, and the Rekon 2.40" 120TPI 3CMaxxTerra Exo+ TLR at the rear.

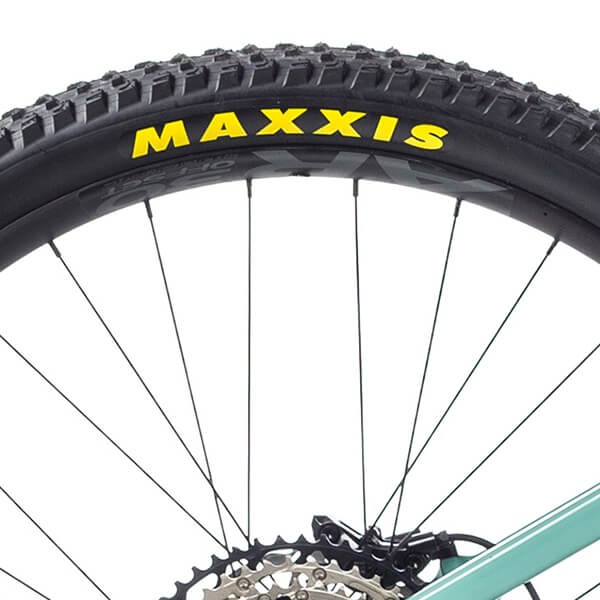

Orbea Rise M20 2022 eBike Maxxis Tyres

The bottom line..

Weighing in at as little as 16.5kg, the 2022 Orbea Rise was designed to provide assistance and peak torque inside the range of normal, high-quality trail riding componentry.

Lightning fast direction changes and playful handling aren't something normally associated with eBikes but with the sporty nature of the Rise model range, it'll feel just like riding your conventional trail rig!

Absolutely everything was considered when shaving weight from the new Rise range. The bare frame weighs just 2.3kg but it doesn't stop there. Orbea, in the same way they did with Shimano for their custom EP8 tune, have worked directly with EThirteen to develop an exclusive alloy forged 32T chainring for the EP8, saving weight while keeping the perfect gearing.

You'll also find fitted to the 2022 Orbea Rise range, their own custom tyre. Working in partnership with Maxxis, they've created an "EXO+" version of the Rekon trail tyre and this will remain an Orbea Exclusive.


E-Bikeshop What's Included

Shimano EP8 RS Drive System

The new 2022 Orbea Rise M20 features the latest Shimano EP8 motor, with a twist.

Working directly with Shimano in line with Orbea's brand new "RS Concept", the Shimano EP8 motor runs on their very own Orbea RS firmware. In keeping with their "Rider First" design philosophy, this unique to Orbea tuning of the EP8 motor software is designed with responsiveness and efficiency at the forefront of its level of assistance.

The EP8 motor fitted to the new 2022 Rise models has a specifically designed power band that makes the bike feel alive underneath you, offering a smooth and highly responsive ride which directly echoes your own output and cadence with a peak output of 60Nm.

In keeping with their minimalist design, no bulky controllers are used on the 2022 Rise, instead opting for a simple rocker switch to flick between power modes and a sleek, inline twin LED display for quick visualisation of the selected mode.

Orbea Rise M20 2022 eBike Shimano Junction Box

The Orbea Rise M20, with its ultra minimalist design uses the Shimano EW-EN Junction. (Ask us about upgrading to E7000 LCD screen!)

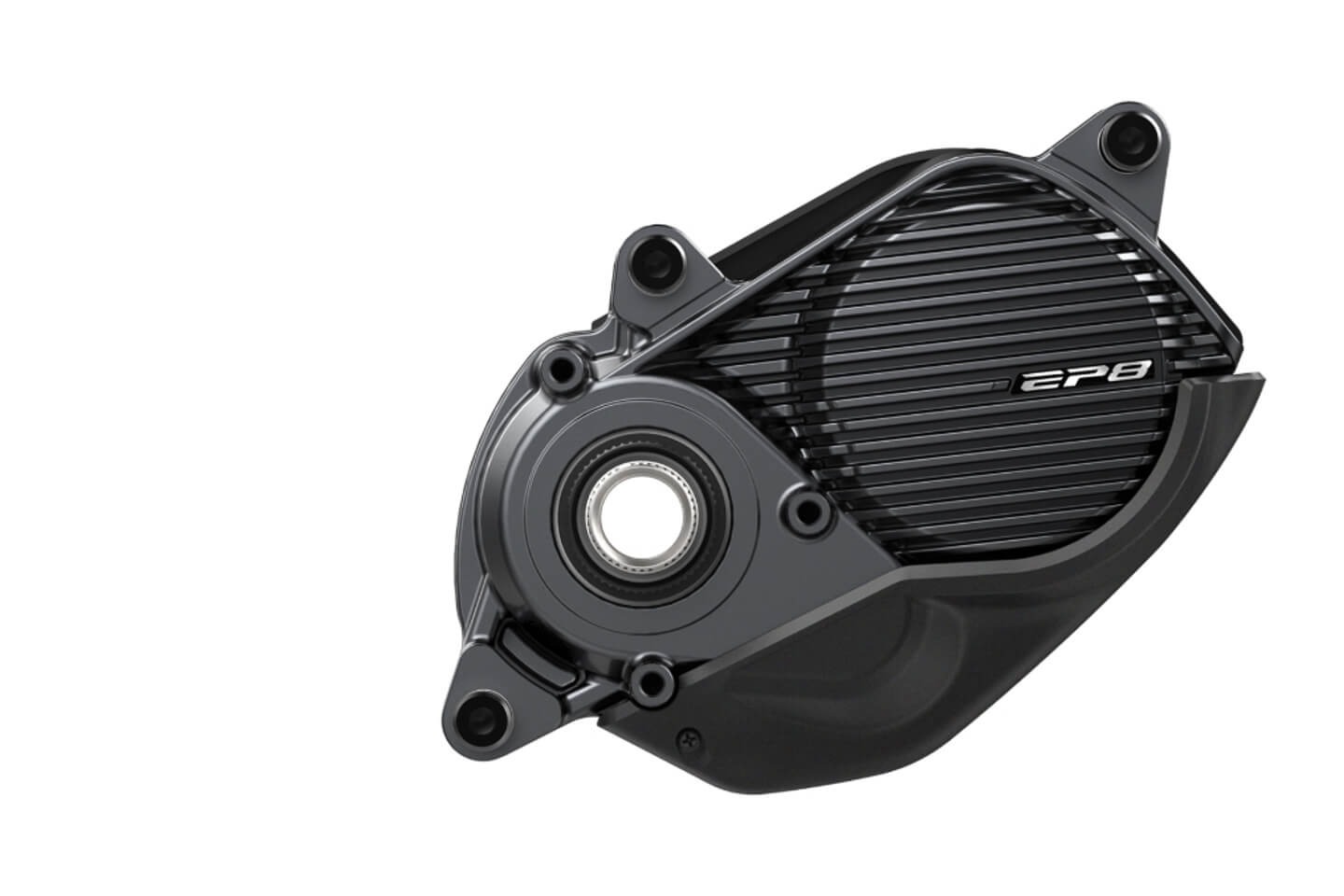

Orbea Rise M20 2022 eBike Shimano EP8 RS Motor

The uniquely tuned Shimano EP8 Motor in the 2022 Orbea Rise M20 has been honed to perfection.

Orbea Rise M20 2022 eBike Shimano RS Battery

Despite its small size, the 360Wh battery can cover distance. In testing, we managed 38 miles and a whopping 4,800ft of climbing before it gave up!

Orbea Rise M20 2022 eBike Shimano EP8 RS Motor System

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Why choose E-Bikeshop?


General Bike Specifications

Frame Orbea Rise OMR 2022 140mm travel 29" C-Boost 12x148

Forks Fox 34 Float Performance 140 3-Position QR15x110

Rear Shock Fox Float DPS Performance 3-Position Evol custom tune 210x55mm

Brakes Shimano M6100 Hydraulic Disc Brakes

Shifters Shimano SLX M7100 I-Spec EV

Rear Mech Shimano SLX M7100 SGS Shadow Plus

Cassette Shimano CS-M7100 10-51t 12-Speed

Chain Shimano M6100

Wheelset Race Face AR 30c Tubeless Ready

Tyres Maxxis Dissector 2.40", Maxxis Rekon 2.40" TLR

Handlebars OC1 35mm 12mm Rise 780mm

Stem OC1 3D Forged 35mm interface 7º

Headset Acros Alloy 1-1/8 - 1-1/2" Integrated

Seatpost OC2 Dropper Post, 31.6 mm

Saddle Fizik Taiga S-alloy rail

Weight 18.1 Kg

Electric Bike Specifications

Battery Orbea RS Internal 360Wh

Display Shimano EW-EN100 Junction

Motor Shimano EP8-RS

Range 30-100 miles of power assisted range, depending on terrain



Yes we offer a range of finance purchase options. These vary from 0% short term, right through to longer term loans on a % APR.

To see the estimated monthly installments on any bike, simply click the 'Calculate Payments' button towards the top of this page. You can select the deposit amount and loan period to quickly calculate the monthly cost before proceeding to place your order.

Finance is automatically processed online at the checkout when selected, you can learn more on our dedicated E-Bike finance page.

You can see what sizes this model is available in at the top of this page. Sizes are listed in centimeters and also specified S, M, L etc.

Some models have more available sizes than others. Whilst some bikes are only available in a 'one size fits all'.

Next to the size options at the top of this page, click 'Find my size'. Enter your inside leg measurement along with your arm length and height (in cm). Our special size calculator will show you what size you need to order. These are displayed in S, M & L etc to correspond with the size options.

Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.

You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:

In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with estimated date of arrival shown
Sold Out / Out of Stock: The model is completely sold out in this variant and no longer available to order

If this bike is showing as Out of Stock in your size, its worth checking if there's colour options as the same model and size may be available in a different colour. Failing that, we also offer a handy link to 'View similar bikes in this size'.

If you're placing a pre-order using the deposit option (instead of paying in full), it's not possible to add further items to your cart alongside the bike. Please get in touch once your pre-order is placed and we'll be happy to add any extras that you may require.

Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey. If so please select 'Collect in store' at the checkout.

We will then prepare your new eBike and be in touch to book a suitable collection day/time.

One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.

If colour options are available, these will show below the size options at the top of this page. It's best to choose your size first and then click on each colour option to check its availability in that size.

Not all of our electric bikes have colour options available.

At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.

We can talk you through your requirements, riding style and offer expert advice as to which model to select.

We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier. We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.
Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any extras fitted and a handover session on the bike itself by one of our eBike experts.

Delivery for UK 'In Stock' items ordered before 1pm should be expected for delivery the next business day (this excludes weekends and public holidays).

You can learn more on our E-Bike delivery page. International buyers can view international delivery times.

For delivery on 'Pre-Order' items, the estimated arrival date is shown at the point of order. On arrival our team will make contact to settle any outstanding balance. Once settled in full, we'll then proceed to dispatch your new eBike without delay.

Yes, we exclusively offer 14 days free insurance on all of our new electric bike purchases. This is for UK orders only. Simply select to opt-in to the 14 days free insurance in the cart.

This not only covers for theft, but also covers you for public liability, breakdown, accessories, accidental damage and returning home cover. You can learn more on the dedicated electric bike insurance page.

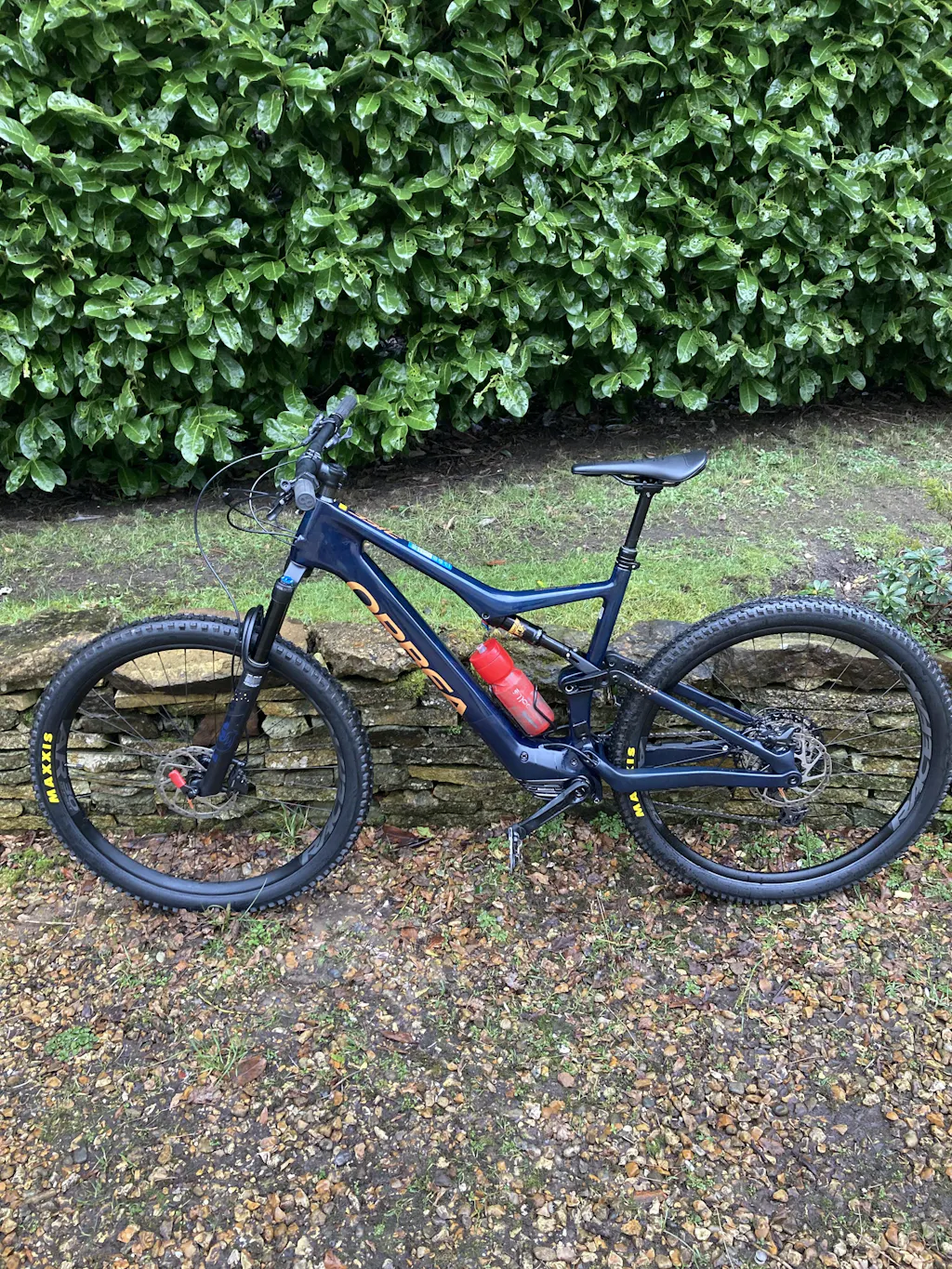

Recently bought an Orbea Rise. It was been sent to NZ for me via a UK friend, I delt with Ben who was very helpful, it was all very smooth and the other people I spoke to were very helpful too. So all in all my experience has been great and I would recommend them to others.
