Orbea Electric Bikes

Orbea Vibe H30 2022

Ā£2,399.00

Pre-order
Orbea Vibe H30 2022 Green
Orbea Vibe H30 2022 Black
Orbea Vibe H30 2022 Blue
Orbea Vibe H30 2022 Red


Frame Size: S 46cm

Battery

Panasonic 250Wh

Display

iWoc Trio

Motor

Ebike Motion X35

Range

30-80 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Orbea Vibe H30 2022 Electric Bike Rider Review

The brand new 2022 Orbea Vibe H30 is the latest offering for the commuter, city and weekend rider from one of our most stylish and forward thinking manufacturers.

Effortlessly blending style with safety, minimalism with performance, the new Vibe H30 is one of our most exciting and eagerly anticipated 2022 models.

Our 5 point review...

1

Lightweight and rugged alloy frame

2

Internally mounted 248Wh battery

3

Reliable and smooth Shimano Deore 10 speed group set

4

Compact, punchy and reliable Mahle eBikemotion X35 motor

5

Simple IWOC Trio control system with Bluetooth and ANT+ app integration

Features

Orbea Vibe H30 2022 Electric Bike OC Cranks

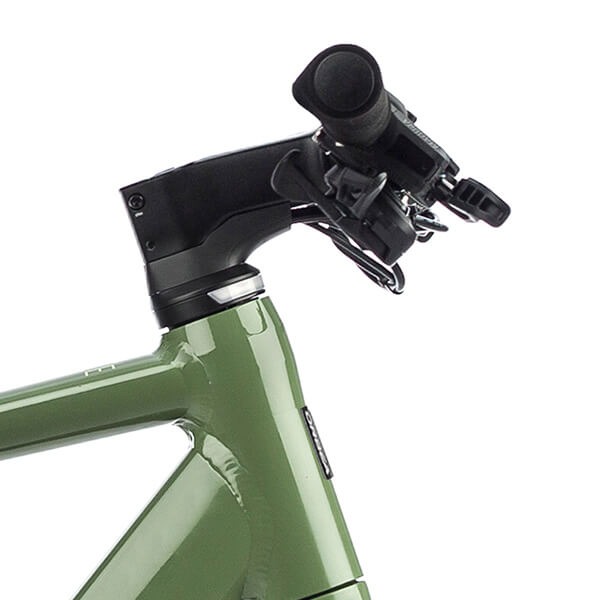

Orbea Vibe H30 2022 Electric Bike Handlebars

Integration with ICR Plus..

A completely redesigned frame, setting it apart from its predecessor, all remaining external cables have been further integrated to provide a completely sleek frame aesthetic and is optimised for both conventional and electric shifting systems. Its brand new proprietary headset spacers allow smooth airflow with easy adjustment.

When Orbea say "fully integrated lighting", they mean it. Many eBikes now feature built in lights, but no manufacturer has achieved it with the same style we've come to expect from this niche Spanish brand on the Vibe H30. Built directly into the base of the stem and drawing a tiny amount of power from the eBike battery, this newly designed lighting technology further draws on Orbea's concept to effortlessly integrate both safety and style.

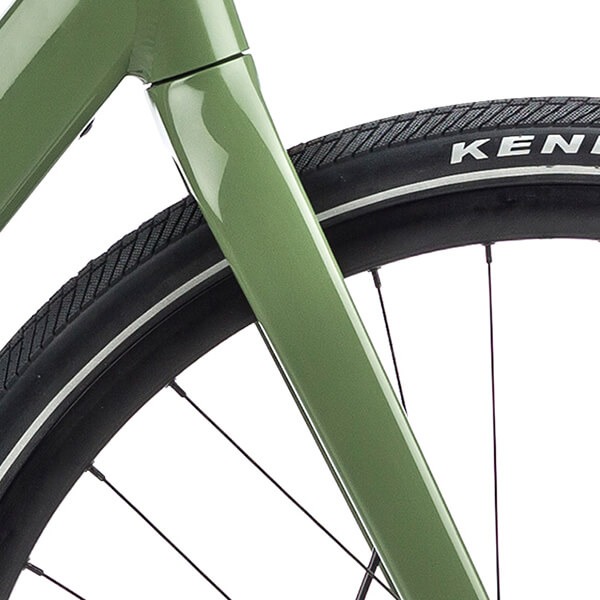

Orbea Vibe H30 2022 Electric Bike Forks
Orbea Vibe H30 2022 Electric Bike Front Wheel

Obea Urban Lightness..

Weighing up to 10kg less than other city styled eBikes, the Vibe H30 is both playful in its handling on the road but easily manoeuvrable in the tight spaces of urban homes and office spaces.

Designed to perfectly complement the inner city "grab and go" lifestyle, the Orbea Vibe range offers riders new and old a totally new, minimalist riding experience. With a single button press, the bike comes to life underneath you and is immediately ready for any commute, explore or leisure ride. Its as comfortable riding to the office as it is nipping to the shops. Looking for a Vibe with the ability to carry your things? You can check out the 2022 Vibe H30 EQ.

Orbea Vibe H30 2022 Electric Bike Shimano Drivetrain

Brakes & Gears

The Magura MT30 hydraulic disc brakes ensure you can come to a stop just as quickly as you accelerate on this eRoad bike.

The Orbea Vibe range ships with a complete Shimano Deore group set. Comprising a Deore M5120 rear derailleur, CS-M4100 10 speed 11-46t cassette and Deore Trigger Shifters, its the perfect choice for a bike designed to cover multiple terrain types.

Orbea Vibe H30 2022 Electric Bike Magura MT 30 Brakes

The Magura hydraulic disc brakes are widely regarded as some of the best available for heavy use, with a large range of pad choice.

Orbea Vibe H30 2022 Electric Bike Shimano Rear Mech

Shimano Deore 10 speed gearing is reliable, robust and doesnt require constant maintenance.

Orbea Vibe H30 2022 Electric Bike Shimano Shifters

The Shimano Deore trigger shifters are so universal they can appear on almost any bike. Smooth, precise shifting, regardless of load.

Orbea Vibe H30 2022 Electric Bike Saddle

Wheels & Tyres

Orbea use their well reknowned ReadyGR Blackjack wheels from the Gain model range on the Vibe models. Lightweight but strong, they're an obvious choice for the Vibe, easily able to take upto 45c tyres.

The Vibe range comes equipped with Kenda 700x45c tyres as standard. These extra width but fast roling tyres are perfect for soaking up the lumps and bumps of British roads and have a highly reflective taped edge on each side.

Orbea Vibe H30 2022 Electric Bike Kenda Tyres

The bottom line..

With feedback from the many thousands of riders who bought the previous generation flat bar F25 and F30 road bikes from Orbea, the new Orbea Urban Geometry platform anticipates both how and when riders will use their eBikes in urban and ultra-urban environments.

A more upright riding position for better vision and comfort keeps you feeling more secure, extending your enjoyment of the bike to uses you might never have considered. The bike is perfectly balanced, with responsive and predictable steering that doesn't feel too fast, but retains a highly reactive and nimble feel.

Continuing the legacy of the Gain F30, this new flat bar road bike from Orbea is a brand new concept designed as a sophisticated accessory to complement your own sense of style without overshadowing.

A super nimble, stylish and reliable personal transport tool that can be easily manoeuvred in tight spaces, the new Vibe H30 is a lightweight city eBike designed for riders looking for style, range and freedom in a revolutionary, fully integrated and low-fuss platform.

Power

E-Bikeshop What's Included

eBikemotion X35 eSystem

Riding the bike aside, one of the best parts of the new 2022 Vibe H30 electric road bikes is the completely 'hidden' eDrive system.

Designed to not take away from the ride but to assist your performance, the extra 40Nm from the rear hub motor allows the rider to climb bigger ascents and average a faster overall speed.

3 Modes of Assistance - Controllable by the multi-function power button on the top tube.

Full rider credentials are displayed in the Smart Phone (not essential) application including speed, distance travelled, altitude, battery capacity, trip time and many more.

The smart phone app also has the functionality to pair Bluetooth heart rate monitors or simply connect your Android Wearable or iWatch to run alongside for the full sporting package.

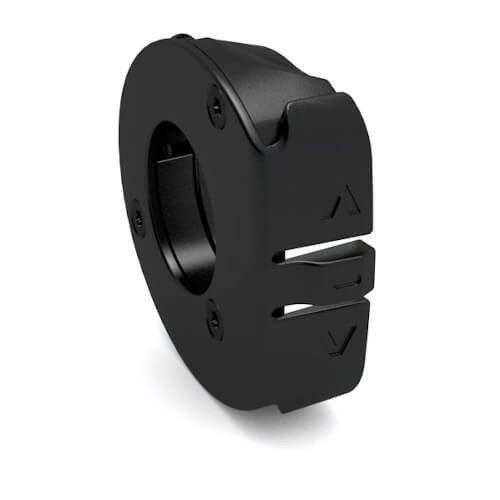

Orbea Vibe H30 2022 eBike Motion X35 iWoc Trio Buttons

The IWOC Trio control system uses a simple 3 button controller to display the current battery status and change between power modes.

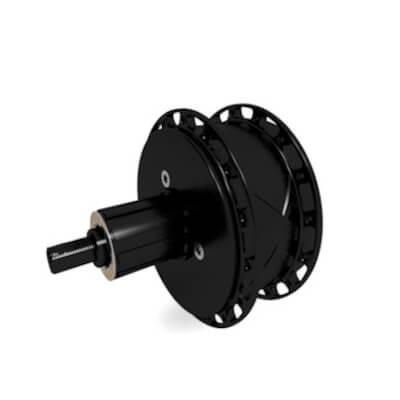

Orbea Vibe H30 2022 eBike Motion X35 Motor

The eBikemotion motor is small, compact and ultra reliable but packs a punch on long ascents and false flats.

Orbea Vibe H30 2022 eBike Motion X35 Range Extender

An optional range extender option offers the ability to bolt on an extra 70% of range in just seconds.

Orbea Vibe H30 2022 eBike Motion X35 Motor System

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Orbea Vibe Top Bar 6061 Hydroform Aluminium 2022

Forks Orbea Vibe Carbon fork

Brakes Magura MT30 Hydraulic Disc Easy Route Connection

Shifters Shimano Deore M4100 10-Speed

Rear Mech Shimano Deore M5120 SGS Shadow Plus

Cassette Shimano CS-M4100 11-46t 10-Speed

Chain KMC X10 10-Speed

Wheelset Ready GR 700c Alloy Wheels

Tyres Kenda K1052 700x45C Reflective with puncture protection

Handlebars Alloy 31.8mm 12mm Rise 700mm

Stem OC1 31.8mm interface -6Āŗ

Headset Acros Alloy 1-1/2" Internal Cable Routing

Seatpost OC 27.2 Offset 0, for integrated light

Saddle Selle Royal Lift 1215 URN 278x145mm

Weight 15.1 Kg

Electric Bike Specifications

Battery Ebikemotion 36V 6.9A 250Wh

Display Ebikemotion iWoc TRIO

Motor Ebikemotion X35 Plus

Range 30-80 Miles of power assisted range, depending on terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.



You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.



At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Orbea in Spain.



At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.


We can talk you through your riding style and requirements and offer expert advice as to which model to select.


We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase. Ā
Ā
Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.



Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.


We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.



If you cannot find the answer you are looking for, please don't hesitate to get in touch.
Remember you can find a full F.A.Q on general electric bike & website questions by clicking here.
