Orbea Electric Bikes

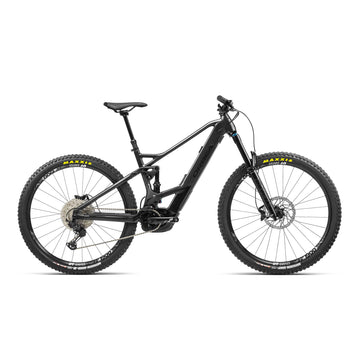

Orbea Wild FS H20

£5,499.00

In stock
Orbea Wild FS H20 Black
Orbea Wild FS H20 Red


Frame Size: S/M 40cm

Colour: Black

Battery

Bosch 625Wh

Display

Bosch Kiox

Motor

Bosch CX Gen 4

Range

30-140 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Orbea Wild FS H20 Electric Bike Rider Review

The Orbea Wild FS H20 2021 is the mid specification alloy frame model of the Wild FS range.

This 160mm travel bike uses the latest 4th Generation Bosch Performance CX system with a 625Wh battery, newly updated eMTB mode and increased 85Nm of torque.

Built for all terrain, all mountain, single track and trail riding on a fantastic geometry platform, It's tough enough for even the most technical of trails but remains light enough for cross country too, using 29" DT Swiss wheels to offer excellent rollover even on rough terrain.

Our 5 point review...

1

Advanced lightweight alloy frame

2

Up to 160 miles range from the Bosch Powertube 625 battery

3

Offering the latest gen Shimano XT 12-speed gearing

4

Highest performing Bosch motor with 85Nm torque peaking at 340% assistance

5

Full colour Kiox display with Bluetooth integration

Features

Orbea Wild FS H20 Handlebars
Orbea Wild FS H20 Front Wheel

Head turning design..

The 2021 mid spec alloy Wild FS H20 features the latest Bosch Gen 4 Performance CX motor, 625Wh battery and comes with the recent Bosch software already installed, offering a totally new eMTB mode experience and 15% more torque!

Carrying over from 2020 model, the Wild FS H20 features a unique Hydroformed alloy frame. The frame set has some clever design choices, arriving with bottle cage mounting as standard, and the option for a dual battery configuration right from the factory or from e-Bikeshop as an add-on item, allowing for a total capacity of 1125Wh!

This light, super smooth frame with full internal cable routing makes the 2021 Wild FS a real head turner on the trails!

Orbea Wild FS H20 FOX Forks
Orbea Wild FS H20 FOX Rear Shock

Fox Suspension

Equipped with the 2021 Fox Float DPS EVOL rear shock, the new Wild FS H20 offers 3-Way adjustable lockout and air compression with external rebound damping adjustment.

With the Dual Piston System, the rider can choose between fully locked out, fully open, or select the mid stage mode to conserve energy whilst still providing cushioning for a plush ride under pressure.

This new Fox Float shock is as you would expect, fully adjustable for rider weight and Orbea have matched it with the new Fox 38 Performance Fork, optimised for eBikes with the 3-Position GRIP Damper - a great value spec increase over the 2020 model!

This new damper offers a more simplified closed cartridge system than the FIT4 used in other Fox forks. Using the closed cartridge system allows Fox to keep a much more consistent damping feel compared to fully open dampers, which are usually cheaper to manufacture.

Orbea Wild FS H20 Shimano Deore Drivetrain

Brakes & Gears

The 2021 Wild FS ships with the new Shimano MT420 hydraulic disc brakes, which have been developed with eMTB in mind. These four piston brakes offer strong braking performance at a "Deore" series price point.

Sharing the same non finned version of pads found in the Saint and Zee series calipers, the BR-M420 has plenty of pad compound choices available to suit all riders and conditions.

The brake levers also offer the same ergonomic lever design found on most Shimano brakes, offering easy reach adjustment with just a few turns of an allen key.

The Orbea Wild FS H20 2021 features the Shimano XT M8120 12-Speed Derailleur, a Deore M6100 i-Spec EV shifter and a Sunrace E-bike specific cassette for maximum durability.

This combination between XT and Deore components complement each other in weight saving and price to create a super reliable group-set.

At the rear, a wide range 11-51t cassette ensures theres nothing you wont be able to climb, while retaining an impressive top speed.

Orbea Wild FS H20 Shimano Deore Brakes

4 piston brakes are a hallmark of a bike designed for the rough stuff. The Wild FS H30 is designed for the toughest of trails.

Orbea Wild FS H20 Shimano Deore XT Rear Mech

12 speed gearing, normally reserved for the top end bikes is fast becoming a standard feature on all top end eMTB models.

Orbea Wild FS H20 Shimano Deore Shifters

The Rapid-Fire Plus shifters provide smooth but positive shifting, and the Shadow Plus rear derailleur keep chain tension in check and chain slap to a minimum.

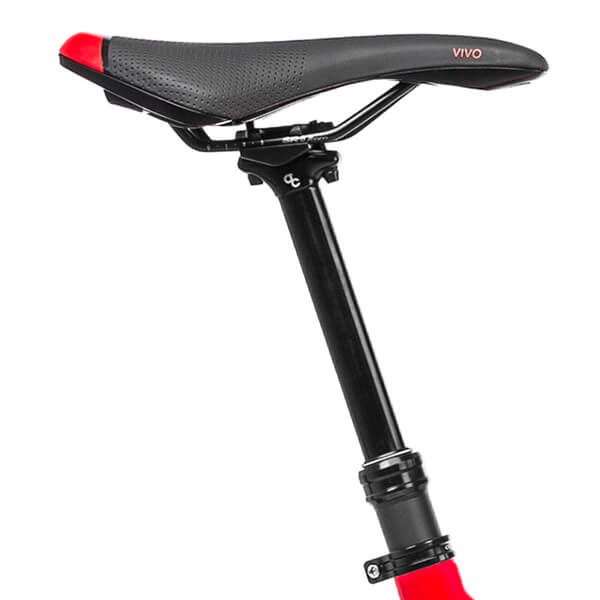

Orbea Wild FS H20 Dropper Post

Wheels & Tyres

The 29" wheels provide an excellent rolling speed over rough terrain, while the modern geometry make sure the H20 stays nimble even in the most technical sections.

Orbea have once again given the H20 the H-1900 Spline 30c wheelset from DT Swiss. These 30mm wide rims offer an ideal tire profile for wide range of tyre choice.

The Orbea Wild FS H20 2021 grips the trail once again with the 2.60" Minion tyres from Maxxis.

These tubeless ready tires feature the 3C MaxxTerra compound, offering excellent traction but with an improved wear rate over the 3C MaxxGrip compound. Ask us about setting your wheels up tubless when placing your order.

Orbea Wild FS H20 Maxxis Tyres

The bottom line..

Orbea has tweaked the Wild FS H20 to ensure its thoroughly competitive and up to date for 2021. With an increase in suspension specification over 2020, a brand new eMTB mode from Bosch and now with the large 625 WH battery, its everything most riders could ever need.

Also retained from the 2020 design are the "bump stops" in the headset and on the downtube, really showcasing the attention to detail the R&D team have taken while designing the Wild FS models.

These bump stops allow for huge 164 degrees of fork movement, while also helping to prevent damage to the frame in the event of a crash. Maximum steering movement, with total peace of mind.

The Orbea Wild FS H20 will be popular for many looking for an aggressive Trail bike, with keen pricing with a well thought out spec. The Wild FS range also has Carbon frame models with the Wild FS M20, Wild FS M10 and Wild FS Team.

Power

E-Bikeshop What's Included

Bosch CX & Kiox eBike System

The new Orbea Wild FS H20 2021 eBike features the new Gen 4 Bosch Performance CX crank drive motor with its latest performance update and their largest battery with an impressive 625Wh capacity. This level of motor, battery and controller specification is exactly what you need on this top performing bike.

With its new update, the 250w CX system outputs 85Nm of torque & peaks at 500w! It certainly packs a punch, it will also offer up to 340% assistance in turbo mode. Featuring 4 levels of assistance & remember you can always turn the power off and ride it as a normal bike! In addition, the new eMTB mode allows the user to set in one assistance mode and the system itself will determine the assistance offered.

The Wild H20 features the 'PowerTube' Bosch 625Wh battery for 2021. Completely integrated into the frame, Orbea have neatly designed it so it can be charged both on & off the bike.

The 2021 Bosch Kiox display is neat & compact. Riders can see important factors like speed, distance and battery range on the screen.

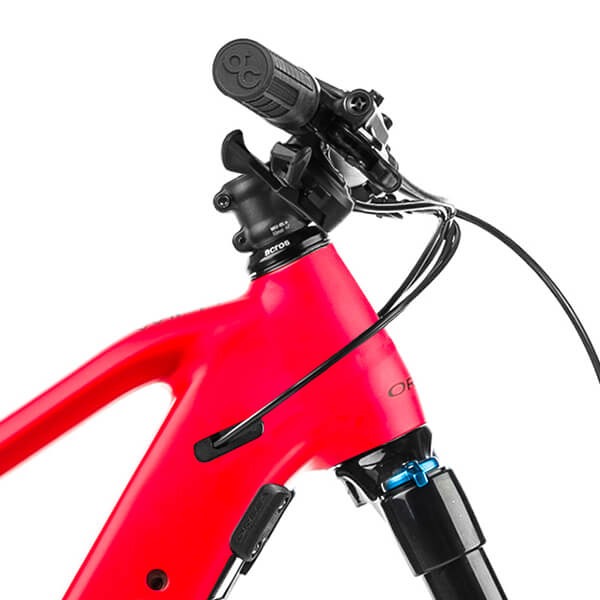

Orbea Wild FS H20 Bosch Kiox Display

The new Bosch Kiox display is simple and very easy to use, displaying key information at a glance but with a huge amount of other data when needed. It also has integration for Bluetooth heart rate monitors and an app based SatNav option!

Orbea Wild FS H20 Bosch CX Motor

The Bosch Generation 4 Performance CX motor is arguably the most widely used and reliable powerhouse in the mountain bike world right now, and it right at home on the Orbea Wild FS model range.

Orbea Wild FS H20 Bosch PowerTube 625Wh battery

The Bosch PowerTube 625Wh battery neatly fits inside the frame and is secured with a key locking system. With upto 160 miles on tap, theres no-where you cant go!

Orbea Wild FS H20 Bosch CX Motor Drive System

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Orbea Hydroformed Alloy Frame

Forks Fox 38 Float Performance, Grip 3-Pos Lever, 160mm Boost

Rear Shock Fox Float DPS EVOL LV custom tune, 3-position lockout, Trunnion mount

Brakes Shimano MT420 Hydraulic disc brakes

Shifters Shimano Deore M6100, 12-Speed

Rear Mech Shimano XT M8100, SGS ShadowPlus, 12-Speed

Cassette Sun Race CSMZ80 11-51t, 12-Speed

Chain KMC e12 Turbo Silver

Wheelset DT Swiss H-1900 Spline 30c TLR, Boost

Tyres Maxxis Minion DH, Maxx Terra Exo+, 2.6"

Handlebars OC1 35mm, 12mm Rise, 780mm

Stem OC1 3D Forged 35mm

Headset

Seatpost OC2 Dropper Post, 31.6 mm

Saddle Selle Royal Vivo

Weight 24.1 kg

Electric Bike Specifications

Battery BOSCH Powertube 625Wh 36v

Display Bosch Kiox

Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm

Range 30-140 miles of power assisted range, depending on terrain
