E-Bike Key Specs
Battery
Bosch 500Wh
Display
Bosch Purion
Motor
Bosch CX Gen 4
Range
30-120 miles
Specifications
General Bike Specifications
Frame Orbea Hydroformed Alloy Frame
Forks RockShox 35 Silver TK Crown adjust Q15x110 Solo Air 160mm
Rear Shock Fox Float DPS EVOL LV custom tune, 3-position lockout, Trunnion mount, 160mm travel
Brakes Shimano M420 Hydraulic Disc Brakes
Shifters Shimano Deore M6100 I-Spec EV, 12-Speed
Rear Mech Shimano XT M8100 SGS, ShadowPlus, 12-Speed
Cassette Shimano CS-M6100 10-51t 12-Speed
Chain Shimano M6100
Wheelset Race Face AR 30c Tubeless Ready
Tyres Maxxis Minion DH, Maxx Terra Exo+, 2.6"
Handlebars OC1 35mm, 12mm Rise, 780mm
Stem OC1 3D Forged 35mm interface 7º
Headset Tapered Sealed Headset

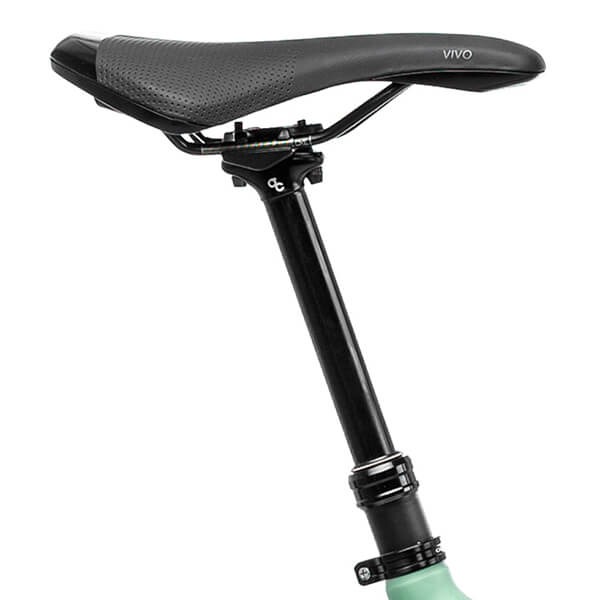

Seatpost OC2 Dropper Post, 31.6 mm
Saddle Selle Royal Vivo
Weight 24.1 kg
Electric Bike Specifications
Battery BOSCH Powertube 500Wh 36v

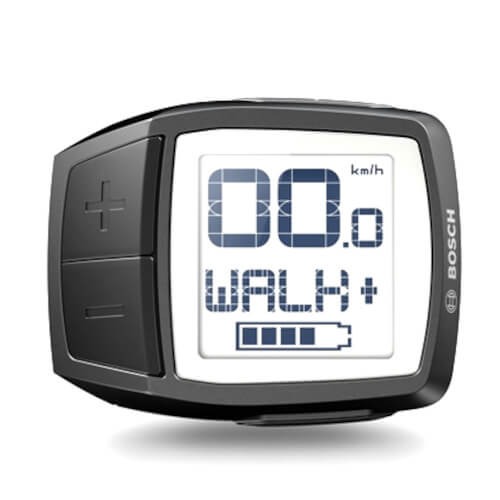

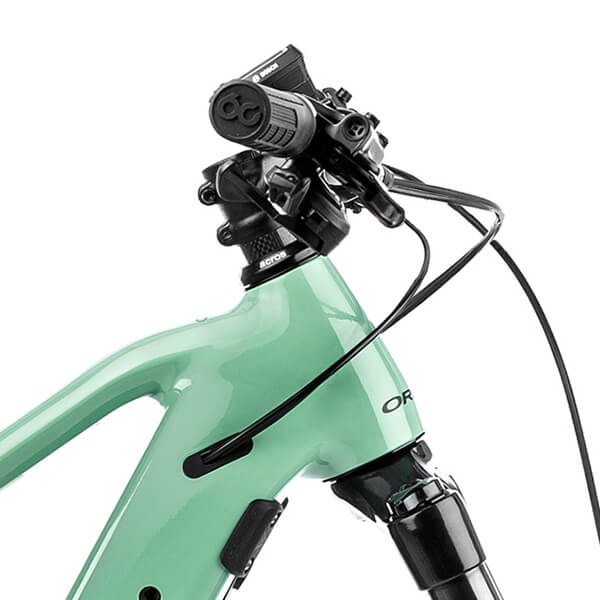

Display Bosch Purion

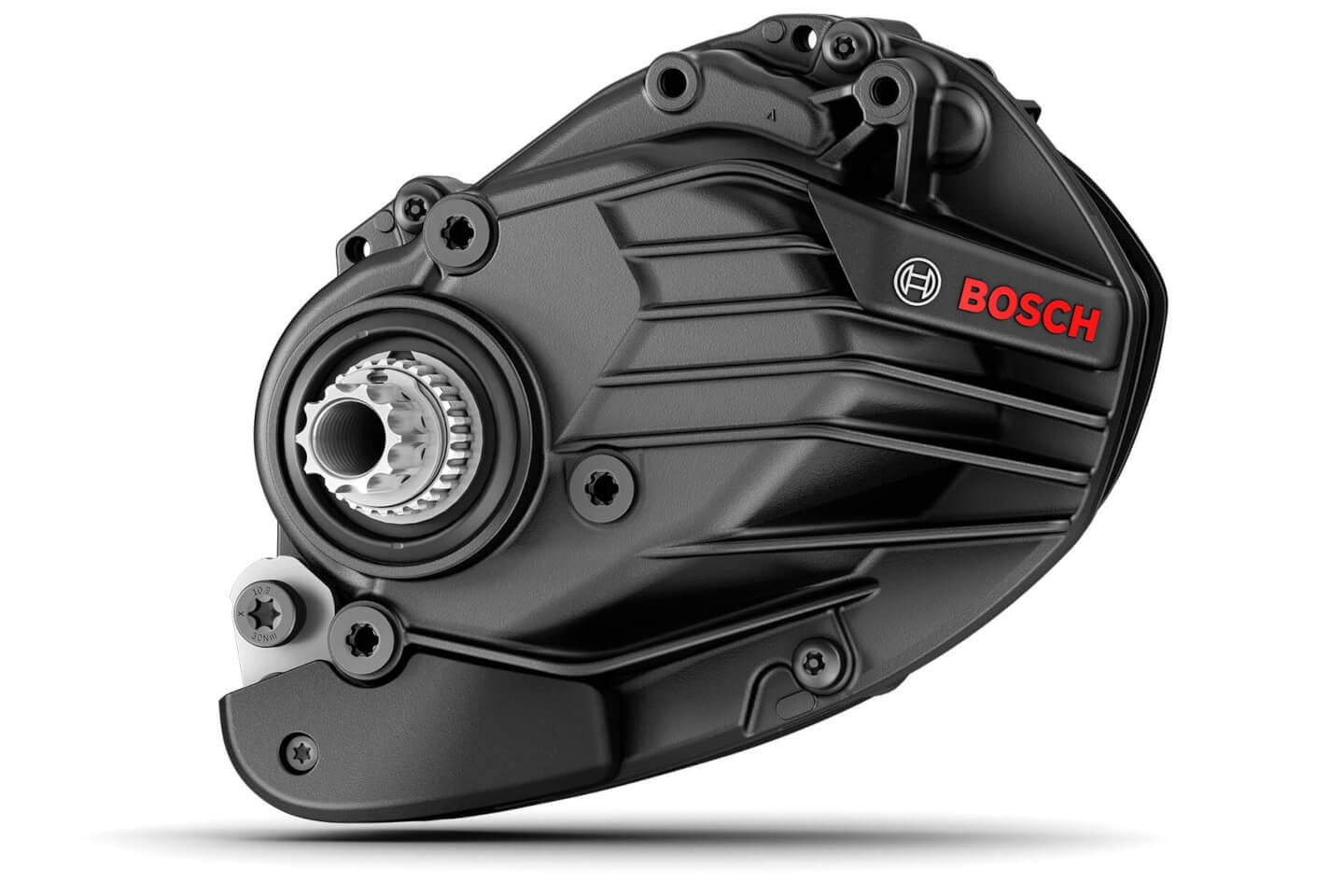

Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm
Range 30-120 miles of power assisted range, depending on terrain
Downloads
Reviews
"THEY'RE ONLY JEALOUS"
Bought this bike from the e-bikeshop back in May and I have loved every one of the 900 miles travelled so far. Full suspension and dropper post make all the difference on the downhills too. The only downside is the sneering looks that you get from some crank-bike riders - but they're only jealous!
TOM - Read more
E&OE
