Orbea Electric Bikes

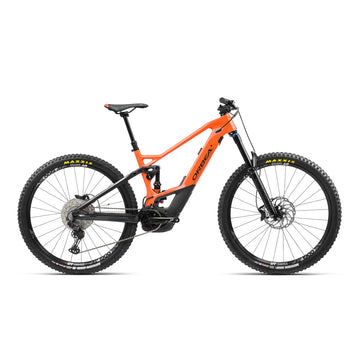

Orbea Wild FS M10 Carbon

£6,799.00

In stock
Orbea Wild FS M10 Carbon Black
Orbea Wild FS M10 Carbon Orange


Frame Size: S/M 40cm

Colour: Black

Battery

Bosch 625Wh

Display

Bosch Kiox

Motor

Bosch CX Gen 4

Range

30-140 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Orbea Wild FS M10 Electric Bike Review

The Orbea Wild FS M10 2021 is the mid spec Carbon model of the Wild FS range.

The 160mm travel bike uses the Brand new 4th Generation Bosch Performance CX system with a 625Wh battery. Built for all terrain, all mountain, single track and trail riding on a great geometry platform.

It's tough enough for more demanding trails yet light enough for cross country too, with 29" wheels to offer excellent rollover on rough terrain.

Our 5 point review...

1

Advanced lightweight and hand crafted carbon frame

2

Up to 160 miles range from the Bosch Powertube 625Wh battery

3

Offering the latest gen Shimano XT 12-speed gearing

4

Highest performing Bosch motor with 85Nm torque peaking at 340% assistance

5

Full colour Kiox display with Bluetooth integration

Features

Orbea Wild FS M10 Bosch CX Motor

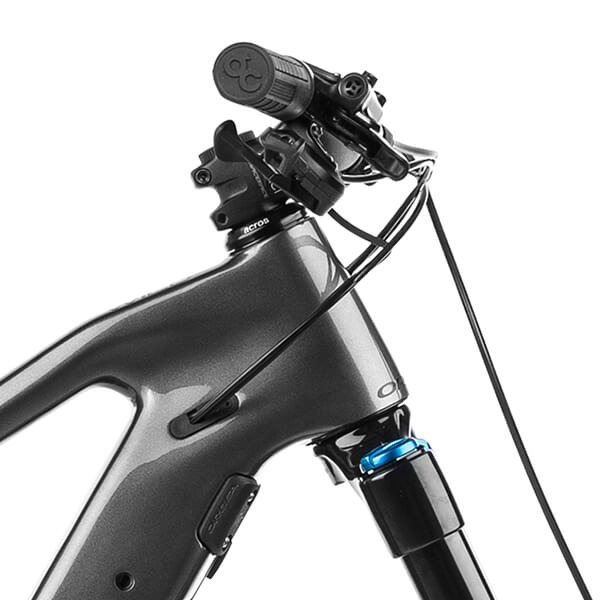

Orbea Wild FS M10 Handlebars

Head turning design..

The top spec model in our Wild FS line-up, the M10 features the latest Bosch Gen 4 Performance CX motor, 625Wh battery and comes with the recent Bosch software already installed, offering a totally new eMTB mode experience and 15% more torque!

Carrying over from 2021 model, the Wild FS M10 features a unique, hand crafted carbon frame. The frame set has some clever design choices, arriving with bottle cage mounting as standard, and the option for a dual battery configuration right from the factory or from e-Bikeshop as an add-on item, allowing for a total capacity of 1125Wh!

This light, super smooth frame with full internal cable routing makes the 2022 Wild FS M10 a real head turner on the trails!

Orbea Wild FS M10 Fox Forks
Orbea Wild FS M10 Fox Rear Shock

Fox Suspension

Equipped with the 2021 Fox Float DPX2 EVOL rear shock, which offers 3-Way adjustable lockout and air compression. You can also adjust the rebound damping externally.

With the Dual Piston System, the rider can lock out, ride fully open, or select the mid stage mode to conserve energy, whilst still providing cushioning under pressure.

It's also air pressure adjustable depending on the riders weight. At the front Orbea have equipped the new Fox 36 Performance Fork with the 3-Position GRIP Damper.

This new damper offers a more simplified closed cartridge system than the FIT4 used in other Fox forks. Closed cartridge allows for fox to keep a much more consistent feel compared to open dampers which are usually cheaper to manufacture.

Orbea Wild FS M10 Deore XT Drivetrain

Brakes & Gears

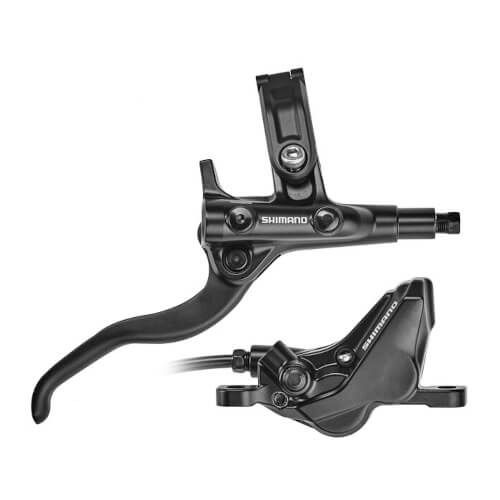

Orbea have spec'd the Wild FS M10 2021 with the new Shimano M420 hydraulic disc brakes. These four pot brakes offer solid performance for aggressive descents with excellent modulation.

The brake levers offer the same comfortable lever design found with other Shimano brakes, offering easy tool free reach adjustment.

You can be sure they'll stop you as quickly as you accelerate on this eBike. Minimal maintenance and fuss. Aside from changing the brake pads from time to time you can fit and forget.

The Orbea Wild FS M10 2021 features the brand new Shimano XT M8120 12-Speed Derailleur, an SLX M7100 shifter and a Sunrace E-bike specific cassette for improved durability.

This combination of XT and SLX components saves some grams whilst keeping a keen price point and a dependable group set.

With a whopping 11-51t setup you'll be sure there's no climb or descent you cant tackle!

Shimano ShadowPlus ensures a stable drive train even in rough terrain, offering precise and quiet shifting.

Orbea Wild FS M10 Deore Brakes

4 piston brakes are a hallmark of a bike designed for the rough stuff. The Wild FS M-Team is designed for the toughest of trails.

Orbea Wild FS M10 Deore XT Rear mech

12 speed gearing, normally reserved for the top end bikes is fast becoming a standard feature on all top end eMTB models.

Orbea Wild FS M10 Deore XT Shifters

The Rapid-Fire Plus shifters provide smooth but positive shifting, and the Shadow Plus rear derailleur keep chain tension in check and chain slap to a minimum.

Orbea Wild FS M10 Dropper Post

Wheels & Tyres

The 29" wheels provide an excellent rolling speed over rough terrain, while the modern geometry make sure the M-Team stays nimble even in the most technical sections.

Orbea have once again given the Wild FS M10 the H-1900 30c wheelset from DT Swiss. These 30mm wide rims offer an ideal tire profile for wide range of tyre choice.

The Orbea Wild FS M10 2022 grips the trail once again with the 2.60" Minion tyres from Maxxis.

These tubeless ready tires feature the 3C MaxxTerra compound, offering excellent traction but with an improved wear rate over the 3C MaxxGrip compound. Ask us about setting your wheels up tubless when placing your order.

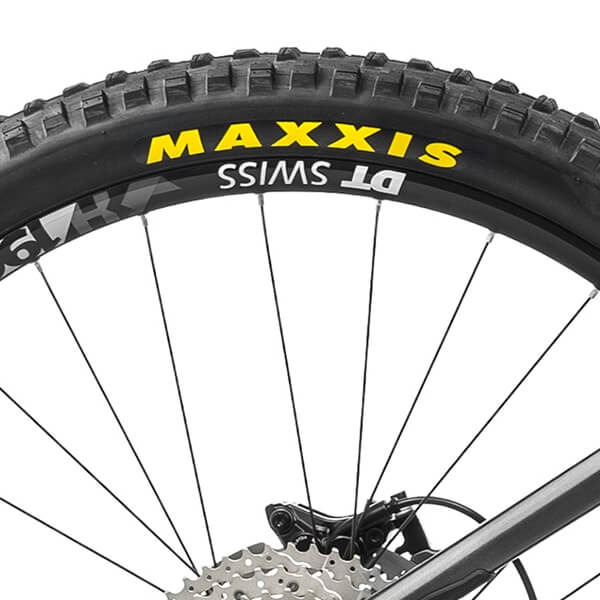

Orbea Wild FS M10 Maxxis eBike Tyres

The bottom line..

Orbea has tweaked the Wild FS M10 to ensure its thoroughly competitive and up to date for 2021. With an increase in suspension specification over 2021, a brand new eMTB mode from Bosch and now with the large 625Wh battery, its everything most riders could ever need.

Also retained from the 2021 design are the "bump stops" in the headset and on the downtube, really showcasing the attention to detail the R&D team have taken while designing the Wild FS models.

These bump stops allow for huge 164 degrees of fork movement, while also helping to prevent damage to the frame in the event of a crash. Maximum steering movement, with total peace of mind.

The Orbea Wild FS M10 will be popular for many looking for an aggressive Trail bike, with keen pricing with a well thought out spec.

Power

E-Bikeshop What's Included

Bosch CX & Kiox eBike System

The new Orbea Wild FS M10 2021 eBike features the new Gen 4 Bosch Performance CX crank drive motor, so you can be sure it's fitted with the latest kit & setup for optimum performance.

The 250w CX system outputs 85Nm of torque & peaks at 500w! It certainly packs a punch, it will also offer up to 340% assistance in turbo mode. Featuring 4 levels of assistance & remember you can always turn the power off and ride it as a normal bike! In addition, the new eMTB mode allows the user to set in one assistance mode and the system itself will determine the assistance offered.

The Wild M10 features new 'PowerTube' Bosch 625Wh battery technology for 2021. Completely integrated into the frame, Orbea have neatly designed it so it can be charged both on & off the bike.

The Bosch Kiox display is neat & compact with a super crisp resolution LCD display screen. The Bosch Kiox display offers all the rider credentials in a neat and easy to read user interface. Riders can see important factors like speed, distance and battery range on the screen. The newly designed control buttons, sit to the left of the bars to allow scrolling of this screen.

Orbea Wild FS M10 Bosch eBike Kiox Display

The Bosch Kiox display is simple and very easy to use, displaying key information at a glance but with a huge amount of other data when needed. It also has integration for Bluetooth heart rate monitors and an app based SatNav option!

Orbea Wild FS M10 Bosch eBike CX Motor

The Bosch Generation 4 Performance CX motor is arguably the most widely used and reliable powerhouse in the mountain bike world right now, and it right at home on the Orbea Wild FS model range.

Orbea Wild FS M10 Bosch eBike 625Wh Battery

The Bosch PowerTube 625Wh battery neatly fits inside the frame and is secured with a key locking system. With upto 140 miles on tap, theres no-where you cant go!

Orbea Wild FS M10 Bosch eBike CX Drive System

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Orbea Carbon front triangle, Carbon rear.

Forks Fox 38 Float Performance, Grip 3-Pos Lever, 160mm Boost

Rear Shock Fox Float DPX2 Performance EVOL LV custom tune, Trunnion mount

Brakes Shimano M420 Hydraulic Disc Brakes

Shifters Shimano Deore M6100, 12-Speed

Rear Mech Shimano XT M8100, ShadowPlus, 12-Speed

Cassette Sun Race CSMZ80 11-51t, 12-Speed

Chain KMC e12 Turbo

Wheelset DT Swiss H-1900 Spline 30c TLR, Boost

Tyres Maxxis Minion DH, Maxx Terra Exo+, 2.6"

Handlebars Race Face Aeffect 35, 20mm Rise, 780mm

Stem Race Face Aeffect R 35mm

Headset OC Key Holder

Seatpost OC2 Dropper Post, 31.6 mm

Saddle Selle Royal Vivo

Weight 23.4 kg

Electric Bike Specifications

Battery Bosch Powertube 625Wh 36v

Display Bosch Kiox Multi-functional Display

Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm

Range 30-140 miles of power assisted range, depending on terrain
