Orbea Electric Bikes

Orbea Wild FS M20 Carbon 2022

£5,999.00

In stock
Orbea Wild FS M20 Carbon 2022 Green
Orbea Wild FS M20 Carbon 2022 Red


Frame Size: S/M 40cm

Colour: Green

Battery

Bosch 625Wh

Display

Bosch Kiox

Motor

Bosch CX Gen 4

Range

30-140 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

Orbea Wild FS M20 Electric Bike Rider Review

The Orbea Wild FS M20 2022 is the entry level Carbon model of the Wild FS range.

This 160mm travel bike uses the 4th Generation Bosch Performance CX system with a 625Wh battery. Built for all terrain, all mountain, single track and trail riding on a great geometry platform, it's tough enough for more demanding trails yet light enough for cross country too, with 29" wheels to offer excellent rollover on rough terrain.

Our 5 point review...

1

Advanced lightweight and hand crafted carbon frame

2

Up to 160 miles range from the Bosch Powertube 625Wh battery

3

Offering the latest gen Shimano XT 12-speed gearing

4

Highest performing Bosch motor with 85Nm torque peaking at 340% assistance

5

Easy to use Bosch Purion display system

Features

Orbea Wild FS M20 Electric Bike CX Motor
Orbea Wild FS M20 Electric Bike Handlebars

Head turning design..

The top spec model in our Wild FS line-up, the M20 features the latest Bosch Gen 4 Performance CX motor, 625Wh battery and comes with the recent Bosch software already installed, offering a totally new eMTB mode experience and 15% more torque!

Carrying over from 2021 model, the Wild FS M20 features a unique, hand crafted carbon frame. The frame set has some clever design choices, arriving with bottle cage mounting as standard, and the option for a dual battery configuration right from the factory or from e-Bikeshop as an add-on item, allowing for a total capacity of 1125Wh!

This light, super smooth frame with full internal cable routing makes the 2022 Wild FS M20 a real head turner on the trails!

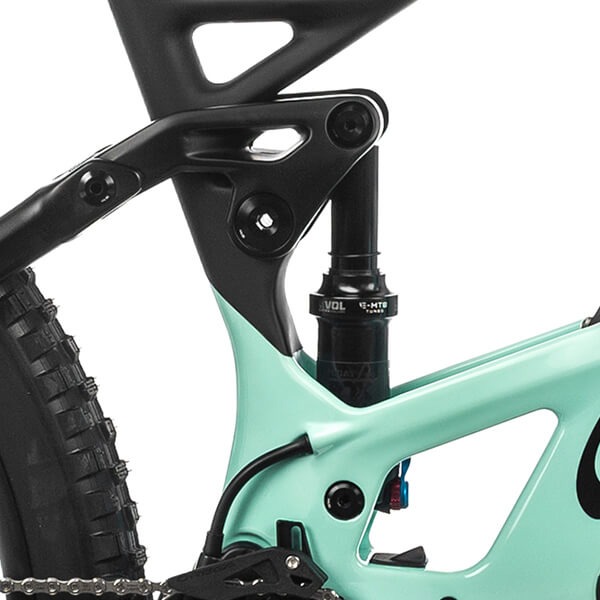

Orbea Wild FS M20 eBike Fox Suspension Rear Shock
Orbea Wild FS M20 eBike Fox Suspension Forks

Fox Suspension

Equipped with the 2022 Fox Float DPS EVOL rear shock, which offers 3-Way adjustable lockout and air compression, you can also adjust the rebound damping externally.

With the Dual Piston System, the rider can lock out, ride fully open, or select the mid stage mode to conserve energy, whilst still providing great cushioning under pressure.

It's also air pressure adjustable depending for rider weight. At the front, Orbea have equipped the new Fox Float 38 Performance Fork with the 3-Position GRIP Damper.

This new damper offers a more simplified closed cartridge system than the FIT4 used in other Fox forks, providing a much more consistent feel compared to open dampers which are usually cheaper to manufacture.

Orbea Wild FS M20 eBike Shimano XT Drivetrain

Brakes & Gears

Orbea have spec'd the Wild FS M20 2022 with the new Shimano MT420 hydraulic disc brakes, which have been developed with eMTB in mind. These four pot brakes offer solid performance for a "Deore" series price point.

The brake levers offer the same comfortable lever design found with other Shimano brakes, offering easy reach adjustment with just an allen key.

You can be sure they'll stop you as quickly as you accelerate on this eBike. Minimal maintenance and fuss. Aside from changing the brake pads from time to time you can fit & forget.

The Orbea Wild FS M20 2021 features the brand new Shimano XT M8100 12-Speed Derailleur, an SLX M7100 shifter and a Sunrace E-bike specific cassette for improved durability.

This combination between XT and SLX components saves some grams whilst keeping a keen price point and a dependable group set.

With a whopping 11-51t setup you'll be sure there's no climb or descent you cant tackle!

Shimano's ShadowPlus friction operated clutch ensures a stable drive train even in rough terrain, offering precise and quiet shifting.

Orbea Wild FS M20 eBike Shimano XT Brakes

4 piston brakes are a hallmark of a bike designed for the rough stuff. The Wild FS M-Team is designed for the toughest of trails.

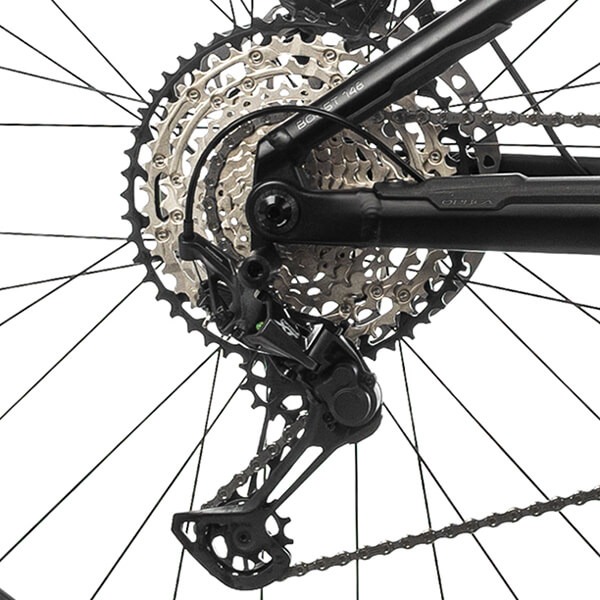

Orbea Wild FS M20 eBike Shimano XT Rear Mech

12 speed gearing, normally reserved for the top end bikes is fast becoming a standard feature on all top end eMTB models.

Orbea Wild FS M20 eBike Shimano XT Shifters

The Rapid-Fire Plus shifters provide smooth but positive shifting, and the Shadow Plus rear derailleur keep chain tension in check and chain slap to a minimum.

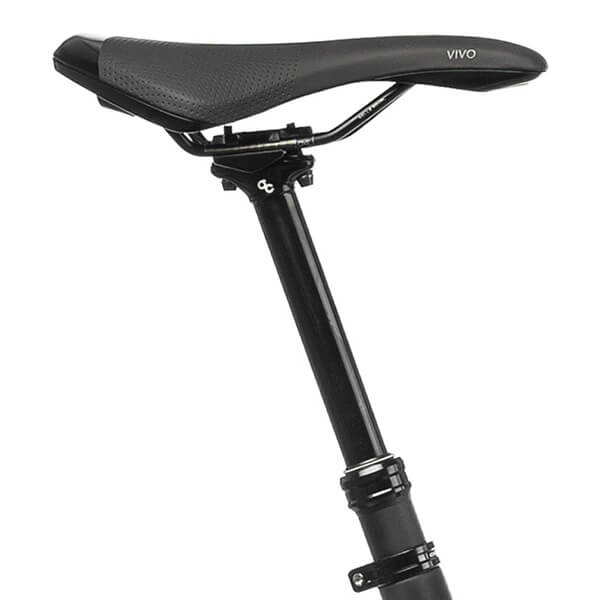

Orbea Wild FS M20 Bosch eBike Dropper Seat Post

Wheels & Tyres

The 29" wheels provide an excellent rolling speed over rough terrain, while the modern geometry make sure the M-Team stays nimble even in the most technical sections.

Orbea have once again given the Wild FS M20 the AR 30c wheelset from Race Face. These 30mm wide rims offer an ideal tire profile for wide range of tyre choice.

The Orbea Wild FS M20 2022 grips the trail once again with the 2.60" Minion tyres from Maxxis.

These tubeless ready tires feature the 3C MaxxTerra compound, offering excellent traction but with an improved wear rate over the 3C MaxxGrip compound. Ask us about setting your wheels up tubless when placing your order.

Orbea Wild FS M20 Bosch eBike Maxxis Tyres

The bottom line..

Orbea has tweaked the Wild FS M20 to ensure its thoroughly competitive and up to date for 2022. With an increase in suspension specification over 2021, a brand new eMTB mode from Bosch and now with the large 625Wh battery, its everything most riders could ever need.

Also retained from the 2021 design are the "bump stops" in the headset and on the downtube, really showcasing the attention to detail the R&D team have taken while designing the Wild FS models.

These bump stops allow for huge 164 degrees of fork movement, while also helping to prevent damage to the frame in the event of a crash. Maximum steering movement, with total peace of mind.

The Orbea Wild FS M10 will be popular for many looking for an aggressive Trail bike, with keen pricing with a well thought out spec.

Power

E-Bikeshop What's Included

Bosch CX & Purion eBike System

The new Orbea Wild FS M20 2022 eBike features the Gen 4 Bosch Performance CX crank drive motor, so you can be sure it's fitted with the latest kit & setup for optimum performance.

The 250w CX system now outputs an increased 85Nm of torque & peaks at 500W! In Eco mode, its set up for all day rides on any terrain but when you need it, it will also offer up to 340% assistance in turbo mode. In addition, the newly overhauled eMTB mode allows the user to set off in one assistance mode and the on board computer itself will determine the assistance offered based on rider input.

The Wild M20 features new 'PowerTube' Bosch 625Wh battery technology for 2022. Completely integrated into the frame, Orbea have neatly designed it so it can be charged both on & off the bike.

The 2022 Bosch Purion display is neat and compact. Riders can see important factors like speed, distance and battery range on the screen.

Orbea Wild FS M20 Bosch eBike Purion Display

The Bosch Purion display is simple and very easy to use, displaying key information at a glance.

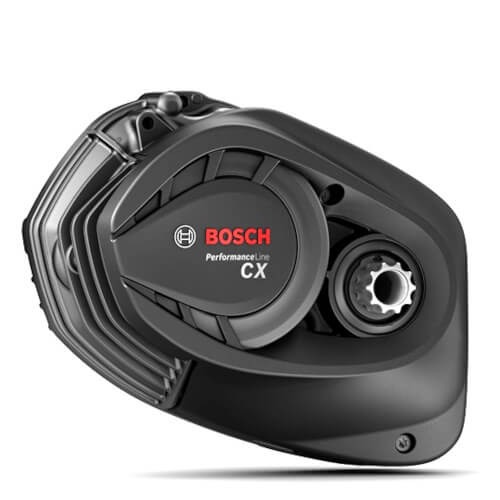

Orbea Wild FS M20 Bosch eBike CX Motor

The Bosch Generation 4 Performance CX motor is arguably the most widely used and reliable powerhouse in the mountain bike world right now, and it right at home on the Orbea Wild FS model range.

Orbea Wild FS M20 Bosch eBike 625Wh Battery

The Bosch PowerTube 625Wh battery neatly fits inside the frame and is secured with a key locking system. With upto 160 miles on tap, theres no-where you cant go!

Orbea Wild FS M20 Bosch eBike CX System

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Orbea Carbon front triangle, Alloy rear.

Forks Fox 38 Float Performance, Grip 3-Pos Lever, 160mm Boost

Rear Shock Fox Float DPS EVOL LV custom tune, 3-position lockout, Trunnion mount

Brakes Shimano MT420 Hydraulic Disc

Shifters Shimano Deore M6100, 12-Speed

Rear Mech Shimano XT M8100, ShadowPlus, 12-Speed

Cassette Shimano CS-M7100 10-51t 12-Speed

Chain Shimano M6100

Wheelset Race Face AR 30c Tubeless Ready

Tyres Maxxis Minion DH, Maxx Terra Exo+, 2.6"

Handlebars OC1 35mm 12mm Rise 780mm

Stem OC1 3D Forged 35mm interface 7º

Headset OC Key Holder

Seatpost OC2 Dropper Post, 31.6 mm

Saddle Selle Royal Vivo

Weight 23.5 kg

Electric Bike Specifications

Battery Bosch Powertube 625Wh 36v

Display Bosch Purion

Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm

Range 30-140 miles of power assisted range, depending on terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.

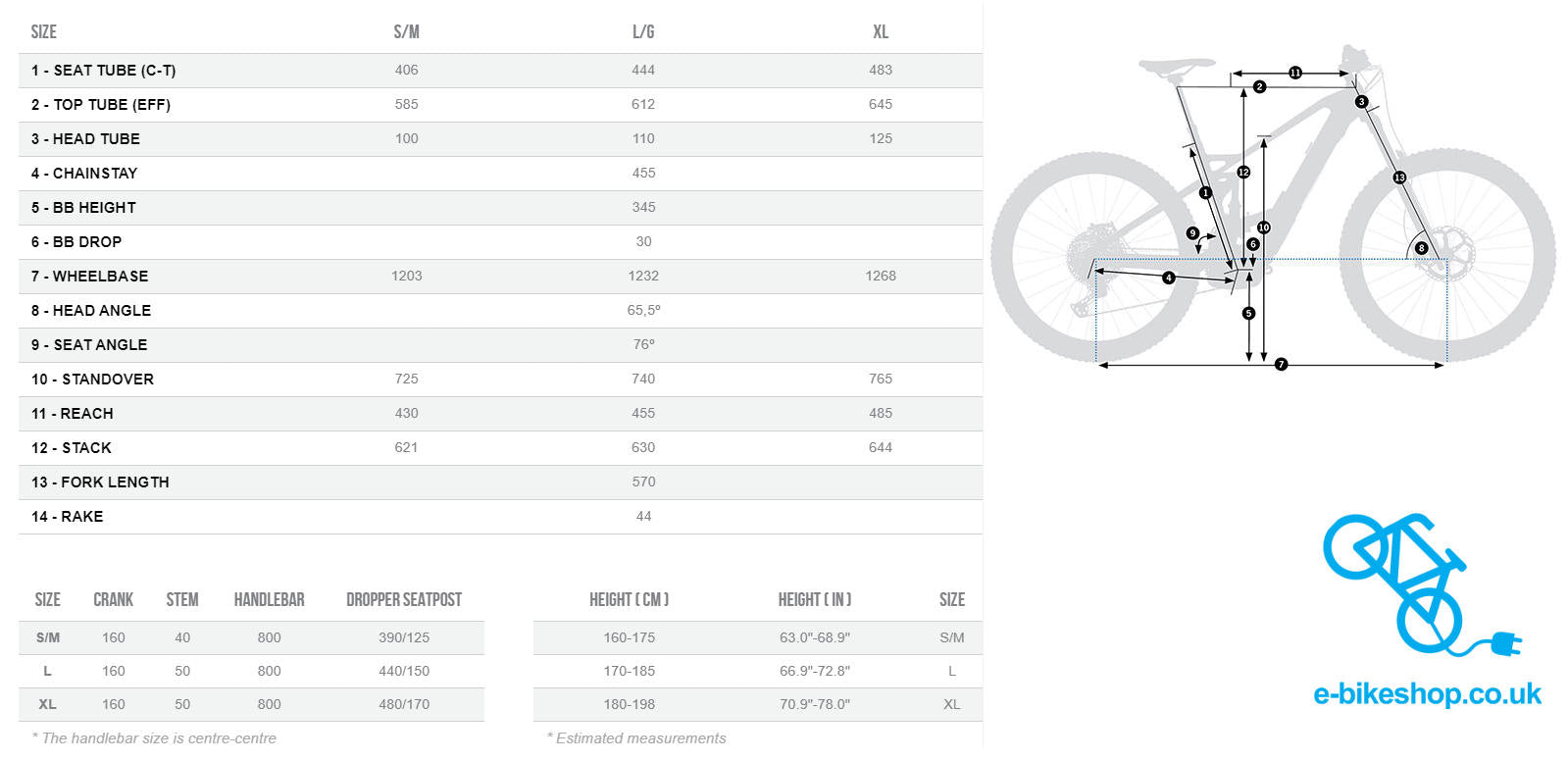

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.



At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Orbea in Germany.



At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.


We can talk you through your riding style and requirements and offer expert advice as to which model to select.


We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.

Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.



Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.


We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.



If you cannot find the answer you are looking for, please don't hesitate to get in touch.
Remember you can find a full F.A.Q on general electric bike & website questions by clicking here.
