Specifications
General Bike Specifications
Frame E-Aspect 700 / 6061 Alloy w/ double butted tubing
Forks FOX 32 Float Evolution CTD Air CTD damper with 3 modes - 100mm travel
Brakes Shimano BR-M506 Disc. 180mm Disc
Shifters Shimano Deore, SL-M 610, Rapidfire, I-Spec

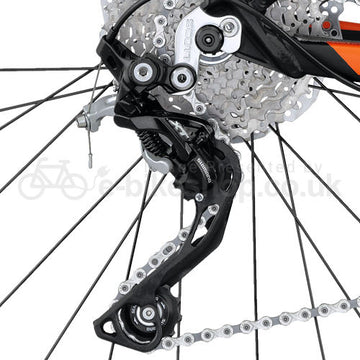

Rear Mech Shimano XT RD-M781-L SGS 10 Speed
Crankset FSA ISIS MTB eBike
Cassette Shimano CS-HG50-10 11-36 T
Chain KMC X10 10 Speed
Wheelset Shimano Rear Hub / Formula CL51 Front Hub. Syncros X37 650b Disc, 32h Double Wall Alloy Rims
Tyres Schwalbe Rocket Ron 27.5 x 2.25
Handlebars Syncros FL2.5 Tbar Alloy 6061 / Flat / 9° / 680mm
Stem Syncros M2.5 7050 Alloy / 31.8mm / 6°
Headset Ritchey Logic Zero semi Integrated - Tapered
Seatpost Syncros M2.5
Saddle Aspect VL-1423
Weight 19.6kg
Electric Bike Specifications
Battery Lithium Ionen 36 Volt, 400 Wh
Display Bosch Intuvia multifunctional display with operation unit & push-assistance

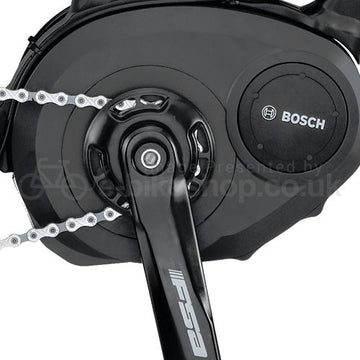

Motor Bosch Midmount Performance 36 Volt, 250 Watt
Range 30-110 miles range, cost to charge from flat - 6 pence
E&OE
