Scott Aspect eRIDE 940 2022

£2,449.00

Pre-order
Scott Aspect eRIDE 940 2022


Frame Size: M 44cm

Battery

Bosch 500Wh

Display

Bosch Intuvia

Motor

Bosch Active Plus

Range

30-120 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

The 2022 Scott Aspect eRIDE 940, with its proven Bosch Performance Line motor and 500Wh battery offers riders of all abilities a great value entrance to electric hardtail mountain biking.

Our 5 point review...

1

Lightweight hydroformed alloy frame

2

Up to 140 miles of range from the Bosch 625Wh Powertube battery

3

10 Speed Shimano Deore Gearing

4

Ultra reliable 50Nm Bosch Active Line Plus motor

5

Simple, easy to use Bosch Purion display system

Features

Scott Aspect eRIDE 940 Bosch Generation 3 Performance Line Motor
Scott Aspect eRIDE 940 Bosch Purion Display

The first eBike for all eMTB riders..

Fitted with the Generation 3 Performance Line Bosch motor and a 500Wh battery, the new 2022 Scott Aspect eRIDE 940 is a step up from the entry level model in the hardtail eRIDE range for 2022.

Scott Aspect eRIDE 940 Suntour CXM Suspension Fork
Scott Aspect eRIDE 940 Shimano MT200 Shimano Disc Brakes

120mm front suspension.

The 2022 Scott Aspect is fitted with 120mm travel Suntour suspension forks with remote lock out function.

Scott Aspect eRIDE 940 Shimano 9 Speed Gearing

Brakes & Gears

The 2022 Scott Aspect 940 comes with full internal routing for cables and hydraulic hoses including the option for the Syncros dropper stealth post to further protect them within the frame and to enhance aesthetics. A dropper post gives the rider adjustable seat height with the flick of a switch on the handlebars.

The larger Shimano Deore MT200 twin piston brakes offer supreme performance and modulation.

Larger twin piston brakes are a real bonus on heavier eBikes when braking downhill and the 180mm rotors increase stopping power and mean they won't overheat and suffer from extreme fade over longer descents.

The 2022 Scott Aspect E-Ride 940 eBike is equipped with the 10 speed Shimano Deore M4100 derailleur and shifter.

This group set uses the Shimano Micro Spline freehub body, which allows for a smaller 10t sprocket. This 10th gear has become the new standard on eMTBs.

The cassette offers a super wide range ratio 10-46t setup. With this exceptional level of ratio choice, there will be nothing you cant climb but without compromising top speed on flat ground.

Shimano's ShadowPlus friction clutch technology ensures a stable drive train even in rough terrain, offering precise and quiet shifting.

Scott Aspect eRIDE 940 Shimano MT200 hydraulic brakes

Shimano BR MT200 hydraulic brakes offer strong breaking force with minimal grip strength

Scott Aspect eRIDE 940 Shimano Altus 9 Speed Gearing

9 speed Shimano Deore gearing provides a wide ratio choice for every type of terrain.

Scott Aspect eRIDE 940 Shimano Altus M3100 Shifters

Shimano SL-M4100 Rapidfire shifters make light work of flicking through the 10 speed rear cassette.

Scott Aspect eRIDE 940 Syncros Seatpost

Wheels & Tyres

The 2022 Scott Aspect eRIDE 940 is fitted with Scotts own light weight Snycros X18 rims, laced onto Shimano hubs.

The Synros wheelset is wrapped with Kenda Booster 29x2.6" tyres. Fast rolling and wide fitment, that can be run at lower pressures for extra comfort and grip offroad, or higher pressures for a mix of riding.

Scott Aspect eRIDE 940 Kenda Booster Tyres

The bottom line..

The Scott Aspect eRide 940 bikes come with a Bosch PowerTube 500Wh battery neatly integrated in the frame. For those who need a bike that can easily cope with sustained runs in Turbo mode ort a bike which can take punishment in eMTB mode for a full day in the hills, owners can opt for the 'Range Booster'.

Using Scott's own mounting system, a secondary 500Wh Bosch PowerPack battery is fitted onto the frame here the bottle mount would ordinarily sit.

This system is available as an optional extra on all 2022 Scott Aspect eRide eMTBs purchased from us and is fitted prior to leaving us by our in-house Bosch trained technicians.

Please Note: When opting for this on S/M frames, the battery will stay in place for charging and is not removable due to the amount of frame space available. Removal is possible on L/XL frames.

Power

Scott Aspect eRIDE 940 Bosch Active Line Plus Motor

## Bosch Active Line Plus System

The new 2022 Scott Aspect eRIDE 940 eBike features the Bosch Active Line Plus motor, 500Wh PowerTube frame integrated battery and Purion display system.

The 250w Performance system outputs 50Nm of torque and peaks at over 500w! It certainly packs a punch, offering up to 280% assistance in turbo mode. Featuring 4 levels of assistance (and remember you can always turn the power off and ride it as a normal bike) ranging from 40 to 280% assistance.

The Scott Aspect eRIDE 940 features the latest 'PowerTube' Bosch 500Wh battery technology for 2022. Completely integrated into the frame, it's neatly designed it so it can be charged both on & off the bike.

For 2022, Scott have equipped the Purion display, offering all the essential parameters on one easy to read display, including:- Speed, assistance mode, average, speed, range, odometer and battery bar.

For 2022 Scott have equipped the Purion display, offering all the essential parameters on one easy to read display, including:- Speed, assistance mode, average, speed, range, odometer and battery bar.

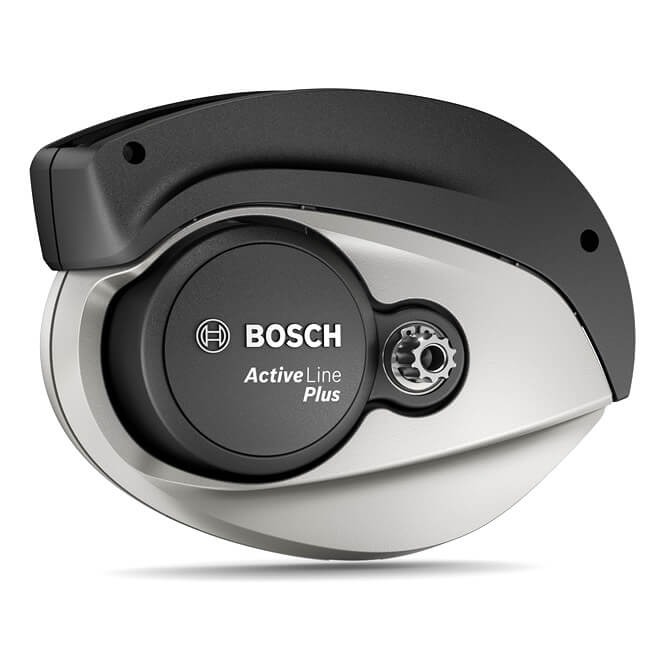

Scott Aspect eRIDE 940 Bosch Active Line Plus Motor

The Bosch Active Line Plus motor is one of the most widely used Bosch motors in production and balances power and speed with exceptional value and reliability.

Scott Aspect eRIDE 940 Bosch PowerTube 500Wh Battery

The Bosch PowerTube 500Wh battery neatly fits inside the frame. Offering up to 140 miles on a single charge, its one of the largest batteries available in our model line.

Scott Aspect eRIDE 940 Bosch Active Line Plus Motor

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Alloy frame, Internal cable routing

Forks SR Suntour XCM34, 120mm, w/Remote Lockout

Rear Shock N/A

Brakes Shimano MT200, 203mm rotors

Shifters Shimano M3100 9-Speed

Rear Mech Shimano Alivio M3100 9-Speed

Cassette Shimano HG200, 11-36t 9-Speed

Chain KMC e9s 9-Speed

Wheelset Shimano Hubs on Syncros X18 rims

Tyres Kenda Booster 29x2.6"

Handlebars Syncros 3.0 Alloy, 12mm rise, 720mm

Stem Syncros 3.0 Alloy Stem, 31.8mm

Headset Syncros Tapered Headset

Seatpost Syncros 3.0, 31.6mm

Saddle Syncros ER2.5

Weight 24.3 kg

Electric Bike Specifications

Battery Bosch Lithium Ionen 36 Volt, 500Wh, with InTube Integration

Display Bosch Purion Multi Functional Display

Motor Bosch Active Line Plus 36 Volt, 250 Watt. 50-270% Assist, 50Nm

Range 30-120 miles of power assisted range, depending on terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.

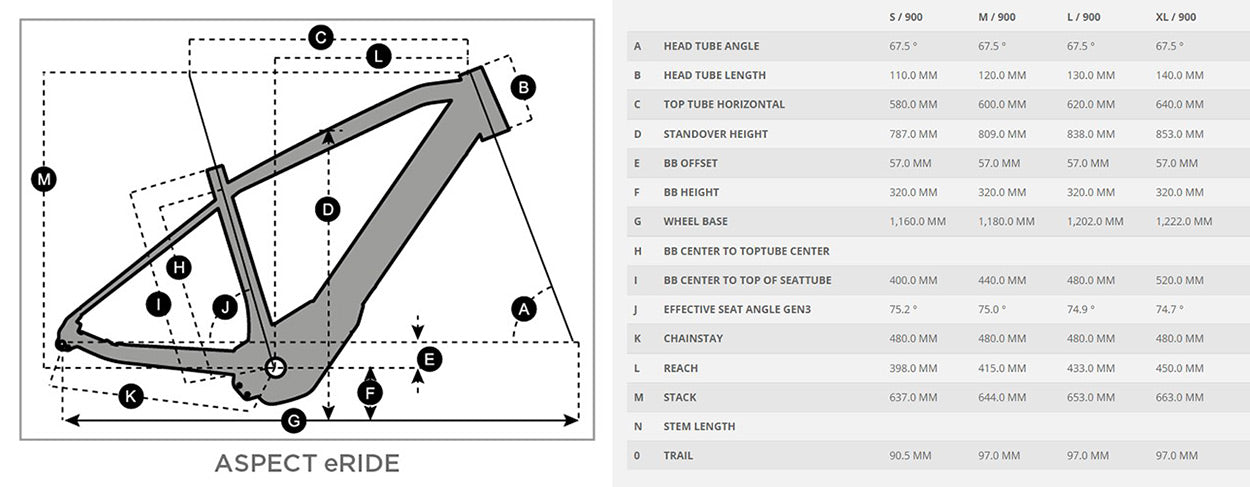

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.



At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Scott in Switzerland.



At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.


We can talk you through your riding style and requirements and offer expert advice as to which model to select.


We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.

Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.



Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.


We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.



If you cannot find the answer you are looking for, please don't hesitate to get in touch.
Remember you can find a full F.A.Q on general electric bike & website questions by clicking here.
