Scott Electric Bikes

Scott Patron eRIDE 900 2022

£7,249.00

Pre-order
Scott Patron eRIDE 900 2022


Frame Size: S 41cm

Battery

Bosch 625Wh

Display

Bosch Purion

Motor

Bosch CX Gen 4

Range

30-140 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

The 2022 Scott Patron eRIDE 900 brings together all of the latest eBike technology and is designed and optimised for all day trail riders.

Fully carbon, Scott have developed the new Patron 900 frame to use less material while retaining strength and frame stiffness.

Not only has the frame had a big technology leap, but the drive system too. Using the Bosch Generation 4 Performance CX motor, it runs on the new Bosch Smart System software with their brand new 750Wh PowerTube battery and Kiox 300 display.

Our 5 point review...

1

Advanced carbon fibre twin-mold lightweight frame

2

Longest range Bosch 750Wh electric bike battery

3

Offering the latest gen Shimano 12-speed gearing

4

Highest performing Bosch motor at 340% assistance

5

Full rider control with the new Bosch Kiox 300 display

Features

2022 Scott Patron eRIDE 900 Bosch Generation 4 Performance Line CX
2022 Scott Patron eRIDE 900 Bosch Kiox 300

Brand new for 2022..

The new 2022 Scott Patron eRIDE 900 is the mid-tier model in the Patron eRIDE range for 2022, but still packs an impressive specification list.

2022 Scott Patron eRIDE 900 Fox EVOL Nude T Rear Suspension
2022 Scott Patron eRIDE 900 Shimano XT Brakes

Fox Suspension

The Patron ERIDE 900 comes with a Fox NUDE T eRIDE EVOL trunnion mounted rear shock, specifically tuned for this bike. It's fully air adjustable for the rider weight, it offers a huge amount of adjustment ability on rebound and damping controls to match any terrain.

At the front, the Patron 900 features a set of Fox 38 Performance Elite forks. Just like the rear shock, these forks are air adjustable too and come as standard with Fox's renowned FIT4 damping.

The 3 modes on the Fox shock offer great adjustability for climbing, descending and all round grip, traction and feel.

2022 Scott Patron eRIDE 900 Shimano XT Rear Derailleur

Brakes & Gears

The 2022 Scott Patron 900 comes as standard with a built in dropper post. The Syncros dropper is a stealth post, with cables internally routed within the frame for protection and aesthetics. The dropper post gives the rider adjustable seat height with the flick of a switch on the handlebars.

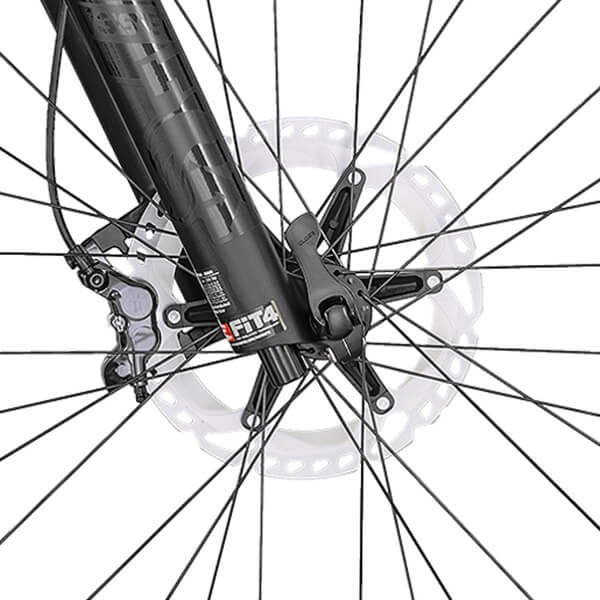

The larger Shimano Deore MT8120 four piston brakes are from the top end of Shimano's parts shelf and offer supreme performance and modulation.

Larger four piston brakes are a real bonus on heavier eBikes when braking downhill and the 203mm rotors increase stopping power and mean they won't overheat and suffer from extreme fade over longer descents.

The 2022 Scott Patron E-Ride 900 eBike is equipped with the 12 speed Shimano Deore XT derailleur and shifter.

This group set uses the Shimano Micro Spline freehub body, which allows for a smaller 10t sprocket. This 10-12th gear has become the new standard on eMTBs.

The cassette offers a super wide range ratio 10-51t setup. With this exceptional level of ratio choice, there will be nothing you cant climb but without compromising top speed on flat ground.

Shimano's ShadowPlus friction clutch technology ensures a stable drive train even in rough terrain, offering precise and quiet shifting.

2022 Scott Patron eRIDE 900 Shimano XT Hydraulic Brakes

Faster piston retraction gives superior modulation and much greater fast and slow speed control from these 4 piston anchors.

2022 Scott Patron eRIDE 900 Shimano XT Rear Derailleur

Shadow Plus rear derailleur keeps chain tension in check and chain slap to a minimum.

2022 Scott Patron eRIDE 900 Shimano M6100 Trigger Shifters

The Rapid-Fire Plus shifters provide smooth but positive, on-the-fly shifting.

2022 Scott Patron eRIDE 900 Fox 38 Performance Elite Front Suspension

Wheels & Tyres

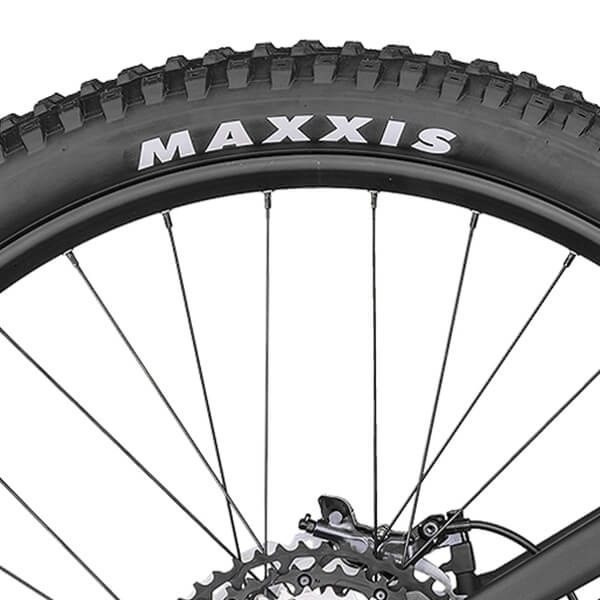

Scott have equipped the Patron eRIDE 900 2022 with Maxxis Dissector 29x2.6" tyres front and rear. These Tubeless ready tyres with their 3C Maxx Terra compound are the perfect combo for all round grip in most conditions.

They're fitted on Scott's own Syncros MD30 tubeless ready rims built onto Shimano Boost hubs.

2022 Scott Patron eRIDE 900 Maxxis Dissector Rear Tyre

Twin-Loc

With one lever controlling both front and rear travel and lockout, you can make on the fly adjustments with a single lever press. Switching between Descend, Traction Control and Lockout adjusts the travel between 160mm, 115mm and fully locked out.

Descend mode provides full front and rear travel and utilises the bikes full geometry for positive feedback and control.

In Traction Control mode, spring curve and damping is adjusted to match a reduced 115mm of travel. Pushing the lever one more click fully locks the suspension for ultimate pedalling efficiency, saving your energy for the technical bits!

Power

Bosch CX & Kiox eBike System

New Bosch CX, LED Remote & Kiox 300

The new 2022 Scott Patron eRIDE 900 eBike features the latest Gen 4 Bosch Performance CX crank drive motor, with a brand new twist.

The recently updated 250w CX system now provides 85Nm of torque and peaks at 500w. With 4 assistance modes, it can now provide up to 340% assistance in Turbo mode. In addition, the new eMTB mode allows the user to set off in one assistance mode and clever sensor driven system will provide exactly the right amount of power right when you need it and less when you don't.

Part of the brand new "Smart System" 2022 Bosch Update, the new 2022 Scott Patron eRIDE 900 features their new Bosch 'PowerTube' 750Wh battery. Completely integrated into the frame, the battery is fully removable, allowing it to be charged both on and off the bike.

The new Bosch Kiox 300 display is neat and super compact with a bright, intuitive LCD display screen and tailored around helping riders with their training. It can also be updated wirelessly via the new eBike Flow app.

2022 Scott Patron eRIDE 900 Bosch Kiox 300 display

The new Bosch Kiox 300 display is neat and super compact with a bright, intuitive LCD display screen and tailored around helping riders with their training. It can also be updated wirelessly via the new eBike Flow app.

2022 Scott Patron eRIDE 900 Bosch eBike LED Remote

The new Bosch eBike LED Remote keeps the rider in-tact with the ride assist mode at any moment during the ride, it's easy to read featuring a built-in ambient light sensor and ergonomic design for quick assist changes on-the-go.

2022 Scott Patron eRIDE 900 Bosch PowerTube 750Wh battery

The Bosch PowerTube 750Wh battery neatly fits inside the frame. The whopping 750Wh battery is the latest in the Bosch eBike line-up offering the very longest range possible. It can be charged both in the bike or when removed.

2022 Scott Patron eRIDE 900 Bosch Generation 4 Performance CX

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Carbon Patron Frame, Integrated Cables, 160mm

Forks Fox 38 Float Performance Elite Air, 160mm w/Remote Lockout

Rear Shock Fox Nude T EVO L , Trunnion 160mm w/Remote Lockout

Brakes Shimano XT M8120 4-Piston, 203mm rotors

Shifters Shimano XT M8100 12-Speed

Rear Mech Shimano XT 12-Speed

Cassette Shimano CS-M8100, 10-51t 12-Speed

Chain Shimano XT 12-Speed

Wheelset Syncros MD30 TL Ready Rims on Formula Hubs

Tyres Maxxis Dissector, TL Ready, 29 x 2.6"

Handlebars Syncros Hixon 1.5 Alloy Double Butted, 15mm rise, 780mm

Stem Syncros AM 1.5 Alloy 31.8mm

Headset Acros Tapered Headset

Seatpost Fox Transfer, Remote, 31.6mm

Saddle Syncros Tofino 1.5 Titanium Rails

Weight 24.6 kg

Electric Bike Specifications

Battery Bosch Lithium Ionen 36 Volt, 750Wh, with InTube Integration

Display Bosch LED Remote & Kiox 300

Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm

Range 30-160 miles of power assisted range, depending on terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.



You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.



At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Scott in Switzerland.



At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.


We can talk you through your riding style and requirements and offer expert advice as to which model to select.


We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.

Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.



Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.


We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.



If you cannot find the answer you are looking for, please don't hesitate to get in touch.
Remember you can find a full F.A.Q on general electric bike & website questions by clicking here.
