Scott Electric Bikes

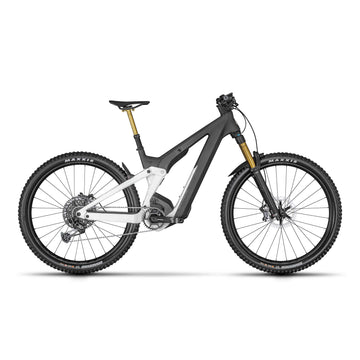

Scott Patron eRIDE 900 Tuned 2022

£8,149.00

Pre-order
Scott Patron eRIDE 900 Tuned 2022


Frame Size: M 44cm

Battery

Bosch 750Wh

Display

Bosch Kiox 300

Motor

Bosch CX Gen 4

Range

30-160 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

The 2022 Scott Patron eRIDE 900 Tuned is just one step down from the top of the range Ultimate model in the Patron line-up for 2022, but still brings together the very latest and best componentry on offer for 2022 bikes, in a brand new frameset.

With 160mm of travel and a super light carbon frame, the new Patron eRIDE 900 Tuned will push novice and intermediate riders to expand on their skills, but will be at its best and offers the most value to higher skill lever riders looking to push the limits of ebike range and what an ebike is capable of on the roughest of terrain.

Our 5 point review...

1

Advanced carbon fibre twin-mold lightweight frame

2

Longest range Bosch 750Wh electric bike battery

3

Offering the latest generation SRAM 12-speed gearing

4

Highest performing Bosch motor at 340% assistance

5

Full rider control with the new Bosch Kiox 300 display

Features

Scott Patron eRIDE 900 Tuned 2022 Bosch Generation 4 Performance CX Motor
Scott Patron eRIDE 900 Tuned 2022 Bosch Kiox 300

Top sheld componentry..

The new 2022 Scott Patron eRIDE 900 Tuned is just a step down from the Ultimate spec model in the Patron eRIDE range for 2022, but shares many of the same features.

Arguably the most exciting update for 2022 is the new Bosch 750Wh battery and Bosch Smart System, which on the Patron models includes their new Kiox 300 Display. You can read all about the new 2022 Bosch ebike system on our blog.

Scott Patron eRIDE 900 Tuned 2022 Fox 38 Float Factory Front Suspension
Scott Patron eRIDE 900 Tuned 2022 Fox Nude T eRIDE EVOL Rear Suspension

Fox Suspension

The 2022 Patron eRIDE 900 Tuned, like the Ultimate, comes with a Fox Nude T EVOL trunnion mounted rear shock, specifically tuned for this bike and neatly integrated into the frame for protection. It's fully air adjustable for the rider weight, it offers a huge amount of adjustment ability on rebound and damping controls to match any terrain.

The Patron 900 Tuned also comes with with Fox Factory 38 160mm front forks. Just like the rear shock, these forks are air adjustable too and come as standard with Fox's renowned Fit 4 damping.

Scott Patron eRIDE 900 Tuned 2022 SRam 12 Speed Rear Derailleur

Brakes & Gears

The larger Shimano XT M8120 4 piston brakes are from the top end of Shimano's parts shelf and offer supreme performance and modulation.

Larger 4 piston brakes are a welcome fitment on heavier eBikes, where braking downhill required greater force. The 203mm rotors increase stopping power and mean they won't overheat and suffer from extreme fade over longer descents.

The 2022 Scott Patron eRIDE 900 Tuned eBike is equipped with the 12 speed SRAM X01 Eagle group set. This group set takes advantage of smaller design freehub assembly, allowing a 10t final gear. This 10-52t cassette offers the widest of any eMTB.

With this exceptional level of ratio choice, there will be nothing you cant climb but without compromising top speed on flat ground. The GX eagle shifters offer an immediate, positive and crisp shift, allowing you the freedom to concentrate on the trail ahead.

Scott Patron eRIDE 900 Tuned 2022 Shimano XT Hydraulic Brakes

Faster piston retraction gives superior modulation and much greater fast and slow speed control from these 4 piston anchors.

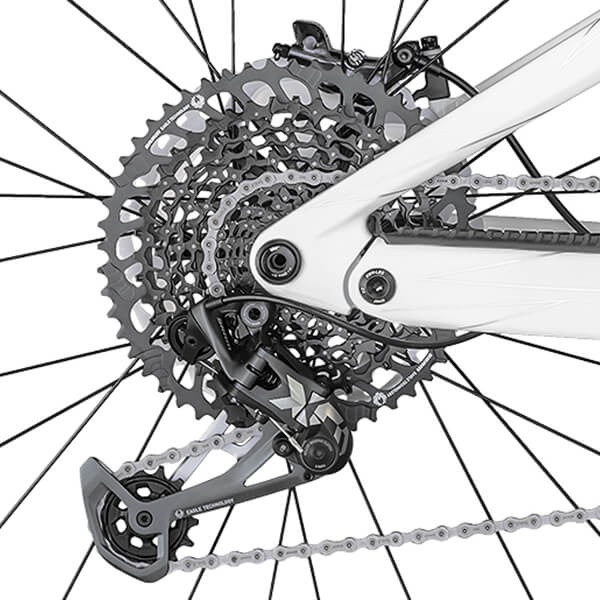

Scott Patron eRIDE 900 Tuned 2022 SRAM GX 12 Speed Rear Derailleur

SRAM X01 gearing is one of SRAM's very top end components, and fits right in on the eRIDE 900 Tuned with its 10-52t cassette

Scott Patron eRIDE 900 Tuned 2022 SRAM GX TriggerClick Shifters

SRAM GX shifters make light work is blasting through the ultra wide ration rear gearing setup.

Scott Patron eRIDE 900 Tuned 2022 Bosch PowerTube 750Wh Battery

Wheels & Tyres

Scott have equipped the Patron eRIDE 900 Tuned 2022 with Maxxis Dissector 2.6" tubeless ready tyres at the front, and the same at the rear - the perfect combo for all round grip in all conditions.

Wrapped onto custom Syncros Revelstroke-E tubeless ready rims, they're built onto Shimano Boost hubs.

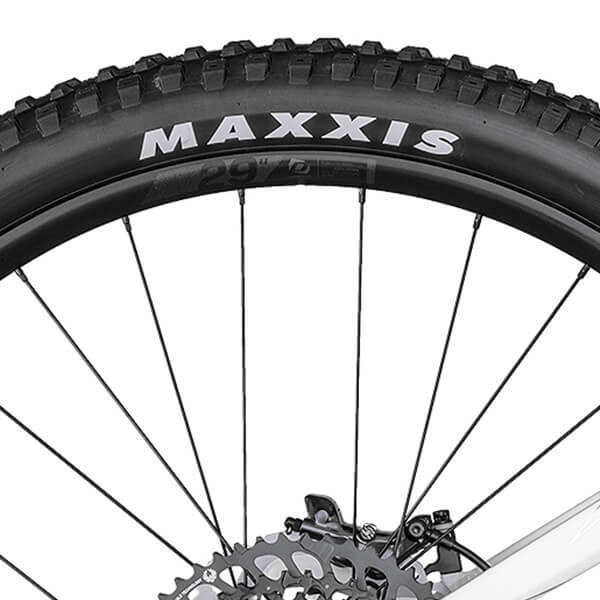

Scott Patron eRIDE 900 Tuned 2022 Maxxis Dissector Rear Tyre

Twin-Loc

With one lever controlling both front and rear travel and lockout, you can make on the fly adjustments with a single lever press. Switching between Descend, Traction Control and Lockout adjusts the travel between 160mm, 115mm and fully locked out.

Descend mode provides full front and rear travel and utilises the bikes full geometry for positive feedback and control.

In Traction Control mode, spring curve and damping is adjusted to match a reduced 115mm of travel. Pushing the lever one more click fully locks the suspension for ultimate pedalling efficiency, saving your energy for the technical bits!

Power

Scott Patron eRIDE 900 Tuned 2022 Bosch CX & Kiox eBike System

New Bosch CX, LED Remote & Kiox 300

The new 2022 Scott Patron eRIDE 900 Tuned eBike features the latest Gen 4 Bosch Performance CX crank drive motor, with a brand new twist.

The recently updated 250w CX system now provides 85Nm of torque and peaks at 500w. With 4 assistance modes, it can now provide up to 340% assistance in Turbo mode. In addition, the new eMTB mode allows the user to set off in one assistance mode and clever sensor driven system will provide exactly the right amount of power right when you need it and less when you don't.

Part of the brand new "Smart System" 2022 Bosch Update, the new 2022 Scott Patron eRIDE 900 features their new Bosch 'PowerTube' 750Wh battery. Completely integrated into the frame, the battery is fully removable, allowing it to be charged both on and off the bike.

The new Bosch Kiox 300 display is neat and super compact with a bright, intuitive LCD display screen and tailored around helping riders with their training. It can also be updated wirelessly via the new eBike Flow app.

Scott Patron eRIDE 900 Tuned 2022 Bosch Kiox 300 display

The new Bosch Kiox 300 display is neat and super compact with a bright, intuitive LCD display screen and tailored around helping riders with their training. It can also be updated wirelessly via the new eBike Flow app.

Scott Patron eRIDE 900 Tuned 2022 Bosch eBike LED Remote

The new Bosch eBike LED Remote keeps the rider in-tact with the ride assist mode at any moment during the ride, it's easy to read featuring a built-in ambient light sensor and ergonomic design for quick assist changes on-the-go.

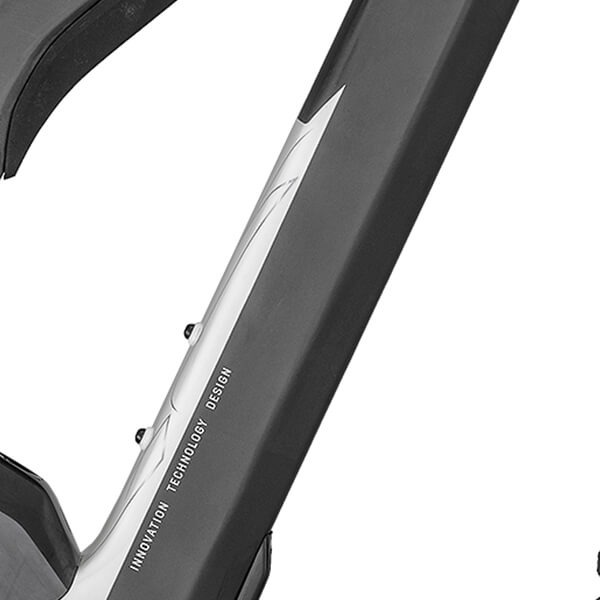

Scott Patron eRIDE 900 Tuned 2022 Bosch PowerTube 750Wh battery

The Bosch PowerTube 750Wh battery neatly fits inside the frame. The whopping 750Wh battery is the latest in the Bosch eBike line-up offering the very longest range possible. It can be charged both in the bike or when removed.

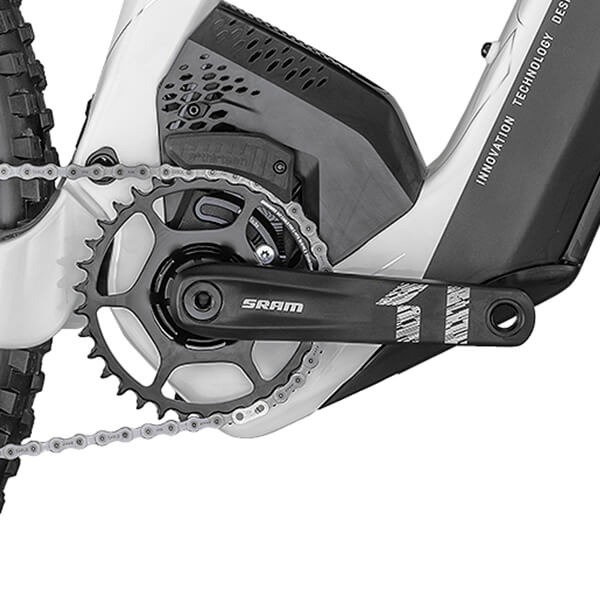

Scott Patron eRIDE 900 Tuned 2022 Bosch Generation 4 Performance CX

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Carbon Patron Frame, Integrated Cables, 160mm

Forks Fox 38 Float Factory Air, 160mm w/Remote Lockout

Rear Shock Fox Nude T EVO L , Trunnion 160mm w/Remote Lockout

Brakes Shimano XT M8120 4-Piston, 203mm rotors

Shifters Sram GX Eagle 12-Speed

Rear Mech Sram X01 Eagle 12-Speed

Cassette Sram XG1275, 10-52t 12-Speed

Chain Sram NX Eagle 12-Speed

Wheelset Syncros Revelstoke-E 1.5 CL, TL Ready

Tyres Maxxis Dissector, TL Ready, 29 x 2.6"

Handlebars Syncros Hixon iC SL Carbon, 15mm rise

Stem Syncros Integrated Handlebar Stem

Headset Acros Tapered Headset

Seatpost Fox Transfer Factory, Kashima, Remote, 31.6mm

Saddle Syncros Tofino 1.0 Carbon Rails

Weight 24 kg

Electric Bike Specifications

Battery Bosch Lithium Ionen 36 Volt, 750Wh, with InTube Integration

Display Bosch LED Remote & Kiox 300

Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm

Range 30-160 miles of power assisted range, depending on terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.

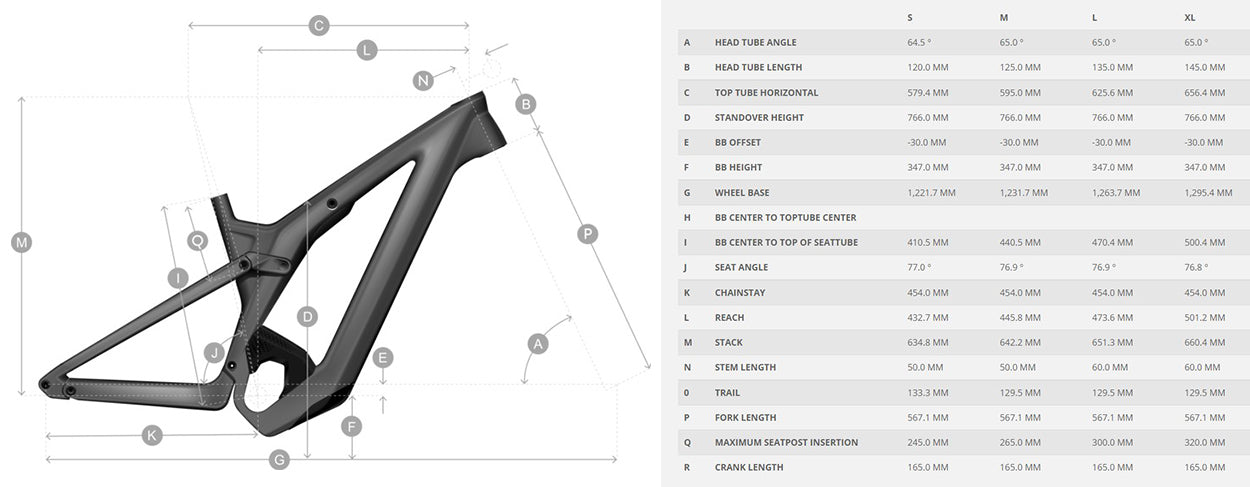

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
