E-Bike Key Specs
Battery
Bosch 750Wh
Display
Bosch Kiox 300
Motor
Bosch CX Gen 4
Range
30-160 miles
Specifications
General Bike Specifications
Frame Alloy Patron Frame, Integrated Cables, 160mm
Forks Fox 38 Performance Air, 160mm w/Remote Lockout

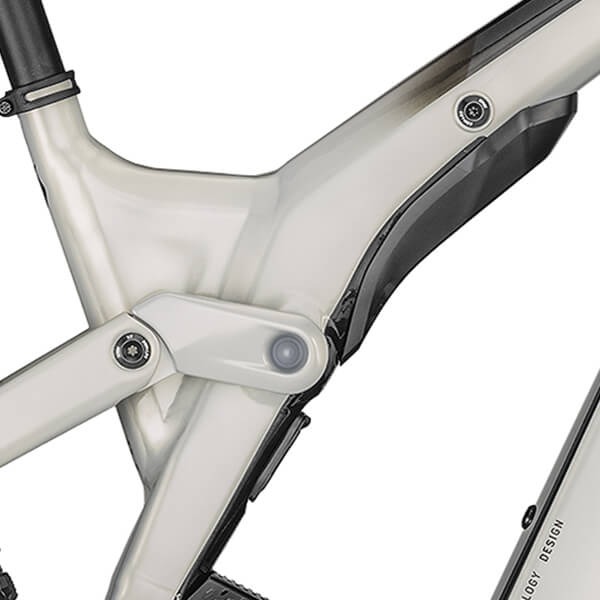

Rear Shock Fox Float EVO L, Trunnion 160mm w/Remote Lockout

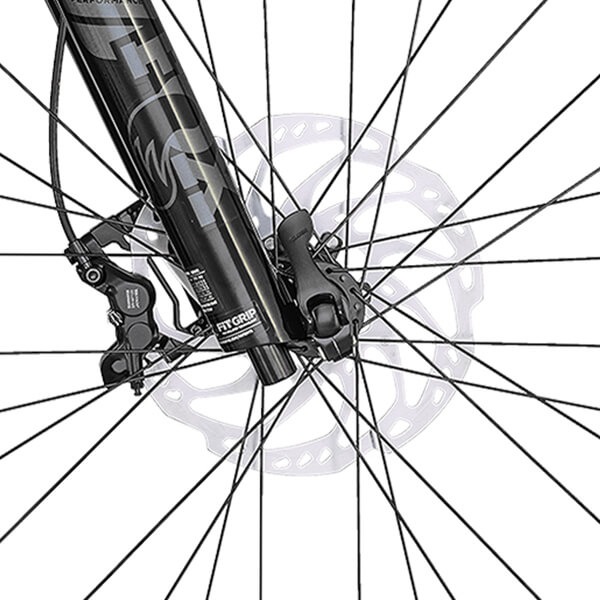

Brakes Shimano SLX M7120 4-Piston, 203mm rotors
Shifters Shimano XT M8100 12-Speed
Rear Mech Shimano XT 12-Speed
Cassette Shimano CS-M8100, 10-51t 12-Speed
Chain Shimano XT 12-Speed
Wheelset Syncros MD30 TL Ready Rims on Formula Hubs
Tyres Maxxis Dissector, TL Ready, 29 x 2.6"
Handlebars Syncros Hixon 1.5 Alloy Double Butted, 15mm rise, 780mm
Stem Syncros AM 1.5 Alloy 31.8mm
Headset Acros Tapered Headset
Seatpost Syncros Duncan Dropper 2.5, Remote, 31.6mm
Saddle Syncros Tofino 1.5 Titanium Rails
Weight 26.1 kg
Electric Bike Specifications
Battery Bosch Lithium Ionen 36 Volt, 750Wh, with InTube Integration

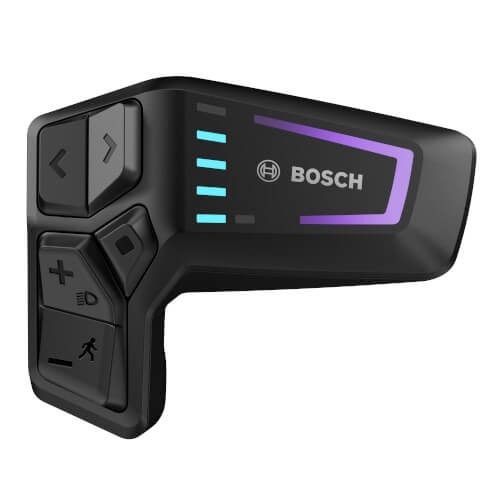

Display Bosch LED Remote & Kiox 300

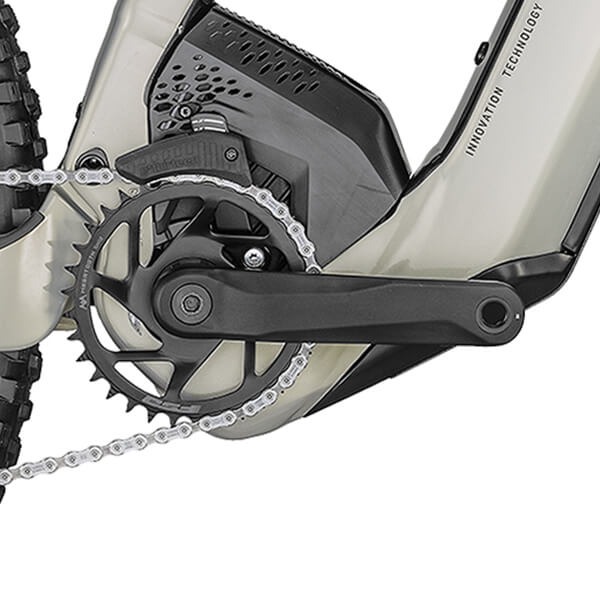

Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm
Range 30-160 miles of power assisted range, depending on terrain
