E-Bike Highlights
WHO IS THIS BIKE
SUITABLE FOR?

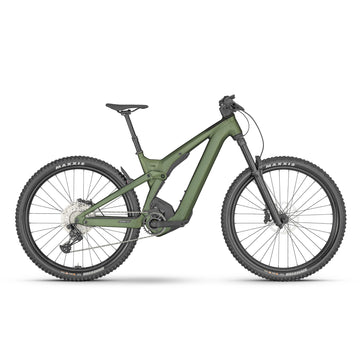

The 2023 Scott Patron eRIDE 930 is the entry level model in the Patron line-up for 2023, bringing together some of the best value componentry in the 2023 model year.
With 160mm of travel and a brand new alloy frame, the new Patron eRIDE 930 is the perfect entry level eMTB to open up a new world of off-road exploration for all riders.
Our 5 point review...
1
Advanced lightweight all alloy frame
2
Long range - Up to 140 miles from the 625Wh Bosch PowerTube battery
3
Competitive SRAM 12-speed gearing
4
Highest performing Bosch motor with 340% assistance
5
Brand new Bosch LED Remote display system
Features
With one lever controlling both front and rear travel and lockout, you can make on the fly adjustments with a single lever press. Switching between Descend, Traction Control and Lockout adjusts the travel between 160mm, 115mm and fully locked out.
Descend mode provides full front and rear travel and utilises the bikes full geometry for positive feedback and control.
In Traction Control mode, spring curve and damping is adjusted to match a reduced 115mm of travel. Pushing the lever one more click fully locks the suspension for ultimate pedalling efficiency, saving your energy for the technical bits!
The 2023 Patron eRIDE 930 comes with a X-Fusion NUDE trunnion mounted rear shock, specifically tuned for this bike and neatly integrated into the frame for protection. It's fully air adjustable for the rider weight, it offers adjustment ability to match any terrain.
The Patron 930 features Rockshox Domain Air forks. Just like the rear shock, these forks are air adjustable and come as standard with adjustable rebound control. In Descend mode, the front and rear offer up a full 160mm of travel. Traction (position 2) mode ramps up compression whilst shortening rear travel to a climbing friendly 115mm.
Brakes & Gears
The larger SRAM DB8 four piston brakes offer supreme performance and modulation.
Larger four piston brakes are a real bonus on eBikes, where their heavier weight requires more braking force, especially when braking downhill.
The 203mm rotors increase stopping power and reduce the chances of extreme fade over longer descents.
The 2023 Scott Patron E-Ride 930 eBike is equipped with the 12 speed SRAM NX Eagle derailleur and SX shifter.
The cassette offers a super wide range ratio 10-50t setup. With this exceptional level of ratio choice, there will be nothing you can't climb but without compromising top speed on flat ground.
.jpg?v=1670515825835)
The powerful SRAM four piston brakes offer supreme performance and modulation.
The SRAM Eagle systems are well renowned for their simplicity, performance and ease of maintenance.
.jpg?v=1670515861681)
Equipped with the 12 speed SRAM SX trigger click shifters, for quick and reliable shifting on the fly.
Wheels & Tyres
The 29" wheel and tyre combination on the Scott Patron eRIDE 930 2023 models are the perfect balance of speed and agility at a budget conscious price.
The bike gets a a set of Syncros MD30 TL wheels for 2023. These are a highly durable enduro/DH specific wheel with a reinforced rim profile.
The 2023 Scott Patron eRIDE 930 gets a tyre setup designed for the roughest of rides.
With a 2.6" wide matching pair of Maxxiss Assegai, these Tubeless Ready tyres can be set up as fully tubeless when we build your new bike at just £49.99.
The bottom line...
Arguably the most exciting update for 2022 is the new Bosch Smart System, which on this entrey level Patron models includes their new LED Remote display (upgrading to the Kiox 300 is possible - please contact us for details).
The 2023 Scott Patron 930 comes as standard with a built in dropper post. The Syncros Duncan 2.5 dropper is a stealth post, with cables internally routed for protection and aesthetics.
The dropper post gives the rider adjustable seat height with the flick of a switch on the handlebars. Combined with a MTB specific saddle for those all-day rides.
Power
The new Scott Patron 930 2023 eBike features the latest Gen 4 Bosch Performance CX crank drive motor, with a brand new twist.
The recently updated 250w CX system now provides 85Nm of torque and peaks at 500w. With 4 assistance modes, it can now provide up to 340% assistance in Turbo mode.
In addition, the new eMTB mode allows the user to set off in one assistance mode and a clever sensor driven system will provide exactly the right amount of power right when you need it and less when you don't.
The Bosch Generation 4 Performance CX motor with its 85Nm of torque and up to 340% assistance is their most powerful yet.
The new Bosch eBike LED Remote keeps the rider in-tact with the ride assist mode at any moment during the ride, it's easy to read featuring a built-in ambient light sensor and ergonomic design for quick assist changes on-the-go.
The Bosch PowerTube 625Wh battery neatly fits inside the frame. The whopping 625Wh battery is the latest in the Bosch Smart System eBike line-up offering the very longest range possible. It can be charged both in the bike or when removed.
What's included
Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Why choose E-Bikeshop?
14 Days Free Insurance
Available exclusively on all E-Bikes, opt for yours in the cart
UK's largest selection
Over 700 E-Bikes in stock ready for next business day delivery
Best support & advice
Renowned support from in house qualified E-Bike technicians
Instant parts & spares
Exclusive access to E-Bike spares in stock & delivered quickly
We're here for you
We're the specialists ready to help with your E-Bike journey
Specifications
General Bike Specifications
Frame Alloy Patron Frame, Integrated Cables, 160mm
Forks RockShox Domain Air, 160mm w/Remote Lockout
Rear Shock X-Fusion NUDE, Trunnion, 160mm w/Remote Lockout
Brakes Sram DB8 4-Piston, 200mm rotors
Shifters Sram SX, Single click, 12-Speed
Rear Mech Sram NX Eagle, 12-Speed
Cassette Sram PG1210, 11-50t, 12-Speed
Chain Sram SX Eagle, 12-Speed
Wheelset Syncros MD30 TL Ready Rims on Formula Hubs
Tyres Maxxis Dissector, TL Ready, 29 x 2.6"
Handlebars Syncros Hixon 2.0 Alloy Double Butted, 12mm rise, 780mm
Stem Syncros AM 2.0 Alloy 31.8mm
Headset Acros ZS66 OD74
Seatpost Syncros Duncan Dropper 2.5, Remote, 31.6mm
Saddle Syncros Tofino 2.5
Weight 26.1 kg
Electric Bike Specifications
Battery Bosch Lithium Ionen 36 Volt, 625Wh, with InTube Integration
Display Bosch LED Remote
Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm
Range 30-140 miles of power assisted range, depending on terrain
