Scott Sub Sport eRIDE 20 2022 Uni

£2,999.00

Pre-order
Scott Sub Sport eRIDE 20 2022 Uni


Frame Size: L 52cm

Battery

Bosch 625Wh

Display

Bosch Purion

Motor

Bosch CX Gen 4

Range

30-140 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

The Scott Sub Sport E-Ride 20 2022 is suitable for both leisure riders and commuters. A fully equipped hybrid bike built for both tarmac roads, paths tracks and trails.

This one comes complete with a more powerful motor and a larger range 625Wh battery than it's younger brother. Be it a leisurely ride on a Sunday afternoon or a busy 9-5 commute during the week.

Our 5 point review...

1

Lightweight hydroformed alloy frame

2

Up to 160 miles of range from the Bosch 620Wh Powertube battery

3

10 Speed Shimano Deore Gearing

4

Bosch's most powerful 85Nm Generation 4 Performance CX motor

5

Simple, easy to use Bosch Purion display system

Features

Maximum power and range..

The Scott Sub Sport E-Ride 20 features the Gen 4 Bosch Performance CX motor for 2022 which offers up to 350% assistance and a new improved torque of 85Nm. Not forgetting a wider range gearing and a larger capacity 625Wh Bosch battery pack located in the frame.

Brakes & Gears

For 2022 Scott have equipped full Shimano Deore hydraulic disc brakes & a Shimano Deore 10 speed drive train to match.

These Shimano hydraulic disc brakes to ensure the descents come to a stop where needed, with good braking performance and minimal maintenance.

Aside from keeping it clean and oiling the chain from time to time, there's not actually that much else too it!

To match the brakes Scott have equipped the Sub Sport 20 with a new Shimano Deore drivetrain. This drivetrain differs from the Sub Tour in that the Sub Sport gets a 10-speed, with wider gear ratios ranging from 11 to 42t it's a great all-rounder.

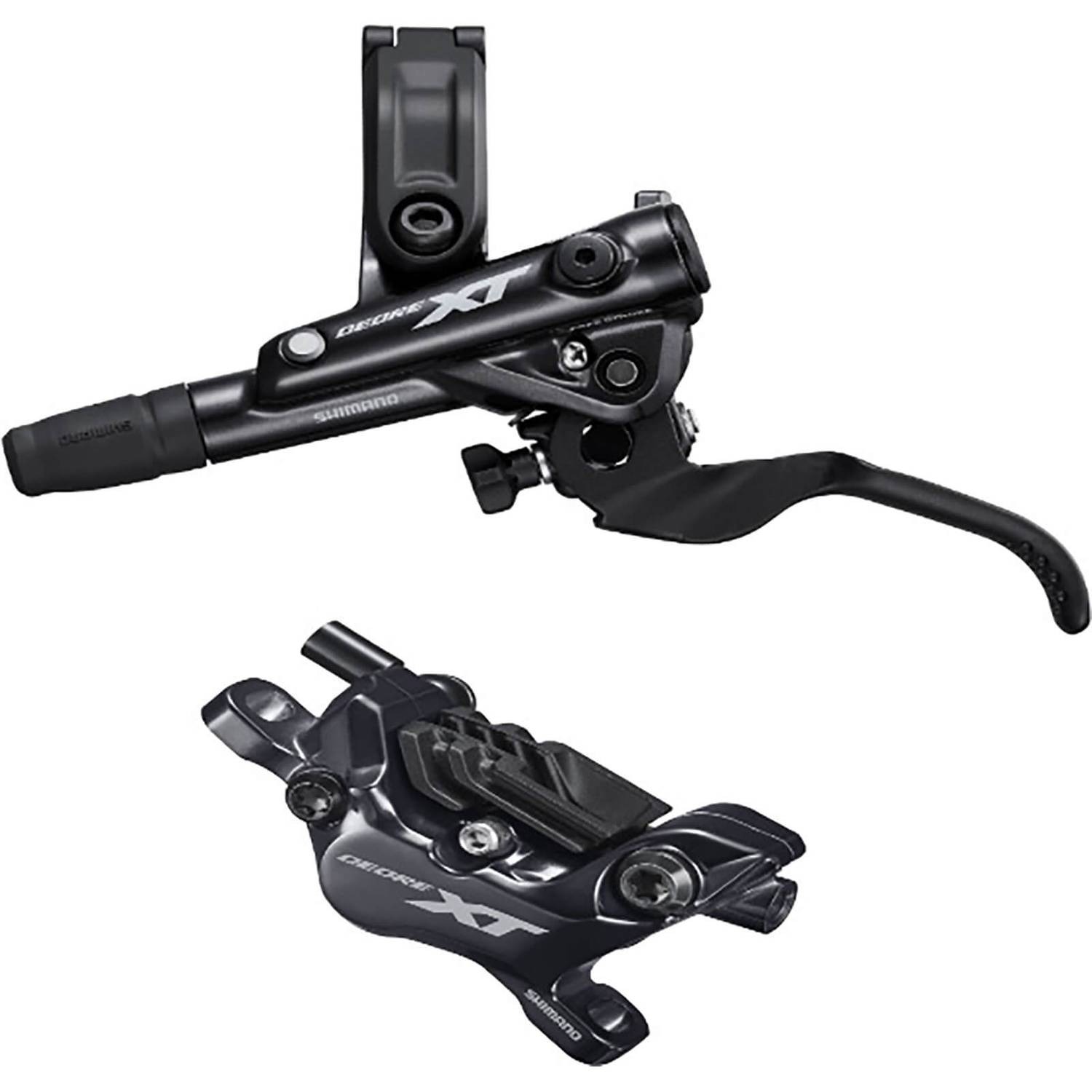

Shimano BR-M200 hydraulic brakes offer strong and reliable braking, regardless of weather.

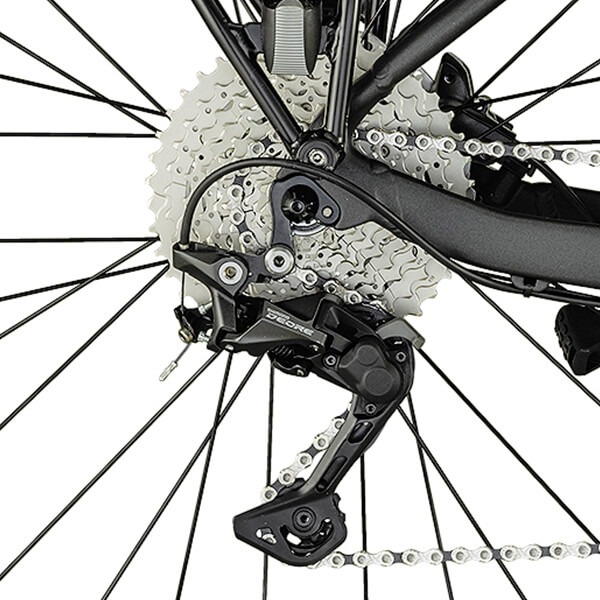

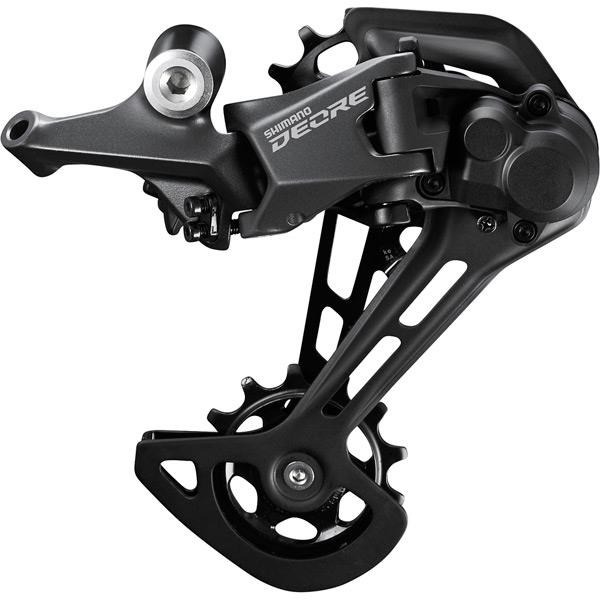

Shimano Deore10 speed gearing offers a hill beating 11-42t ration range. Great for leisure, commuting and light touring

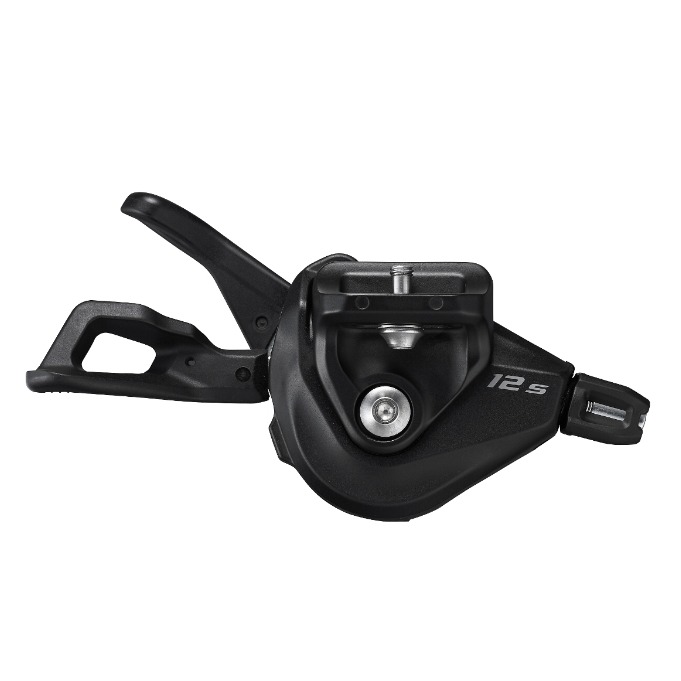

Shimano M4100 10 speed shifters are smooth and reliable, offering quick gear changes with just a flick of a finger.

Wheels & Tyres

Scott have built the Sub Sport E-Ride 20 2022 on decent Shimano hubs, these are laced onto strong, yet lightweight double wall alloy touring rims.

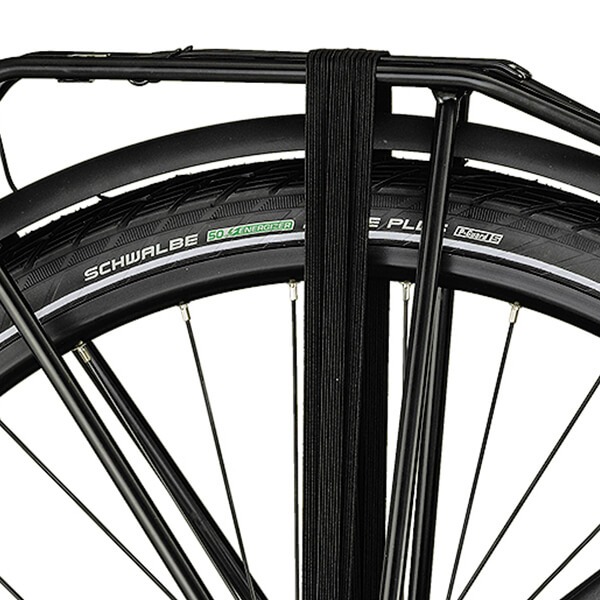

he keep this bike rolling fast, Scott have offered this eBike with a German tyre - Schwalbe Energizer Plus. These are faster rolling and offer superior amounts of grip due a 50c wider profile.

Power

Bosch CX & Purion eBike System

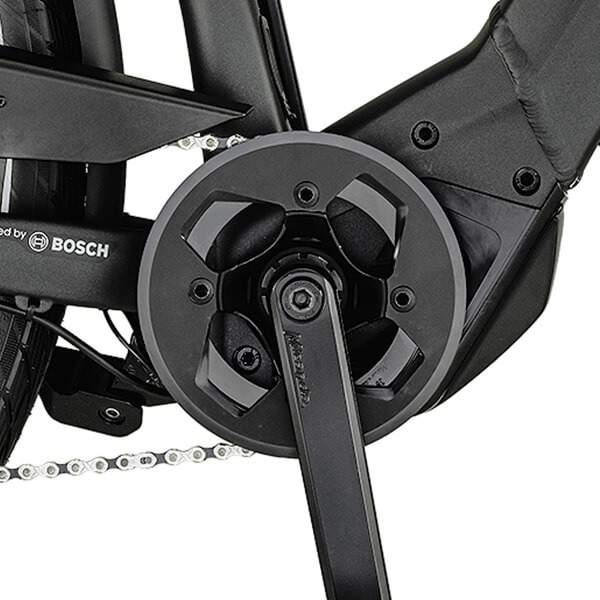

The 2022 Scott Sub Sport 20 features the newest & most powerful Gen 4 Bosch Performance CX crank drive motor, so you can be sure it's fitted with the latest kit & setup for optimum performance.

The 250w Bosch Performance CX system outputs 85Nm of torque & peaks at 500w output It certainly packs a punch, it will also offer up to 340% assistance in turbo mode. Featuring 4 levels of assistance & remember you can always turn the power off and ride it as a normal bike! In addition, the new eMTB mode allows the user to set in one assistance mode and the system itself will determine the assistance offered.

The Scott Sub Sport 20 features the latest 'PowerTube' design Bosch 625Wh battery technology for 2022. Completely integrated into the frame for security and safety, Scott have cleverly designed it so it can be charged both on and off the bike.

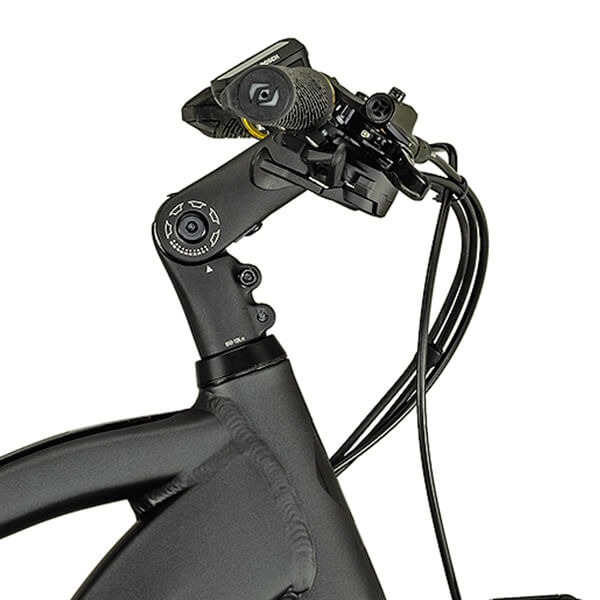

The 2022 Bosch Purion display is neat & compact with a super crisp resolution monochrome LCD display, showing you all of what you need at a glace, allowing you to focus on your ride. Further information is available on a rotation of screens with just a single button press.

Bosch Kiox 300 display

The Bosch Purion display is effortlessly simple to use and offers the rider "at-a-glance" speed, power mode and battery information.

Bosch eBike LED Remote

The Bosch Performance CX motor is most commonly found in moutain bikes, but its 85Nm power is a welcome treat on a leisure bike, especially with full panniers and on longer hills!

Bosch PowerTube 750Wh battery

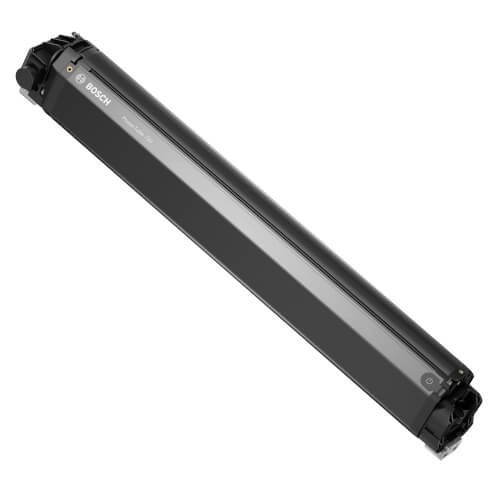

The Bosch PowerTube 625Wh battery neatly fits inside the frame. One of the most popular choices for riders looking to do longer days in the saddle, its easily removed to charge off the bike where needed.

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Scott Sub 6061 Alloy butted tubes

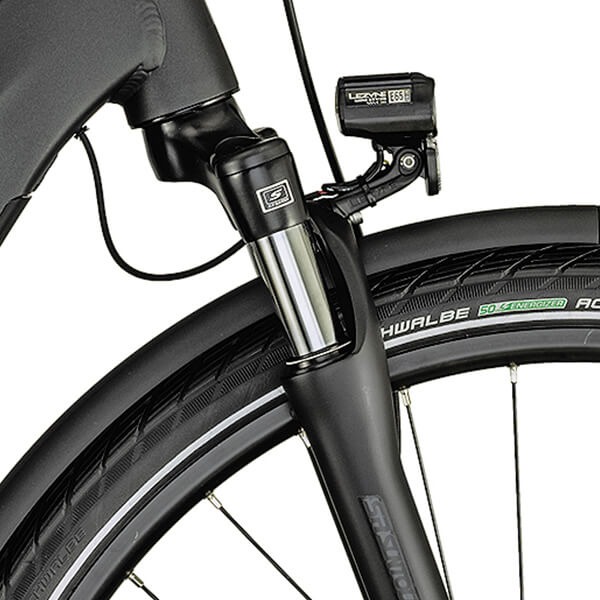

Forks Suntour NEX-E25, Tapered 63mm

Brakes Shimano MT200 160mm, Hydraulic

Shifters Shimano Deore 10-Speed

Rear Mech Shimano Deore 10-Speed

Cassette Shimano CSM4100, 11-42t, 10-Speed

Chain KMC e10S 10-Speed

Wheelset Shimano Hubs on Cross X17 Alloy Disc Rims

Tyres Schwalbe Energizer Plus 700 x 50c

Handlebars Syncros UC3.0, Alloy, 680mm

Stem Syncros UC3.0 Adjustable Stem

Headset Semi Integrated

Seatpost Syncros 3.0, 31.6mm

Saddle Selle Royal Essenza

Weight 27.10 kg

Electric Bike Specifications

Battery Bosch PowerTube Lithium Ionen 36 Volt, 625Wh, with BMS Management

Display Bosch Purion Display / Integrated Buttons

Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm

Range 30-140 miles of power assisted range, depending on terrain

Downloads

FAQs


You can see what sizes this model is available in at the top of this page.
Sizes are listed in centimeters and also specified S, M, L etc.


Note: Some models have more available sizes than others.



Next to the size options, click 'Find my size' this will allow you to input your inside leg measurement along with your height in cm. Our special size calculator will show you what size you need to order.
These are displayed in S, M & L etc to correspond with the size options.


Note: You may be a particular size on one model and a different size on another model. Please use the size calculator on each model page as sizes can vary between manufacturers and models.



You can view the stock status of any model/variant by selecting it at the top of this page. It will show you one of three stock status:


In Stock: In stock now and available to order for immediate delivery
Pre-Order: Available to pre-order with expected date of arrival shown
Sold Out: The model is completely sold out in this variant and no longer available to order


On some pre-order models, the date may show TBC. This means the supplier has not firmed up the estimated date of arrival yet.
You can order your model and we'll notify you as soon as we have further ETA's from the supplier.



If colour options are available, these will show above the size options at the top of this page.
You can click each colour to view a larger image of any colours available.


Note: Not all of our electric bikes have colour options available.

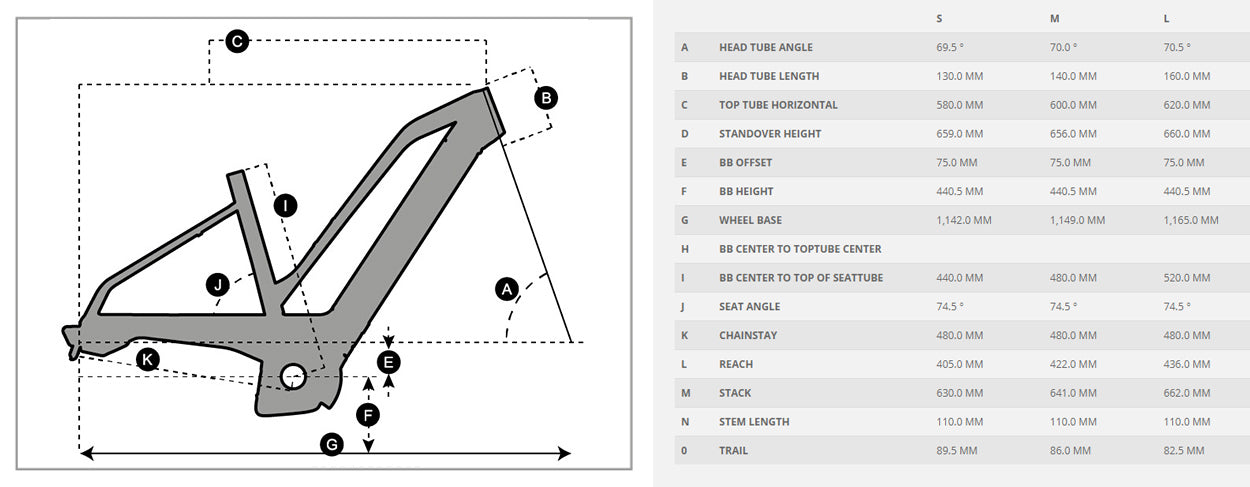

You can find the frame geometry chart in the downloads section above (if available). This is particularly handy if you want to know a specific dimension of the bike.
You can also use geometry charts to compare frame geometries to your existing bike if required too.



At e-bikeshop we specialise in the finest hand-built European eBikes. This particular model is made by Scott in Switzerland.



At e-bikeshop we work by appointment only, so we can talk to each customer on an individual basis to give the best advice possible.


We can talk you through your riding style and requirements and offer expert advice as to which model to select.


We generally keep over 150 eBikes built in our showroom. Note: Some models shown as 'Pre-Order' may not be in the showroom to view as the bike is still due from the supplier.
We can also give you the opportunity to ride a similar electric bike so you can get a feel for how electric bikes work prior to purchase.

Should you wish to purchase, we give the option to take it away that same day (subject to stock) with any accessories selected fitted and a fitting session on the bike itself by one of our eBike experts.



Yes, you may wish to collect your new electric bike from our HQ based in Farnham, Surrey.
If so please select 'Collect in store' at the checkout.


We will then prepare your new eBike and be in touch to book a suitable collection day/time.
One of our experts is on hand to help you set up the correct position on your new eBike along with answering any questions that you may have.
