Haibike Electric Bikes

Haibike AllTrail 4 27.5 2022


Haibike AllTrail 4 27.5 2022 Green
Haibike AllTrail 4 27.5 2022 Honeydew

Frame Size: S 40cm

Colour: Green


Yamaha 630Wh


Display A


Yamaha PW ST


30-140 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights


Haibike AllTrail 4 2022 eBike Rider Review
E-Bikeshop What's Included

The brand new AllTrail 4 27.5 2022 is an entry level full suspension trail bike packing a great specification list for its price point. Its alloy frame closely mirrors those of the AllMtn range and is built around the Yamaha PW-ST motor and a 630Wh in-tube battery and is designed for comfortable trail riding.

Although very much the entry level model in the range, the AllTrail 4 27.5 offers a lot of power from its 70Nm Yamaha motor, and a well thought out specification. It'll offer best value to new riders, or those looking for a bit more comfort on bumpier forest trails and fire roads.

Our 5 point review...


Lightweight but tough alloy frame


Fully integrated Yamaha 630Wh electric bike battery


11 speed wide ratio Shimano Deore gearing


Powerful Yamaha PW-ST motor with 70Nm torque output


Easy to use Yamaha Side Switch display


Haibike AllTrail 4 2022 Yamaha PW ST Motor
Haibike AllTrail 4 2022 Front Wheel Quick Release

Tried and tested..

The 2022 Haibike AllTrail 4 27.5 Geometry is very similar to the AllMtn range, but in a lighter, entry level bike designed to introduce riders to the world of eMTB riding.

Haibike AllTrail 4 2022 Suntour Rear Shock
Haibike AllTrail 4 2022 Suntour Forks

Incredible value

Whatever trail you plan to ride, with the SR SunTour Edge LOR8 shock and XCR34 forks can soak it up in 140mm of plush travel.

Perhaps the most exciting update for the new model year is the new Yamaha PW-ST motor and 630Wh battery. With an impressive 70Nm of torque and a battery that really does allow riders to go all day, this is a truly unbelievable value bike for 2022!

Haibike AllTrail 4 2022 Shimano Deore Brakes & Gears

Brakes & Gears

Continuing the theme of well thought out specification, the AllTrail 4 27.5 comes fitted with Shimano M410 disc brakes.

These brakes offer a huge amount of braking force, making them a great option for manufacturers looking to pull an eBike to a stop on even the steepest and most technical descents.

The new Shimano M410 setup is and easily maintained but ultra powerful set up at a great value price point.

Whilst most entry level ebikes get 9 or 10 speed gearing, the 2022 Haibike AllTrail 4 27.5 gets its 11 gears for 2022 in the form of the Shimano M5100 group set.

Its super wide ratio 11-51T cassette really takes the sting out of the long ascents, without holding you back in top speed on open ground and downhill sections and offers a useful gear for every scenario, regardless of terrain.

The Shimano RapidFire shifters offers fast, precise shifting with minimal chain slap, leaving you to concentrate on the trail ahead.

Haibike AllTrail 4 2022 Shimano Deore Brakes

The AllTrail features Shimano Deore hydraulic disc brakes as standard.

Haibike AllTrail 4 2022 Shimano Deore Rear Mech

Shimano Deore 11 speed gearing offers a ratio choice for absolutely anything you need to climb or descend.

Haibike AllTrail 4 2022 Shimano Deore Shifter

Deore M5100 shifters make light work of flicking the ultra-wide ratio cassette at speed.

Haibike AllTrail 4 2022 Saddle

Wheels & Tyres

The AllTrail 4 gets a pair of 27.5" wheels in the form of Rodi Tryp 30 rims built onto Haibike's own hubs.

The 2022 Haibike AllTrail 4 27.5 tyre setup is well thought out for its design purpose.

The Continental Trail King rubber is everything you need for effortlessly swapping between hard packed ground, loose loam, gravel or tarmac.

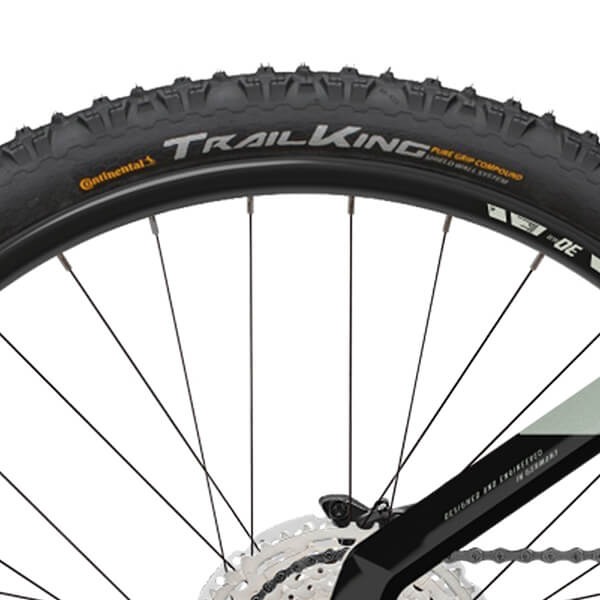

Haibike AllTrail 4 2022 Continental Tyres

The bottom line..

The AllTrail 4 27.5, like most Haibike models is aggressively styled with a highly "angular" aesthetic.

Despite being an entry level model, it still benefits from full internal cable and hose routing. Please note, although pictured with a dropper seat post, this is an optional extra and the bike features an alloy post as standard.

The green colourway is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration. Whilst the Hobeydew is a more subtle shade and featres the matte effect paint.

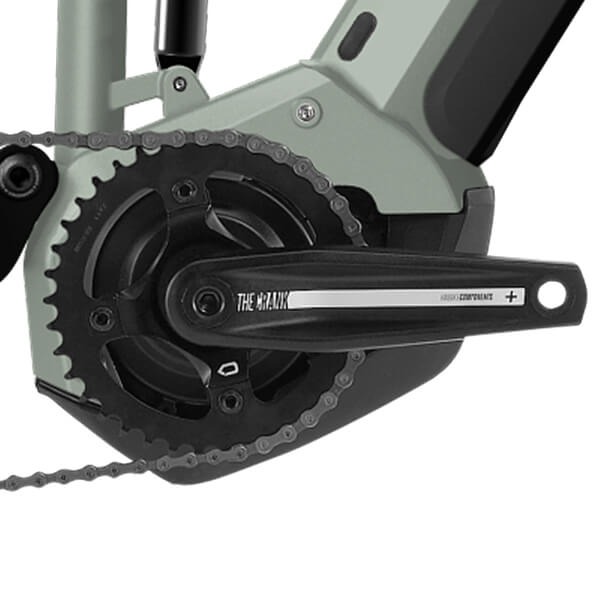

Haibike AllTrail 4 2022 Yamaha PW ST Motor

Yamaha PW-ST eBike System

The new 2022 Haibike AllTrail 4 27.5 is powered by the Yamaha PW-ST electric bike system. This system offers up to 280% assistance and peaks at 70Nm of torque. The power curve comes in early and is responsive as soon as you touch the pedals. The PW-ST supports a higher cadence than the standard PW Series, now offering assitance at up to 110rpm.

The assistance is offered in 4 levels - 'Eco+', 'Eco', 'Standard' & 'High'. This allows the user to fine tune the amount of assistance required during the ride offering complete flexibility and control which now also includes the 'Automatic Support Mode' which selects the right amount of assistance based on the riding conditions and how the bike is being used.

The 2022 Yamaha 'InTube' eBike battery can be quickly recharged in a matter of hours both on and off the bike. The LCD display mounted on the handlebars shows how much capacity the battery holds and also the predicted range in assisted miles. Offered with a lightweight & compact charger for 2022.

Haibike AllTrail 4 2022 Yamaha Side Switch

The Yamaha Side Switch offers immedate data on speed, powermode and battery status, with more information available when scrolling through screens.

Haibike AllTrail 4 2022 Yamaha PW ST Motor

The punchy 70Nm motor offers upto 280% assistance and has enough power to glide you to the top of even the roughest of ascents.

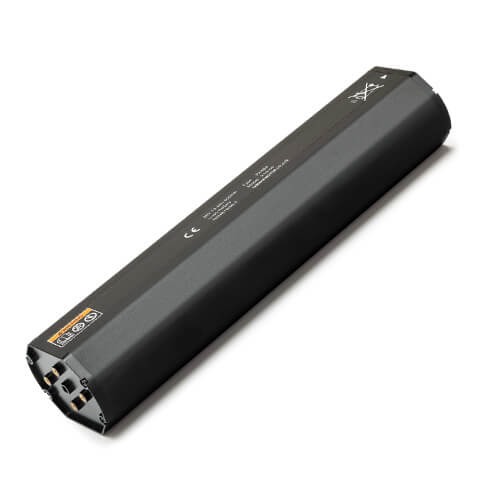

Haibike AllTrail 4 2022 Yamaha 630Wh Battery Pack

The Yamaha 630Wh battery is integrated neatly inside the frame. One of the largest in the range, it offers upto 160 miles of assisted pedalling.

Haibike AllTrail 4 2022 Handlebar Display

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.


General Bike Specifications

Frame Aluminium 6061

Forks SR Suntour XCR34 COIL LO, steel spring, Travel: 140mm

Rear Shock SR Suntour Edge LO-R8, air

Brakes Shimano MT410, aluminium, 180mm

Shifters Shimano Deore M5100, trigger switch

Rear Mech Shimano Deore M5100, 11-speed

Cassette Shimano M5100, 11-51 teeth

Chain KMC X11e

Wheelset Rodi Tryp 30, eyed, double-walled rim, aluminium

Tyres Continental Trail King, 65-584

Handlebars Haibike Components TheBar +++ Gravity 780mm

Stem Haibike Components TheStem 2, A-head, Bar bore: 31.8mm

Headset Acros Cable integration

Seatpost Haibike Components TheSeatpost ++, 31.6mm, aluminium

Saddle Selle Bassano Reko R2 E-Sport

Weight TBC

Electric Bike Specifications

Battery Yamaha InTube 630Wh

Display Yamaha Sideswitch

Motor Yamaha PW-ST System, 250W, 70Nm, 25km/h

Range 30-140 miles of power-assisted range, depending on terrain
