Tern Electric Bikes

Tern GSD S10 Electric Cargo Bike Bosch 2022

Ā£4,699.00

In stock
Tern GSD S10 Electric Cargo Bike Bosch 2022 Tobasco
Tern GSD S10 Electric Cargo Bike Bosch 2022 Black


Color: Tobasco

Battery

Bosch 400Wh

Display

Bosch Purion

Motor

Bosch Cargo Line

Range

30-100 miles

View in store

Why choose E-Bikeshop?

E-Bike Highlights

WHO IS THIS BIKE
SUITABLE FOR?

The new 2021 Tern GSD S10 is the perfect example of where design, function and movement come together to form a sustainable transport tool like no other!

Whether you need something for "last mile" deliveries, taking the kids to school or all-round leisure riding with friends and family the new 2022 Tern GSD Electric Cargo bike does it all, with limitless customisation options for every use.

Our 5 point review...

1

Lightweight, easy and quick to fold alloy frame

2

Up to 110 miles of range from the Bosch 400Wh Powertube battery

3

10 Speed Shimano Deore Gearing

4

Powerful reliability in the Bosch Performance Cargo Line 85Nm

5

Simple, easy to use Bosch Purion display system

Features

Brand new features..

The new 2022 Tern GSG Electric Cargo bike is latest evolution of an already highly popular cargo ebike - we're very pleased to be offering it in its new specification.

The GSD Electric Cargo bike comes as standard with built in mudguards, lights, and a large, high capacity load carrier - this new GSD had a max laden weight of 200KG!

Aside from it's bold colour scheme, the 2022 Tern GSD also now comes with the Cargo Line variant of Bosch's most powerful motor, with 85Nm or torque and up to 400% assistance.

Whats your function?

The new 2022 Tern GSD electric cargo bike comes with a fantastic specification as standard, but it can be configured in so many ways to suit every individual rider or business' needs.

Picking the kids up from school? Configure your Tern GSD with the Clubhouse Plus carrier, turning your Cargo ebike into a sustainable school taxi!

Looking to transport cargo? How about fitting your Tern GSD out with the short bed luggage tray to the rear or the transporter rack at the front, or both? Designed to fit standard sized Euro crates perfectly.

Everyday commuting? The Tern GSD can be equipped with their Cargo Hold Panniers and Rear short bed tray for the ultimate in carry ability with a weight limit of almost a quarter of a ton!

Brakes & Gears

While having hydraulic brakes as standard, we think these particular new Magura E-Stop brake levers should be on every city bike. Both front and rear levers have rear brake light switches built in, so the second you grab a lever you're immediately signalling your intention to those behind.

The front chain ring and chain line is covered by Tern's unique chain guard, keeping you and any passengers clean in all conditions.

The Shimano Deore 10 speed Shadowplus gearing make swift work of hills even when fully laden with its 11-36t cassette.

Magura's new eSTOP brakes are a cycling revolution, with brake lights built in and lighting up witheven the slightest touch on the brakes.

10 speed gearing in the form of the Shimano Deore 11-36t group set is well balanced for city riding and light off road use.

Deore trigger shifters are quick, smooth and reliable, making this the perfect commuter bike.

Wheels & Tyres

The Tern GSD is grips with decent Schwalbe Big Ben tyres which are designed for maximum grip whilst keeping rolling resistance to a low. More importantly they include kevlar lining protection to prevent annoying punctures.

The GSD comes equipped with Schwalbe Big Apple 20"x2.1" tyres. An excellent all purpose option, being a 20" wheeled bike there is a huge crossover with other styles of bike and so future tyre options are vast. More importantly they include the kevlar lining protection to help prevent annoying punctures.

The bottom line..

Although compact, the wheel base is that of a regular bicycle, the handlebar, fork and overall geometry give for a nice smooth and comfortable ride whilst maintaining the practicalities of being able to pack this cargo bike away.

Tern have developed a fully built in LED lighting system front and rear. Completely powered off the Bosch system there is no need to carry bulbs, batteries, and they cant be easily stolen and reused.

The new Tern Vektron electric folding bike ticks the boxes for those looking for a nice ride and neat solution to travel and storage. A nice simple, but good quality electric bike, suitable for a mixture of riding styles and rider heights.

Power

Bosch CX & Kiox eBike System

Bosch Cargo Line System

The new Tern GSD folding eBike features the latest Bosch Cargo Line crank drive motor, so you can be sure it's fitted with the latest kit and setup for optimum performance. Based on the Generation 4 Performance CX, this is the most powerful motor Bosch make!

This system outputs 85Nm of torque & peaks at 500w! It certainly packs a punch, it also offers up to 400% assistance on Turbo mode, while Eco mode offers a more subtle 50% assistance. There are 4 levels of assistance and remember you can always turn it off completely and ride it as a normal bike!

This machine rolls just the same as a normal cycle. In fact the quality in the design, geometry & build make it a true performer! The Tern GSD S10 allows for multiple batteries to be fitted as required - Offering complete control over and range anxieties.

Tern have equipped the new Bosch Purion display, a revised smaller dash that offers quick vision of essential parameters whilst occupying a minimal amount of cockpit space.

Read more in depth articles on Bosch on our Blog information pages.

Bosch Kiox 300 display

The Bosch Purion display is effortlessly simple to use and offers the rider "at-a-glance" speed, power mode and battery information.

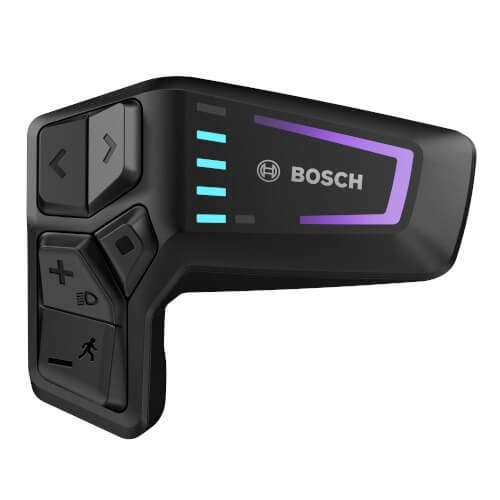

Bosch eBike LED Remote

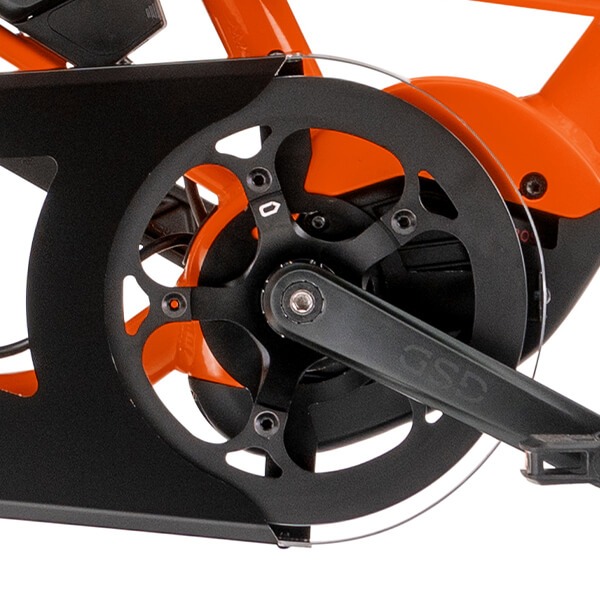

The Bosch Cargo motor has long been a common feature on Tern bikes. With the same 85Nm output as their most powerful Performance CX, is packs a serious punch under load.

Bosch PowerTube 750Wh battery

The Bosch PowerPack 400Wh battery neatly sits just below the seat, keeping the centre of gravity as low as possible for maximum stability.

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Specifications

General Bike Specifications

Frame Tern 6061-AL Hydro formed Alloy Multi Truss Design approved for 200KG capcity.

Forks Suntour Custom

Rear Shock N/A

Brakes Magura MT5 eSTOP Hydraulic Disc Brakes

Shifters Shimano Deore 10 Speed

Rear Mech Shimano Deore 10 Speed ShadowPlus

Cassette Shimano Deore 11-36t 10 Speed

Chain Shimano 10 Speed

Wheelset Tern GSD HD Cargo Wheels

Tyres Schwalbe Big Ben Plus (FR), Schwalbe Super Moto-X (RR)

Handlebars Tern GSD Sweep Double-butted 6061 Alloy

Stem Tern Andros Forged Adjustable Alloy Stem

Headset Tern Flux Pro Taper, angular contact bearings, Physis integrated

Seatpost Tern Alloy Telescopic 34.9mm

Saddle Tern GSD by Velo with Rear Handle

Weight 27 kg

Electric Bike Specifications

Battery Bosch Lithium Ionen 36 Volt Dual Battery System. 400 / 500 / 900 Wh. (2nd battery sold separately).

Display Bosch Purion Display / Integrated Buttons

Motor Bosch Cargo Line 36 Volt, 250 Watt. Up to 400% Assist, 85Nm

Range Up to 120 miles depending on dual battery setup and terrain.
