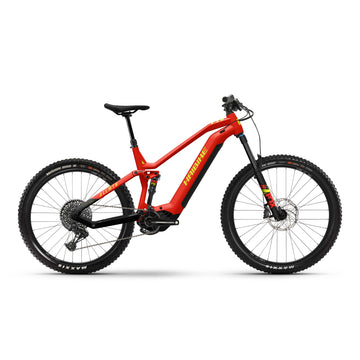

Haibike AllMtn 7 2023 Red

Haibike Electric Bikes

Haibike AllMtn 7 (Alloy)

£3,999.00 £5,599.00 Save £1,600.00

In stock

Frame Size: S 41cm

Colour: Red

E-Bike Key Specs


Yamaha 720Wh


Interface X


Yamaha PW X3


30-160 miles

View in store

E-Bike Highlights


Haibike AllMtn 7 2023 Electric Bike Rider Review

The brand new AllMtn 7 2023 is another fantastic value all mountain and trail bike the new Haibike model year and builds on the spec of others in the now incredibly vast AllMtn Range.

A new alloy frame built around the brand new Yamaha PW-X3 motor and their also new 720Wh in-tube battery and with an impressive specification, the new AllMtn 7 eMTB is designed to do absolutely everything in one neat, eye-catching package.

Our 5 point review...


Lightweight hydroformed alloy frame


Longest range Yamaha 720Wh electric bike battery


Ultra wide ratio SRAM Eagle 12 speed gearing


Latest Yamaha PW-X3 motor with 85Nm torque output


Yamaha Interface X display with Bluetooth connectivity


Haibike AllMtn 7 2023 Magura MT7 Disc Brakes
Haibike AllMtn 7 2023 Yamaha PW X3 Motor

The AllMtn model for every rider..

The 2023 Haibike AllMtn 7 carries the same frame geometry as the rest of the model range, but in a super tough alloy frame and with a keen eye on performance at a mid-spec price point.

Haibike AllMtn 7 2023 Fox 36 Float Forks
Haibike AllMtn 7 2023 Fox Float DPS Shock

Fox Suspension

Regardless of where you plan to use your new AllMtn 7, the Fox 36 Float Performance air forks and Fox Float DPS EVOL rear shock can soak it up in 160mm of plush travel.

Offering multi-way adjustment and tuning allows you to tailor your setup to your weight, riding style and terrain with a complete 160mm of travel front and rear.

Haibike AllMtn 7 2023 Sram GX Eagle Gears

Brakes & Gears

Continuing the theme of top shelf componentry, the Haibike AllMtn 7 gets the very best Magura anchors in the form of the MT7 HC set up.

These 4 piston brakes offer a huge amount of braking force, making them the go to option for manufacturers looking to pull an eBike to a stop on even the steepest and most technical descents.

The new HC single finger levers offer multi-directional adjustment for the perfect pull, every time. Paired with monster 203mm discs up front and 203mm at the rear, the new Magura MT7 setup is and easily maintained but ultra powerful set up.

12 Speed gearing has become the "go to" choice for eMTB manufacturers in the mid-high price tier, and the 2023 Haibike AllMtn 7 gets its 12 gears for 2023 in the form of the SRAM GX Eagle group set.

Its super wide ratio 10-50T cassette really takes the sting out of the long ascents, without holding you back in top speed on open ground and downhill sections and offers a useful gear for every scenario, regardless of terrain.

Working together, the SRAM GX Eagle shifters, the system offers fast, precise shifting leaving you to concentrate on the trail ahead.

Haibike AllMtn 7 2023 Magura MT7 Disc Brakes

MT7 HC levers compete with the very best anchors in mountain biking, with multi way adjustable levers as standard.

Haibike AllMtn 7 2023 Sram GX Rear Mech

The ultra wide ratio 10-50t cassette has a gear for every type of terrain, climb or descent.

Haibike AllMtn 7 2023 Sram GX Gear Shifters

SRAM's own GX Eagle trigger switch shifters switch seamlessly between gears with little effort.

Haibike AllMtn 7 2023 Maxxis Minion Tyres

Wheels & Tyres

Continuing the AllMtn model range trend, the AllMtn 7 also gets a "mullet" wheel set up with a 29" front and 27.5" rear in the form of DT Swiss HT1900 gravity specific components.

The 2023 Haibike AllMtn 7 tyre setup offers a clue to its purpose.

With a Maxxis Minion Assegai MaxxTerra up front and a Maxxis Minion DHR II at the rear, these Tubeless Ready tyres are designed to be fast, precise and provide useful feedback on any terrain and can be set up tubeless when we build your new bike at just £49.99.

Haibike AllMtn 7 2023 Fizik Saddle

The bottom line..

The AllMtn 7, like most Haibike models is aggressively styled with a highly "angular" aesthetic. Offering full internal cable and hose routing including the factory fitted dropper post, everything is tucked neatly out of the way.

The high gloss red paint finish against the black details is eye catching and shows off the incredible level of attention to detail in the overall build quality and component integration.


Haibike AllMtn 7 2023 Yamaha PWX3 Motor Drive System

Yamaha PW-X3 & Interface-X eBike System

The new Haibike AllMtn 7 2023 eBike features the latest Yamaha PW-X3 drive system.

This brand new motor for 2023 offers 85Nm of torque and peaks at over 500w. With 4 assistance modes, it can now provide up to 360% assistance in its highest power mode.

Part of the brand new PW-X3 system for 2023, the AllMtn 7 also gets a new 720Wh battery. Completely integrated into the frame, Haibike have neatly incorporated it into the downtube of the frame but with a key lock detachment, allowing it to be charged both on and off the bike.

The new 2023 Yamaha Interface X display offers battery and assist levels viewable from a display mounted at the centre of the stem, whilst the new control buttons mounted to the left of the handlebars allow the user to toggle ride modes on-the-fly. More data is available via the Bluetooth integration.

Haibike AllMtn 7 2023 Yamaha Interface X

The Yamaha Interface-X offers immedate data on selected powermode and battery status, with more infromation available via Bluetooth.

Haibike AllMtn 7 2023 Yamaha PW X3 Motor

20% smaller and 10% lighter than the PW-X2, the new PW-X3 delivers 85Nm of natural feeling power with every pedal stroke.

Haibike AllMtn 7 2023 Yamaha Battery Pack

The Yamaha 720Wh battery neatly fits inside the frame. The whopping 720Wh battery is the very largest in the model range from Yamaha, and offers up to 160 miles of worry free assisted riding.

Haibike AllMtn 7 2023 What's Included?

What's included

Your new electric bike gets a full set-up by our workshop technicians ahead of delivery.

Your eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.

This electric bikes includes a 5yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components. In the event of a problem, we handle all warranty claims via our dedicated support in-house.

E-Bikeshop is a UK Electric Bike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.

Why choose E-Bikeshop?


General Bike Specifications

Frame Haibike Alloy frame

Forks FOX 36 Float Performance, 160mm

Rear Shock FOX Float DPS Performance EVOL LV Trunnion, air

Brakes Magura MT7 HC-lever, 203mm

Shifters Sram GX Eagle, 12-Speed

Rear Mech Sram GX Eagle, 12-speed

Cassette Sram Eagle PG1230, 11-50 teeth

Chain Sram SX Eagle

Wheelset WTB ST i30 TCS laced on Haibike hubs

Tyres Maxxis Minion DHF, 29x2.5" / Maxxis Minion DHR II 27.5x2.6"

Handlebars Haibike Components TheBar +++ 780mm

Stem Haibike Components TheStem++, 31.8mm

Headset Acros BlockLock

Seatpost Haibike Dropper post, 34.9mm

Saddle Fizik Terra Aidon X5-160

Weight 25 kg

Electric Bike Specifications

Battery Yamaha InTube 720Wh

Display Yamaha Interface X

Motor Yamaha PW-X3, 250W, 85Nm

Range 30-160 miles of power-assisted range, depending on terrain
