E-Bike Key Specs
Battery
Bosch 750Wh
Display
Mini Remote
Motor
Bosch CX Gen 4
Range
30-140 miles
E-Bike Highlights
WHO IS THIS BIKE
SUITABLE FOR?

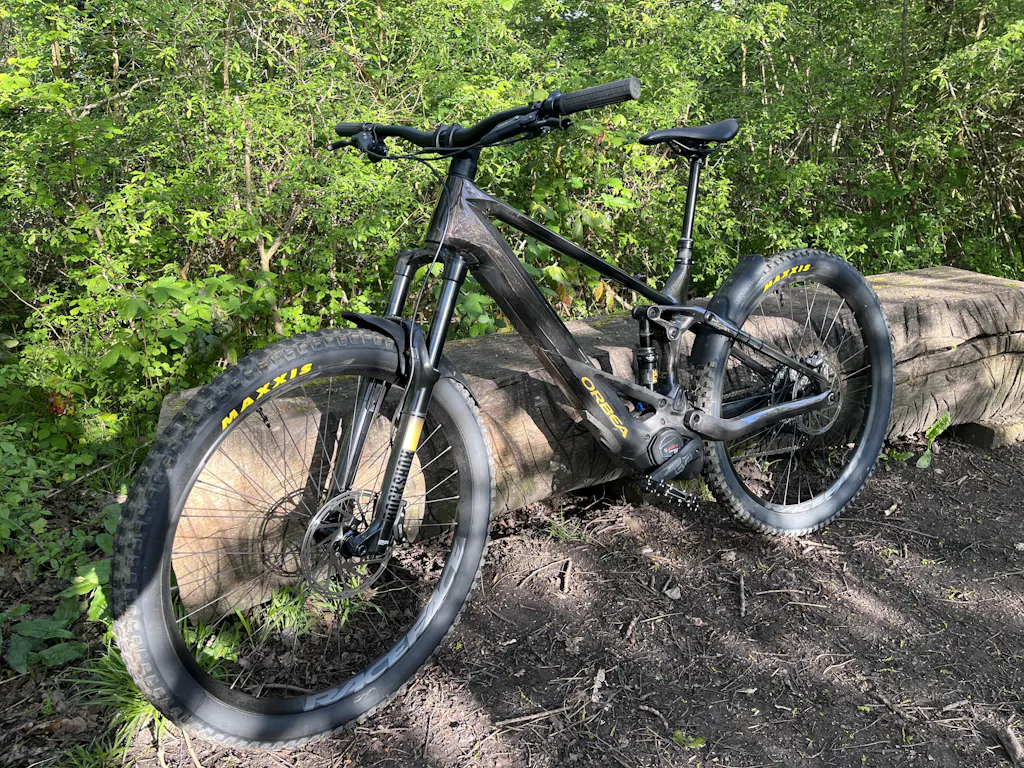

The Orbea Wild M20 2023 is the entry level carbon frame model of the Wild range, but arguably one of the best value. With a 160mm travel set up, it uses the latest 4th Generation Bosch Performance CX system which now includes the new Bosch Smart System, a 750Wh battery and brand new top tube integrated display system.
Built for all terrain, all mountain, single track and trail riding on a fantastic geometry platform, It's tough enough for even the most technical of trails but remains light enough for cross country too, using 29" RaceFace AR 30 wheels to offer excellent rollover even on the roughest of terrain.
Our 5 point review...
1
Advanced lightweight and hand crafted carbon frame
2
Up to 160 miles range from the Bosch Powertube 750Wh battery
3
Latest generation Shimano XT 12-speed gearing
4
Highest performing Bosch motor with 85Nm torque peaking at 340% assistance
5
Easy to use Bosch display integrated into the top tube of the frame
Features
Head turning design..
The 2023 entry spec carbon Wild M20 features the latest Bosch Gen 4 Performance CX motor, 750Wh battery and brand new Smart System. With the latest Bosch software already installed, it offers a totally new riding experience.
Also brand new for the 2023 model year is the frame - totally overhauled for the new model year for the first time since 2019, the 2023 Wild M20 features a unique Hydroformed alloy frame. The frame set has some clever design choices, including the integration of the new Bosch control systems into the top tube of the bike.
This light, super smooth frame with full internal cable routing makes the 2023 Orbea Wild M20 a real head turner on the trails!
Fox Suspension
Equipped with the 2023 Fox Float DPS Performance rear shock, the new Wild M20 offers 3-Way adjustable lockout and air compression with external rebound damping adjustment.
With the Dual Piston System, the rider can choose between fully locked out, fully open, or select the mid stage mode to conserve energy whilst still providing cushioning for a plush ride under pressure.
This new Fox shock comes with all of the functionality you expect from a market leader and is fully adjustable for rider weight. Orbea have also matched it with the new Rockshox 35 Silver forks.
Brakes & Gears

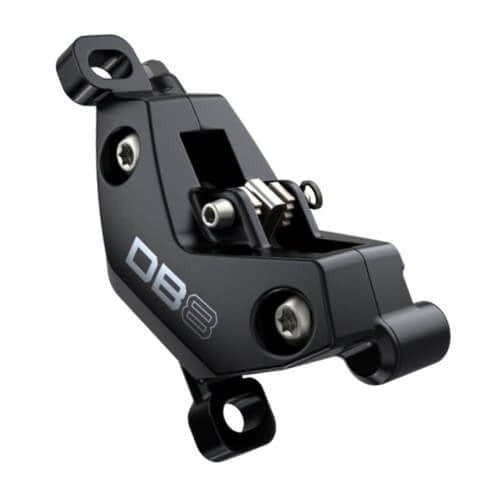

The 2023 Orbea Wild M20 ships with the new SRAM DB8 hydraulic disc brakes, which have been developed with eMTB in mind. These four piston brakes offer strong braking performance at a great value price point.
The brake levers also offer the same ergonomic lever design found on most Shimano brakes, offering easy reach adjustment with just a few turns of a built in adjuster.

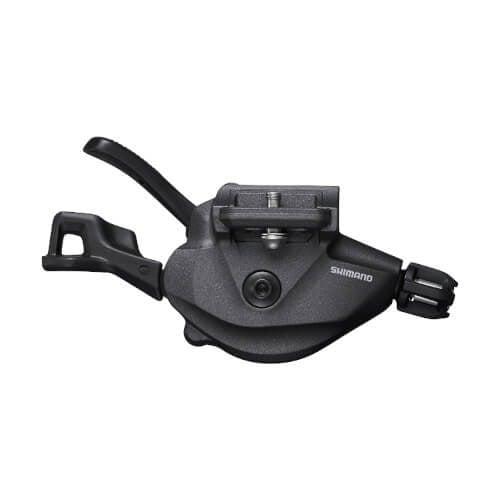

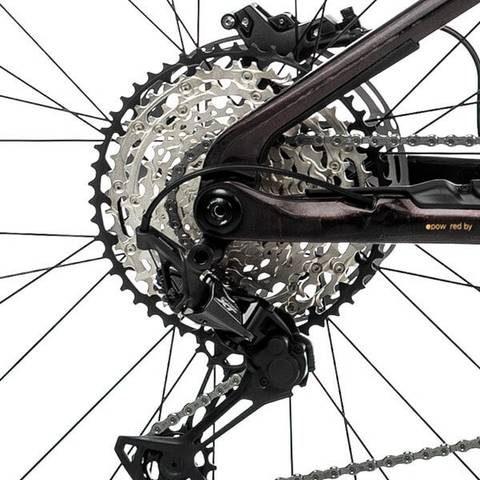

The Orbea Wild M20 2023 features the Shimano XT M8100 12-Speed Derailleur, a Deore M6100 i-Spec EV shifter and a Shimano E-bike specific cassette for maximum durability.
This combination between XT and Deore components complement each other in weight saving and price to create a super reliable group-set.
At the rear, a wide range 11-51t cassette ensures there's nothing you wont be able to climb, while retaining an impressive top speed.
4 piston brakes are a hallmark of a bike designed for the rough stuff. The Wild M20 is designed for the toughest of trails.
12 speed gearing, normally reserved for the top end bikes is fast becoming a standard feature on all top end eMTB models.

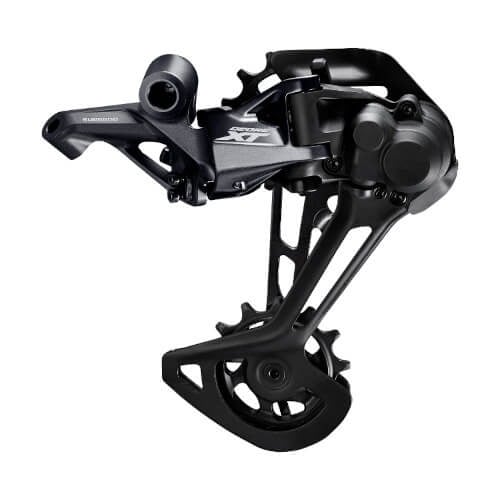

The Rapid-Fire Plus shifters provide smooth but positive shifting, and the Shadow Plus rear derailleur keep chain tension in check and chain slap to a minimum.
Wheels & Tyres
The 29" wheels provide an excellent rolling speed over rough terrain, while the modern geometry make sure the M20 stays nimble even in the most technical sections.
Orbea have once again given the M20 the AR 30c wheelset from Race Face. These 30mm wide rims offer an ideal tire profile for wide range of tyre choice.

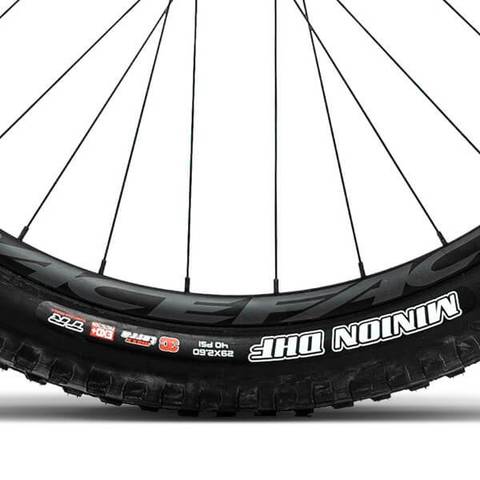

The Orbea Wild M20 2023 grips the trail once again with the 2.60" Minion tyres from Maxxis.
These tubeless ready tires feature the 3C MaxxTerra compound, offering excellent traction but with an improved wear rate over the 3C MaxxGrip compound. Ask us about setting your wheels up tubeless when placing your order.
The bottom line..
Orbea has completely overhauled the Wild M20 (along with the rest of the Wild range) to ensure its thoroughly competitive and up to date for 2023. With barely a change in specification since 2019 because of restrictions on parts availability and collaboration post-COVID, this is their first truly brand new Wild in over 3 years, and they've very much gone all out on it!
As well as a totally brand new frame set, the whole specification of the bike has been tweaked for optimum performance, reliability and value.
On top of the frame overhaul, Orbea have also equipped all of the new Wild models including this 2023 Wild M20 with the latest in Bosch "Smart System" technology. The 2023 Wild M20 comes with the latest Generation 4 Performance CX motor with 85Nm of torque, their biggest ever 750Wh battery and are the first of our manufacturers to make use of the new Bosch Mini Remote and top tube integrated display system.
One of the most beautifully crafted bikes on the market, we're very pleased to see Orbea back where they belong with the Wild range - right at the very forefront of eMTB design, performance and integration with a level of finish you just don't get on mass produced German bikes.
Power
Bosch CX & Mini Remote eBike System

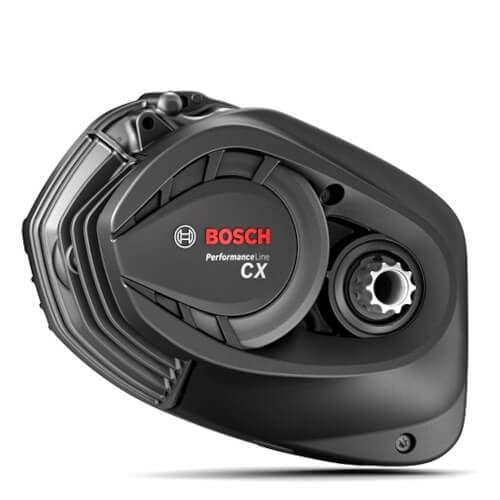

The new Orbea Wild M20 2023 eBike features the new Gen 4 Bosch Performance CX crank drive motor with its latest performance update and their largest battery with an impressive 750Wh capacity. This level of motor, battery and controller specification is exactly what you need on this top performing bike.
With its new update, the 250w CX system outputs 85Nm of torque & peaks at 500w! It certainly packs a punch, it will also offer up to 340% assistance in turbo mode. Featuring 4 levels of assistance & remember you can always turn the power off and ride it as a normal bike! In addition, the new eMTB mode allows the user to set in one assistance mode and the system itself will determine the assistance offered.
The Wild M20 features the 'PowerTube' Bosch 750Wh battery for 2023. Completely integrated into the frame, Orbea have neatly designed it so it can be charged both on & off the bike.

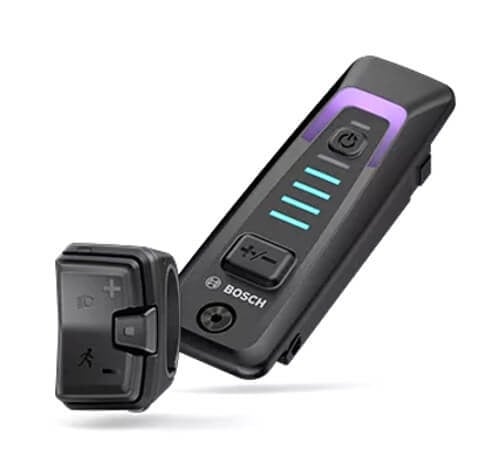

Brand new for 2023 bikes, the Wild M20 also makes use of the new Mini remote and top tube integrated display, supported by the Bosch eBike Flow app.
The Bosch Mini Remote and frame integrated display is simple and very easy to use, displaying key information at a glance. Full data can be obtained via the Bosch eBike Flow Smart System app.
The Bosch Generation 4 Performance CX motor is arguably the most widely used and reliable powerhouse in the mountain bike world right now, and is right at home on the 2023 Orbea Wild model range.

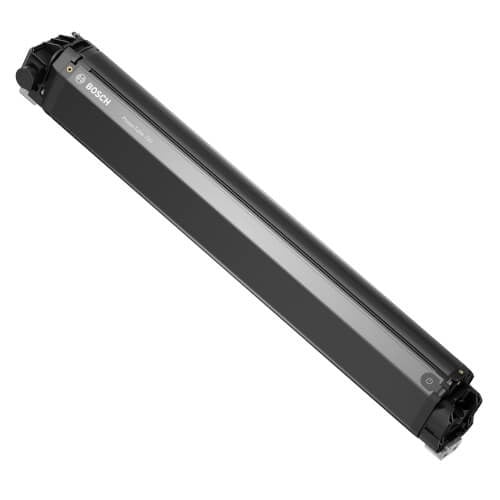

The Bosch PowerTube 750Wh battery neatly fits inside the frame and is secured with a key locking system. With up to 160 miles on tap, theres no-where you can't go!
What's included
Your new Orbea electric bike gets a full set-up by our workshop technicians ahead of delivery.
Your Orbea eBike will arrive with a user manual, keys (where applicable), charger & free follow up service (at our service center) within 3 months of delivery.
Orbea electric bikes include a 3yr warranty on the frame, 2yr warranty on all the electrics and 1yr warranty on the components.
In addition Orbea eBikes benefit from a lifetime frame warranty if you register your bike online with the manufacturer, which is free to do so. In the event of a problem, we handle all warranty claims via our dedicated support in-house.
E-Bikeshop is a Orbea UK eBike Service Center and our in-house workshop is exclusively reserved for our own eBike customers. We have time to support the eBikes we sell.
Why choose E-Bikeshop?
Specifications
General Bike Specifications
Frame Orbea Wild FS Carbon 2023 160mm Travel Boost
Forks RockShox 35 Silver TK Solo Air 160mm
Rear Shock Fox Float DPS Performance, custom tune, 3-position lockout, Trunnion mount
Brakes SRAM DB8 Black Hydraulic Disc
Shifters Shimano Deore M6100, 12-Speed
Rear Mech Shimano XT M8100, ShadowPlus, 12-Speed
Cassette Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100 12-Speed
Wheelset Race Face AR 30c Tubeless Ready
Tyres Maxxis Minion DH, Maxx Terra Exo+, 2.6"
Handlebars OC Mountain Control MC30, Rise20, Width 800
Stem OC Mountain Control MC20, 0Āŗ
Headset Alloy 1-1/2", Black Oxidated Bearing

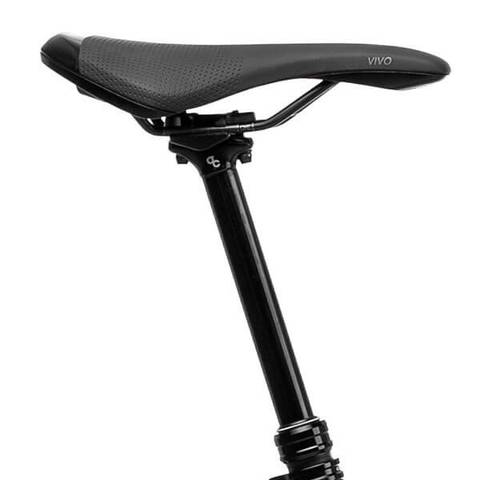

Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Saddle Selle Royal Vivo
Weight 23 kg
Electric Bike Specifications
Battery Bosch PowerTube 750Wh, with BMS Management
Display Bosch Mini Remote BRC3300 & BCR3100
Motor Bosch Performance CX 36 Volt, Gen 4, 250 Watt. 50-340% Assist, 85Nm
Range 30-160 miles of power assisted range, depending on terrain
